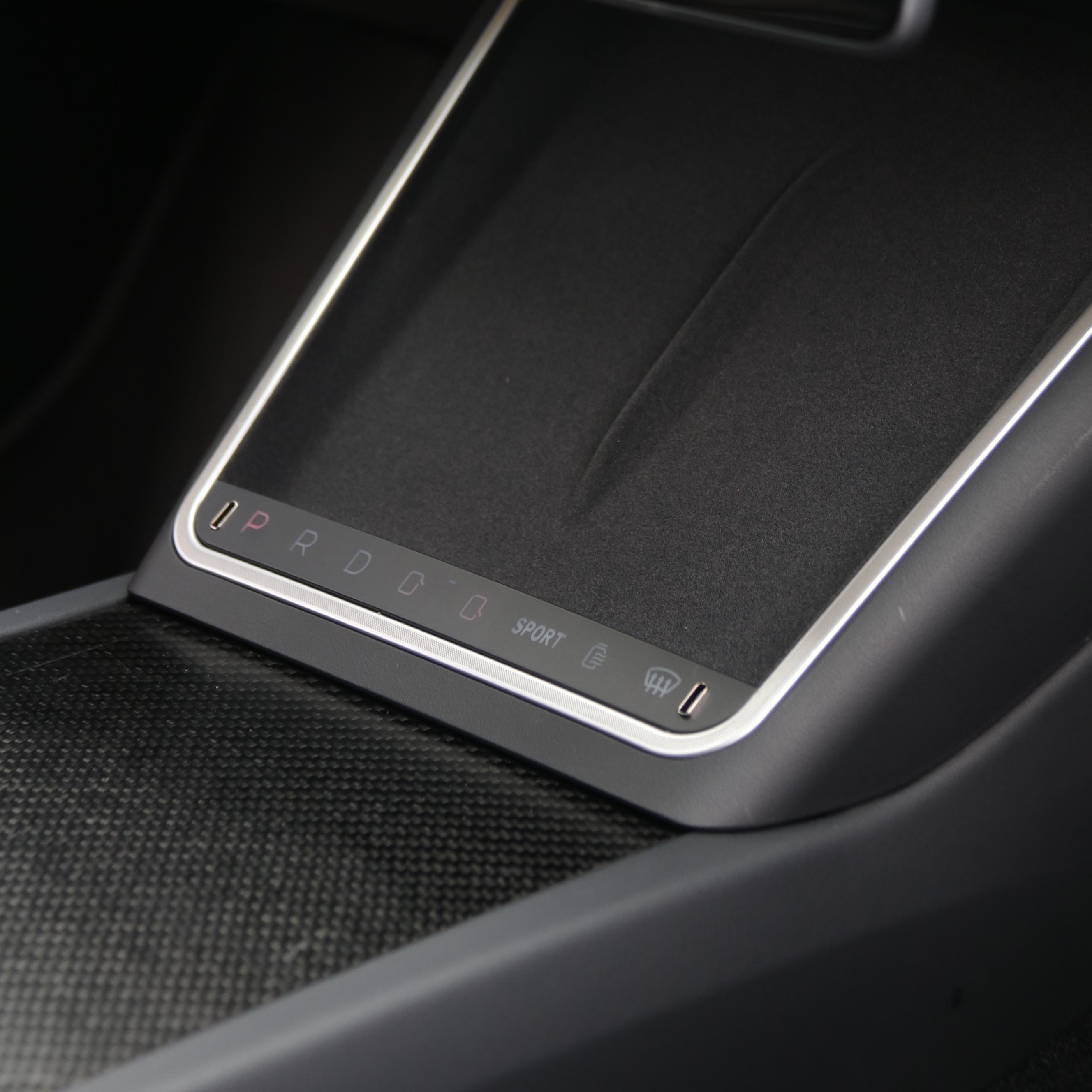

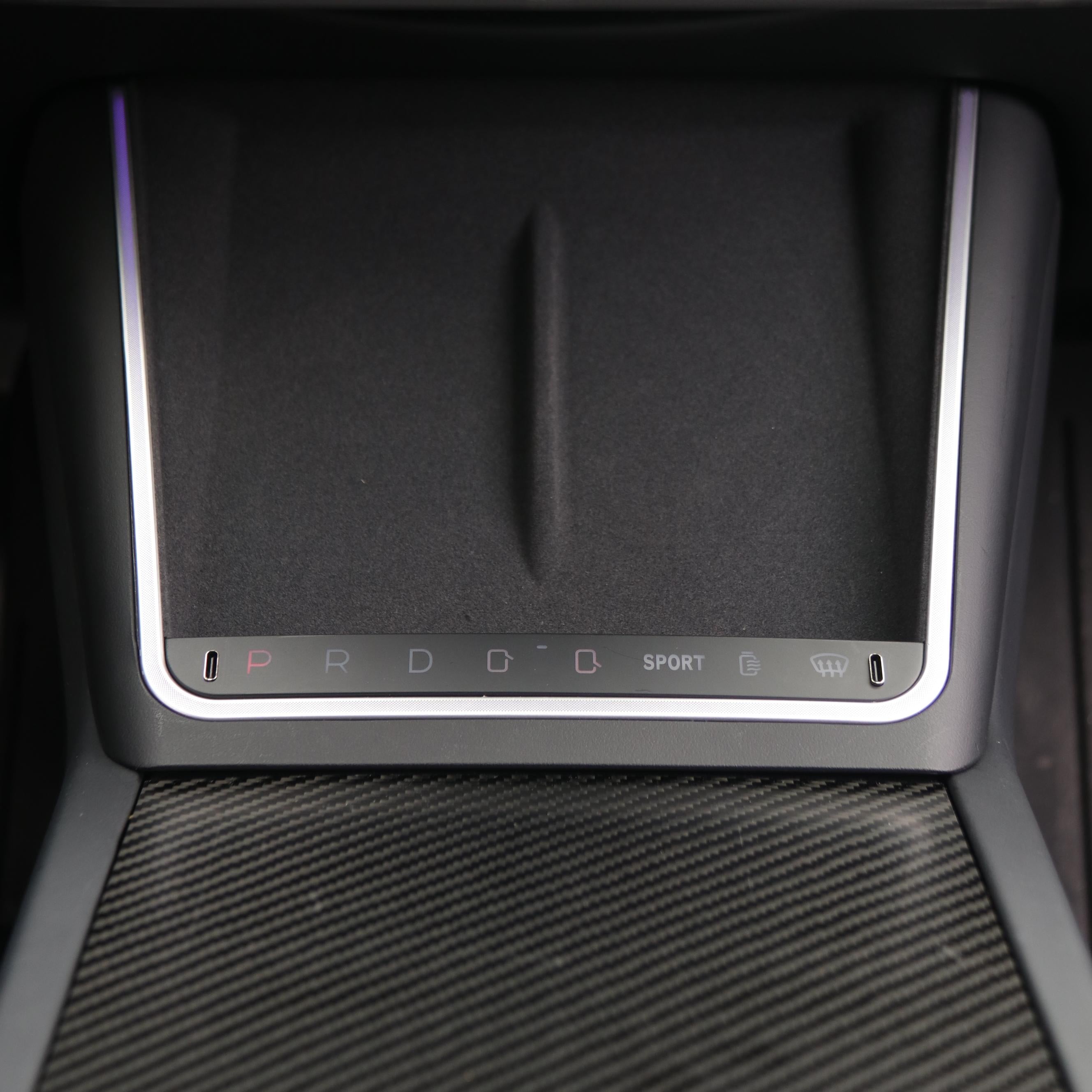

Console Smart-Button Module with Charging Ports
Add console shortcut controls to the Model 3 Highland 2024+ or Model Y Juniper 2025 only. The module combines gear-selection, door, battery-preparation and defogging shortcuts with haptic feedback and ambient lighting. It is described with two 20 W Type-C charging ports and retention of the original dual wireless charging pads. Model and driving-side versions are separate options.
- Highland / 2025 Juniper
- LHD or RHD
- Haptic Feedback
Hauptmerkmale
-
Kompatibilität
Choose Model 3 Highland 2024+ or Model Y Juniper 2025 only, then the correct left- or right-hand-drive version.
-
Control Method

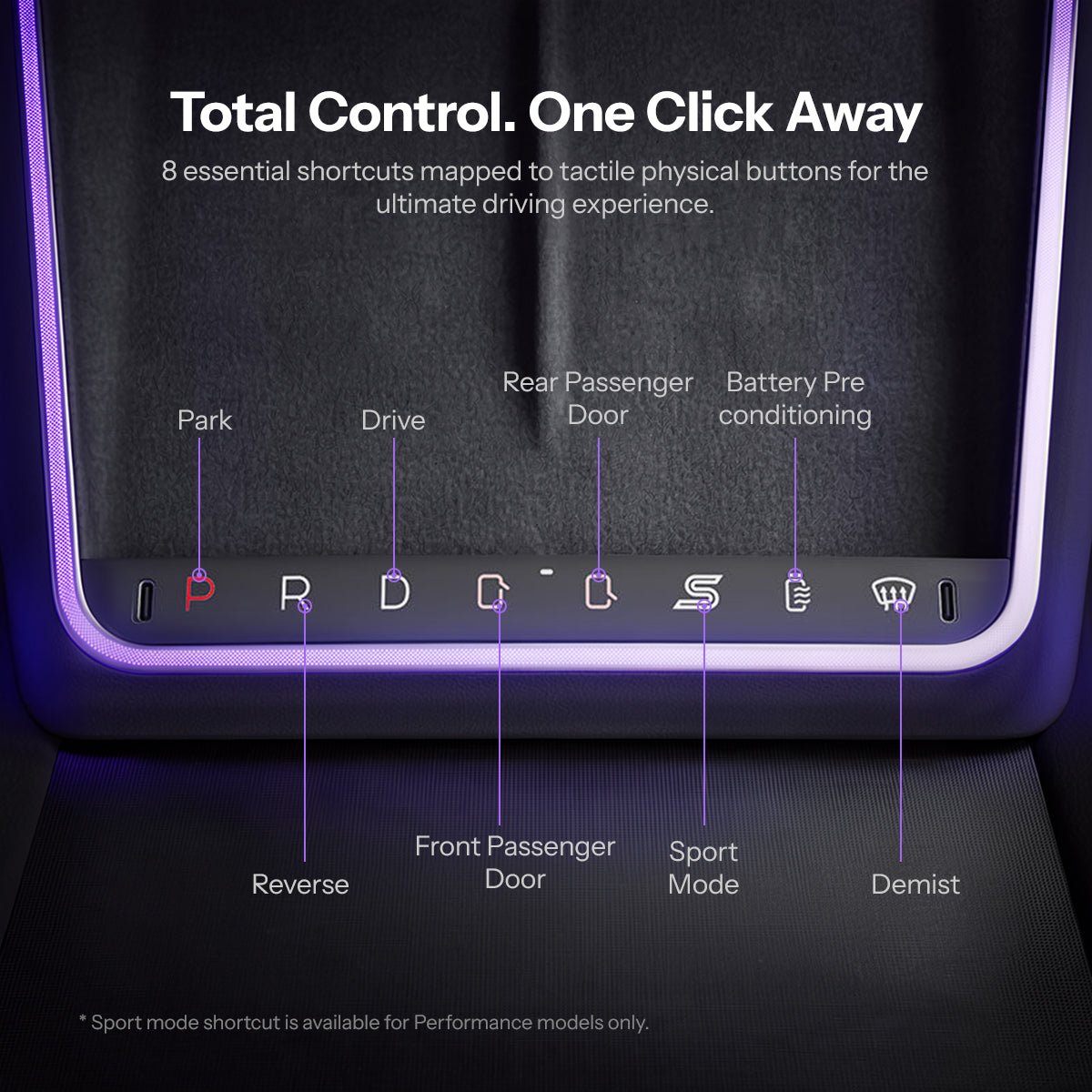

Console shortcut controls include gear selection, doors, battery preparation and defogging, subject to the actual firmware mapping.
-
Rückmeldung

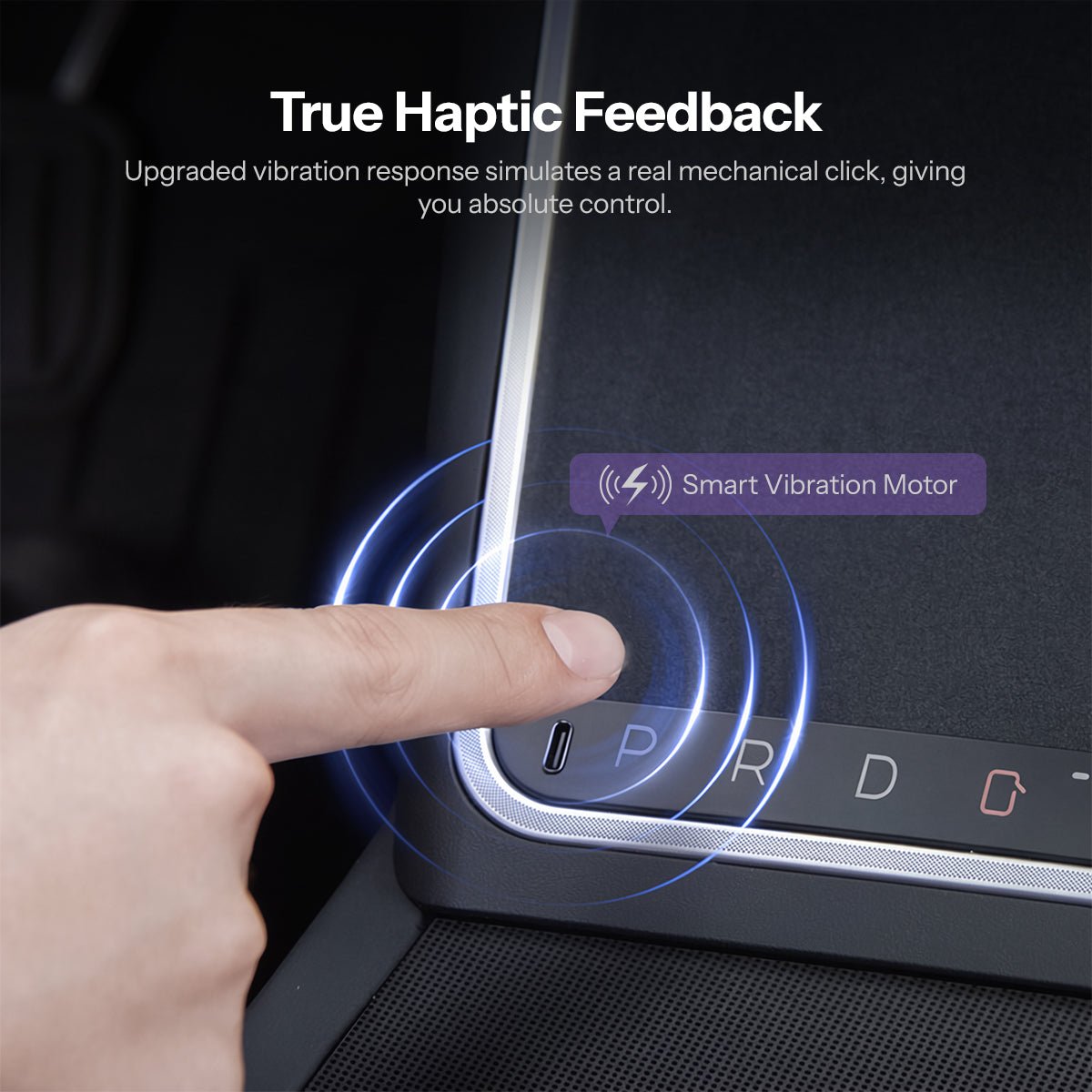

Haptic feedback provides a tactile response; vibration alone does not mean the command completed.
-
Beleuchtung

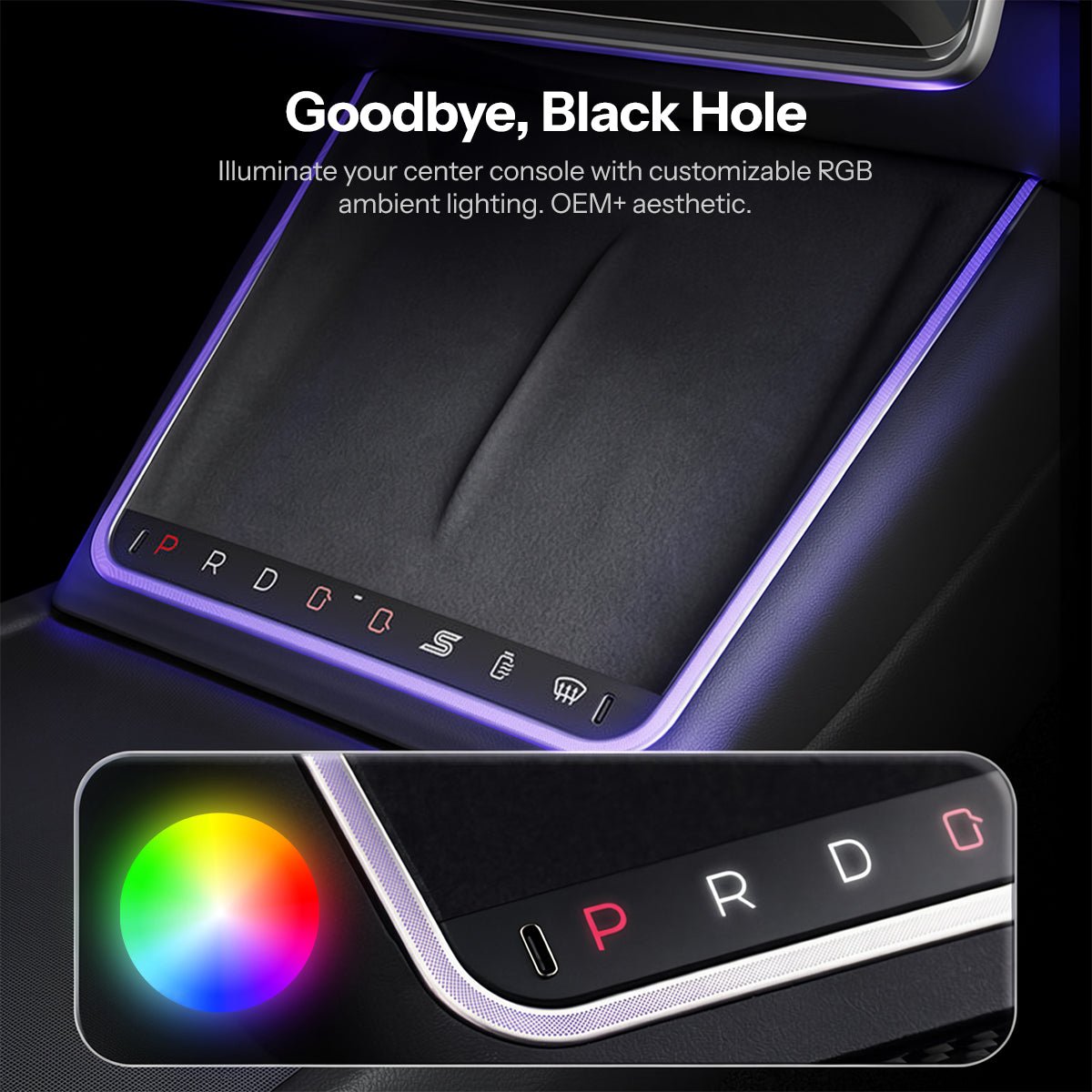

Integrated ambient lighting is designed to coordinate with the vehicle’s original lighting.
-
Anschlüsse

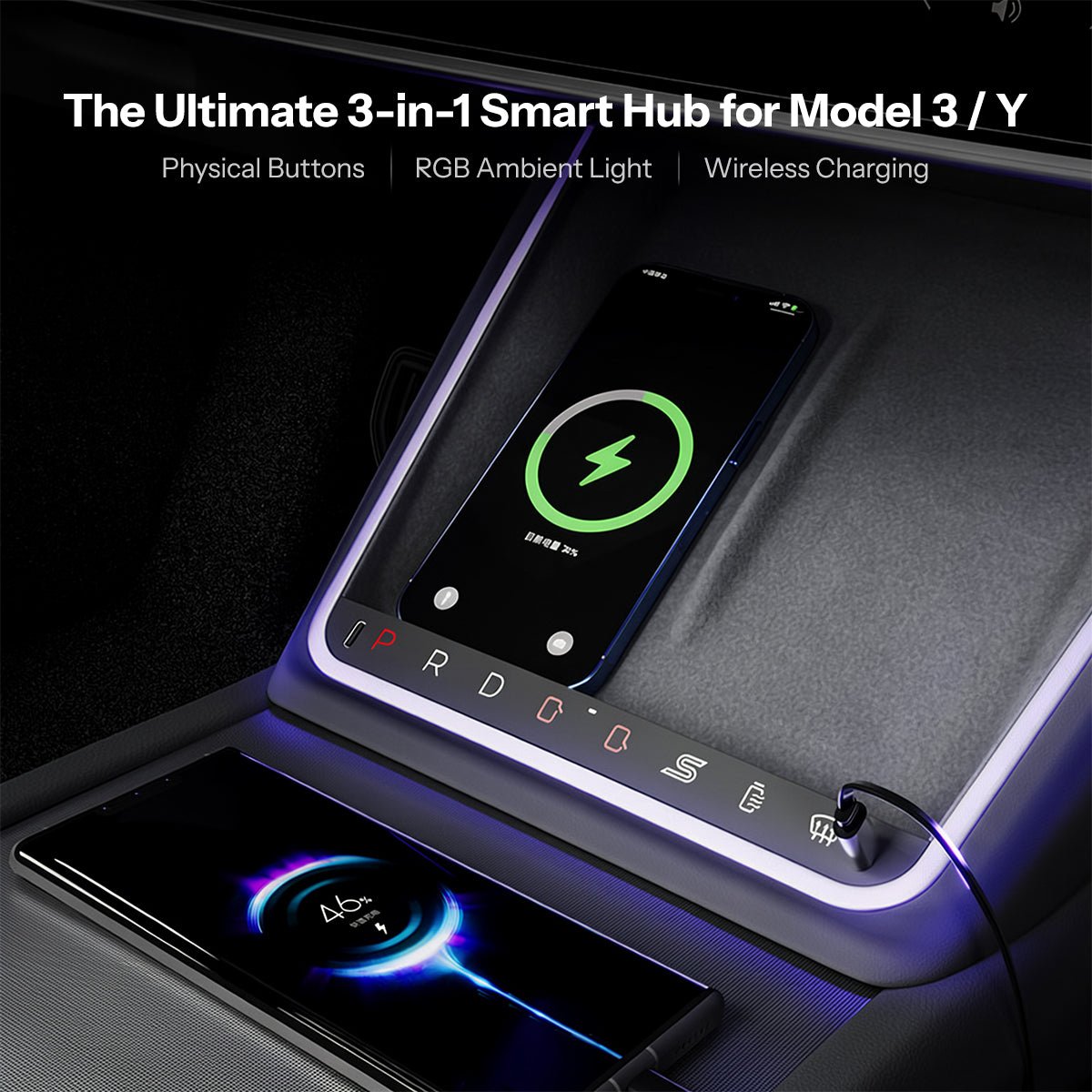

Two Type-C charging ports are described at 20 W each while retaining the original dual wireless charging pads.
-
Installation
The package includes a wiring set and manual.
Highlights
Console Controls and Feedback
Physical console controls provide access to vehicle shortcuts with tactile feedback. Vibration alone does not mean that shifting or a door action succeeded.
Keep the Charging Area Useful
The design retains the original dual wireless charging pads and adds two Type-C charging ports described at 20 W each. Actual charging depends on the delivered unit, compatible device and cable; this does not establish a shared 40 W budget or a USB data function.
Lighting and Vehicle Configuration

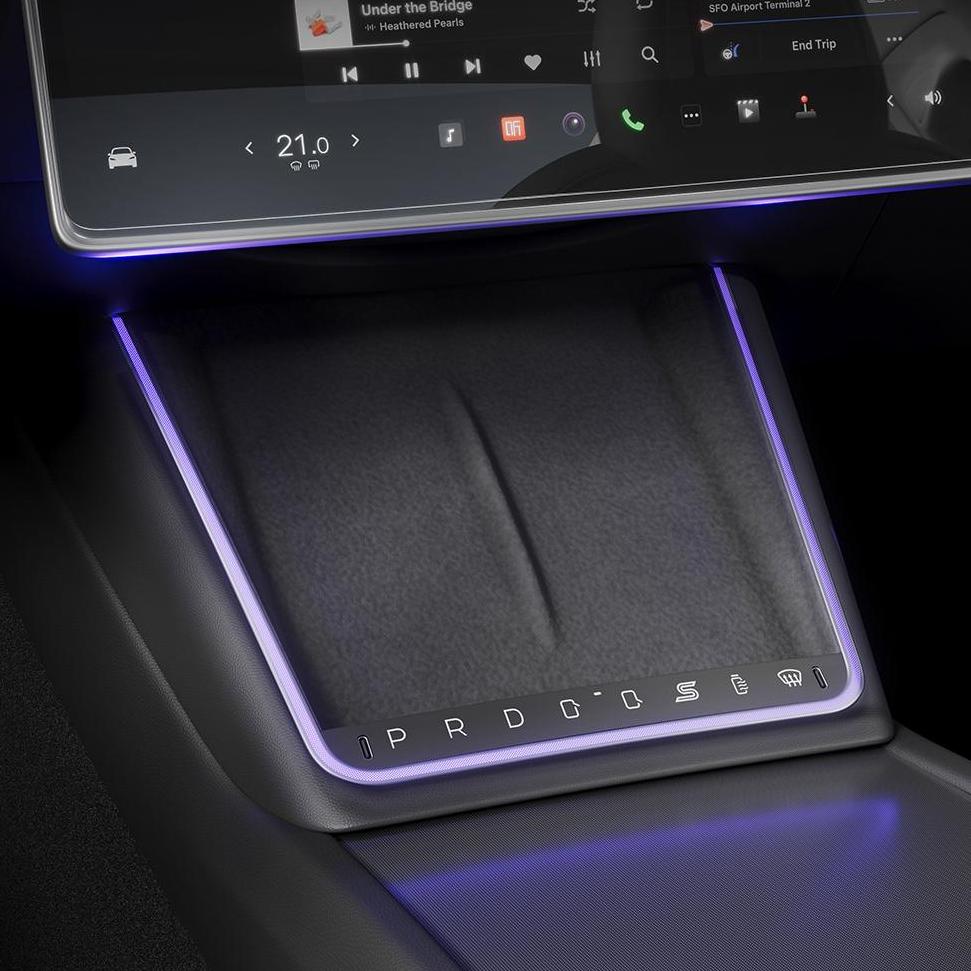

Integrated ambient lighting is designed to coordinate with the original lighting. Highland and 2025 Juniper versions, left- and right-hand drive, are separate options.
Kompatibilität
| Modell | Years / Version | Hinweise |
|---|---|---|
| Model 3 Highland | 2024+ | LHD or RHD option. |
| Model Y Juniper | 2025 only | Select LHD or RHD; no later-year compatibility is promised here. |
This is an accessory control module, not a replacement for the vehicle’s original controls or safety interlocks. Do not bypass brake, parking or other vehicle requirements.
Technische Daten
| Produkttyp | Console smart-button module with charging ports |
|---|---|
| Compatible Models | Model 3 Highland 2024+; Model Y Juniper 2025 only |
| Position / Location | Center console charging-pad area |
| Anschlüsse | 2 Type-C charging ports; original dual wireless charging pads retained |
| Leistung | Listed 20 W per Type-C port; output depends on the actual unit, cable and device |
| Lighting Modes | Ambient lighting designed to coordinate with the original vehicle lighting |
| Control Method | Gear-selection, door, battery-preparation and defogging shortcuts |
| Hand Drive (LHD/RHD) | Left-hand drive or right-hand drive by option |
| Lieferumfang | 1 module, 1 wiring set and 1 installation manual |
What's in the Box
- 1 smart-button module
- 1 plug-and-play wiring set
- 1 installation manual
Installation
- Install the vehicle- and driving-side-specific version with the delivered wiring set.
- Use the designated wiring and connectors only. Do not guess pin assignments, infer an input voltage from the ambiguous specification, or modify the vehicle interlocks.
- Keep access to the original controls.
Gut zu wissen
Achtung
- Vibration feedback does not indicate a safe vehicle state.
- No fail-safe behavior or software compatibility is claimed.
- The 9–16 V entry is ambiguous; supply terminals and USB output voltage are not specified.
Pflege
- Zero parked battery use, unaffected vehicle warranty and compatibility with every future software update are not stated.
FAQ
Which versions can I choose?
Model 3 Highland 2024+ and Model Y Juniper 2025 only, each with left-hand-drive and right-hand-drive choices.
Does it replace the vehicle’s original shifting system?
No. The original controls remain the vehicle’s shifting system.
Is tactile feedback proof the command worked?
No. Tactile feedback does not prove the command worked or fail-safe operation.
Are the original wireless charging pads retained?
Yes. The design is described as retaining both original pads while adding two Type-C ports rated at 20 W each.
What is included?
One smart-button module, one wiring set and one installation manual. Use the instructions for the delivered version; no generic pinout is supplied here.
