Door Projection Puddle Lights
These replacement door lamps project a TESLA wordmark onto the ground. Choose a two-piece front-door set or a four-piece front-and-rear set for vehicles with factory door-lamp positions.
- LED Projection
- Two or Four Lamps
- Factory Lamp Positions
- Factory Lamp Positions
Hauptmerkmale
-
Wordmark Projection
The door lamp projects a TESLA wordmark onto the ground.
-
Front Set
The two-piece option is for the front-door lamp positions.
-
Four-Door Set
The four-piece option requires existing compatible lamp positions in all four doors.
-
Lamp Housing
ABS housing with an aluminum-alloy base.
-
LED Rating
The product specifications give 12 V and 5 W per lamp.
-
Factory-Style Interface
Replaces the original lamp in the factory door opening.
Highlights
Wordmark on the Ground
The projection photo shows a TESLA wordmark beside an open Model Y door. This aftermarket lamp effect adds a wordmark at the factory puddle-light position; actual appearance depends on alignment, the ground surface and surrounding light.
Select Existing Lamp Positions
The two-piece set is for the front doors. The four-piece set is for vehicles with compatible factory lamps in the front and rear doors. For the described Model 3 Highland application, choose the front set rather than attempting to add missing rear lamps.
Connector and Housing Match

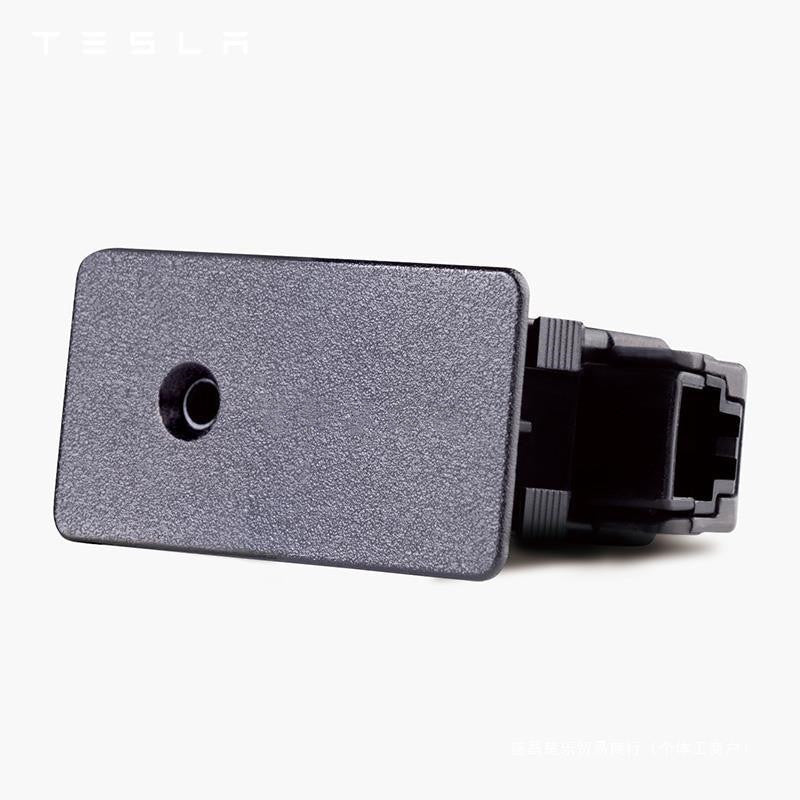

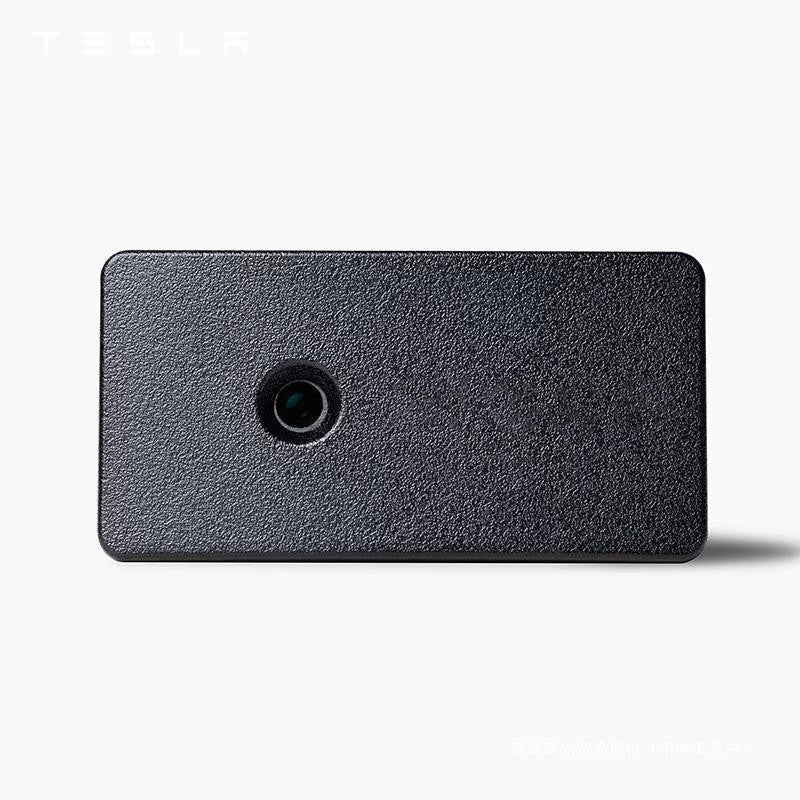

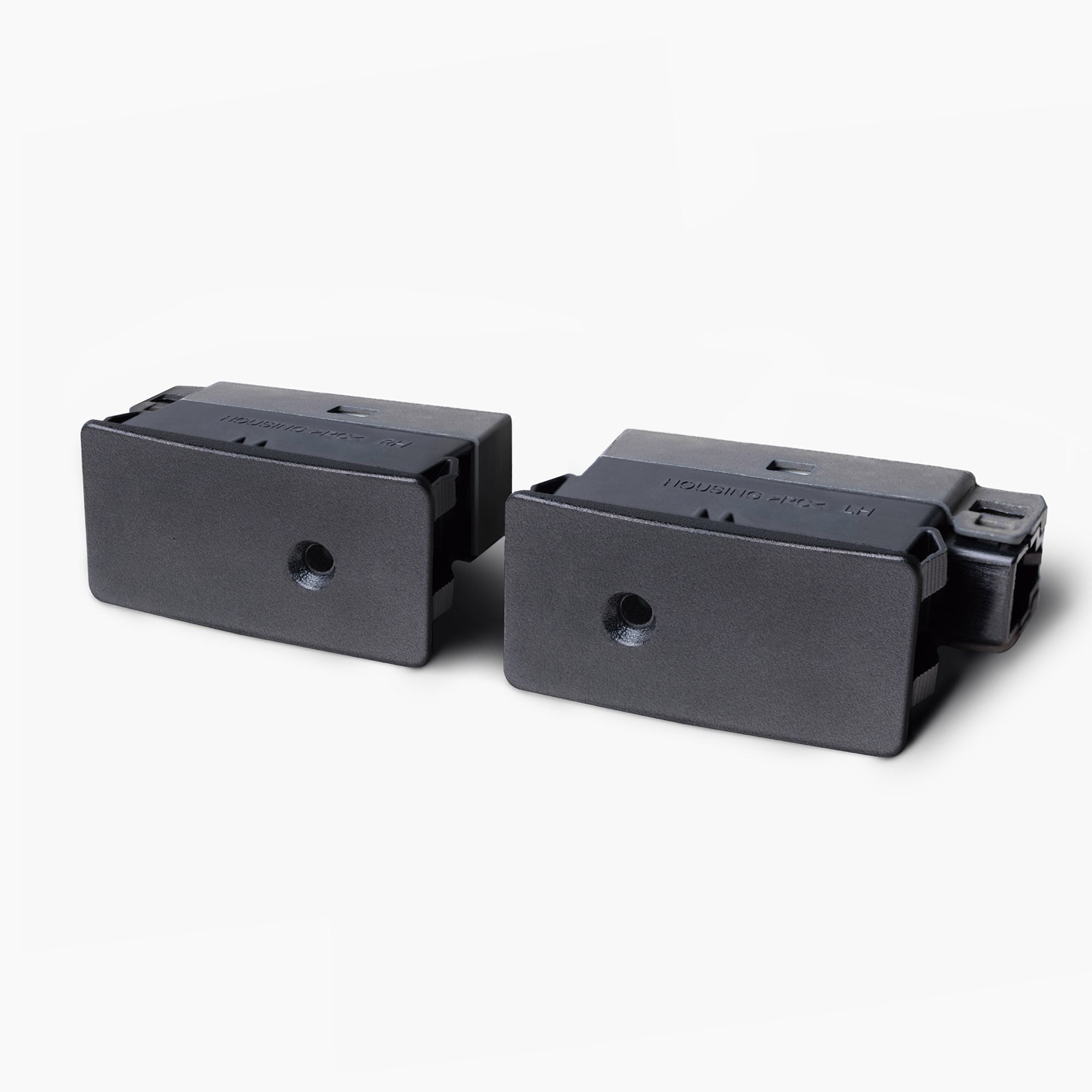

The pictured lamps have rectangular faces, retention features and a rear connector. Do not alter the door opening or wiring.
Kompatibilität
| Modell | Years / Version | Hinweise |
|---|---|---|
| Model 3 | 2017+ application | Factory door-lamp positions. Highland: front doors only. |
| Model Y | 2020+ application | Two-piece front set or four-piece front-and-rear set. |
| Model YL | The combined selector does not identify a separate YL harness. |
One lamp replaces each factory door-lamp position. The aftermarket product warranty is separate from vehicle warranty.
Technische Daten
| Produkttyp | LED door projection puddle lights |
|---|---|
| Compatible Models | Model 3, Model Y and Model YL factory door-lamp positions |
| Position / Location | Under-door factory puddle-light openings |
| Material | ABS housing with aluminum-alloy base |
| Menge | 2 front-door lamps or 4 front-and-rear lamps |
| Spannung | 12 V product rating |
| Leistung | 5 W per lamp |
| Light Source | LED |
| Installation Type | Factory-lamp replacement |
| Garantie | 1-year product warranty |
| Versandgewicht | 167 g (0.37 lb); shared shipping entry for both set options |
What's in the Box
- LED door projector lamps: 2 for the front-door set or 4 for the front-and-rear set
- No adapters or additional installation parts are listed.
Installation
- Park the vehicle. Open the relevant door and fully lower its window before removing a lamp. Keep the door open throughout the disconnected-lamp work.
- Gently release the original lamp with a suitable tool, keeping it close to the opening until the connector locking tab is released. Do not pull the harness or disconnect by tugging the wire.
- Repeat only at compatible factory lamp positions. Keep the original lamps available and do not treat a working projection alone as proof that all door and window functions are compatible.
Gut zu wissen
Achtung
- Model 3 Highland rear doors have no factory puddle-light positions in the described application. Choose the front two-piece set; do not drill a new rear opening or assume a four-piece set adds a factory circuit.
- Keep the door open and lower its window fully before removing a lamp. Do not close the door while the lamp is disconnected, pull on the harness or splice wiring to force a mismatch.
- A puddle-light electrical fault can affect window operation.
- The projected wordmark is an aftermarket feature. No guarantee of vehicle-warranty preservation, automatic-window compatibility or permanent fade resistance is made.
Pflege
- Keep the projection opening clean with a soft cloth and avoid abrasive cleaning or forcing liquid into the lamp or connector.
- Inspect lamp retention and window operation if illumination changes or a door/window fault appears. Stop using an incompatible lamp and arrange appropriate service.
FAQ
Should I choose two or four lamps?
Choose two for the front doors, or four only when all four doors have compatible factory lamp positions. For the described Model 3 Highland application, choose two front lamps.
Does it guarantee the window drop will be unaffected?
No. Puddle-light electrical faults can also affect windows.
Can I adapt a different connector or drill a new lamp opening?
No. This set is not intended for spliced wiring or altered door openings.
What warranty is offered?
A one-year product warranty is advertised. It is separate from the vehicle warranty.
