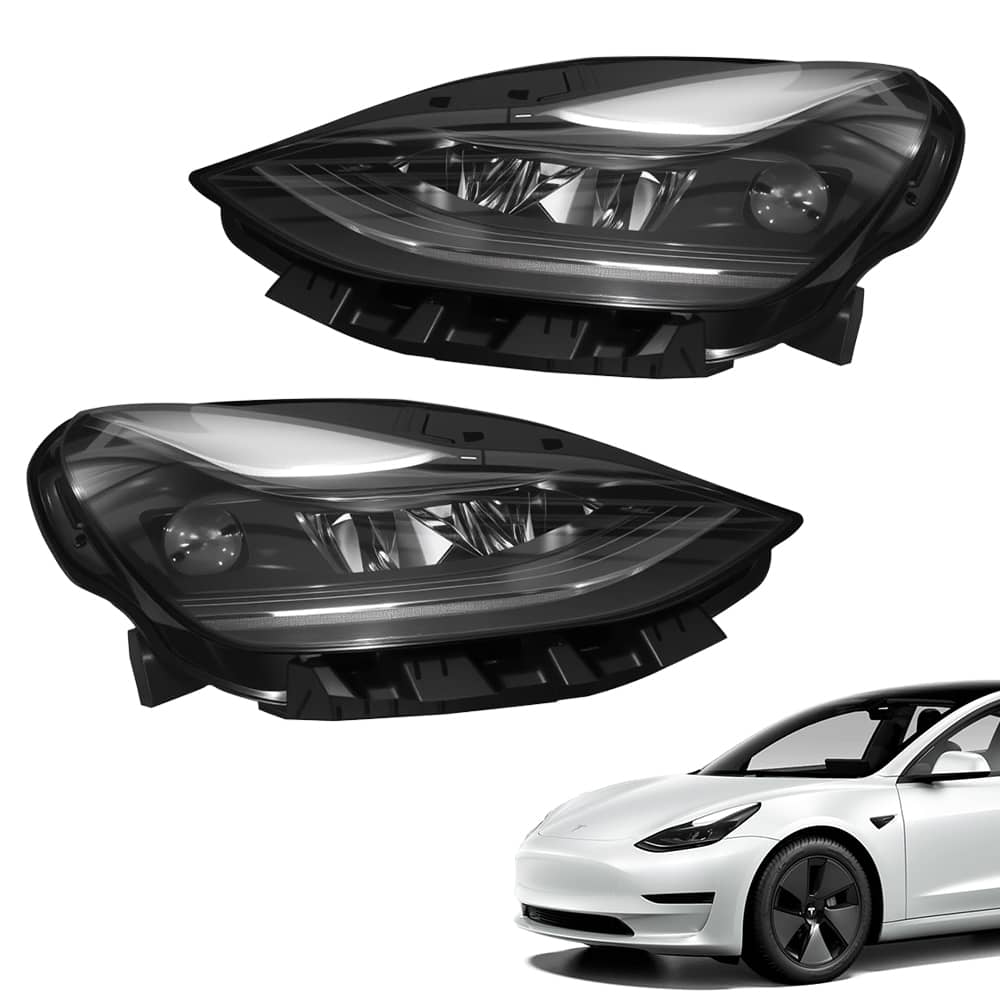

Matrix LED Headlight Assemblies for Model 3 and Model Y
Matrix LED projector headlight assemblies for Model 3 2021–2023.10 and Model Y 2021–2025.03 with factory Matrix headlights. The left assembly uses reference 1514952 and the right uses 1514953. Each assembly includes a pre-installed control module; left, right and Left+Right options are available in Normal Region and European Region versions.
- Matrix LED projector
- Left / right / pair
- Regional options
Hauptmerkmale
-
Design
Matrix LED projector layout with a circular outer lens.
-
Kompatibilität
Model 3 2021–2023.10 and Model Y 2021–2025.03 with factory Matrix headlights.
-
Position
Left reference 1514952 and right reference 1514953.
-
Optionen
Normal Region and European Region versions.
-
Lieferumfang
One headlight assembly or a left/right pair, with pre-installed control modules.
-
Installation
Front bumper removal and replacement at factory mounting points.
Highlights

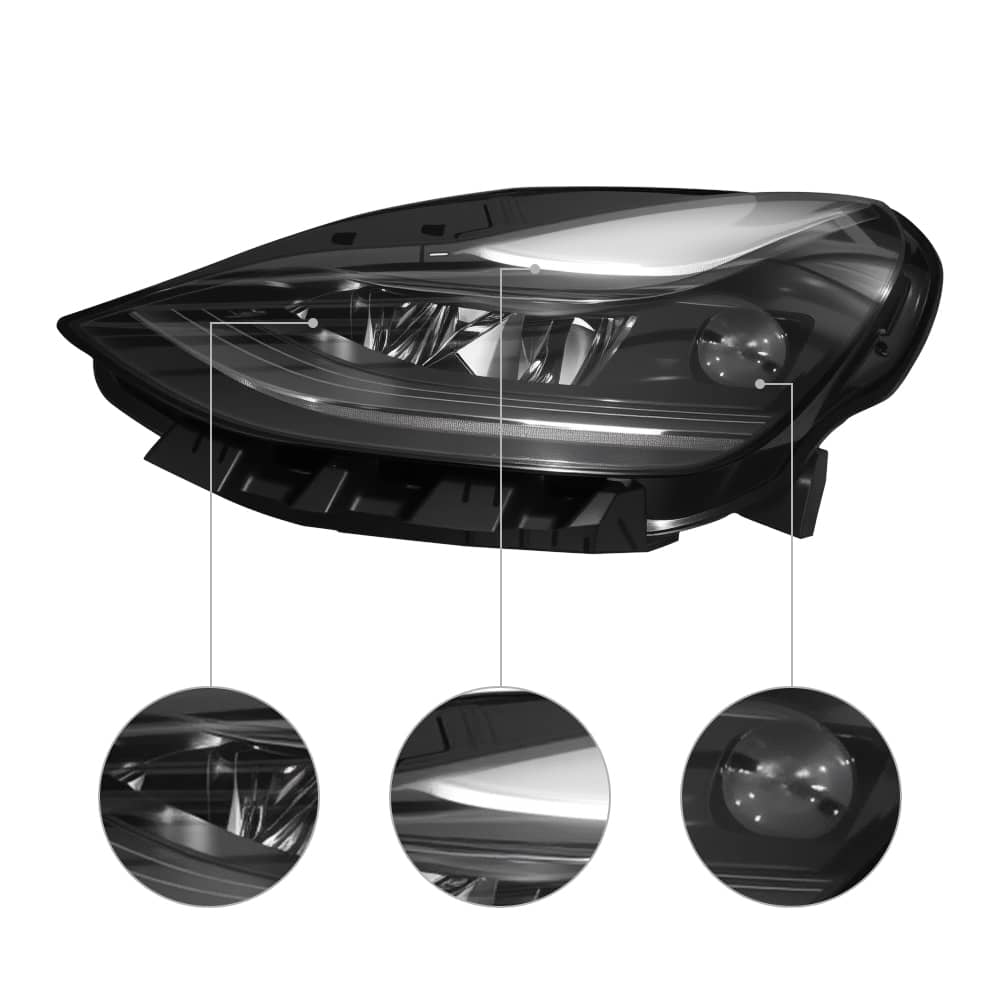

Round Matrix Projector
The Matrix LED assembly has a circular outer projector lens beside the reflector sections. This is the projector type, rather than the reflector-only Full LED headlight.

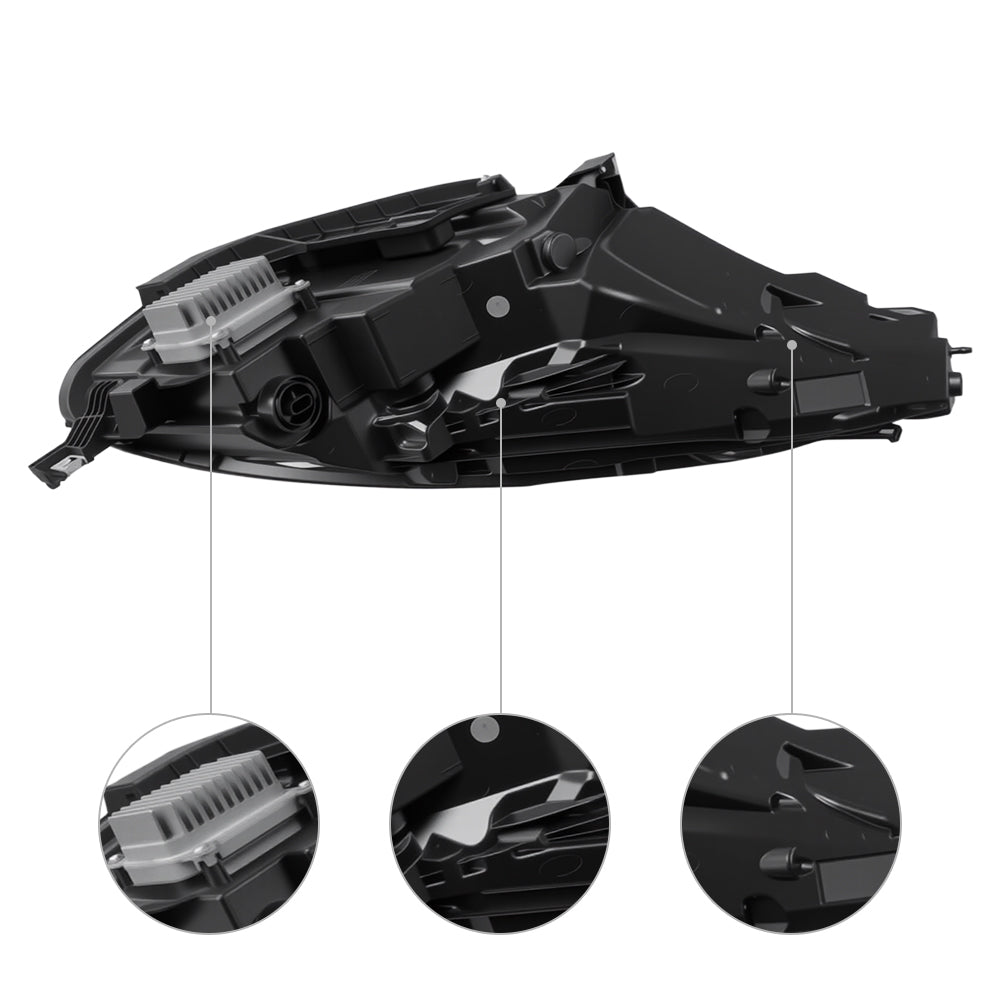

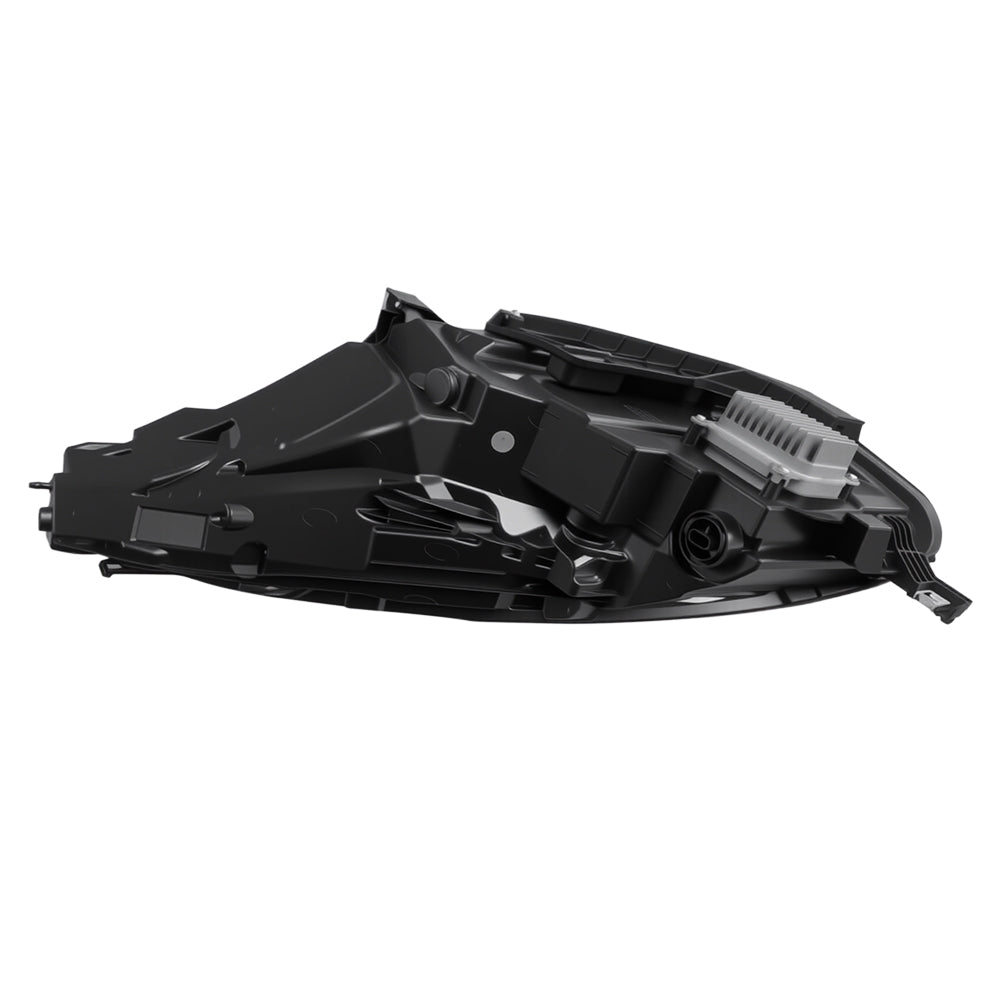

Complete Headlight Housing
The rear housing carries the pre-installed control module and factory-style mounting points. Left, right and paired assemblies are available.
Kompatibilität
| Modell | Years / Version | Hinweise |
|---|---|---|
| Model 3 | 2021–2023.10 | Factory Matrix projector headlights |
| Model Y | 2021–2025.03 | Factory Matrix projector headlights |
Fits vehicles originally equipped with Matrix projector headlights. Does not replace the reflector-only Full LED type. Normal Region and European Region are separate versions.
Technische Daten
| Produkttyp | Matrix LED projector headlight assembly |
|---|---|
| Compatible Models | Model 3 2021–2023.10; Model Y 2021–2025.03; factory Matrix headlights |
| Position / Location | Front left, right or left + right |
| Light Source | Matrix LED with projector lens |
| Installation Type | Front bumper removal; factory mounting points and wiring harness |
| Lieferumfang | Selected headlight assembly or pair with pre-installed control modules |
| Part Number Reference | Left 1514952; right 1514953 |
| Optionen | Normal Region or European Region |
What’s in the Box
- Left or right Matrix LED headlight assembly with pre-installed control module, according to selection
- Left and right assemblies for the Left+Right selection
Installation
- Remove the front bumper to access the headlight assembly.
- Replace the headlight using the factory mounting points and wiring harness.
FAQ
What do 1514952 and 1514953 identify?
1514952 is the left headlight reference and 1514953 is the right headlight reference.
What is included with each assembly?
Each headlight assembly includes a pre-installed control module. The Left+Right option contains both assemblies.
Does this replace reflector-only headlights?
No. This assembly is a replacement for the factory Matrix projector type. Reflector-to-Matrix conversion is a separate retrofit.
