Replace a Failed HW3.0 Side Repeater Camera
This side-specific replacement combines the side repeater camera, turn-signal light, connector body and mounting housing in one assembly. Options cover HW3.0 vehicle, factory and left or right side. References: left 1495864-20-E, right 1495865-20-E.
- HW3.0
- Left or Right
- Complete Assembly
- OE Ref Listed
Hauptmerkmale
-
Complete Assembly
The camera, side turn-signal light, connector body and mounting housing arrive as one assembly
-
Side-Specific
Left and right pieces are separate
-
OE Reference Numbers
Left 1495864-20-E and right 1495865-20-E for application matching
-
HW3.0 Application
Intended for the listed HW3.0 camera systems after exact part and interface matching; it is not an HW4 / AI4 upgrade
-
Factory-Based Options
Choose Giga Shanghai, Giga Austin / Fremont or Giga Berlin with your model and year
-
Calibration Planned
Plan for the DAS reset and camera calibration after installation
Highlights

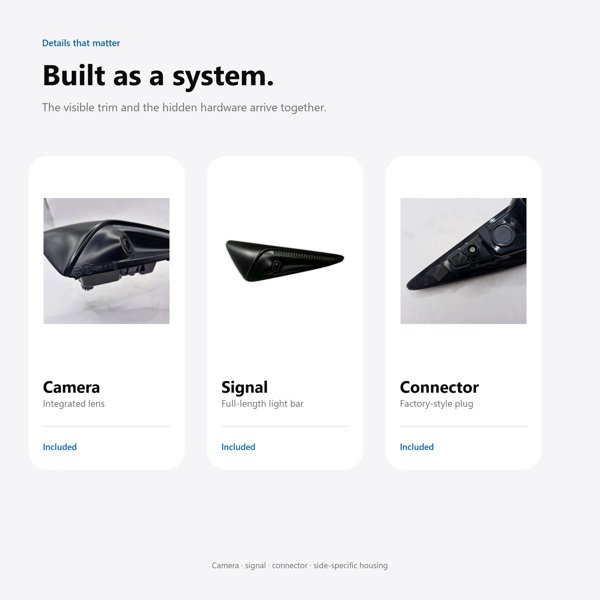

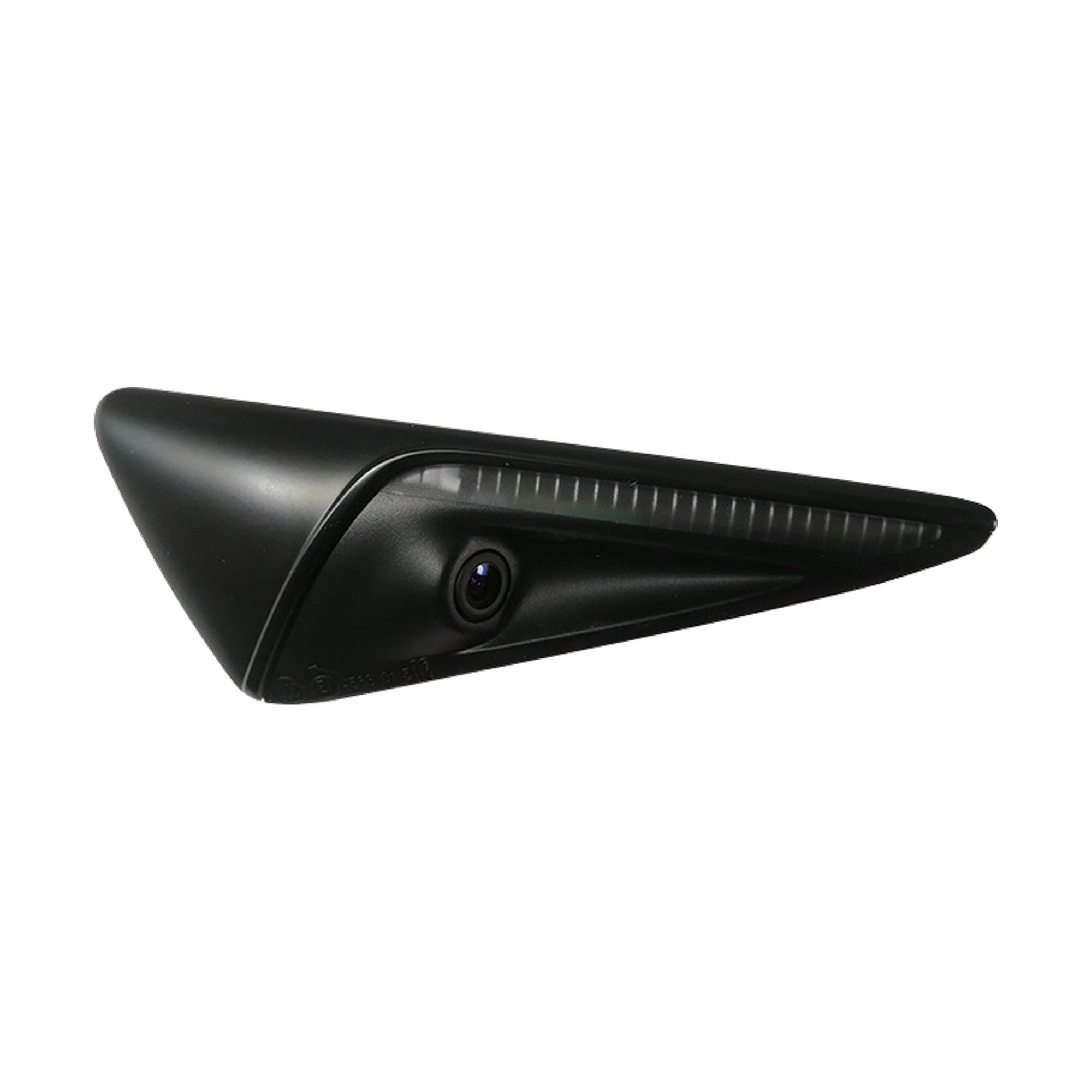

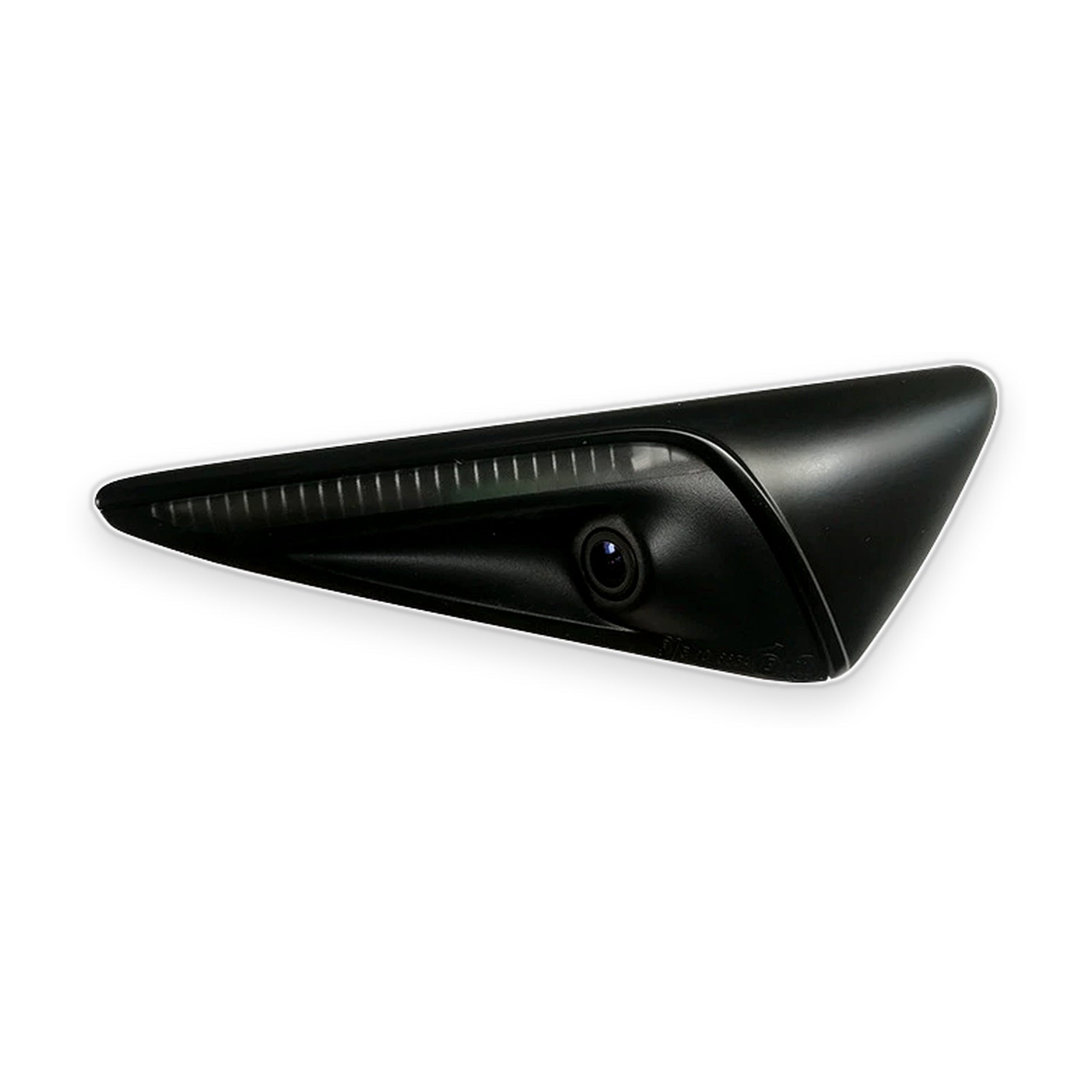

Camera and Signal Together

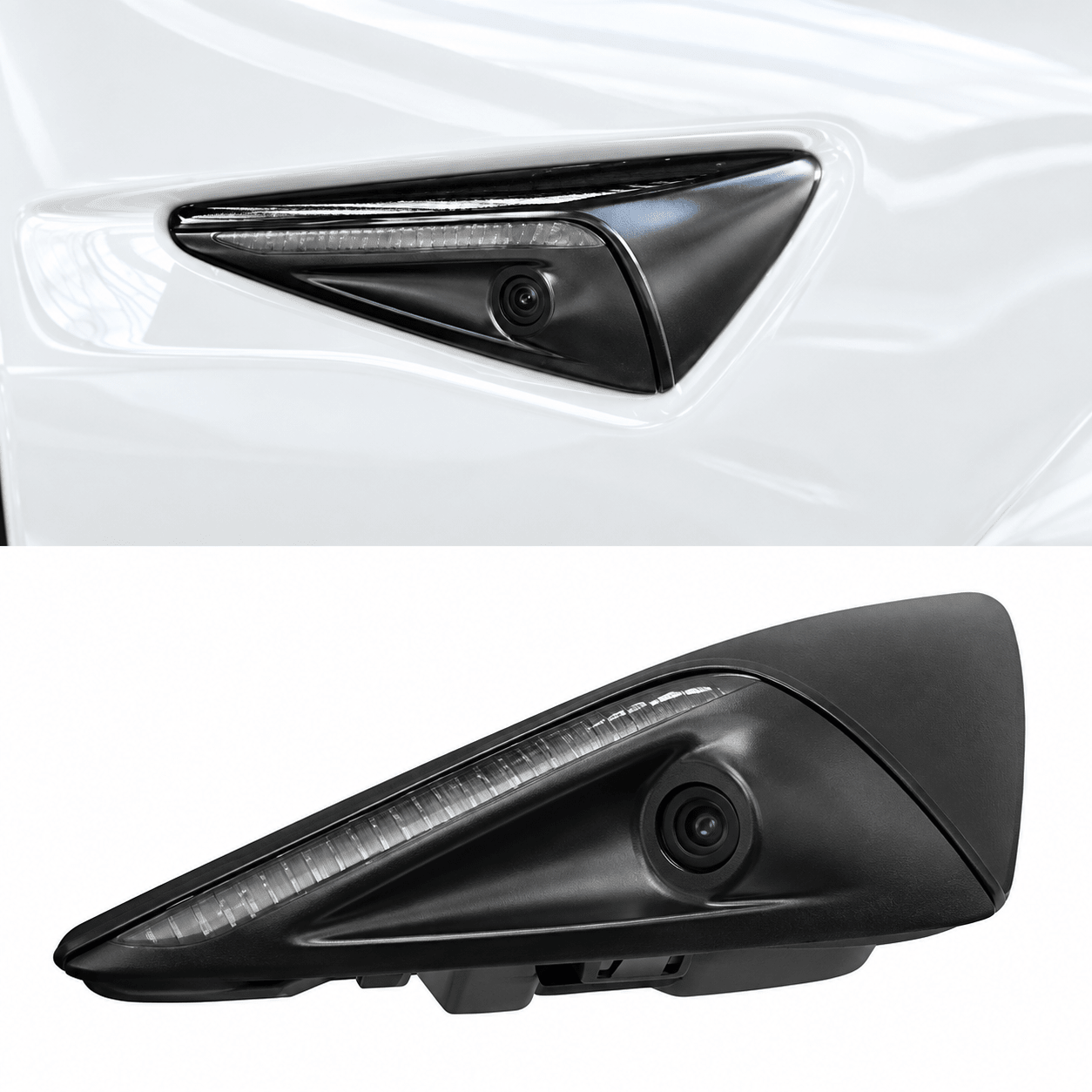

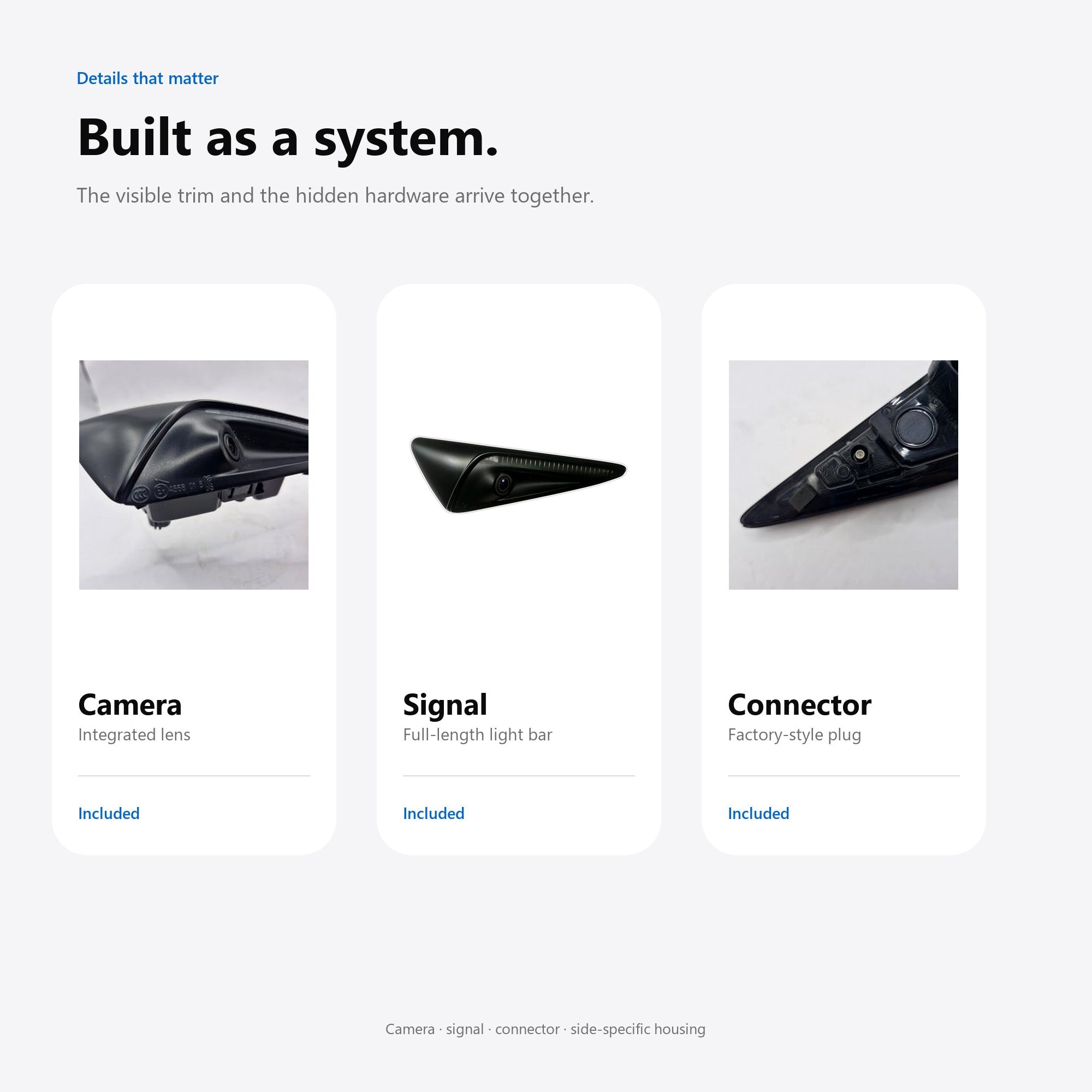

One selected assembly includes the camera, side turn-signal light, connector body and mounting housing. The lens and signal strip are visible on the front. Vehicle wiring, tools and calibration service are separate.

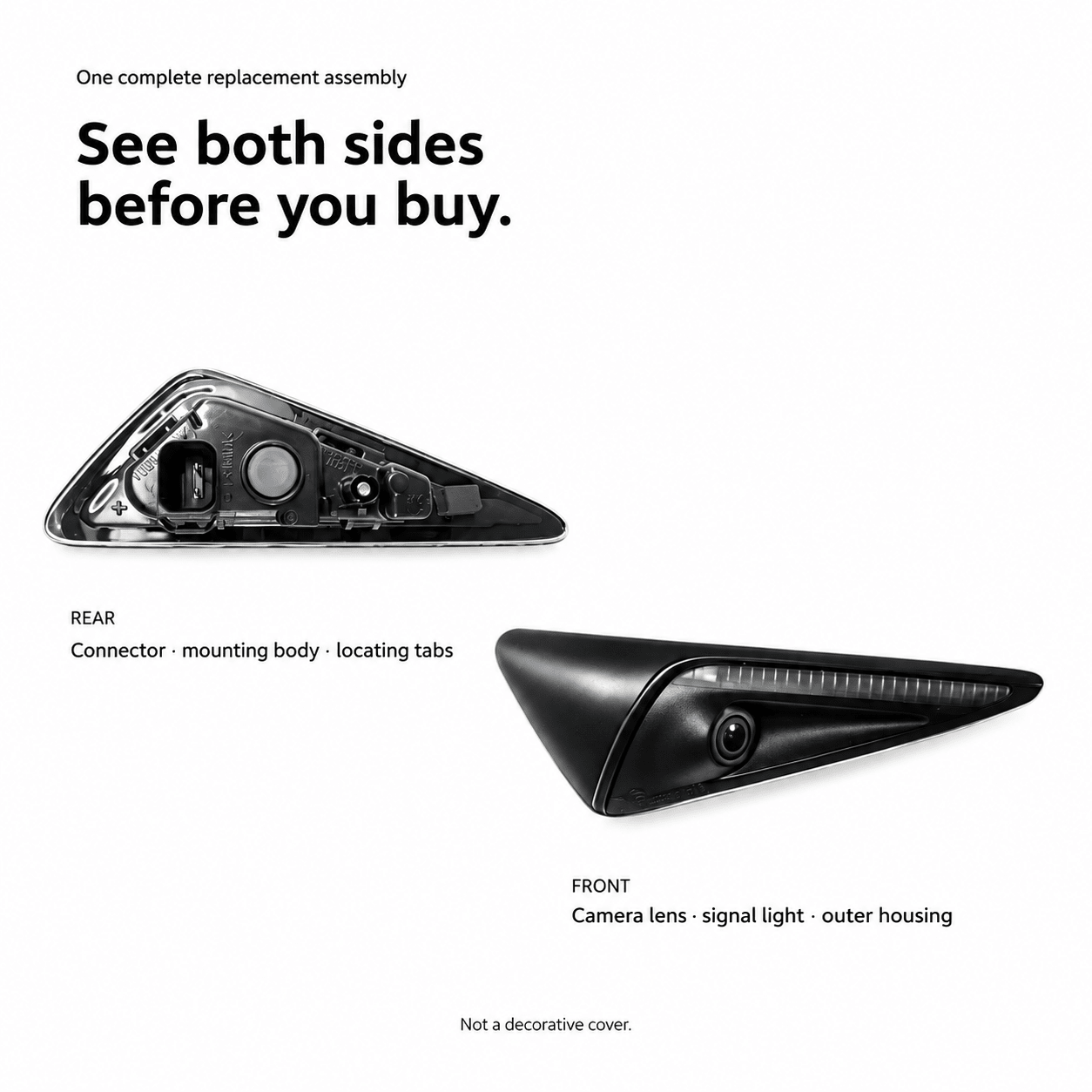

Rear Connections and Housing

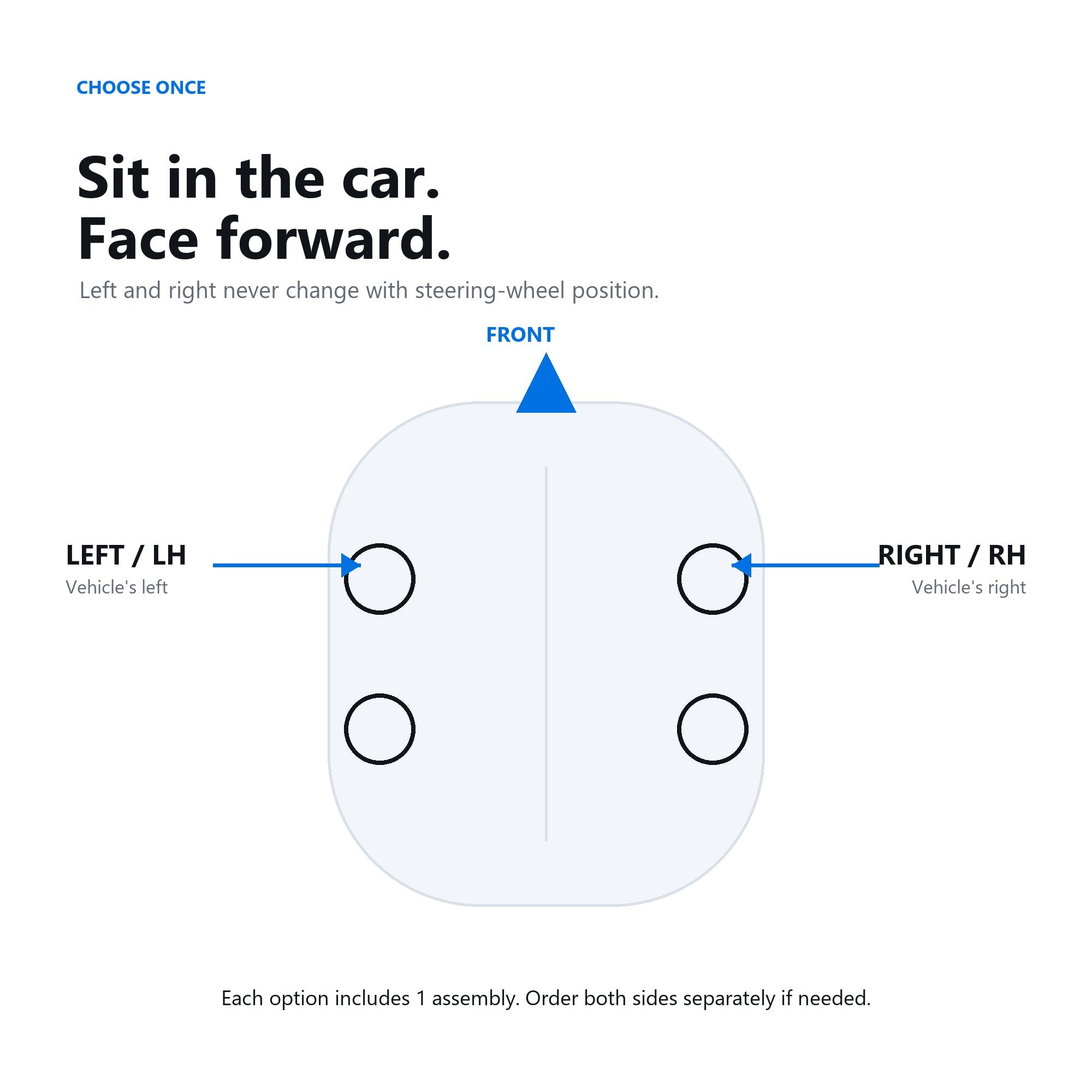

Each side has its own keyed connectors, mounting tabs and housing. Left and right are defined while facing forward from inside the car; driver-side naming changes between LHD and RHD vehicles.
Installation and Calibration
Replacement follows the HW3.0 side repeater procedure, including the DAS reset and clearing camera calibration. Affected Autopilot features remain unavailable until self-calibration completes.
Kompatibilität
| Modell | Years / Version | Hinweise |
|---|---|---|
| Model 3 — Giga Shanghai | 2020–2023 | HW3.0; left or right, one piece |
| Model Y — Giga Shanghai | 2020–2023 | HW3.0 |
| Model 3 — US factory group | 2019.4–2023.9 | Giga Austin / Fremont selector label |
| Model Y — US factory group | 2020–2023 | Giga Austin / Fremont selector label; HW3.0 |
| Model Y — Giga Berlin | 2022–2024.4 | HW3.0; left or right, one piece |
Fits HW3.0 cameras only. Does not fit HW4 / AI4 or Model 3 Highland.
Technische Daten
| Produkttyp | HW3.0 side repeater camera and turn-signal assembly, 1 piece per side |
|---|---|
| Compatible Models | Model 3 2020–2023 and 2019.4–2023.9; Model Y 2020–2023 and 2022–2024.4 (HW3.0 camera hardware) |

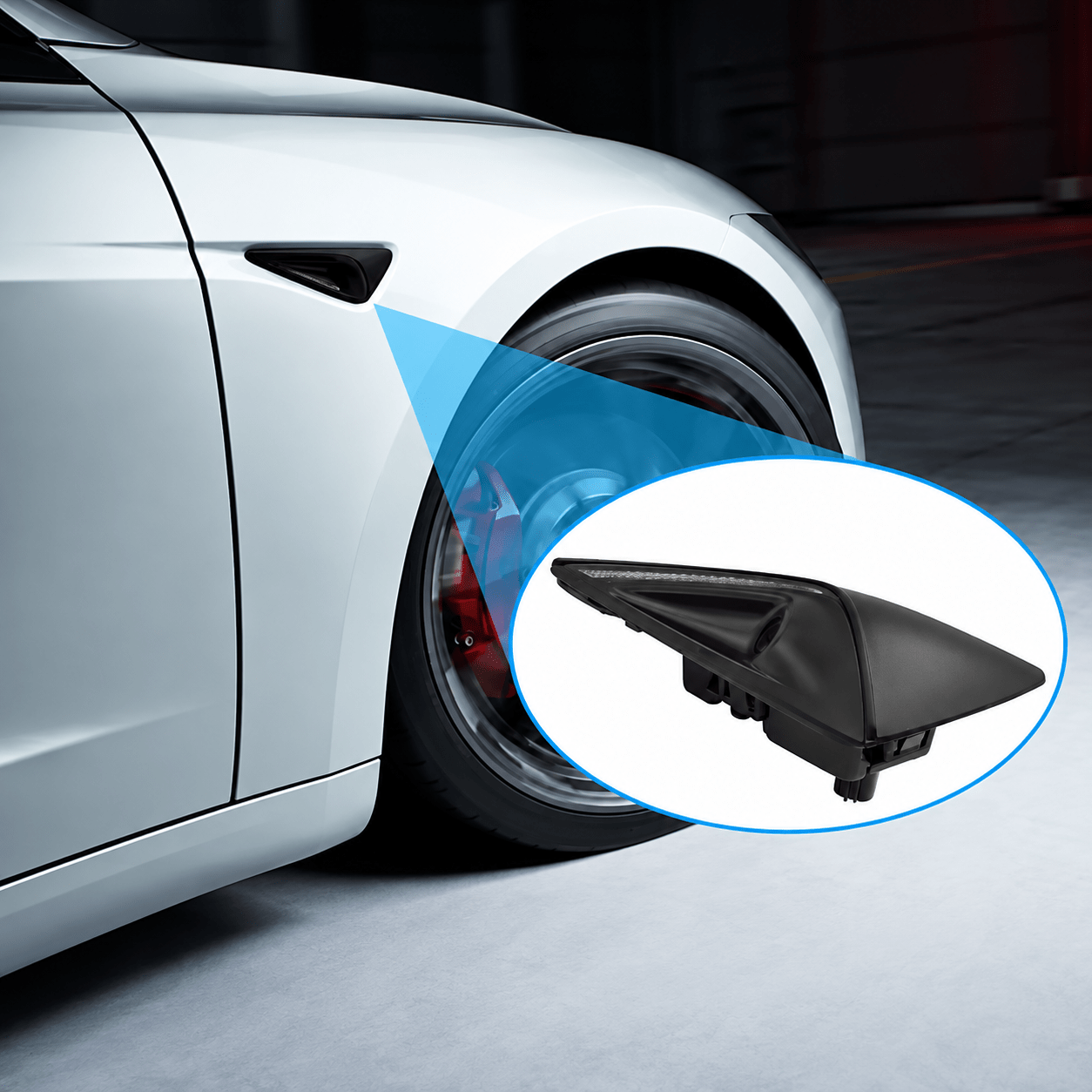

| Position / Location | Front fender, left or right side |
| Menge | 1 piece (left or right) |
| Connector Type | Connector body with mounting housing |
| Installation Type | Replacement of the failed assembly; Tesla-experienced technician advised |
| Lieferumfang | 1 camera, side turn-signal light, connector body and mounting housing assembly |
| OE-Referenz | Left 1495864-20-E; right 1495865-20-E |
What's in the Box
- 1×Side repeater camera assembly (camera, side turn-signal light, connector body and mounting housing)

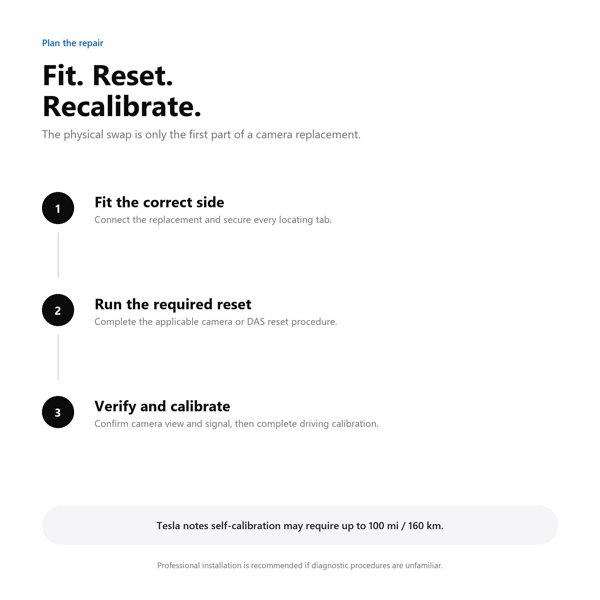

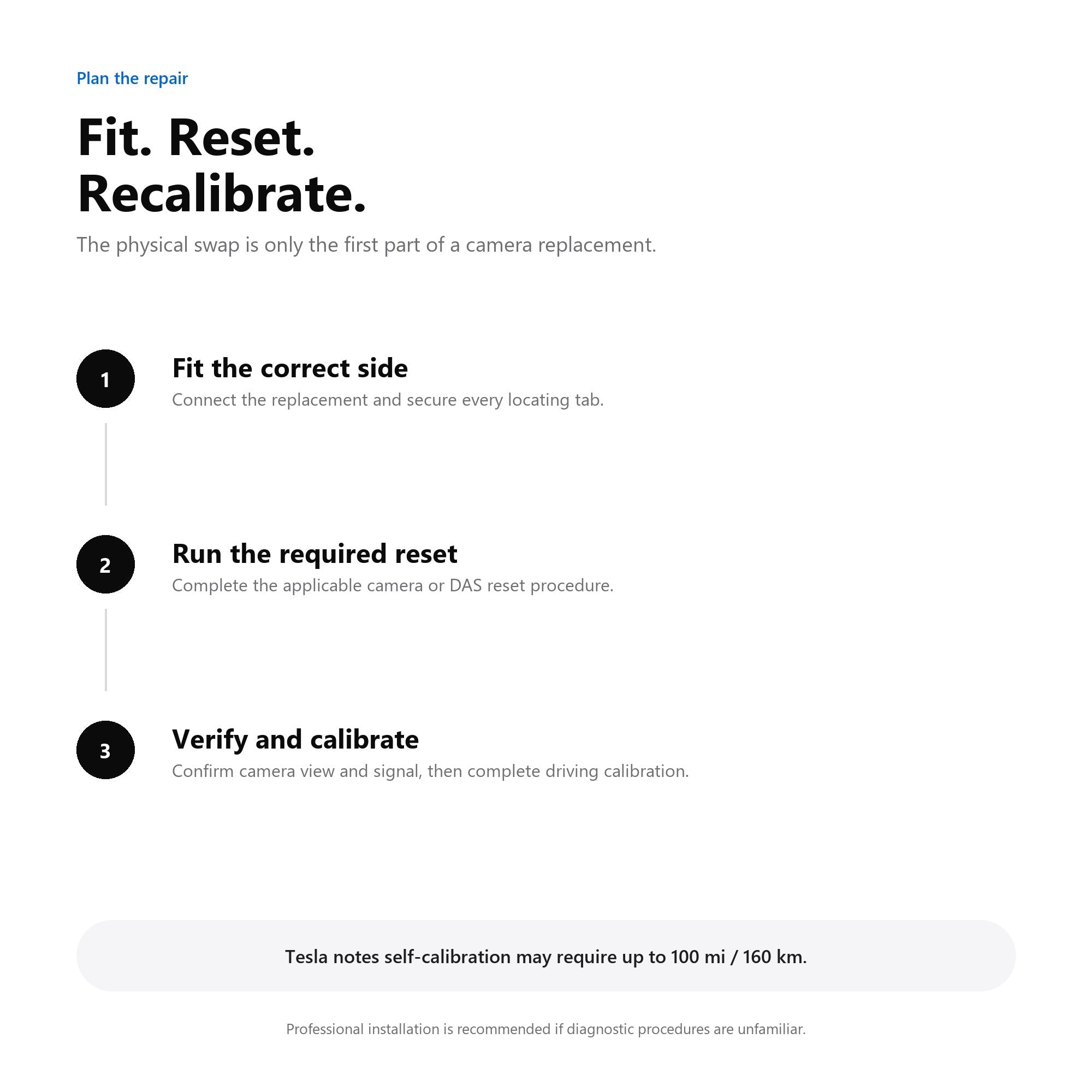

Installation
- Follow the corresponding vehicle and side service procedure. Protect the paint, use the required access and service mode steps, release the actual mounting clips and disconnect the connectors without pulling the wiring; replace damaged mounting parts rather than forcing them.
- Install the matching assembly with secure tabs/clips and correctly connected wiring. Perform the applicable DAS reset and clear camera calibration for HW3.0 using the prescribed service routine; do not substitute an HW4 camera-update procedure.
- The camera self-calibrates during manual driving.
Gut zu wissen
Achtung
- HW3.0 hardware only; does not fit HW4 / AI4 or Model 3 Highland.
- A black camera feed or warning can come from wiring or other system faults; have the fault diagnosed before replacing the assembly.
- Installation includes the side-specific procedure, a DAS reset, a camera calibration clear and functional tests. Manual driving is required while calibration is incomplete; affected Autopilot functions are unavailable.
- Vehicle wiring, installation tools and calibration service are not included. Do not alter connectors or force damaged mounting tabs to make a mismatch fit.
Pflege
- Keep the camera lens and turn-signal surface clean using appropriate vehicle-care methods; avoid abrasive products and obstructing the lens.
- Self-calibration duration depends on road type and conditions. The service guidance notes that it can take up to 100 miles (160 km); this is not a promised completion distance.
FAQ
Is this the complete camera assembly or only a cover?
It is a complete side-specific assembly with the camera, turn-signal light, connector body and housing. It is not a cosmetic cover.

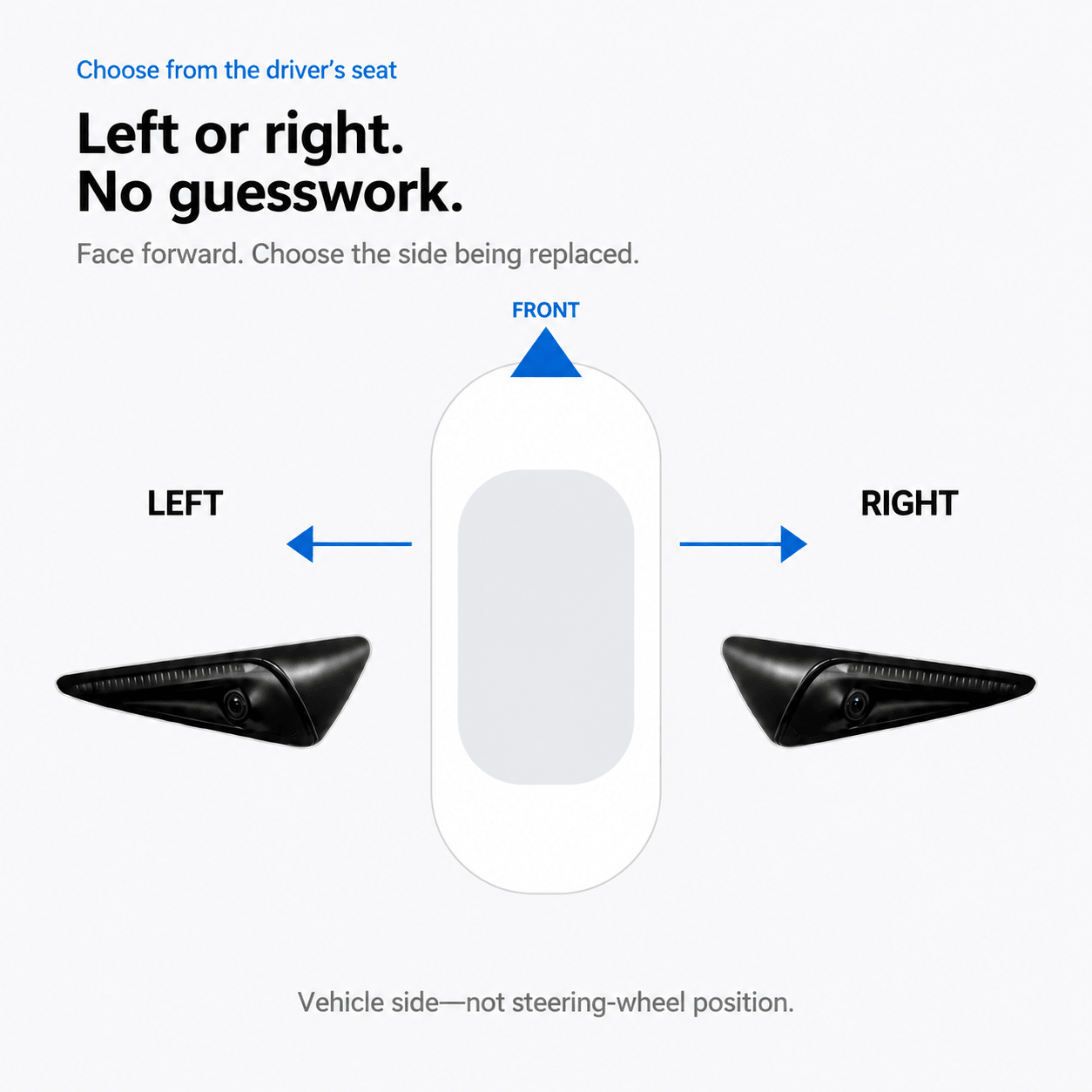

How do I choose left or right?
Face forward from inside the car. Left is the vehicle's left fender and right is the vehicle's right fender, regardless of steering-wheel position.
Is calibration needed after installation?
Replacement includes a DAS reset, a camera calibration clear and functional tests. Manual driving is required for self-calibration, and affected Autopilot functions remain unavailable until it completes. Road type and conditions affect the distance required.
Is this an HW4 or AI4 upgrade?
No. It is a like-for-like HW3.0 replacement and does not convert the vehicle to newer camera hardware.
