100W IP68 USB-C to DC or DC to DC Extension Cable for Starlink Mini

A 20 cm Power Extension for Starlink Mini

Add a short connection section to a Starlink Mini power-cable setup with this 20 cm (7.9 in) cable. Choose C to DC for a suitable USB-C PD source or DC to DC to extend a matching DC connection. The USB-C setup needs a source supporting 20 V / 5 A (100 W). One cable is supplied in the selected configuration.

20 cm Cable
C to DC Option
DC to DC Option
1 Selected Cable

Key Features

Two Connector Choices

Select C to DC for a suitable USB-C PD power source, or DC to DC to add a short section to an existing Mini DC power cable.
20 cm Extension

The short 20 cm cable provides a compact connection section rather than replacing a long power cable in a complete installation.
USB-C Source Requirement

For the USB-C option, use a power source that provides USB Power Delivery at 20 V and 5 A, with 100 W available at that output.
DC Cable Extension

The DC to DC option extends the matching DC power connection. It does not turn a DC power source into a USB-C PD source.
Copper Conductors

Copper wire runs between the two ends.
One Selected Cable

Each order supplies one cable in the chosen connector configuration. A power source, Mini dish and longer cables are separate.

Highlights

USB-C Connector Option - TESVX Extension Cable — USB-C Connector Option

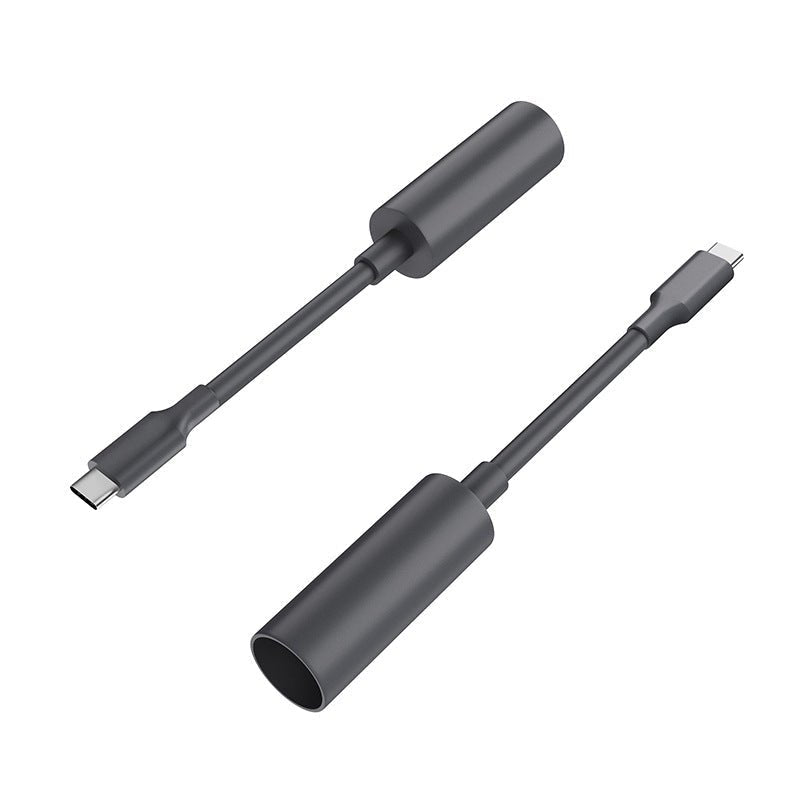

The C to DC option connects a suitable USB-C PD source with a matching Mini DC power-cable setup. The product image shows the cable from two angles; one selected cable is supplied.

DC Connector Option - TESVX Extension Cable — DC Connector Option

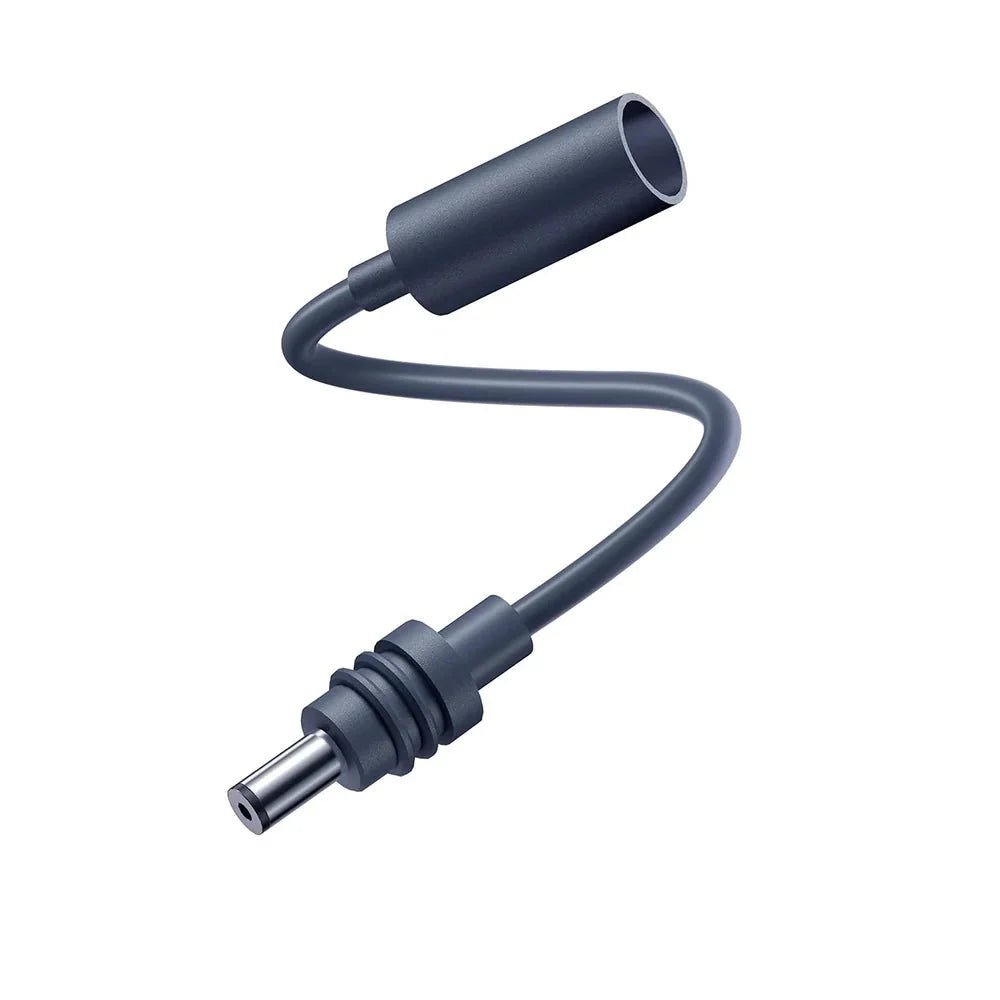

The DC to DC version shown has a barrel plug and a covered mating end for extending the matching Mini DC power connection.

Power Setup

For USB-C use, the source needs a 20 V / 5 A (100 W) USB PD output. The DC to DC version uses a DC setup and does not require a USB PD connection by itself.

Compatibility

Model	Years / Version	Notes
Starlink Mini		USB-C source must support PD 20 V / 5 A

Configurations differ by power source and cable ends. This cable is an accessory; the dish, power source and longer cables are separate.

Specifications

Product Type	Short power extension cable for Starlink Mini
Compatible Models	Starlink Mini with a matching power-cable connection
Material	Copper wire
Quantity	1 cable in the selected configuration
Input	USB-C option: USB PD source supporting 20 V / 5 A (100 W); DC option: matching DC power-cable setup
Power	Up to 100 W at 20 V / 5 A; stay within the ratings of the complete cable setup
Connector Type	C to DC or DC to DC, as selected
Cable Length	20 cm (7.9 in)
Package Contents	1 selected power extension cable

What's in the Box

1 power extension cable in the selected configuration

Installation

Difficulty: Easy
Tools: No tools required

With the power source disconnected, connect the selected cable ends.
Connect the selected cable within the matching Mini power-cable setup, without forcing a connector.
Route the cable without pinching it or pulling on the connectors.

Good to Know

Caution

For USB-C use, the source must support USB Power Delivery at 20 V / 5 A (100 W); a USB-C socket or a total charger wattage alone does not establish this.
This extension does not supply power by itself.
Keep all connections dry and fully seated. Protect the USB-C connection from outdoor exposure, keep joints out of standing water and stop using damaged cables.
