A Fused Vehicle-Socket to DC Power Cable
This cable is marketed for a Starlink Mini vehicle-power setup, using a listed 12–24 V DC accessory-socket input and a barrel plug at the equipment end. Select the actual 3 m or 5 m option; a carry bag and user manual are included. The listed 5.5×2.1 mm plug differs from Mini documentation specifying 5.5×2.5 mm, center-positive.
- 3 m / 5 m
- Vehicle-Socket Input
- Replaceable Plug Fuse
- Carry Bag Included
Key Features
-
Vehicle-Socket Input
The cable is described for 12–24 V DC accessory sockets.
-
Two Length Selections
The purchase options are 3 m (9.84 ft) and 5 m (16.4 ft); select the required route length without adding an unspecified extension.
-

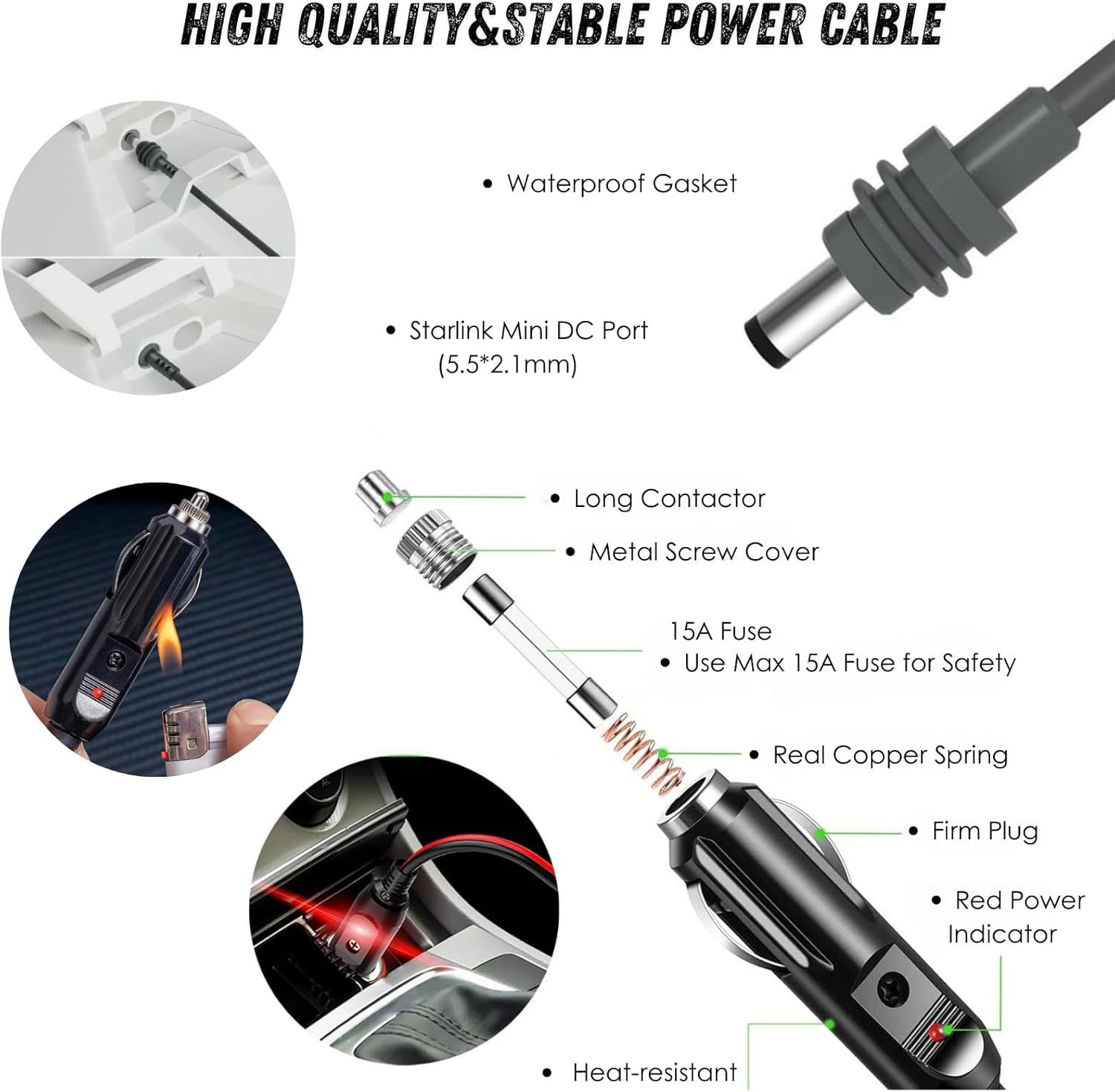

Replaceable Plug Fuse
The lighter plug is described with a 15 A fuse; the fuse figure is not a continuous cable, socket or equipment-current rating.
-
Red Power Indicator
A red LED at the plug indicates power.
-
Barrel Plug with Gasket
The DC-end design includes a gasket.
-
Carry Bag and Manual
The described package includes one selected-length cable, a portable carry bag and a user manual.
Highlights

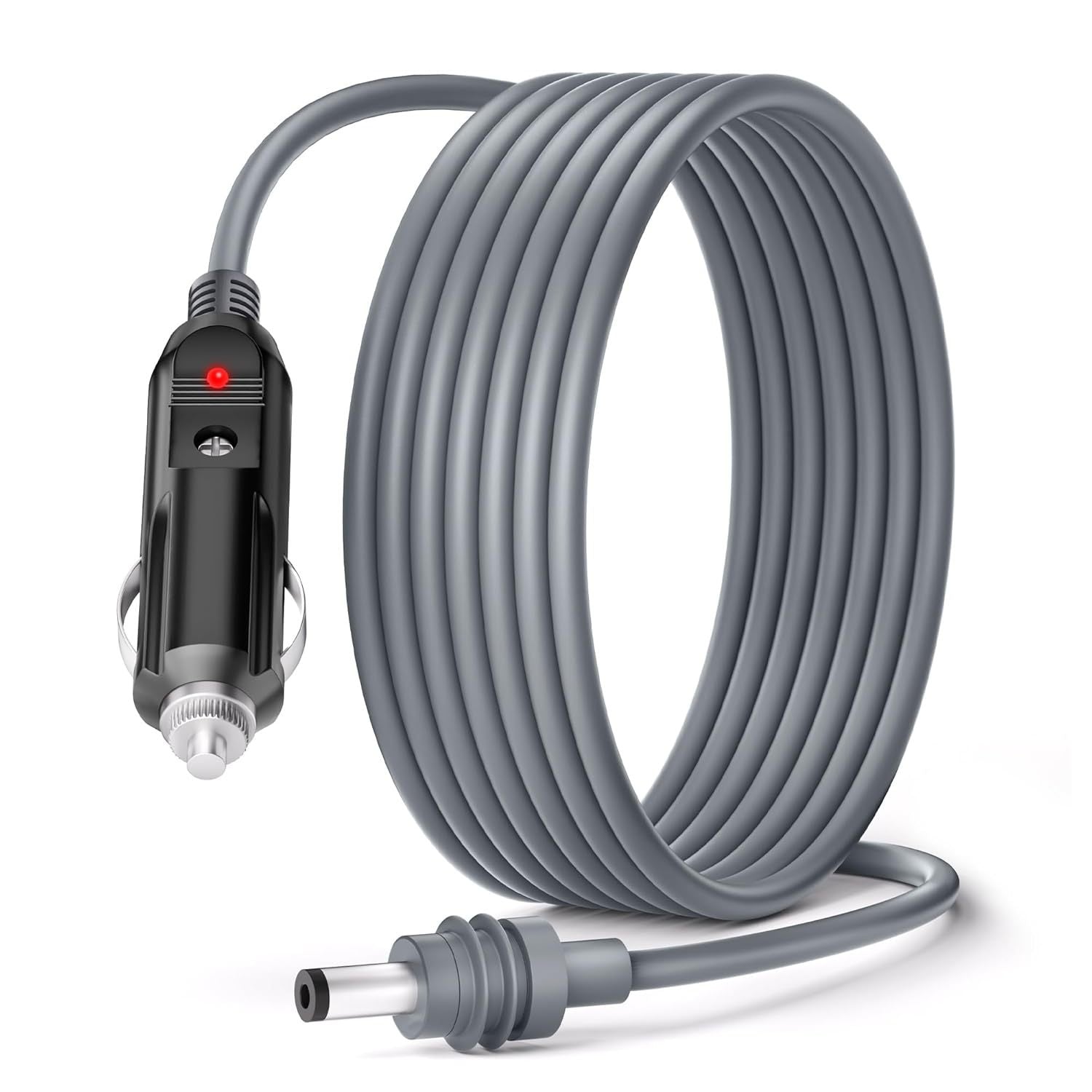

Socket Plug and Barrel End
The complete cable illustration shows a coiled grey lead between a vehicle accessory plug with a red indicator and a gasketed DC-barrel end. The image shows the cable form; it cannot resolve the connector dimensions or polarity required for a compatible Mini power connection.
Compatibility
| Model | Years / Version | Notes |
|---|---|---|
| Starlink Mini | Marketed application; listed 2.1 mm inner diameter versus documented 2.5 mm. | |
| Vehicle accessory socket | Listed 12–24 V DC input. Not a universal vehicle approval. |

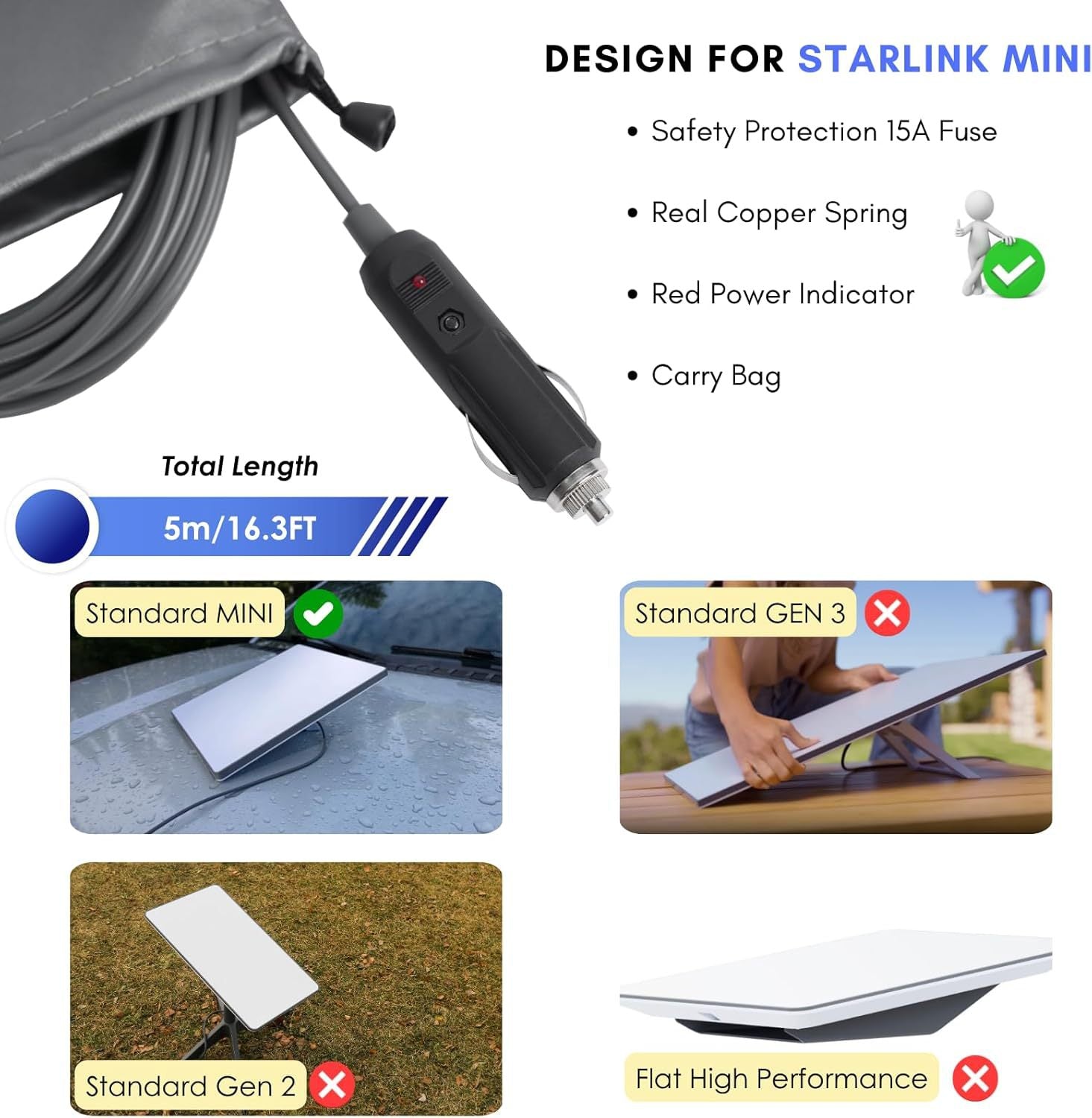

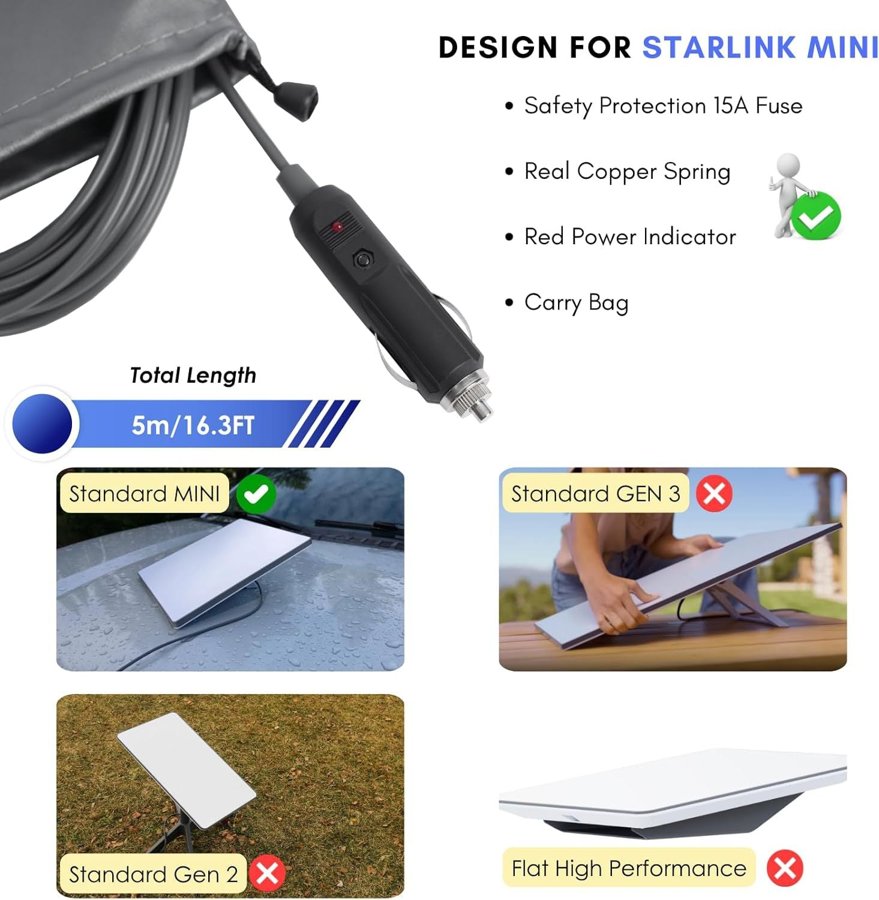

Standard Gen 2, Standard Gen 3 and Flat High Performance dishes are excluded. This cable is not a USB-C cable or an Ethernet lead.
Specifications
| Product Type | Vehicle cigarette-lighter/accessory-socket to DC power cable |
|---|---|
| Compatible Models | Marketed for Starlink Mini. Standard Gen 2, Gen 3 and Flat High Performance excluded. |
| Position / Location | Between a compatible vehicle accessory socket and the equipment DC input |
| Quantity | 1 cable in selected length |
| Input | Listed 12–24 V DC vehicle accessory socket |
| Connector Type | Listed 5.5×2.1 mm DC plug; Mini documentation specifies 5.5×2.5 mm, center-positive. |
| Cable Length | 3 m (9.84 ft) / 5 m (16.4 ft) |
| Installation Type | Plug-in cable |
| Package Contents | Selected-length cable, portable carry bag, user manual |
| Shipping Weight | 500 g (1.10 lb), shipping record rather than net cable weight |
What’s in the Box
- 1×vehicle accessory-socket to DC power cable in selected 3 m or 5 m length
- 1×portable carry bag
- 1×user manual
Good to Know
Caution
- The listed 5.5×2.1 mm plug differs from Starlink Mini documentation specifying 5.5×2.5 mm and center-positive polarity.
- The 15 A fuse is not a continuous-load rating, and the LED indicates plug power only.
- A plug gasket does not establish an outdoor or marine rating for the cable, vehicle socket or complete connection. Keep unsuitable sockets and connections dry.
- Disconnect during extended vehicle-off periods.
Care
- Store the disconnected cable dry in the included bag; avoid tight winding, pulling on plugs or leaving unsuitable connections exposed to water.
FAQ
Can I connect it directly to every Starlink Mini?
The listed 5.5×2.1 mm dimension differs from Mini documentation specifying 5.5×2.5 mm, center-positive.
Is 10 m a selectable version here?
The actual purchase options are 3 m (9.84 ft) and 5 m (16.4 ft). Select one of those versions.
Does the 15 A fuse mean 15 A continuous output?
No. The fuse is a protection component and must not be bypassed or increased.
What comes in the package?
One cable in the selected length, one portable carry bag and one user manual. A dish, battery, extension cable or travel case is not included in this package.
