A Dual-Position Charger for the Early Model 3 Console

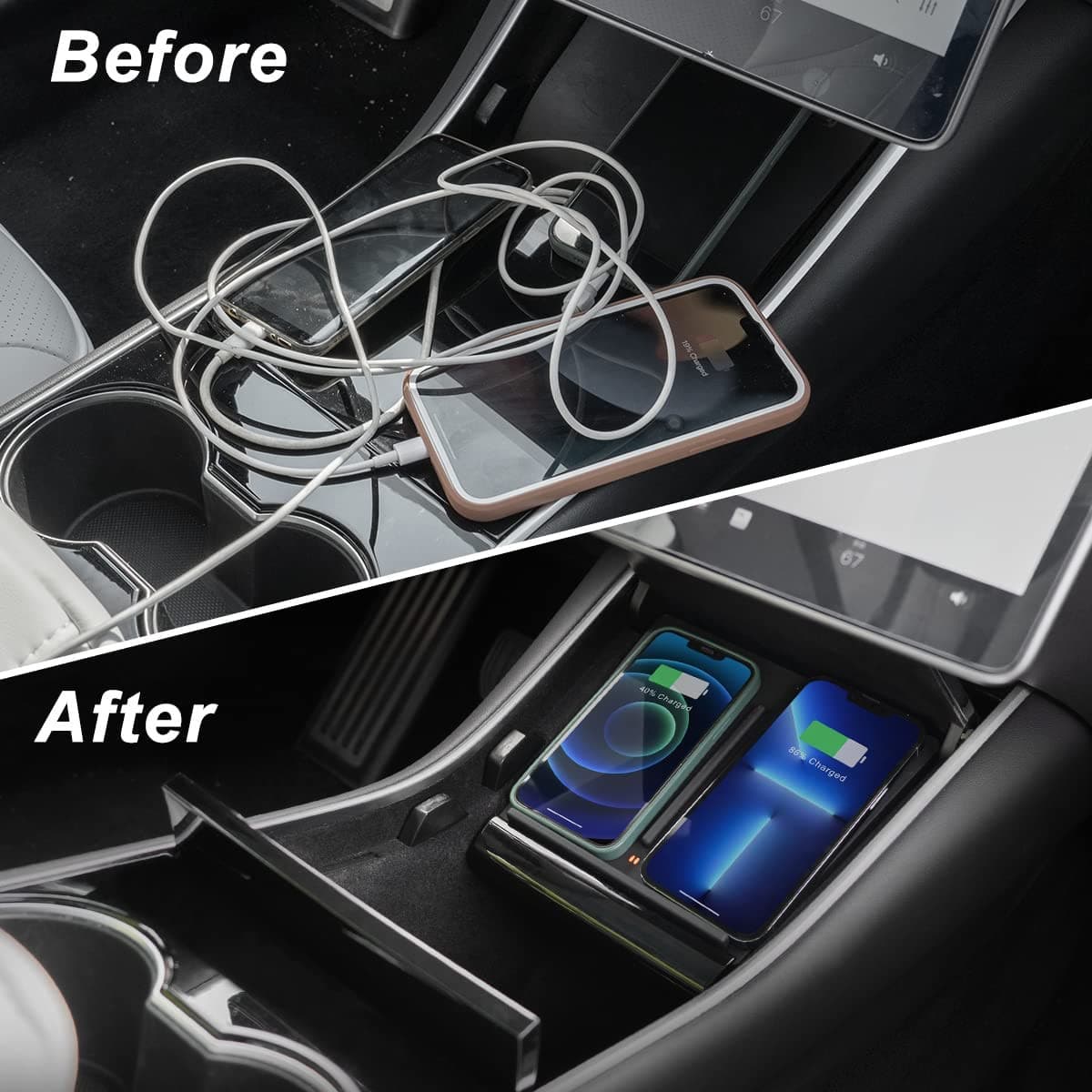

Place two compatible wireless-charging phones on a black console pad with charging-status LEDs. This version uses two USB-A leads for direct connection to the older Model 3 console.
- Two Phone Positions
- Two USB-A Leads
- LED Indicators
- Black Housing
Key Features
-

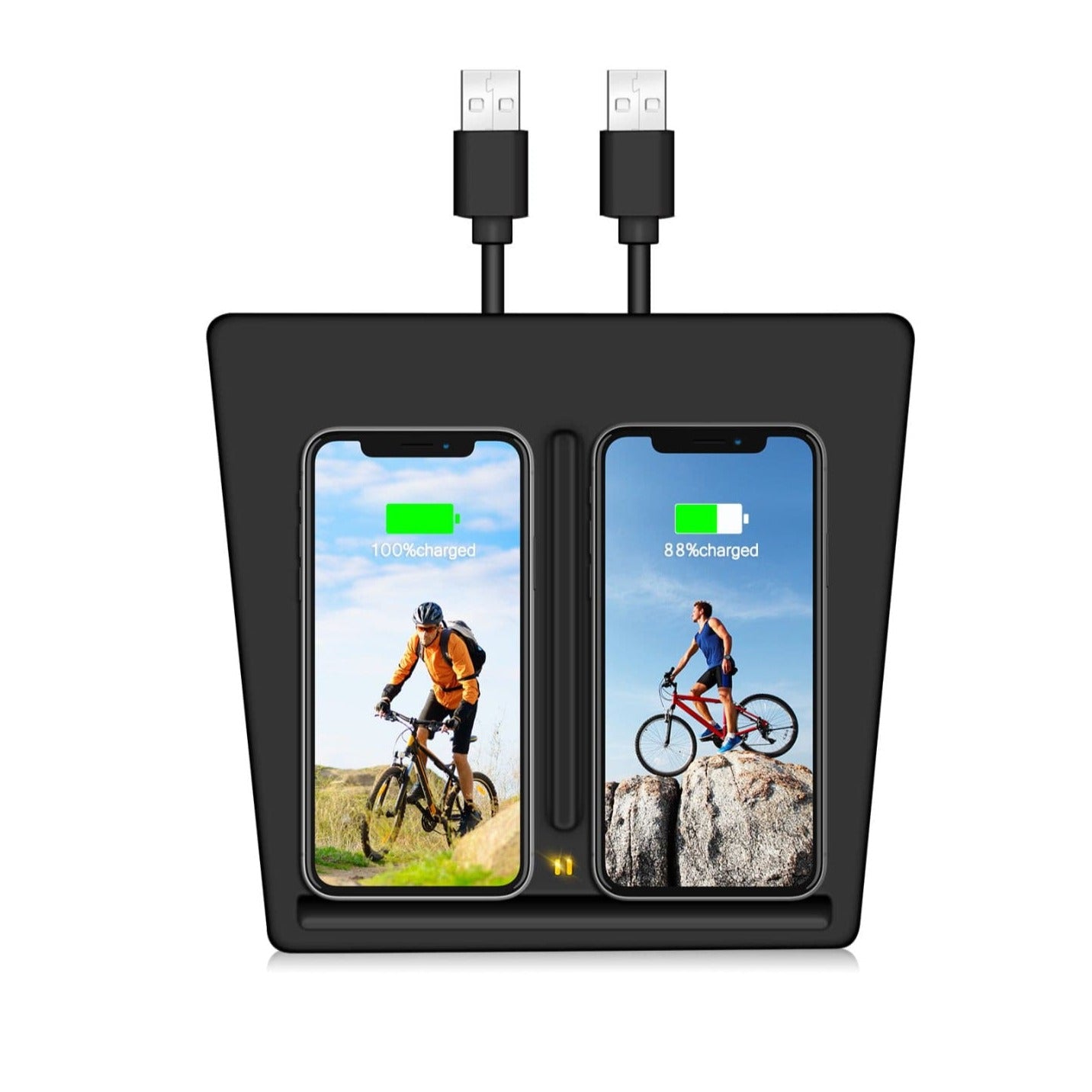

Two Charging Positions
The console pad has two wireless charging areas for compatible phones.
-
Two USB-A Leads
Connect the pad leads directly to two matching front-console USB-A ports.
-
Phone Support

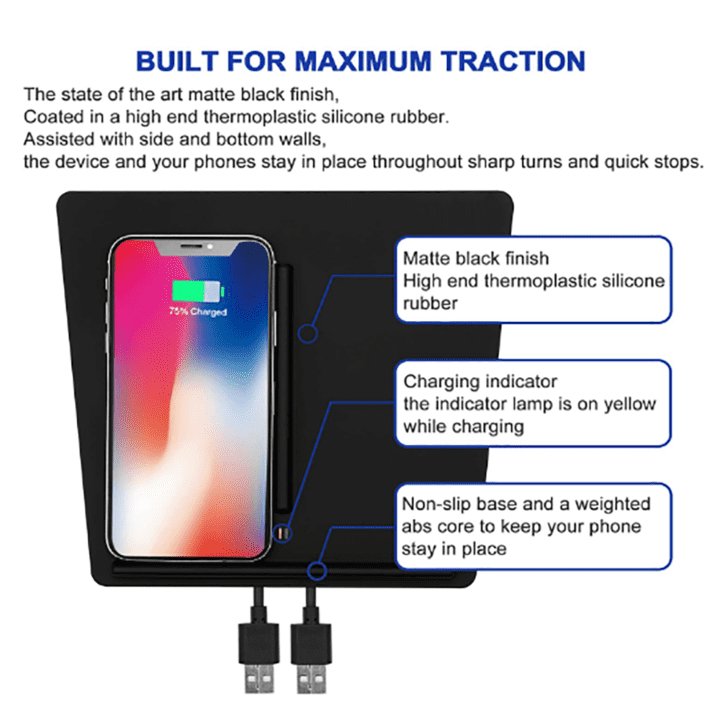

The textured surface and lower lip provide a resting area for each phone.
-

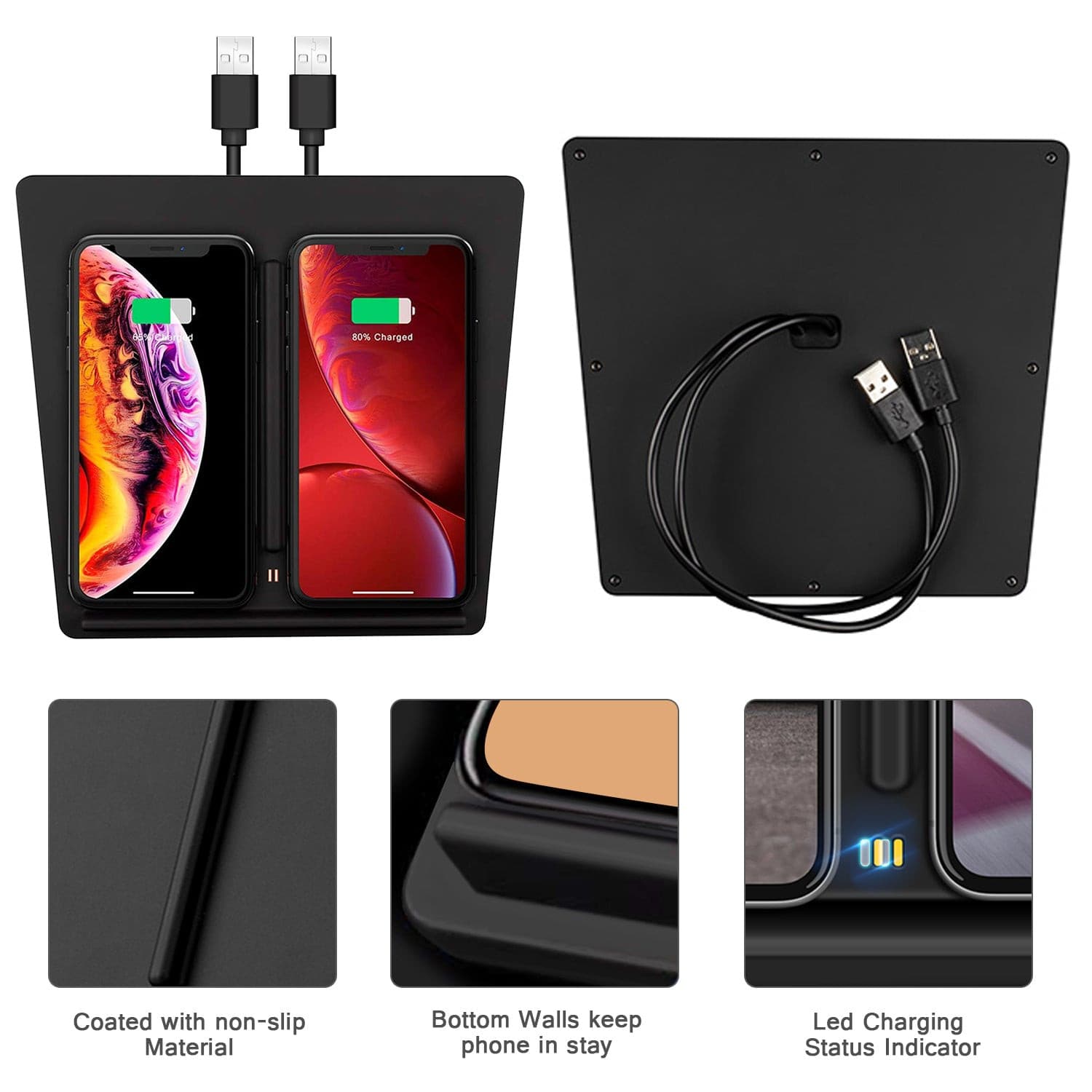

Status Indicators
LEDs indicate charging status; power availability depends on the vehicle and connected supply.
-
Early Console Application
Fits the older console tray with two USB-A sockets.
-
Black Housing
ABS and PC construction provides the charger body in a black finish.
Highlights

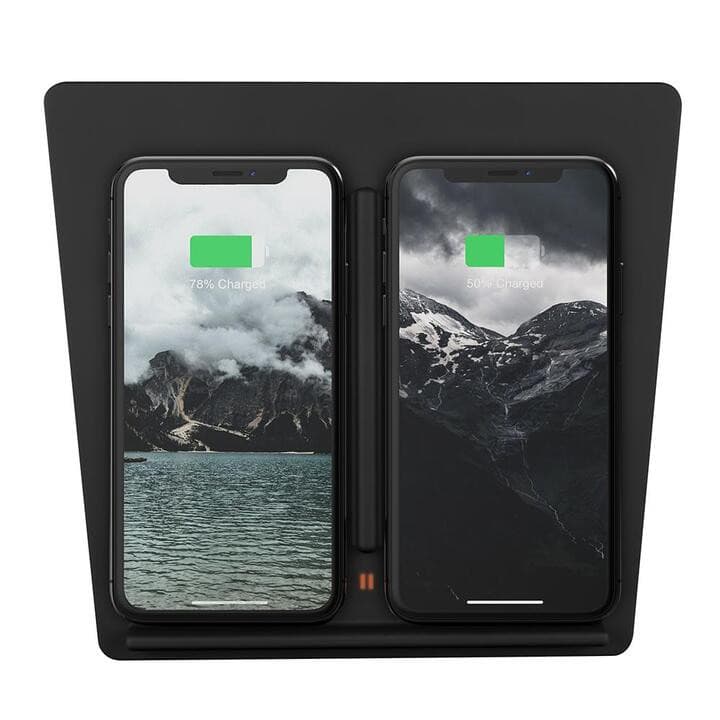

Two Wireless Charging Areas
Each phone rests on its own charging area. A charging indicator shows status; output depends on the phone and the available USB supply.

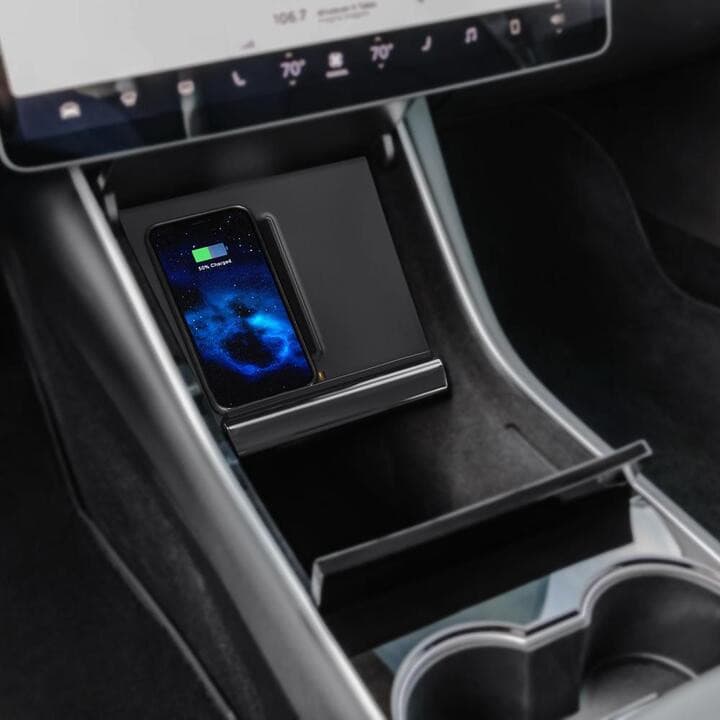

Older Console Layout
The pad fits the early console with two USB-A sockets.
Resting Surface and Lip
The textured surface and lower edge support the phones on the tray.
Direct USB Connection
Connect the two charger leads directly to their matching vehicle ports. The included splitter is not a remedy for combining extra USB devices on one port.
Compatibility
| Model | Years / Version | Notes |
|---|---|---|
| Model 3 | 2017–before June 2020 | Older console tray with two USB-A ports. |
Does not fit a mixed USB-A/USB-C or dual-USB-C console.
Specifications
| Product Type | Dual-position wireless phone charger |
|---|---|
| Compatible Models | Model 3 2017–before June 2020, matching older console and two USB-A ports |
| Position / Location | Front-console phone tray |
| Material | ABS + PC housing |
| Color | Black |
| Power | Listed wireless modes: 10 W maximum, 7.5 W and 5 W; actual output depends on supply and phone |
| Connector Type | Two USB-A leads; direct connection to two matching vehicle ports |
| Package Contents | 1 dual wireless charger; USB splitter cable included |
| Shipping Weight | 400 g (shipping weight) |
| Input Voltage | Listed modes: 9 V / 1.67 A; 9 V / 0.83 A; 5 V / 2 A |
| SKU | TSL0101 |
What's in the Box
- 1×Dual wireless charger
- USB splitter cable

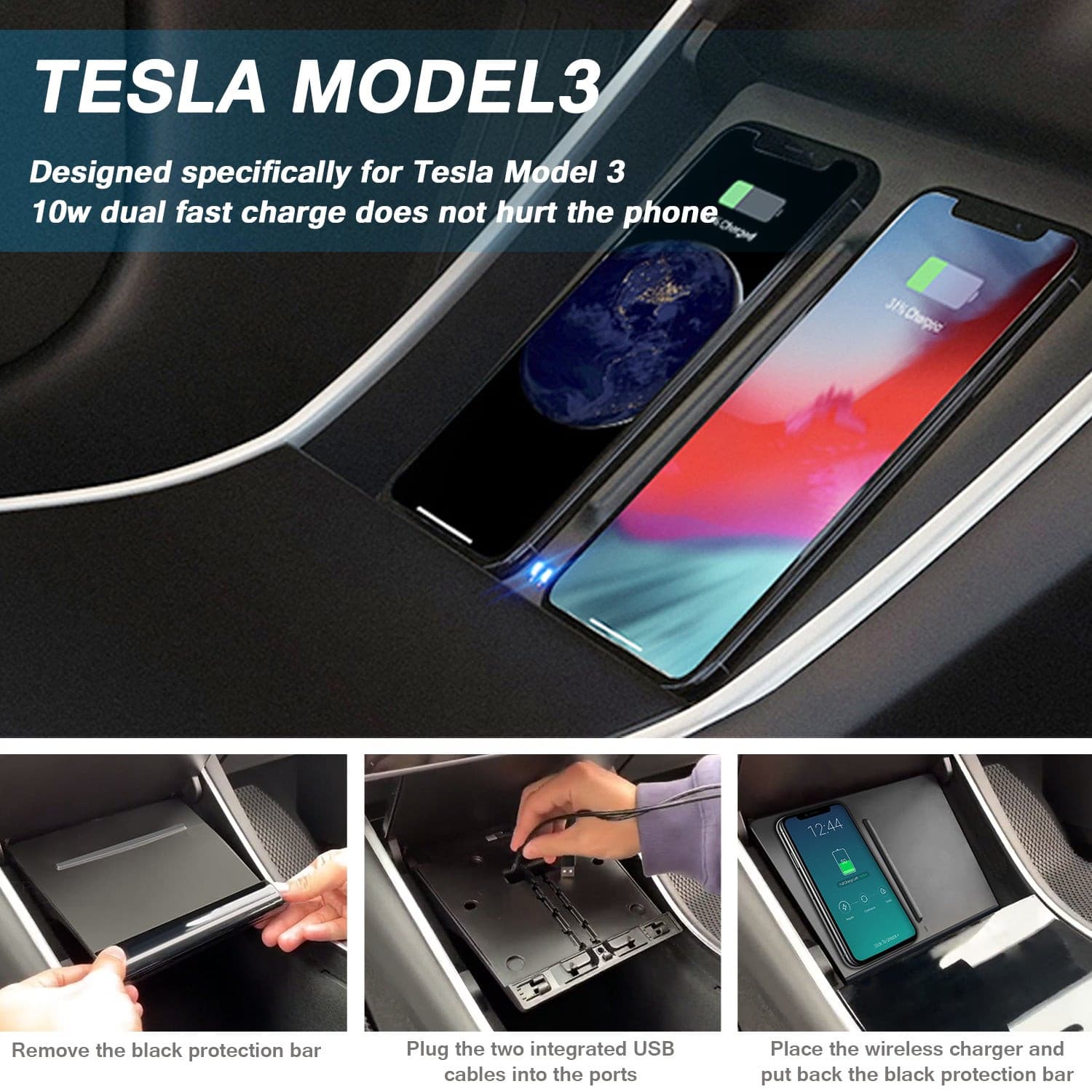

Installation
- Remove only the specified original tray accessories without forcing trim or wiring.
- Route each lead to its matching port directly, keeping cables clear of hinges and the console cover.
- Place the phones on the charging areas.
Good to Know
Caution
- Does not fit USB-A/USB-C or dual-USB-C console layouts.
- Connect each charger lead directly to a matching port. Tesla instructs against connecting multiple devices through a USB hub; the splitter does not combine the charger with another USB device.
- A 10 W mode does not mean 10 W from each vehicle port or with every phone.
- Keep metal objects and NFC cards away from the charging area. Stop charging if there is unusual heat, intermittent operation or a loose connection.
Care
- Keep the pad dry and remove dust with a soft cloth; disconnect before cleaning.
- The stated phone-case limit is 4 mm, but remove a case if it prevents alignment or reliable charging. Metal and NFC cards must not sit between the phone and pad.
FAQ
Does it fit every Model 3 built in 2020?
No. It fits the older tray with two USB-A ports, before the June 2020 port-layout change; it does not fit mixed or dual USB-C layouts.
Does each phone always charge at 10 W?
The listed modes are 10 W maximum, 7.5 W and 5 W. The actual mode depends on the phone, charger input and vehicle supply; two phones do not always get 10 W each.
What phones and cases can I use?
Use a phone that supports compatible wireless charging and fits the pad. The stated case limit is 4 mm; remove metal, cards and any case that prevents alignment. External receivers are not included.
