Shielded Replacement and Extension Cable for Starlink
This cable is listed for Starlink Gen 3 and Mini in six lengths from 2 m to 46 m. It uses 24 AWG copper conductors, metal shielding, a PVC jacket and gold-plated soldering-type RJ45 connectors. The described application includes data transfer and power delivery through a correctly matched powered interface.
- Shielded Cat6
- 24 AWG Copper
- Gold-Plated RJ45
- 2–46 m Options
Key Features
-
Compatibility
Listed for Starlink Gen 3 and Mini.
-
Material
24 AWG copper conductors with metal shielding and a PVC outer jacket.
-
Design
Gold-plated soldering-type RJ45 connector construction.
-
Dimensions
Six length options range from 2 m to 46 m.
-
Function
Described for data transfer and power delivery where the exact powered interface is matched.
-
Care
Use the end protection caps during storage and keep connector contacts clean and dry.
Highlights
Cable and Length Options

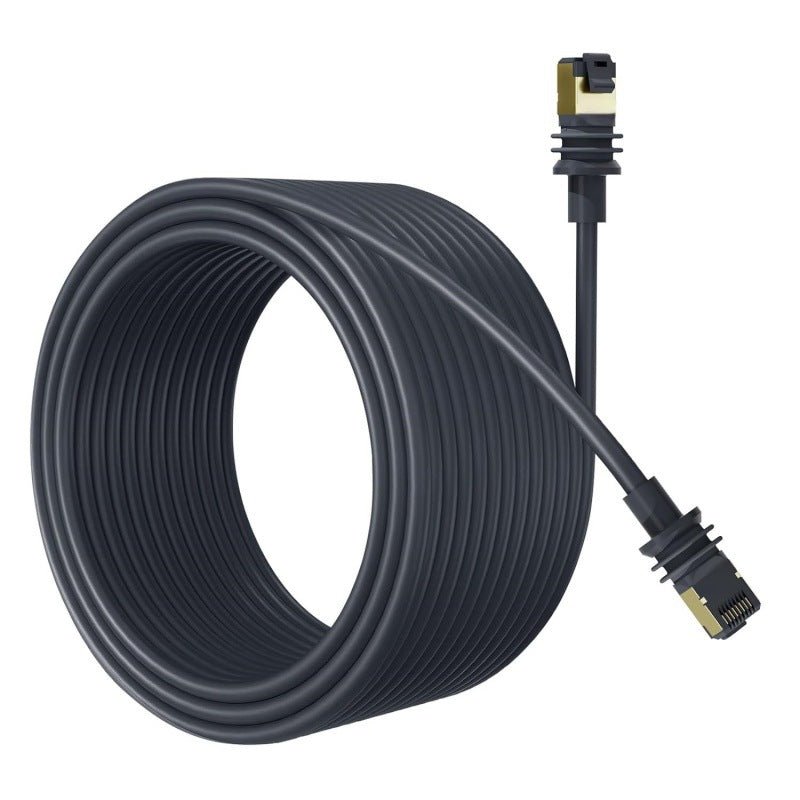

The product view shows a black jacketed cable with an RJ45-style connector at each end. Choose among 2 m, 10 m, 15 m, 23 m, 30 m and 46 m according to the permitted route for your hardware.
Connector Construction

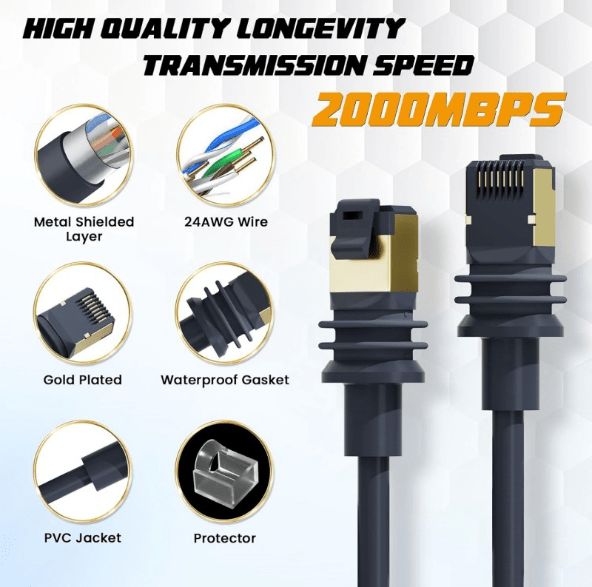

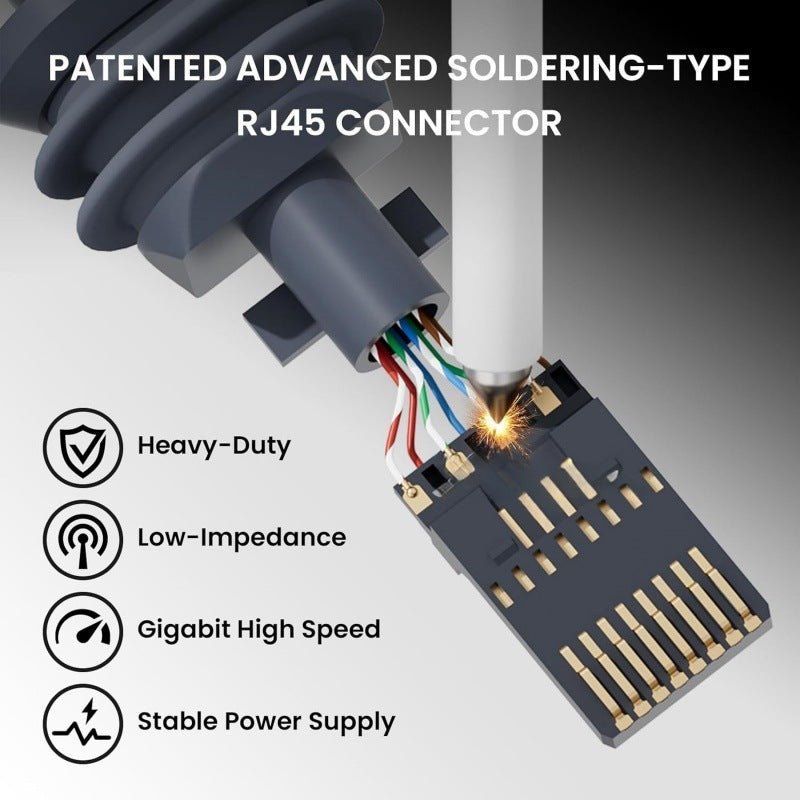

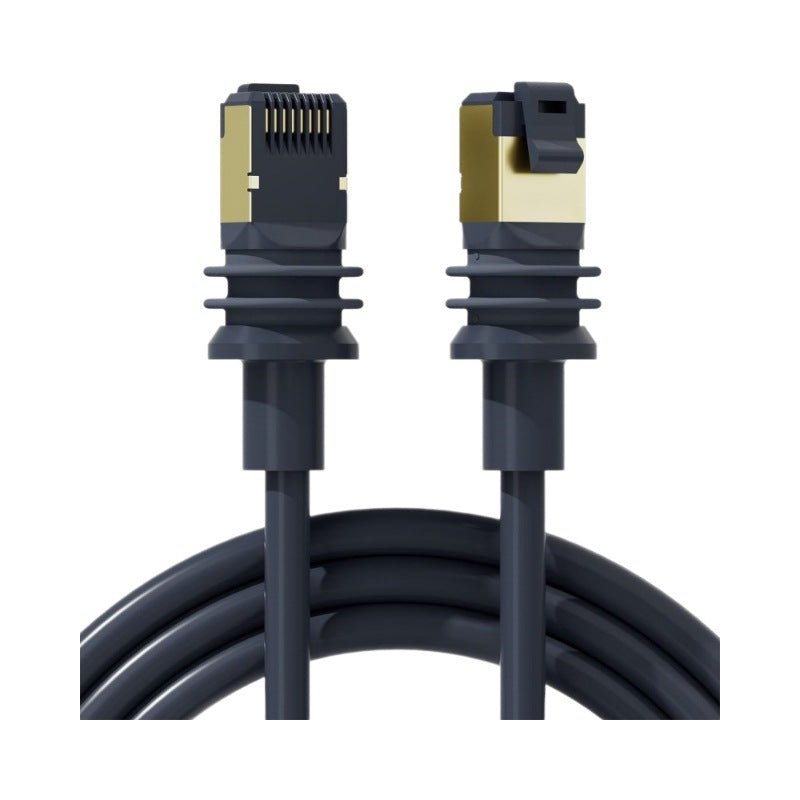

The close-up shows the RJ45-style contacts, latch and molded strain relief. Gold-plated soldering-type connectors are specified for this cable; their appearance does not establish the pin arrangement or powered-interface compatibility.
Compatibility
| Model | Years / Version | Notes |
|---|---|---|
| Starlink Gen 3 | Listed replacement / extension application. | |
| Starlink Mini | Listed application requires exact Ethernet connector matching. Mini DC power remains separate; Ethernet does not supply Mini power. |
Compatibility with Gen 1, Gen 2 or other equipment is not specified. Use the exact hardware instructions for powered connections and weather sealing.
Specifications
| Product Type | Replacement / extension cable listed for Starlink Gen 3 and Mini |
|---|---|
| Compatible Models | Starlink Gen 3 and Mini listed |
| Material | 24 AWG copper conductors, metal shielding and PVC jacket |
| Connectivity | Cat6 construction; actual link rate depends on equipment and the cable run |
| Connector Type | Gold-plated soldering-type RJ45 connectors |
| Cable Length | 2 m / 10 m / 15 m / 23 m / 30 m / 46 m |
| Protective Caps | Protection caps on both ends |
What’s in the Box
- Cable in the selected length, with protection caps on both ends
Good to Know
Caution
- An RJ45-shaped plug is not proof that a powered dish interface is compatible with ordinary Ethernet equipment.
- Starlink Mini uses a separate DC power connection. Its Ethernet port does not replace that power connection, and this cable does not supply Mini power through Ethernet.
- A standard RJ45 connection at Starlink Mini does not preserve its IP67 rating. This cable description does not establish an installed waterproof rating; use the appropriate specified sealed connection and weather protection.
- Do not combine cables or add couplers to a powered dish run without the hardware manufacturer’s instructions.
- Disconnect power before connection.
Care
- Fit the protection caps when the cable is stored or disconnected. Keep contacts free of moisture and dirt.
FAQ
Which lengths are offered?
2 m, 10 m, 15 m, 23 m, 30 m and 46 m.
What is the cable construction?
Cat6 construction with 24 AWG copper conductors, metal shielding, a PVC jacket and gold-plated soldering-type RJ45 connectors.
Does this replace the Mini DC power cable?
No. The Mini Ethernet connection does not replace its separate DC power supply.
Are full speed and zero voltage drop guaranteed at every length?
No such performance guarantee is established.
Is the installed connection waterproof?
No installed waterproof rating is claimed. Standard RJ45 at Mini does not maintain IP67.
