Vehicle Power Cable with a Digital Voltage Display
This adapter combines a vehicle auxiliary-socket plug, digital voltage display and attached DC cable for the Starlink Mini. USB-C and USB-A ports sit beside the display, with the USB-C port listed up to 100W. Choose a 2 m, 3 m or 5 m cable for your route.
- Starlink Mini
- Digital Voltage Display
- Attached DC Cable
- 2 / 3 / 5 m
Key Features
-
Vehicle Socket Connection
The adapter plugs into a matching auxiliary power socket in the vehicle.
-
Attached DC Cable
A fixed cable ends in a round plug for the matching Starlink Mini power input.
-
Digital Display
The adapter face shows a voltage reading while powered.
-
Additional Ports
USB-C and USB-A ports are visible beside the display; the USB-C port is listed up to 100W.
-
18AWG Cable
The attached power cable uses 18AWG wire.
-
Three Lengths
Available in 2 m, 3 m or 5 m.
Highlights

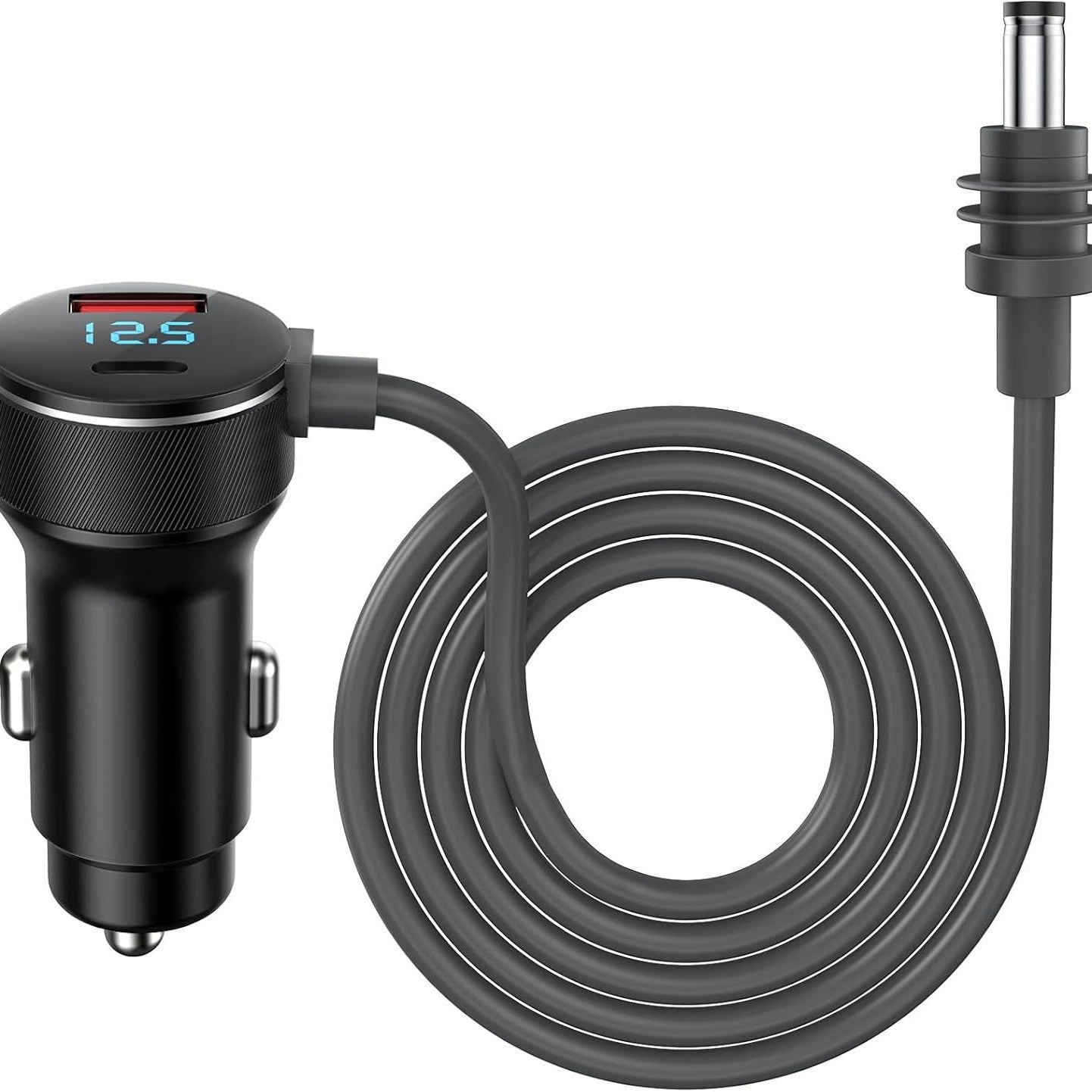

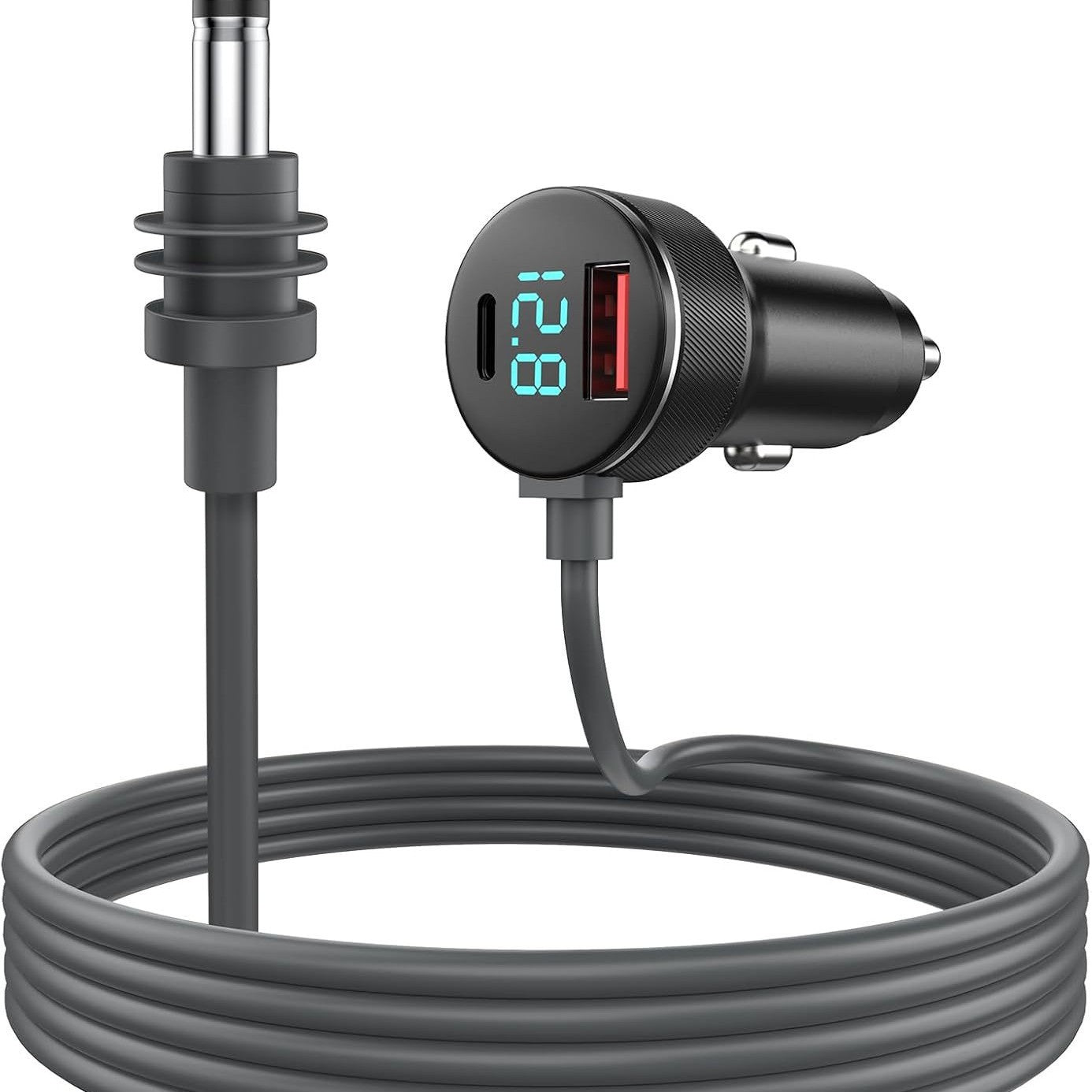

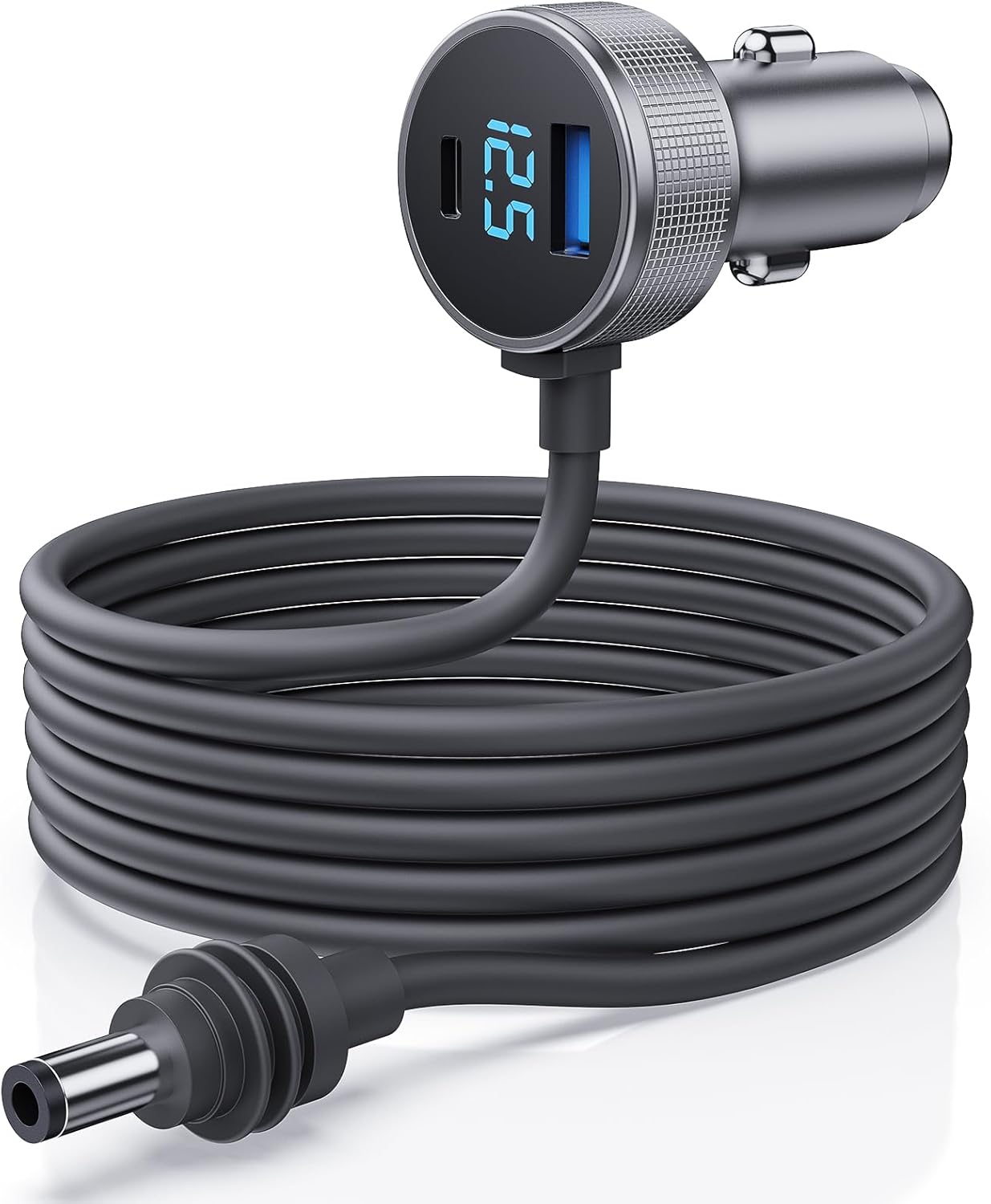

Adapter and Attached Cable
The cable runs from the vehicle adapter to a round DC plug. Choose the length that reaches the Mini without pulling on the connection or leaving loose cable around vehicle controls.

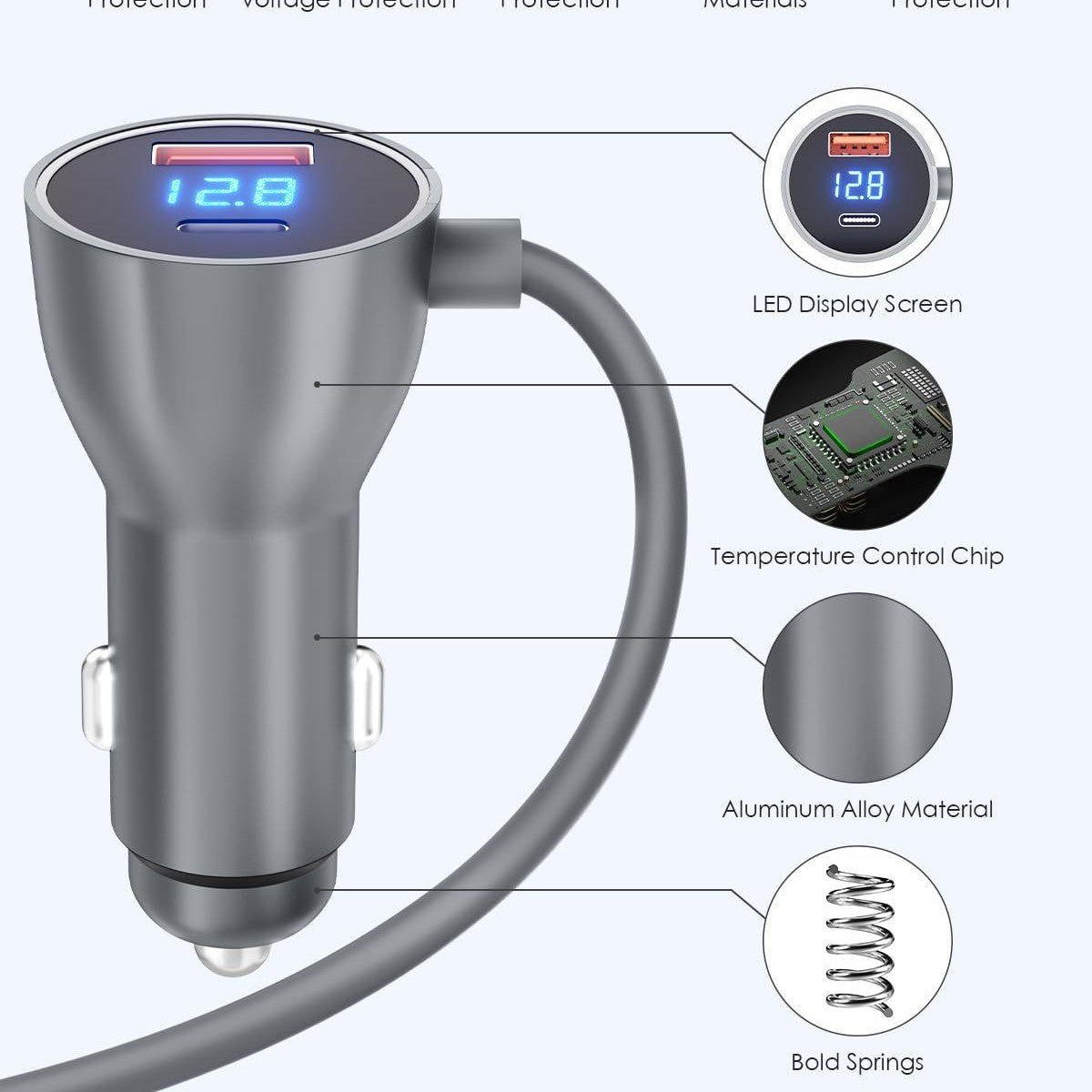

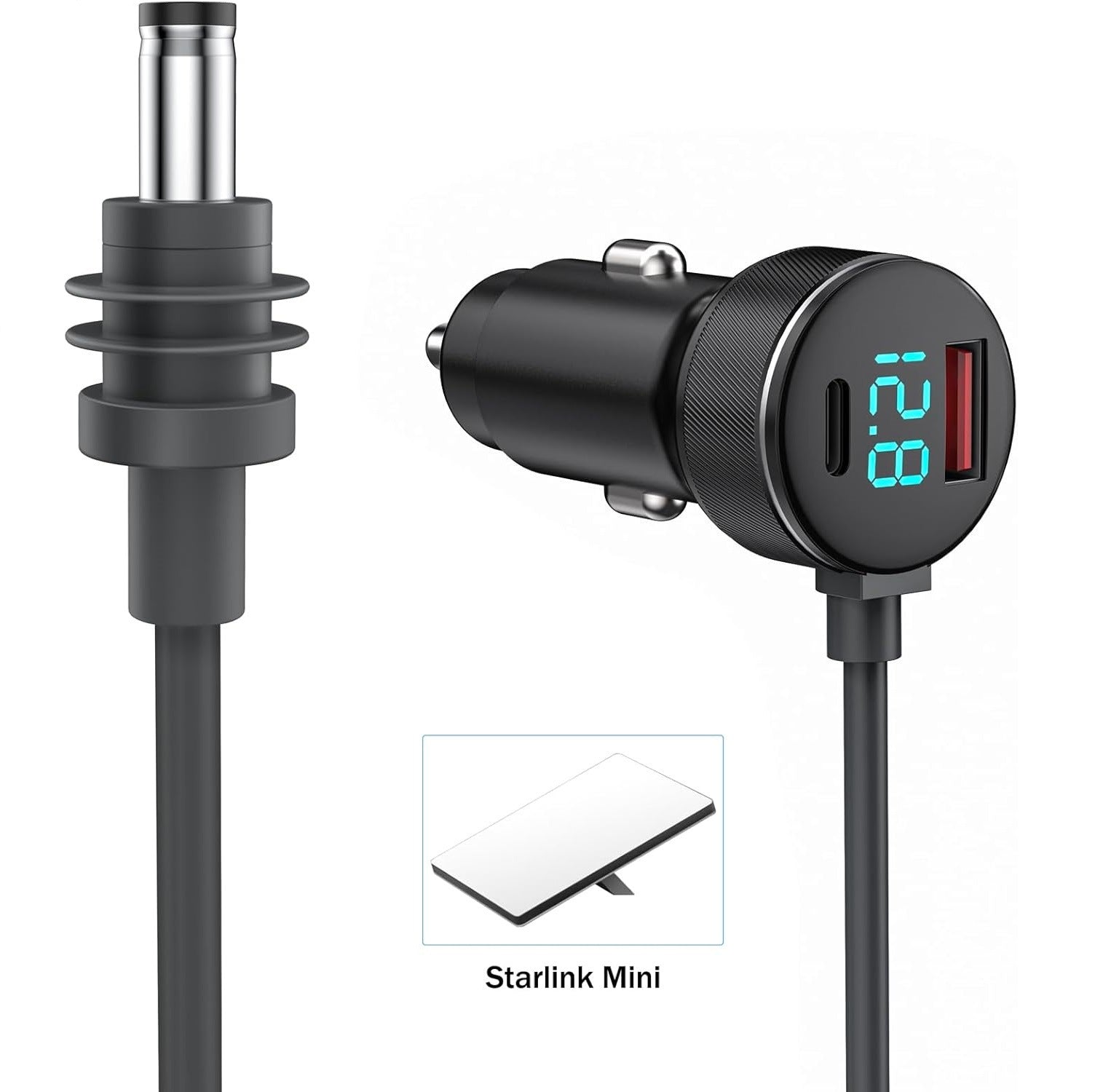

Display and Auxiliary Ports
The close view shows the voltage display, an oval USB-C port and a rectangular USB-A port. The pictured display reading is an example, not an operating-voltage specification.
Separate Power Paths
The listed USB-C output is up to 100W. Use the attached DC lead according to its own voltage and load rating; the USB-C number is not a rating for every connection or a measure of Mini power consumption.
Vehicle Supply
A familiar socket shape does not establish that its voltage and power capacity are suitable.
Compatibility
| Model | Years / Version | Notes |
|---|---|---|
| Starlink Mini | Attached DC connection. Requires a suitable vehicle auxiliary socket. |
Select the 2 m, 3 m or 5 m option for the cable route.
Specifications
| Product Type | Vehicle socket power adapter with attached DC cable |
|---|---|
| Compatible Models | Starlink Mini |
| Display Type | Digital voltage display |
| Input | Vehicle auxiliary cigarette-lighter-style socket |
| Output | Attached DC cable for Mini; USB-C port listed up to 100W |
| Connector Type | Vehicle socket plug, attached round DC plug, USB-C and USB-A ports |
| Cable Length | 2 m (6.6 ft), 3 m (9.8 ft) or 5 m (16.4 ft) |
| Wire Gauge | 18AWG |
Installation
- Connect the DC plug securely to the Mini and route the cable away from moving parts, pedals and door pinch points.
- Insert the adapter into the compatible vehicle socket. Follow the supplied limits for any additional USB loads.
- Secure the equipment and connections. Disconnect power before inspecting a damaged cable or loose, hot or intermittent connection.
Good to Know
Caution
- The auxiliary USB-C power rating is separate from the attached DC cable.
- Use only the supported load and port combinations in the supplied instructions. Only the USB-C port is listed up to 100W.
- Keep the vehicle adapter, USB ports and exposed connections dry. The sealing collar does not give the complete installation a water rating.
- Route the cable clear of pedals, steering controls, seats and door seals. Secure the Mini and cable before travel, and disconnect an adapter that overheats, loses contact or repeatedly trips protection.
Care
- Keep the adapter and USB ports dry and ventilated. Do not cover the adapter or leave cables pressed against hot surfaces.
FAQ
Does the Mini connect through a USB-C cable?
The photos show an attached cable with a round DC plug for the Mini. USB-C is an additional port on the adapter face.
Does the attached DC cable supply 100W?
The 100W figure applies to the USB-C port only.
Is it suitable for any car, RV or truck socket?
It plugs into a vehicle auxiliary socket. Socket shape alone does not determine electrical compatibility.
What does the display show?
It shows a voltage reading, not polarity, output capacity or the condition of every connection.
What lengths are available?
The options are 2 m, 3 m and 5 m. Choose a route with enough slack at the Mini connector while keeping cable clear of vehicle controls and moving parts.
