A Plaid-Pattern Projection When Your Door Opens
These plug-in LED modules replace factory puddle lights and cast a red-and-white plaid-style graphic onto the ground when a door opens. Choose two modules for the front doors or four for front and rear doors on Model 3, Model Y or Model YL.
- Plug-In Replacement
- 2 or 4 Pieces
- LED Projector
- Model 3 / Y / YL
Key Features
-
Door-Open Graphic
LED projectors cast a plaid-style pattern with red and white lines onto the ground.
-
Front Pair
The 2PCS option supplies two modules for the left and right front doors.
-
Four-Door Set
The 4PCS option supplies four modules for front and rear doors with compatible lamp positions.
-
Plug-In Connection
Replace matching factory puddle-light modules without cutting or splicing the vehicle wiring.
-
Plug-In Module
Uses the original housing, retaining tabs and electrical connector at each door position.
-
Variable Appearance
Ambient light, surface texture, door height and camera exposure change apparent contrast and sharpness.
Highlights

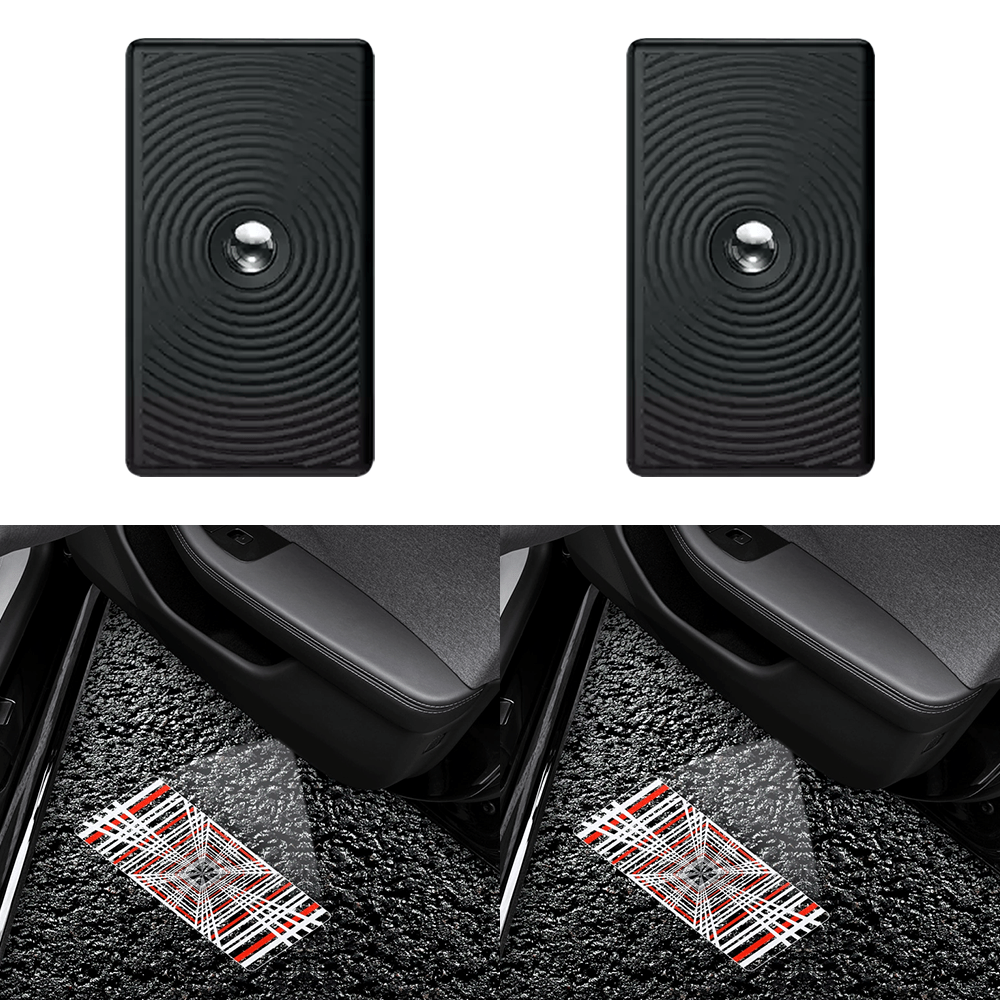

Front-Door Pair
The 2PCS option supplies the two front-door projector modules. The illustrated ground graphic shows the intended pattern; actual contrast varies with light, distance and surface.

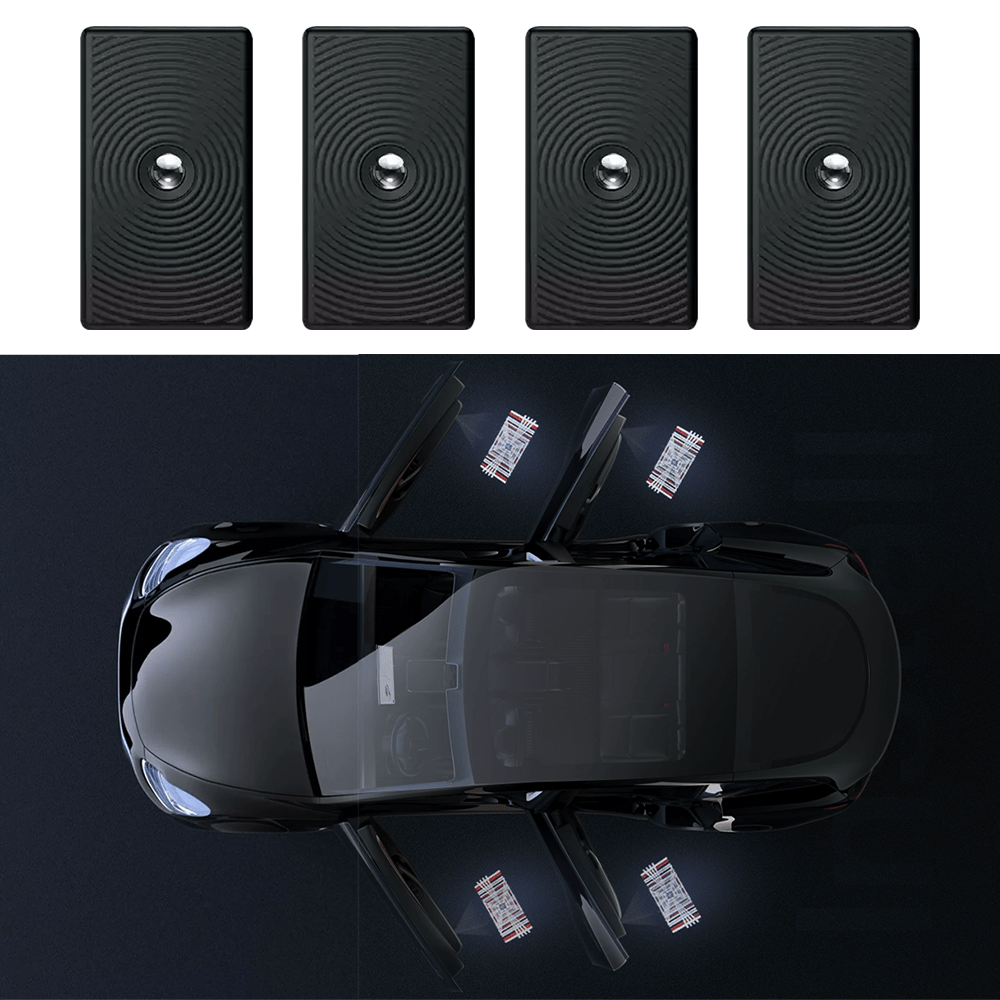

Four-Door Configuration
The 4PCS option adds the two rear-door modules. The four-door illustration is not a measurement of brightness.

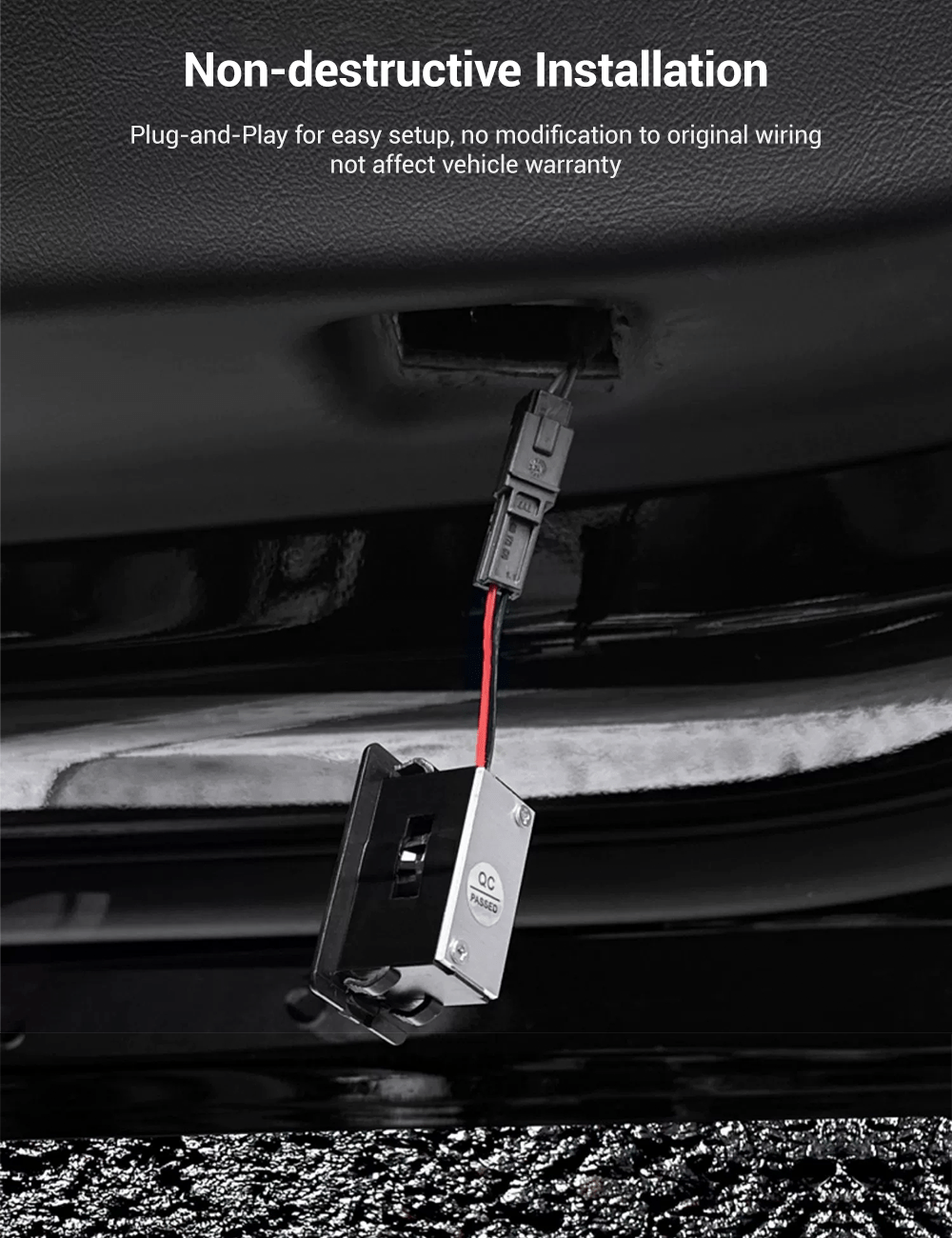

Original Connectors
Each module plugs into the original connector without splicing.
Compatibility
| Model | Years / Version | Notes |
|---|---|---|
| Model 3 | 2017+ | Earlier and Highland families. |
| Model Y | 2020+ | Earlier and Juniper families. |
| Model YL | 2026+ | Model YL family. |
The combined selection names all three model families. It does not mean each model began in 2017, or that every production revision uses the same lamp.
Specifications
| Product Type | LED door projector modules with plaid-style graphic |
|---|---|
| Compatible Models | Model 3, Model Y and Model YL with matching factory door-light modules |
| Position / Location | Front door lamp openings, or front and rear door lamp openings |
| Color | Red-and-white projected lines against the ground background |
| Quantity | 2 front modules or 4 front-and-rear modules |
| Light Source | LED projector |
| Installation Type | Plug-in replacement at compatible original door-light connectors |
| Package Contents | 2 or 4 projector modules according to selection |
What's in the Box
- Front Door 2PCS: 2 x LED projector modules for the front doors
- Front & Rear Door 4PCS: 4 x LED projector modules for front and rear doors
Installation
- Open the door, fully lower its window and keep the door open. Release the original lamp carefully with a non-marring trim tool; do not pull it away against attached wiring. Release the connector lock before unplugging.
- Connect each projector without cutting or splicing and seat it flush.
Good to Know
Caution
- Keep each door open during installation and fully lower the corresponding window before disconnecting the original lamp. Do not pull against attached wiring or close a door with loose modules or dangling wiring.
- A puddle-light electrical fault can also affect window operation.
- These aftermarket decorative projectors are not official Tesla lights. A focused graphic is not a guarantee of greater walking-area illumination or safe footing.
Care
- Wipe the exterior lens gently with a soft damp cloth; do not pressure-wash the connector or flood the door opening.
FAQ
What does each quantity option include?
2PCS supplies the two front-door projector modules. 4PCS supplies four modules for front and rear doors.
Does installation require wire cutting?
Matching modules connect at the original lamp connector without cutting or splicing. If the connector or housing differs, stop rather than modifying the wiring or forcing the housing.
Will the projection always look like the photos?
No. Ambient light, ground color and texture, distance, moisture and camera exposure affect contrast and sharpness. The graphic does not widen walking-area illumination.
Is this an official Tesla projector?
These are aftermarket decorative projectors. The plaid-style graphic does not establish Tesla affiliation, approval or vehicle-wide compatibility.
