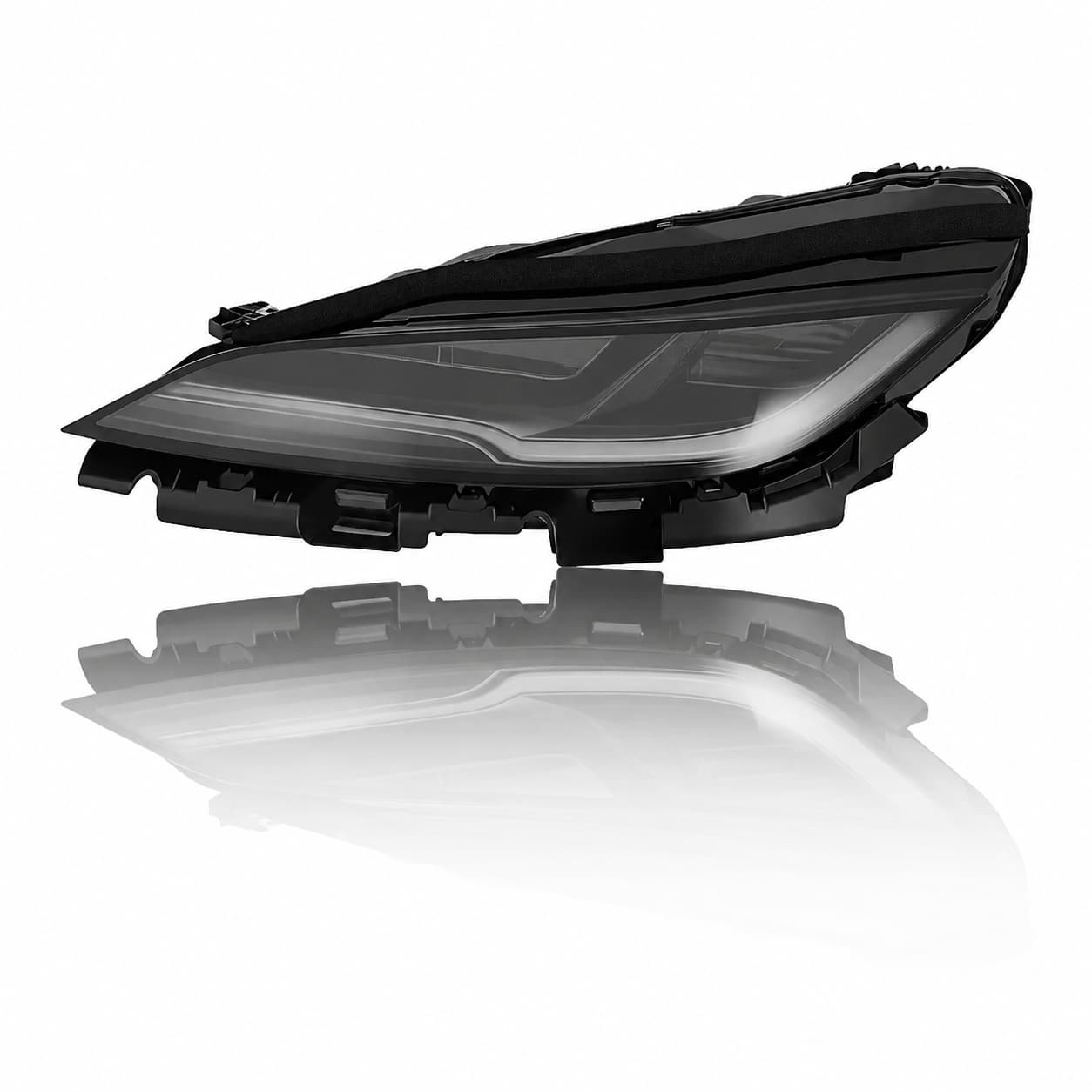

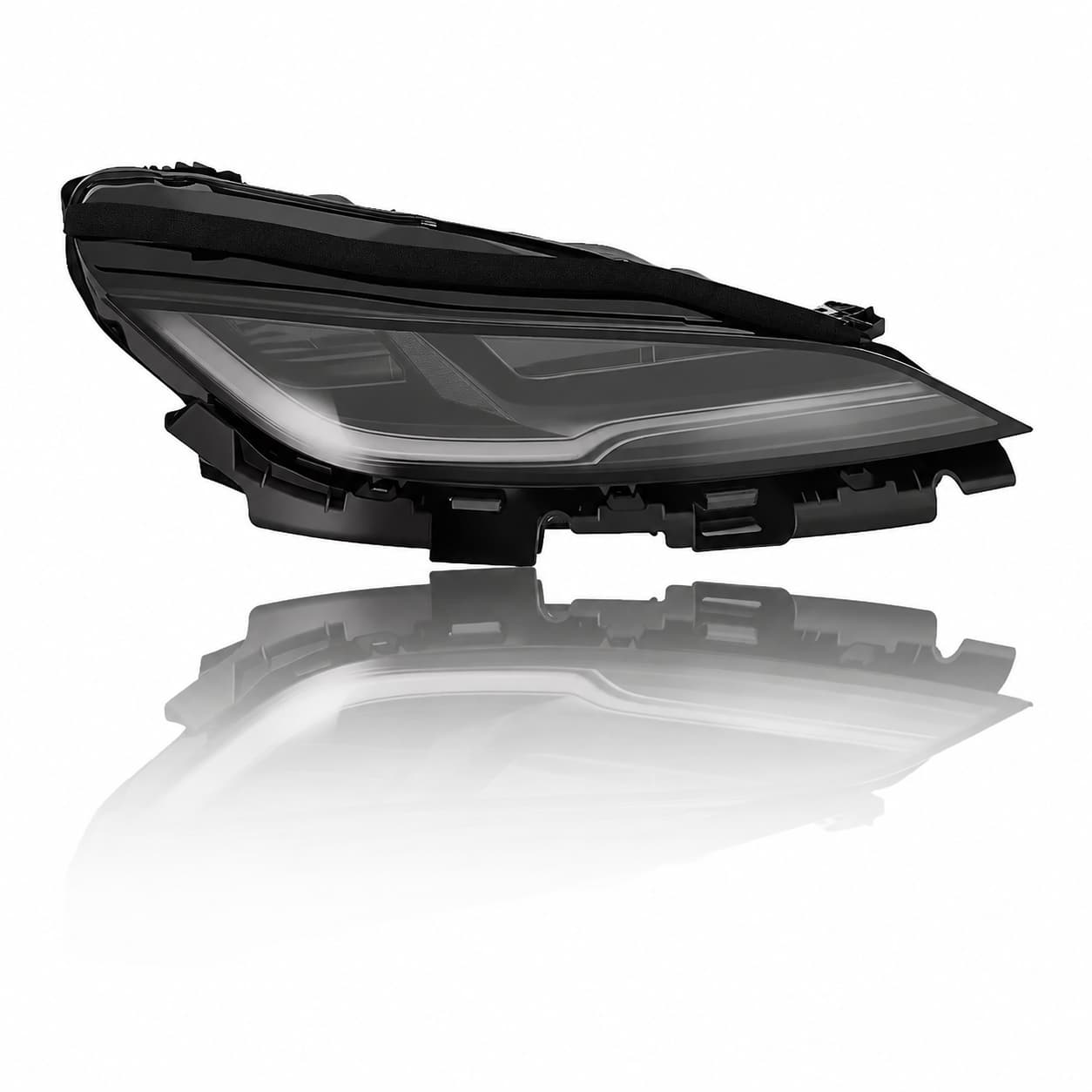

LED Headlight Assembly for Tesla Model 3 Highland 2024+
Replace a damaged front lamp on the refreshed Tesla Model 3 Highland with a complete LED headlight assembly. Select the left side, right side or a pair, then choose US Spec with an amber side reflector or EU Spec without one. The housing, polycarbonate outer lens, LEDs and control module are supplied for the selected configuration.
- Complete LED assembly
- US or EU specification
- Left, right or pair
Key Features
-
Complete LED Assembly
Housing, polycarbonate lens, LEDs and the control module are supplied for the selected lamp configuration.
-
Market Options
Choose US Spec with an amber side reflector or EU Spec without one.
-
Side Selection
Available as one left lamp, one right lamp or a left-and-right pair.
-
Application References
1694086 identifies the left reference family and 1694087 the right.
-
Highland Application
Fits the refreshed Model 3 from 2024 onward.
-
Service Replacement
Front fascia access, the applicable firmware workflow and separate headlight aiming are part of the replacement process.
Highlights

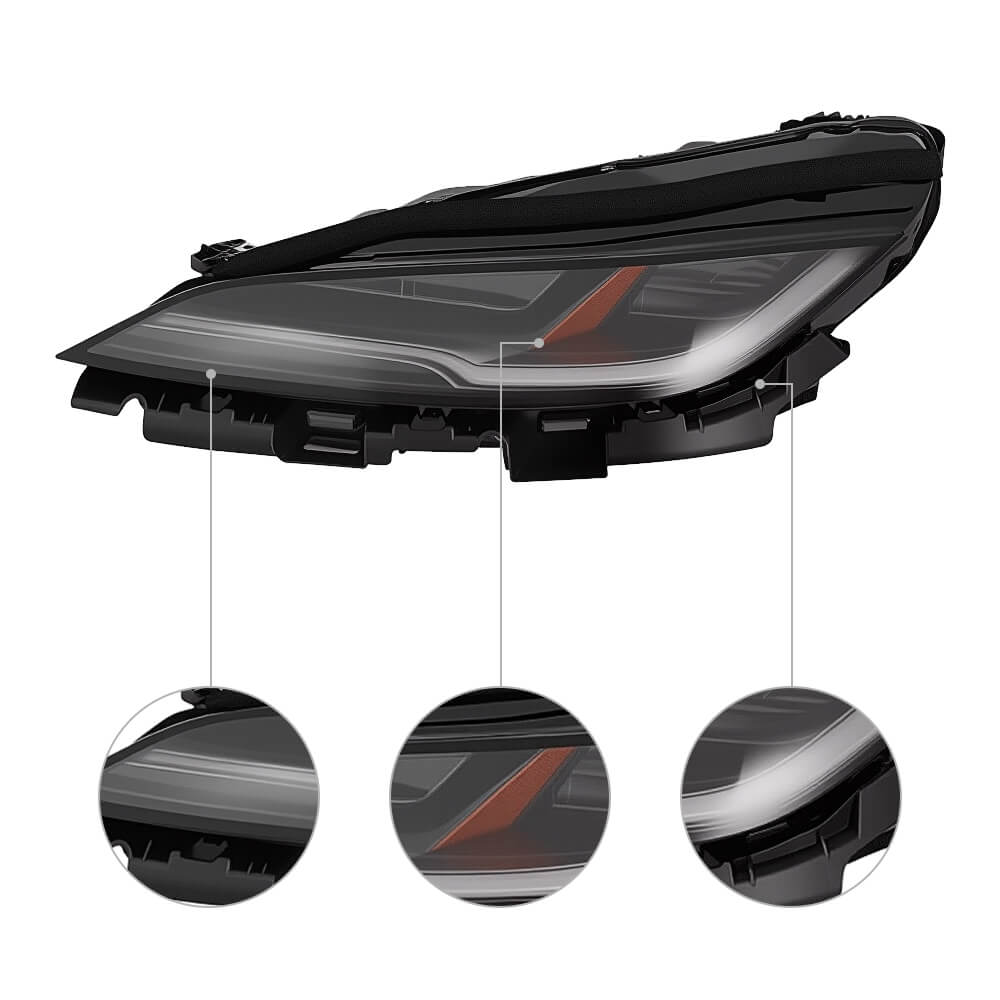

US and EU Specifications

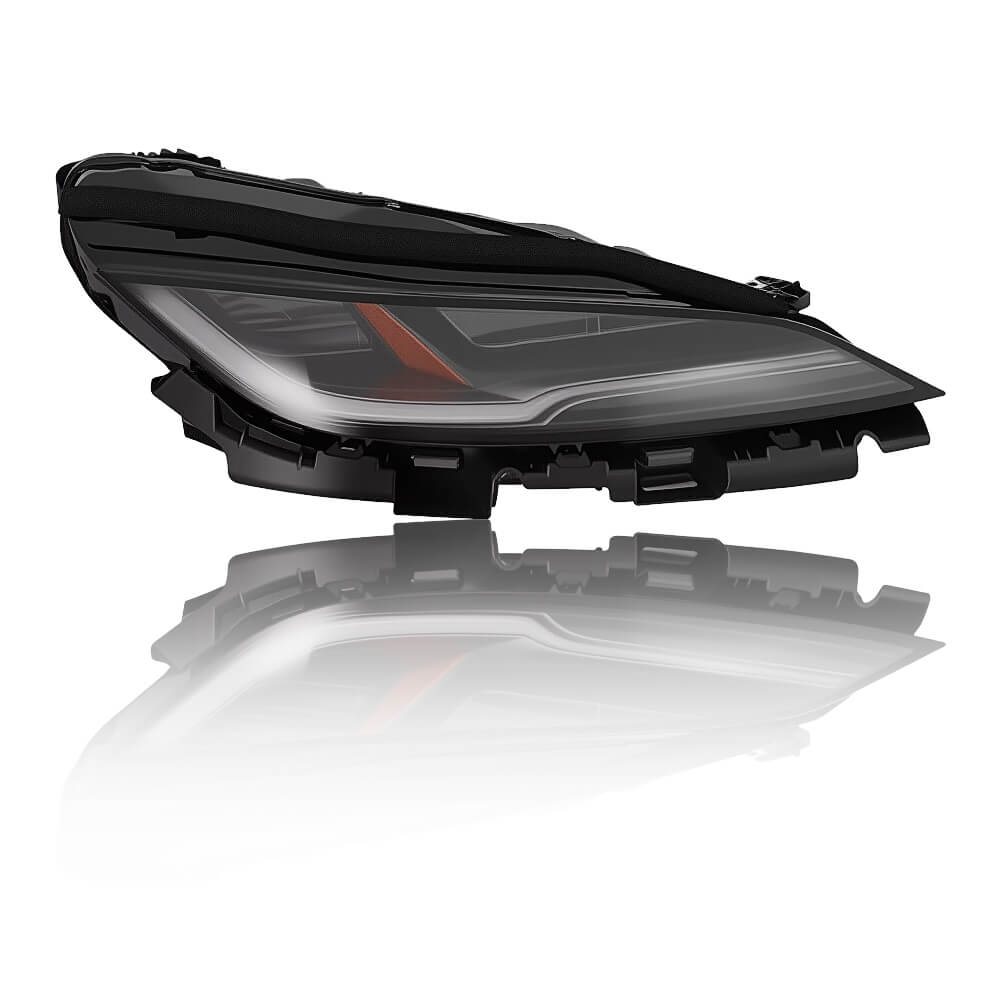

The US Spec option includes an amber side reflector; the EU Spec option does not.

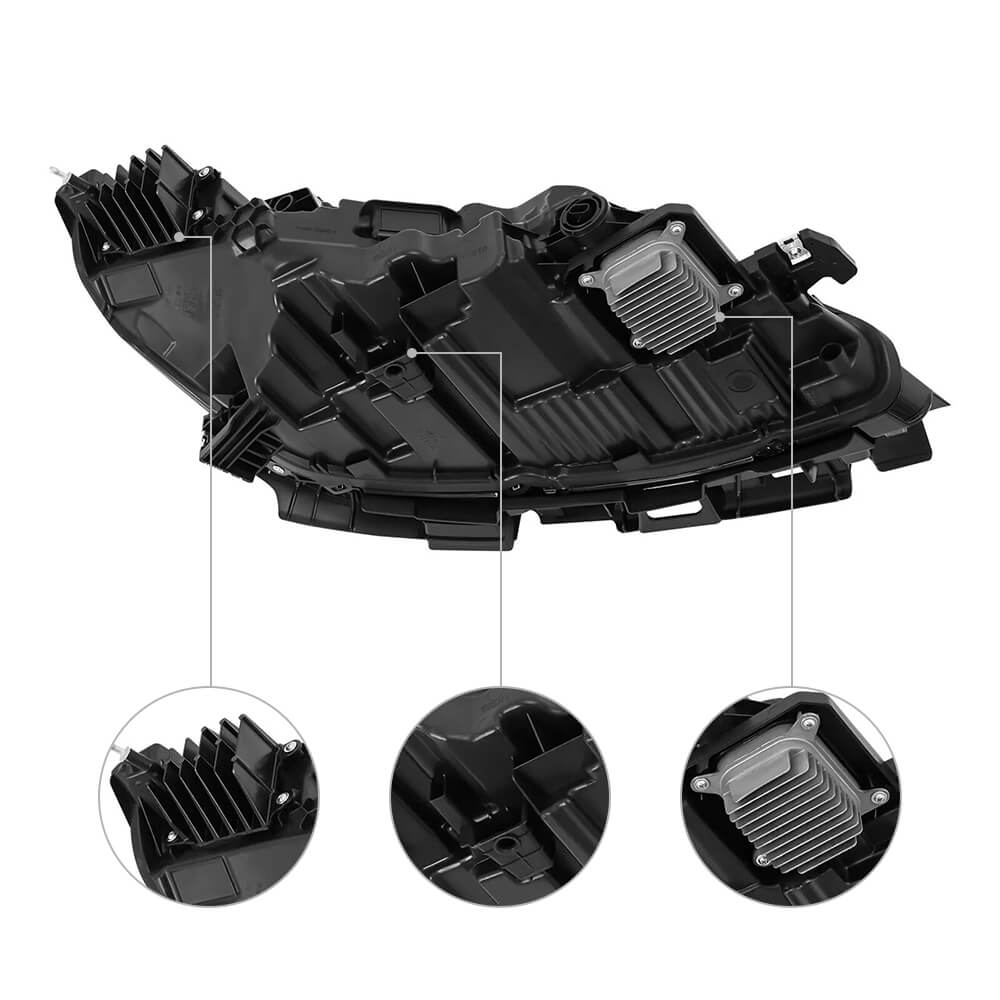

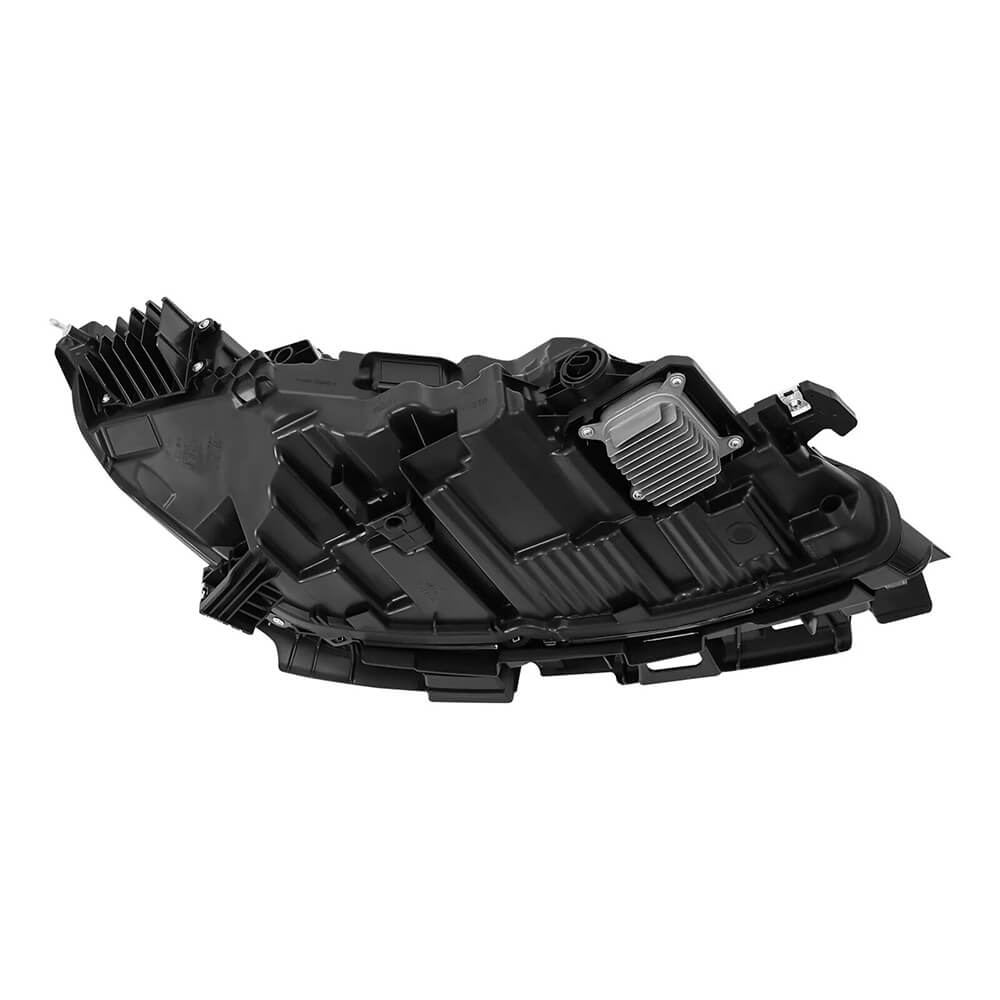

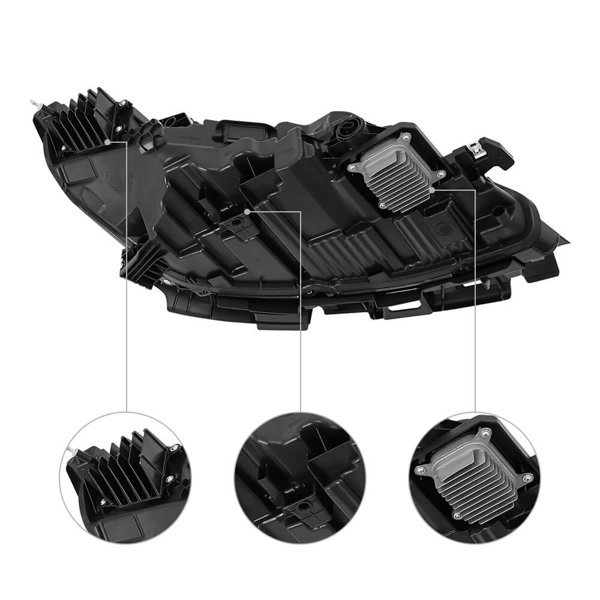

Housing, Lens and Control Module
The complete assembly includes its housing, polycarbonate outer lens, LEDs and control module for the selected configuration.

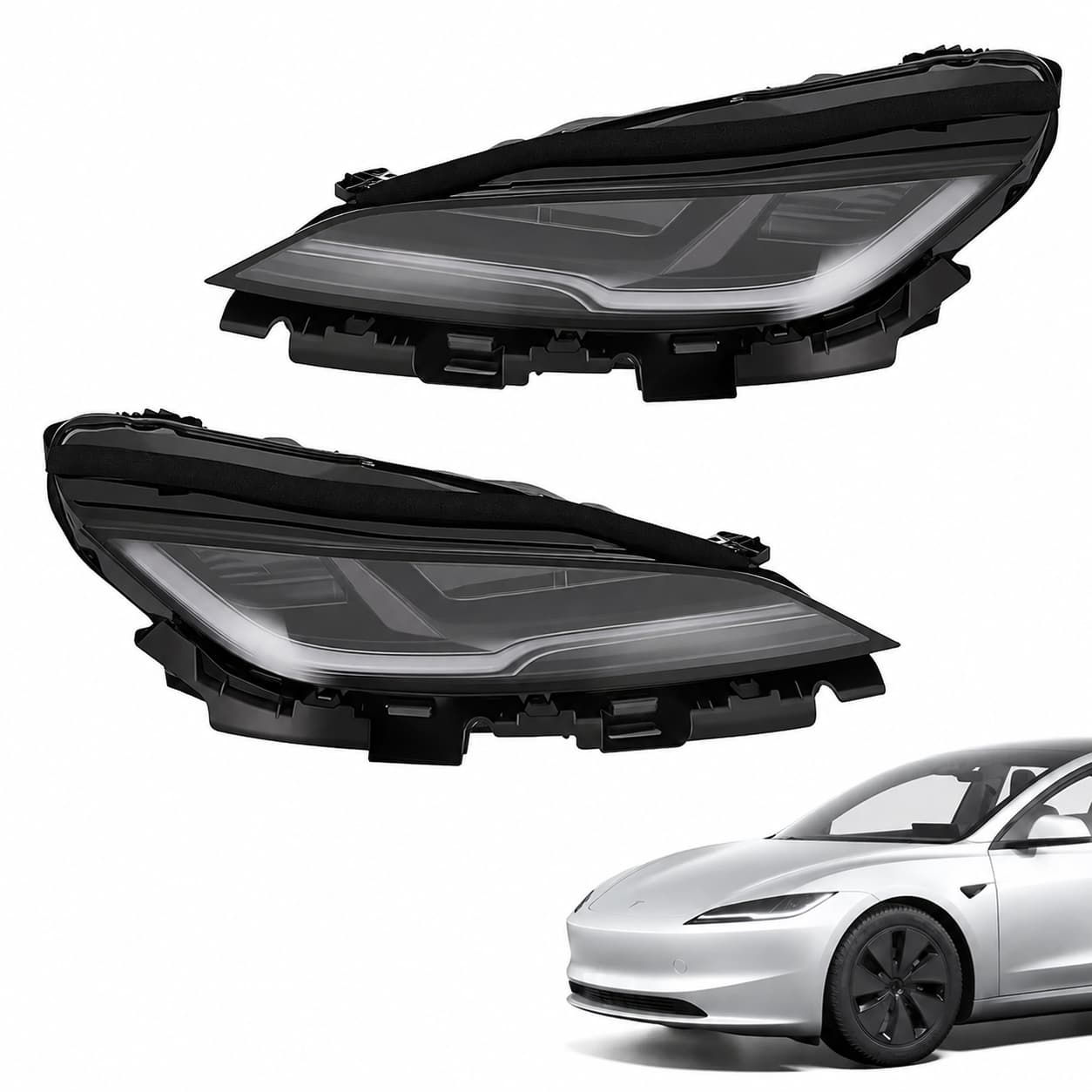

One Side or a Matching Pair
Left and right lamps can be ordered separately or together. The application reference families are 1694086 for left and 1694087 for right; the full suffix and revision still need to match. Pair images illustrate the two sides; a single-side option supplies one assembly.
Compatibility
| Model | Years / Version | Notes |
|---|---|---|
| Model 3 Highland | 2024+ | Refreshed Model 3 Highland only; side and US or EU specification per the selected option. |
US/EU option names do not provide a universal left-hand-drive/right-hand-drive mapping.
Specifications
| Product Type | Complete replacement LED headlight assembly |
|---|---|
| Compatible Models | Tesla Model 3 Highland (2024+, refreshed Highland model only) |
| Position / Location | Front left, front right or a left and right pair |
| Material | Polycarbonate outer lens and weather-sealed housing |
| Quantity | 1 assembly (left or right) or 2 assemblies for the pair |
| Light Source | LED; functions depend on the selected version and vehicle configuration |
| Package Contents | Headlight assembly with LED control module for the selected configuration, in secure packaging |
| Reference Number | Left family 1694086 / right family 1694087; full suffix and revision must match |
What's in the Box
- 1×Selected left or right headlight assembly, or 2 x Assemblies for the pair option
- LED control module included for the selected configuration
Installation
- Follow the applicable Highland service procedure for electrical precautions and front fascia removal. Release connector locks correctly, support the lamp and replace it without straining wiring or damaging mounting points.
- Follow the sequence specified for the selected lamp version to restore the fascia and complete the applicable firmware reinstall and configuration workflow.
- Aim the headlights with the regional procedure and aiming equipment.
Good to Know
Caution
- Replacement follows the Model 3 Highland service procedure, including front fascia removal, firmware reinstall/configuration and headlight aim adjustment.
- Matrix and Adaptive High Beam operation depends on original equipment, regional availability, software and the correct lamp version. This replacement does not add those functions to an unequipped vehicle.
Care
- Keep the lens clean with products suitable for its polycarbonate surface; avoid abrasive pads and incompatible solvents.
FAQ
Can I choose a version by the amber reflector alone?
The amber side reflector distinguishes the US Spec option from the EU Spec option.
Does this replacement add Matrix or Adaptive High Beam?
These functions depend on the vehicle’s original equipment, region, software availability and the correct lamp version. Replacing a lamp does not enable them on a vehicle without the required original equipment and configuration.
What is supplied with a single-side or pair option?
A left or right option supplies one complete assembly; the pair supplies two. Housing, lens, LEDs and the control module are included for the selected configuration.
Is installation finished once the lamp turns on?
No. Installation also includes the firmware/configuration workflow and physical headlight aim adjustment.
