A Diffused Rear Guide Light for Model Y Juniper
This rear guide-light assembly uses LED light-guide optics and an ABS and PC housing for the new Model Y Juniper. It provides a driving glow and a high-intensity flashing mode triggered by braking. Custom connectors are described for connection through the factory harness.
- Diffused Light Guide
- Driving + Brake Modes
- ABS + PC
- New Juniper
Key Features
-
Compatibility
Intended for the new Model Y Juniper; excludes 2020–2024 Model Y.
-
Material
The housing combines ABS and PC.
-
Design
LED light guide creates a continuous diffused glow.
-
Function
Driving glow changes to a high-intensity flashing mode when braking.
-
Installation
Custom connectors are described for a bridge connection; use the exact product instructions.
-
Care
Keep the light guide and connectors clean, dry and securely mounted.
Highlights

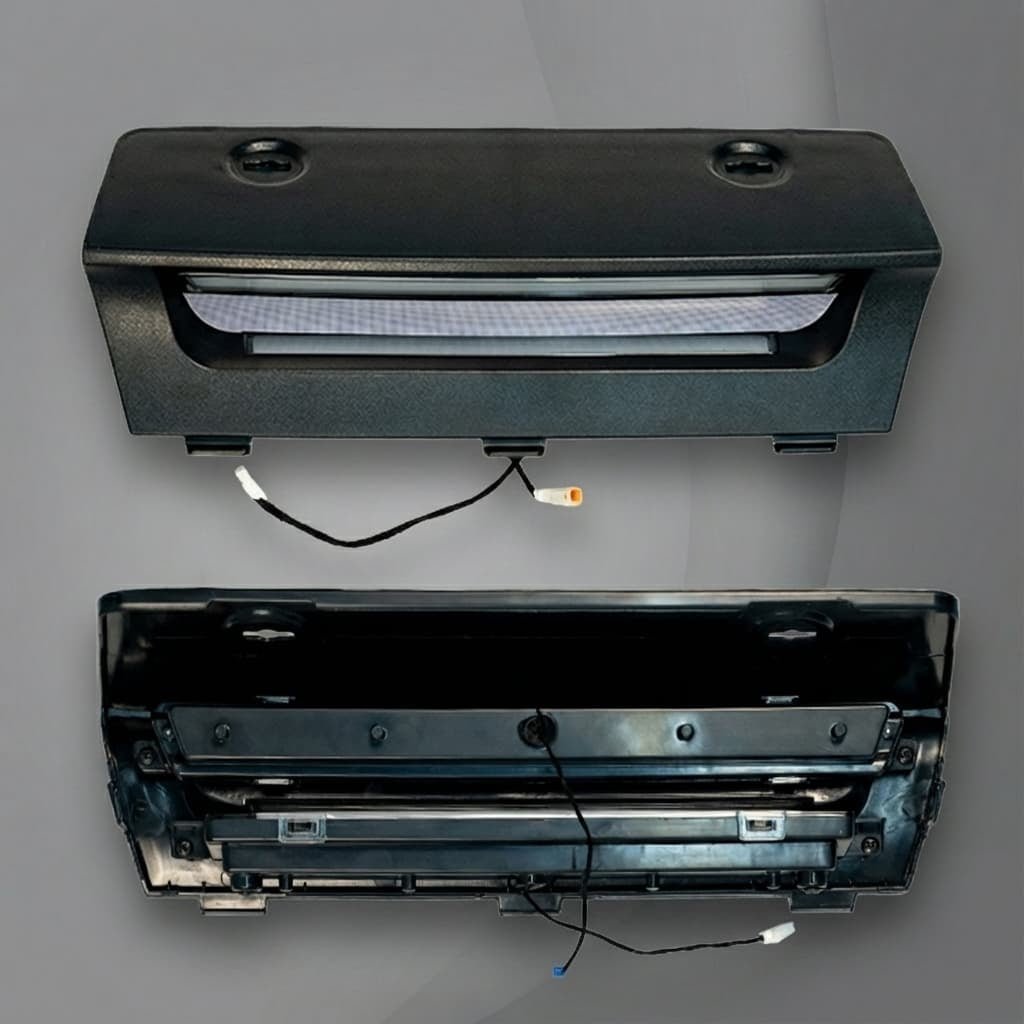

Light-Guide Assembly
The front and rear views show the housing, light-guide opening and connector leads of the assembly. These are two views of the product; the photo is not a wiring diagram or a kit-quantity statement.

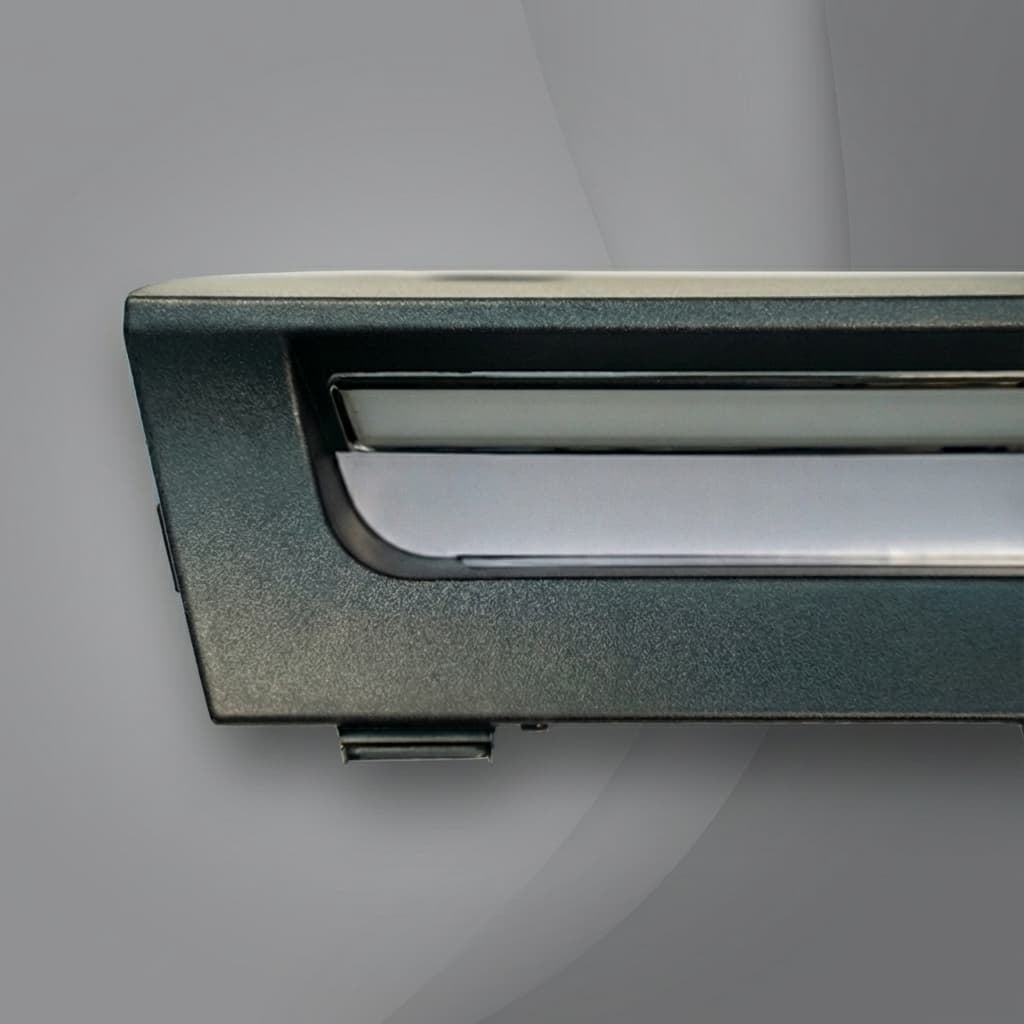

Recessed Light-Guide Surface
The close-up shows the light-guide surface recessed within the textured housing. Keep this surface clean so the accessory light remains visible.
Compatibility
| Model | Years / Version | Notes |
|---|---|---|
| Model Y Juniper | New edition; not 2020–2024 Model Y. |
Specifications
| Product Type | Rear diffused guide light |
|---|---|
| Compatible Models | Model Y Juniper, new edition; not 2020–2024 Model Y |
| Position / Location | Rear |
| Material | ABS and PC |
| Voltage | Listed 12 V |
| Connector Type | Custom connectors for a bridge connection to the factory harness |
| Light Source | LED light guide |
| Lighting Modes | Driving glow and brake-triggered flashing mode |
Installation
- Unplug the factory harness at the connection specified for this light.
- Connect the light between the factory harness connectors using the provided custom connectors.
Good to Know
Caution
- No road approval is claimed for this brake-triggered flashing accessory.
- U.S. federal requirements generally call for auxiliary lamps to be steady-burning, apart from limited exceptions. Installation must not impair required original lights; private-owner use is also subject to applicable local rules.
- A listed 12 V rating is not permission to connect to any vehicle circuit.
- Do not substitute this accessory for required stop, tail, turn, reverse or rear-fog lights.
Care
- Clean the light-guide surface gently with a soft cloth. Inspect mounting and connector seals periodically.
FAQ
Does it fit the earlier Model Y?
No. This version is intended for the new Model Y Juniper and excludes 2020–2024 Model Y.
Is the brake mode steady or flashing?
It is described as a high-intensity flash triggered by braking. A selectable steady-only or disable mode is not specified.
Can I use the flashing mode on public roads?
Only where the applicable rules permit it. No road approval is stated for the flashing mode.
Does the listed 12 V rating establish the wiring connection?
No.
Does it replace the required original rear lamps?
No. It is not a substitute for the required lamps; all original lighting functions remain in place.
