Choose the Color of Your Door Welcome Lights
Replace the original door puddle lights with RGB projection units controlled through a Bluetooth mobile app. Choose from 64 colors, solid or gradient effects, brightness and music-sync settings. Two- and four-light packages are available.
- 64 Colors
- Bluetooth App
- Solid or Gradient
- 2 or 4 Lights
Key Features
-
64-color selection
Select a steady color or gradient effect for the projected door welcome light.
-
Bluetooth app controls
The iOS/Android app changes color, brightness and patterns, with music-sync mode.
-

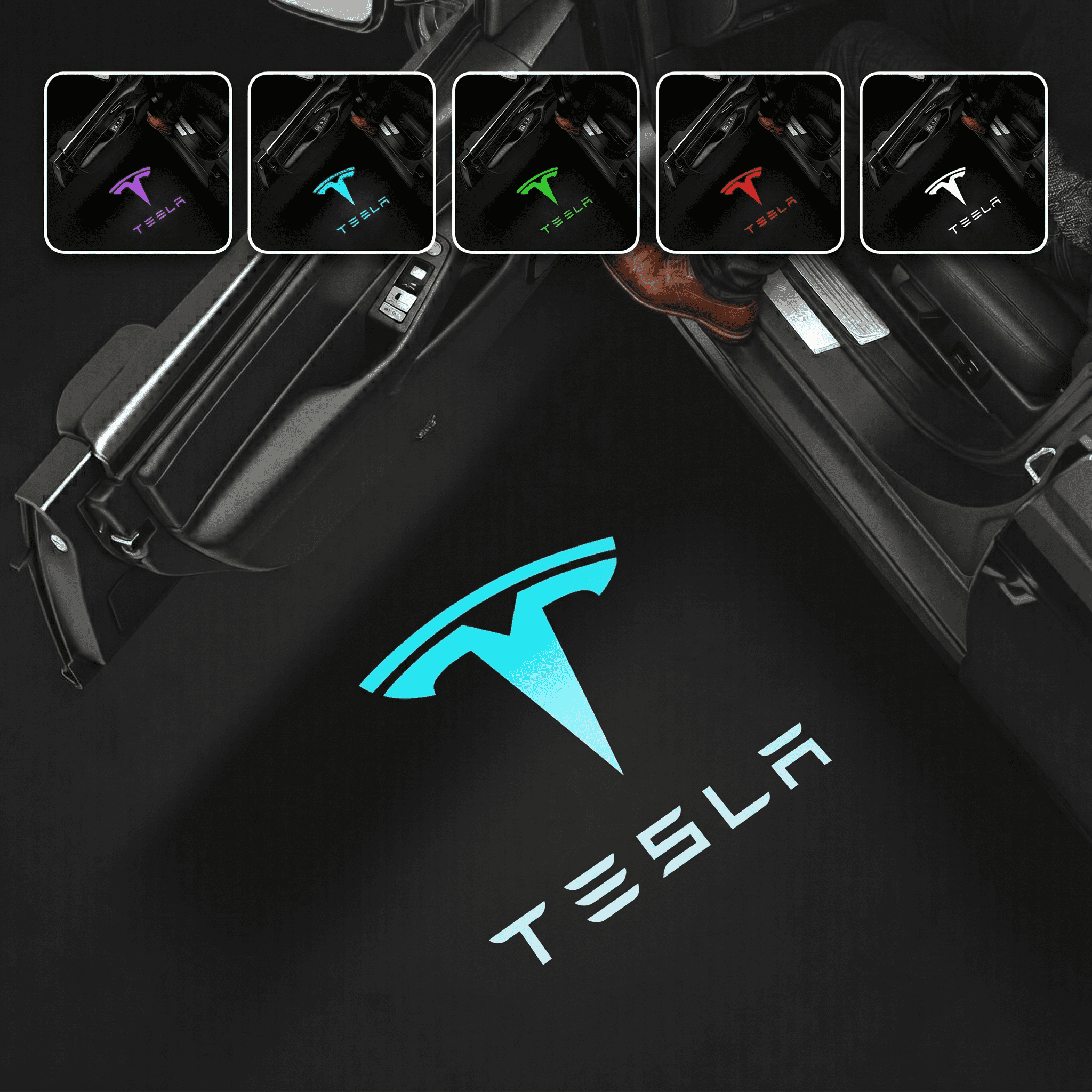

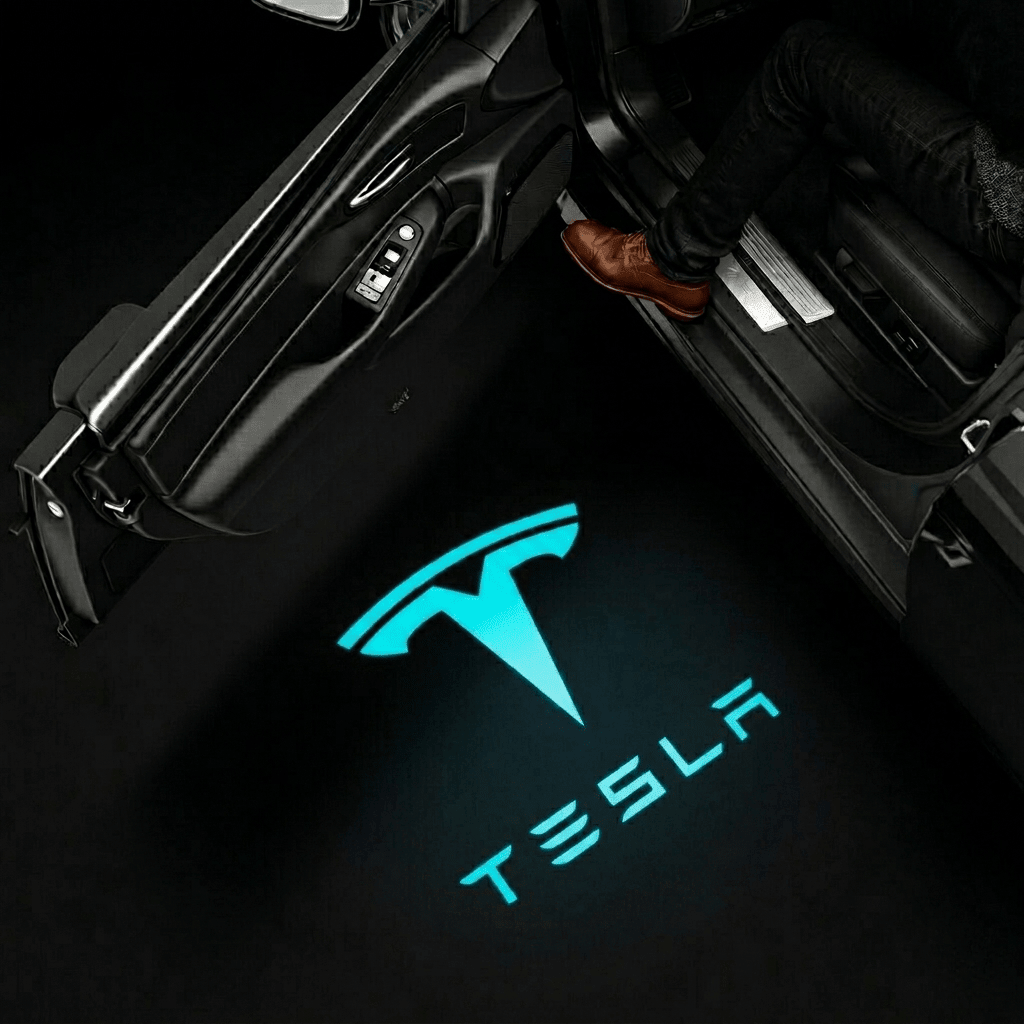

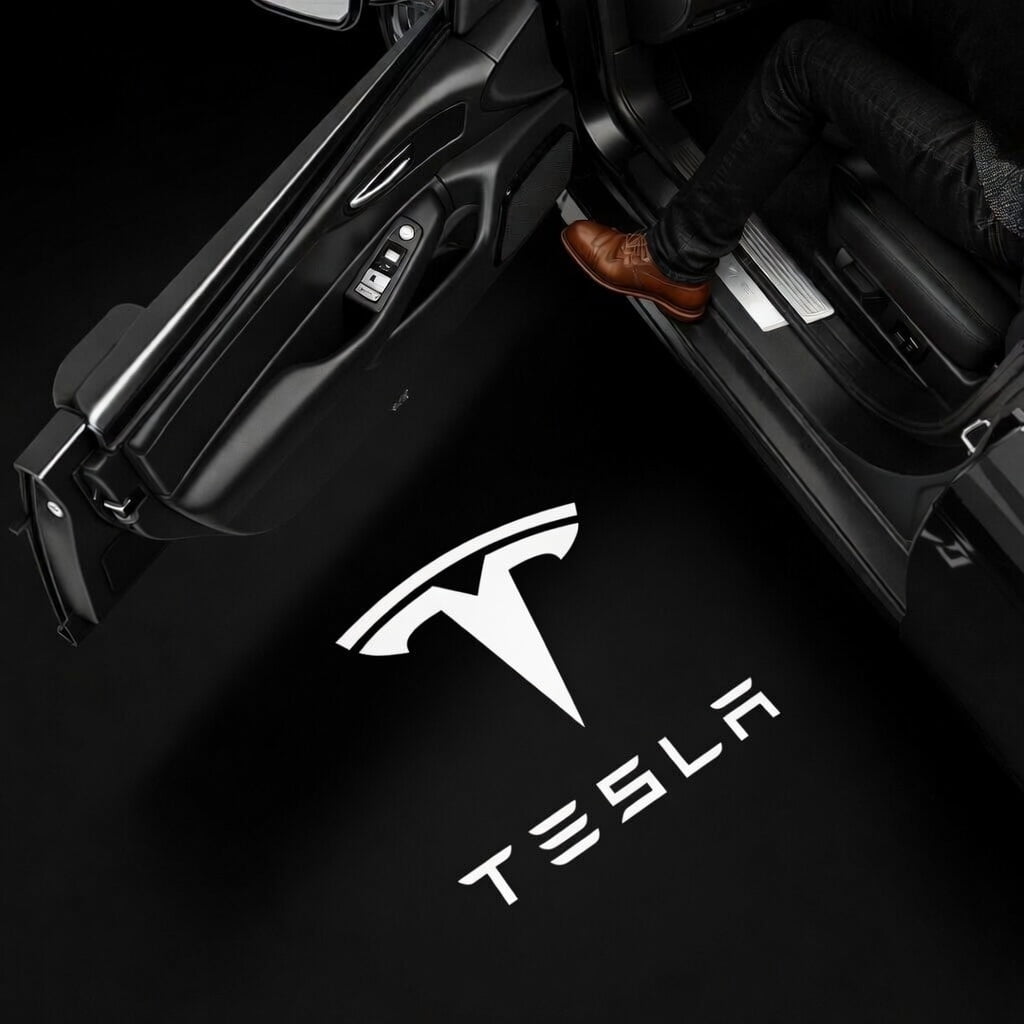

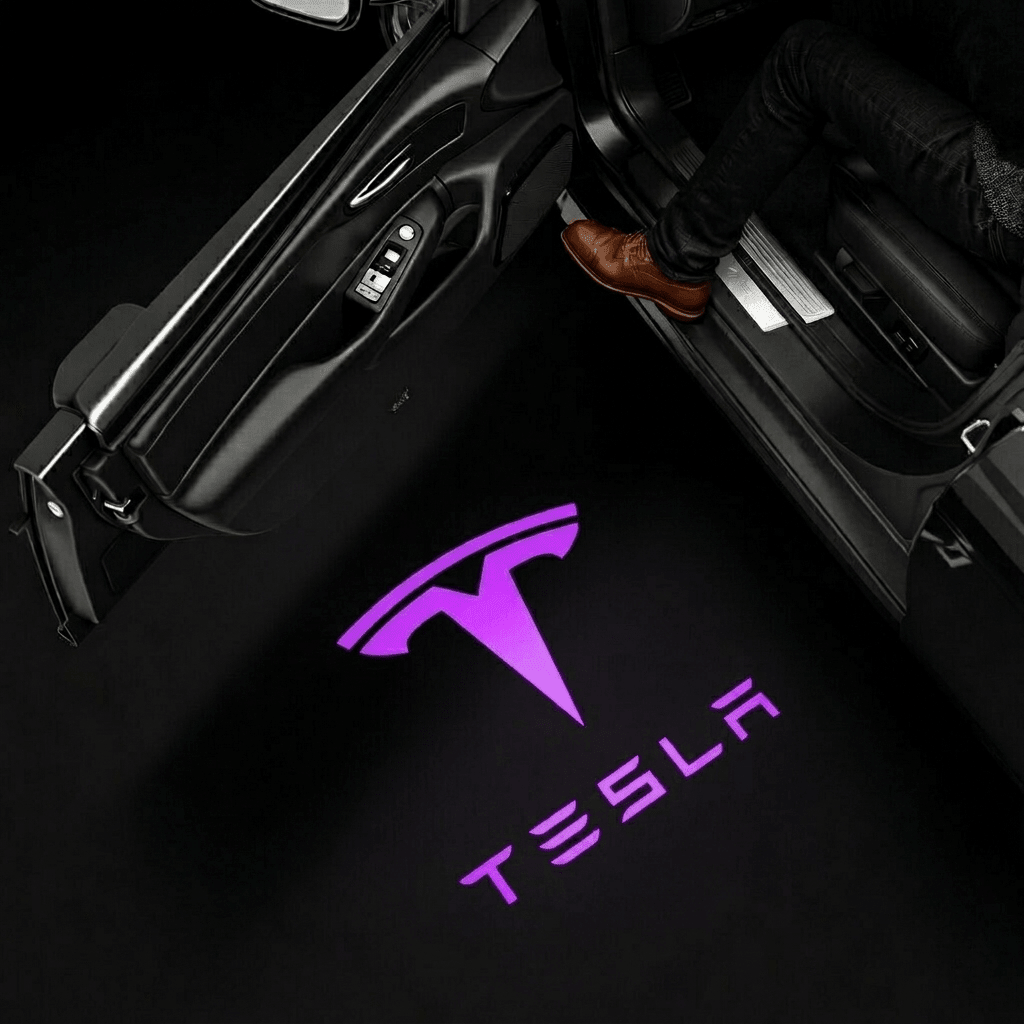

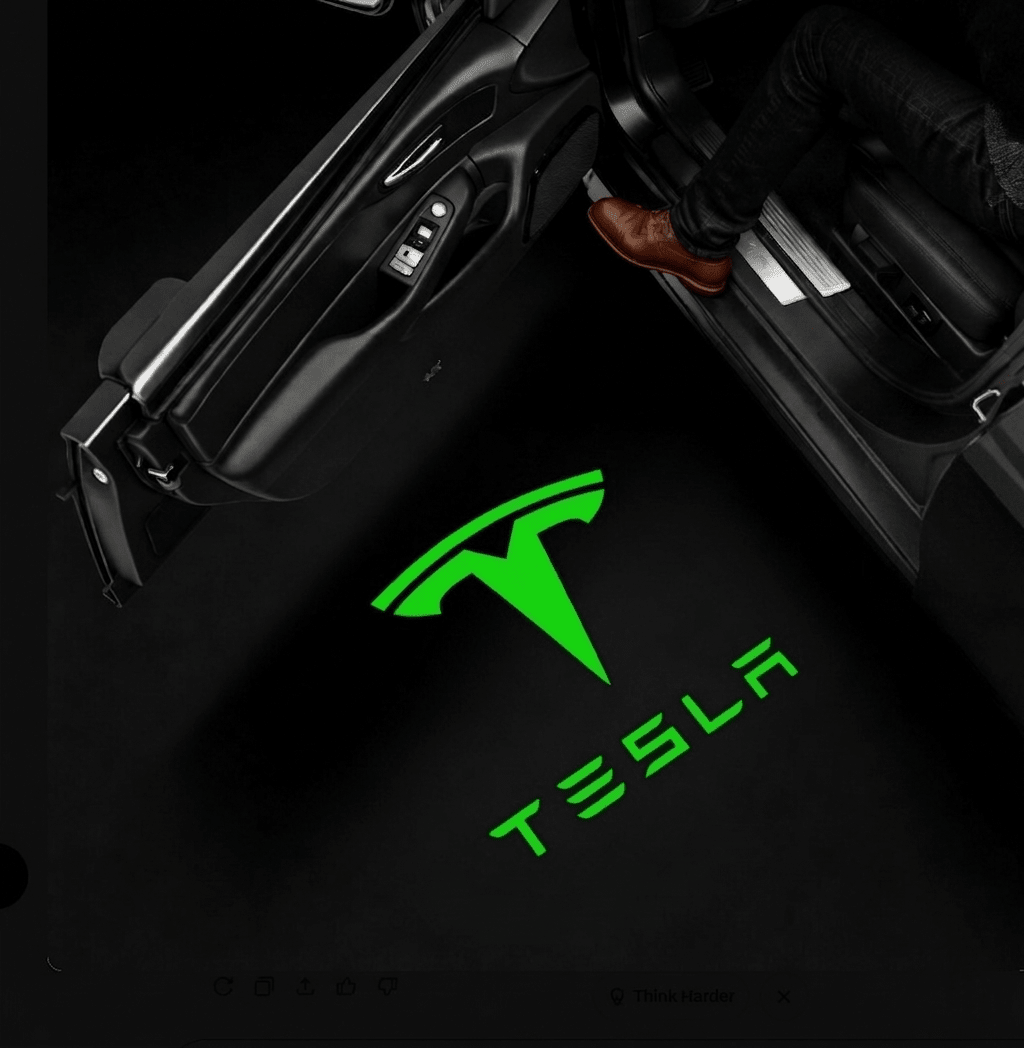

Projection examples
Different selected colors change the projected logo appearance; visibility varies with surface and ambient light.
-

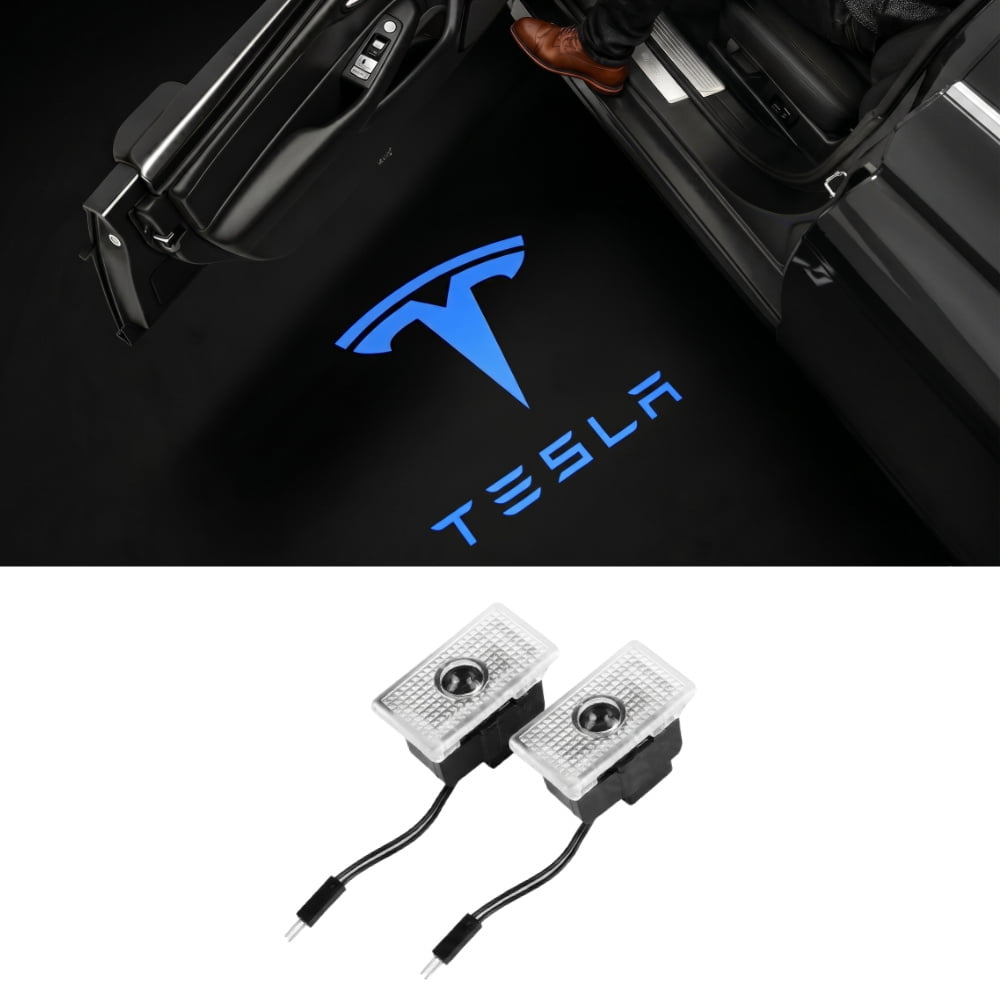

Two set sizes
Choose two or four lights according to the selected package and supported door positions.
-
Matched housing
Uses the original lamp opening, connector and mounting tabs.
-
Model boundaries
Pre-refresh S/X only; refreshed S/X and their round rear-door housings are excluded.
Highlights

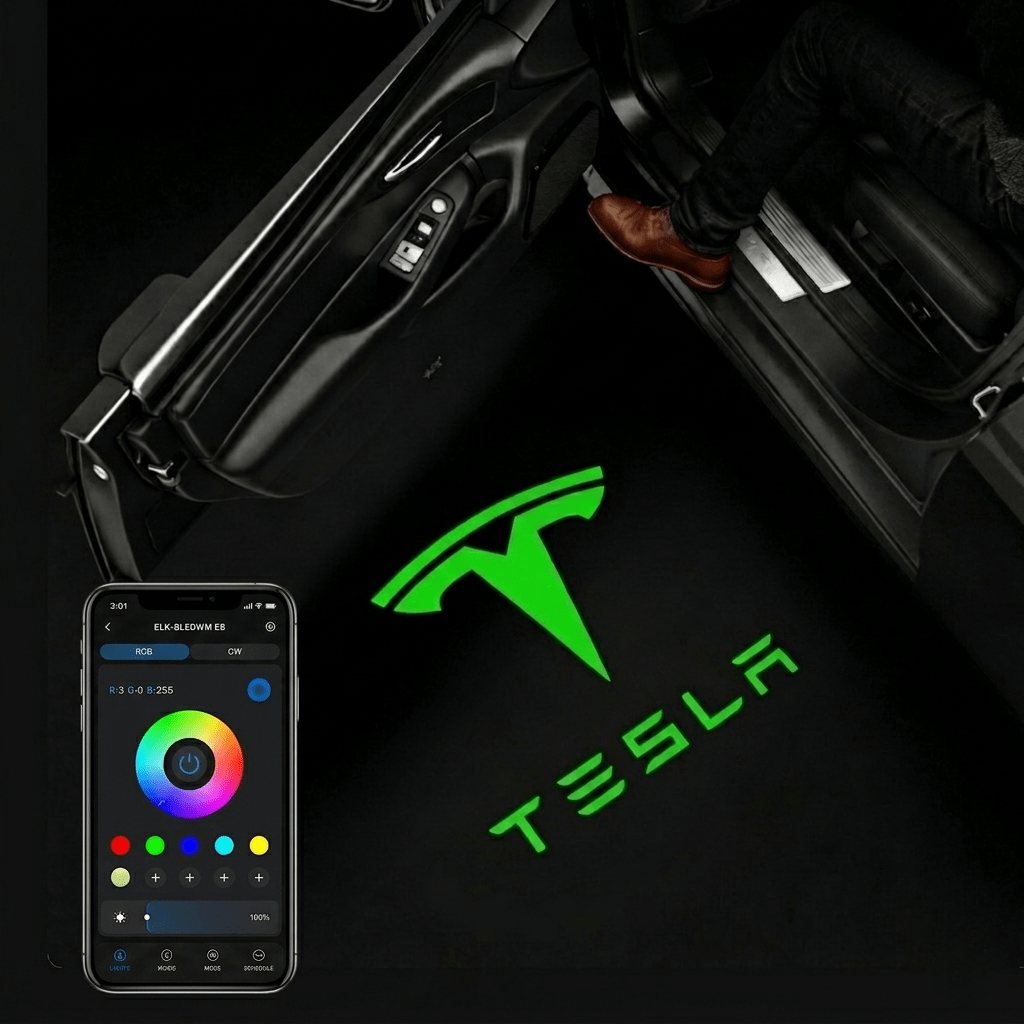

App-Controlled Color
The illustrated phone interface shows color adjustment for the projected light. Pair through the supplied app instructions; a compatible phone and Bluetooth connection are required.

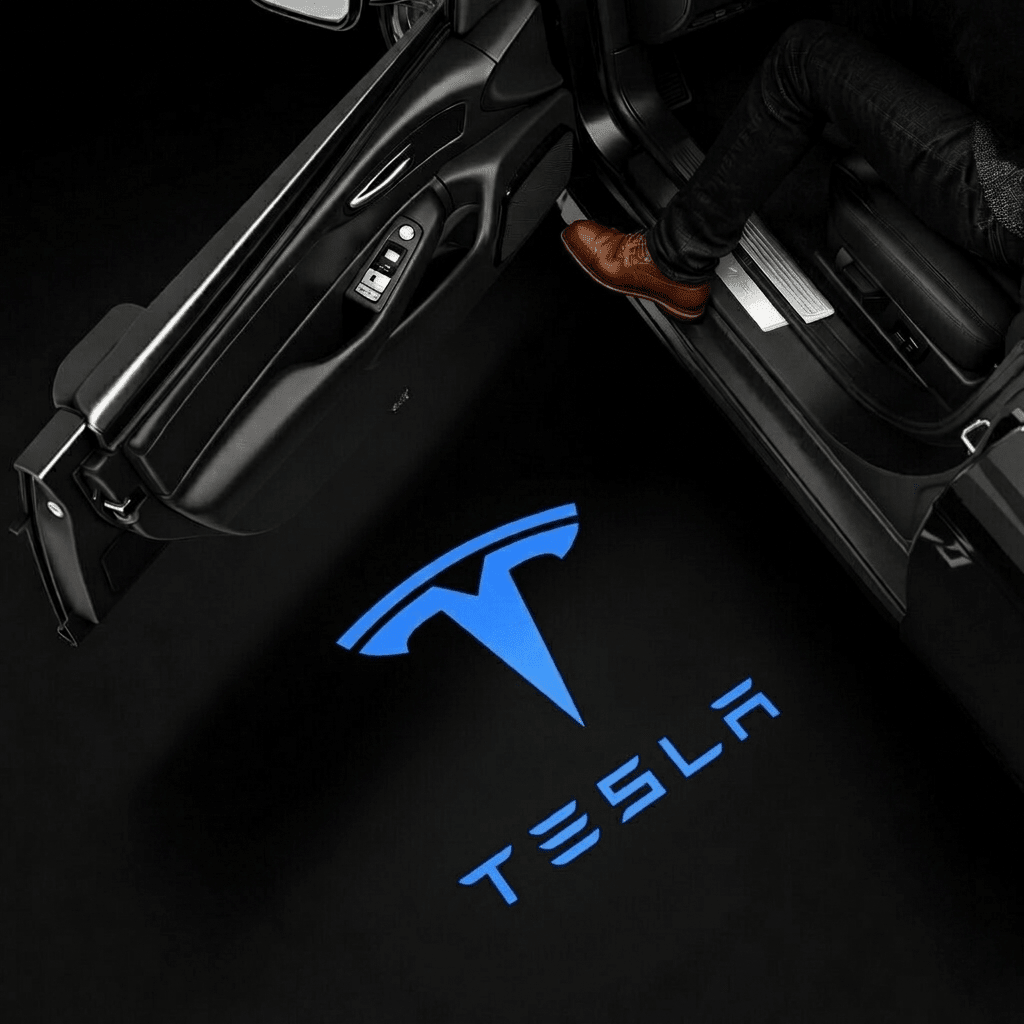

Blue Projection Example
The example shows blue model lettering and logo projected below an open door. Actual visibility depends on the ground surface and surrounding light.

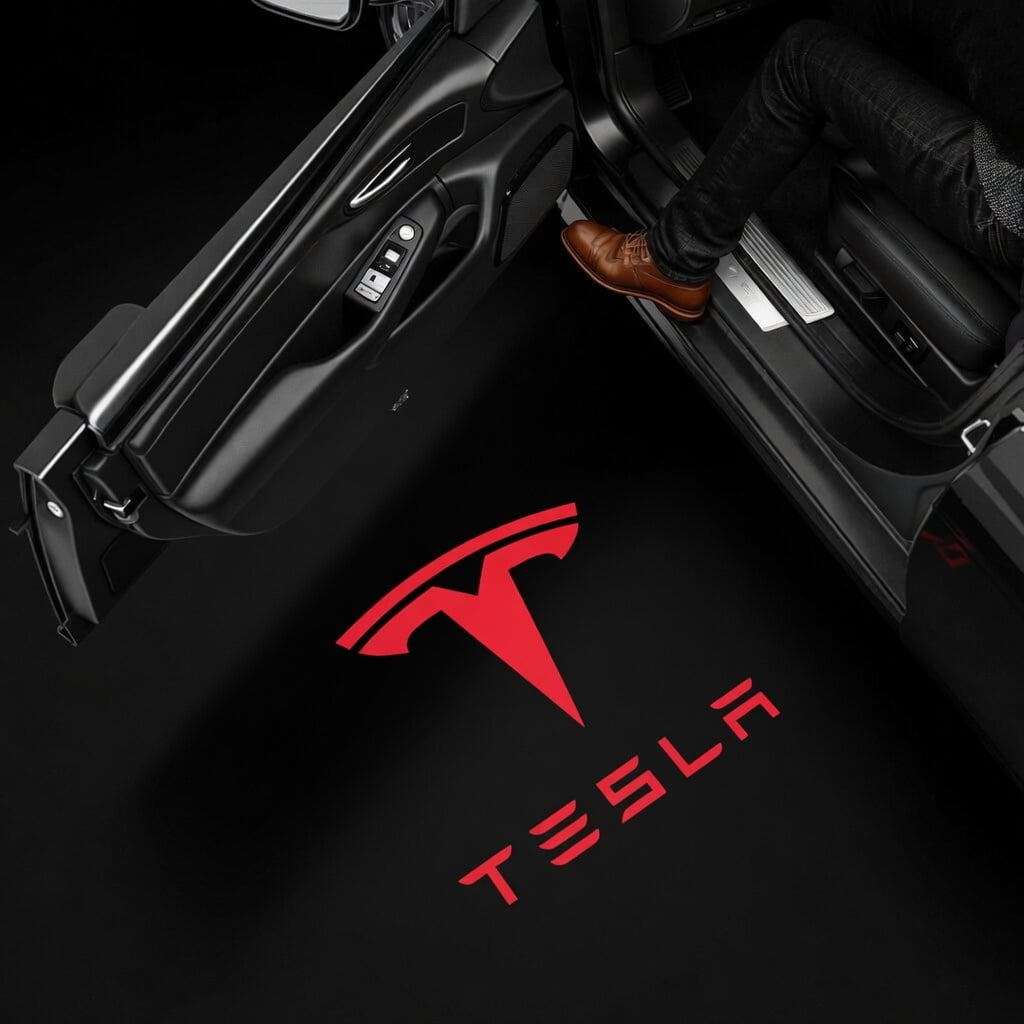

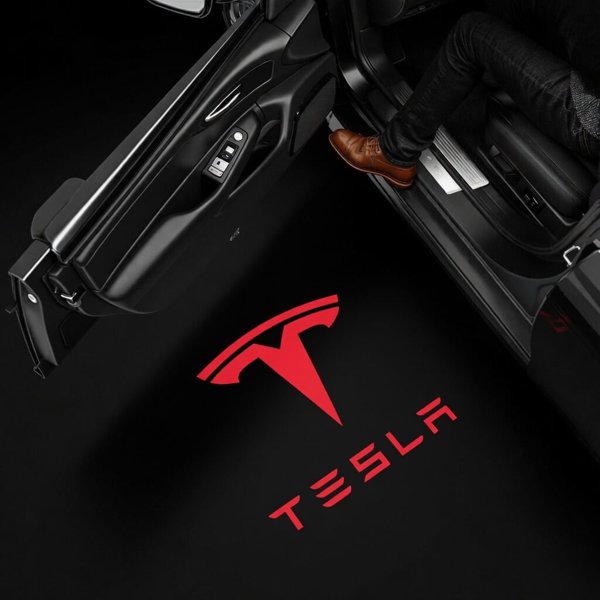

Red Projection Example
A different color changes the welcome projection’s appearance. Choose a suitable mode for your location and keep the lighting unobtrusive to other road users.

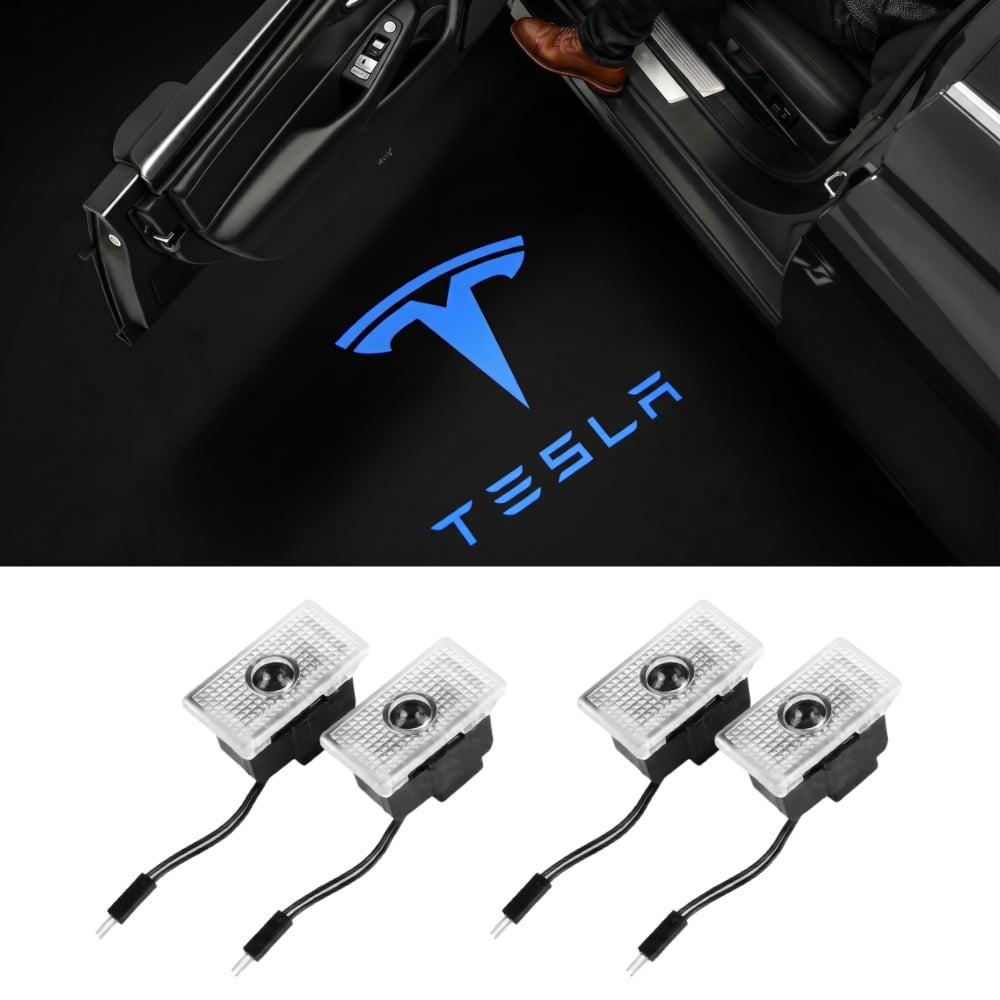

Select Two or Four
The two-light and four-light options are alternative package sizes; a larger package does not add compatibility.
Compatibility
| Model | Years / Version | Notes |
|---|---|---|
| Model 3 | 2017–2024 | Fits the original door housing and connector |
| Model Y | 2020–2024 | Original generation |
| Model S | 2016–2021 | Pre-refresh only |
| Model X | 2016–2021 | Pre-refresh only |
Does not fit refreshed 2021+ Model S/X, including round rear-door housings. Does not fit Juniper or Model YL.
Specifications
| Product Type | RGB LED door puddle lights, app controlled via Bluetooth |
|---|---|
| Compatible Models | Model 3 2017–2024; original Model Y 2020–2024; pre-refresh Model S / X 2016–2021, with matching housings |
| Position / Location | Door puddle light housings |
| Quantity | 2 pieces or 4 pieces |
| Light Source | RGB LED |
| Lighting Modes | 64 colors; steady solid color or gradient effects |
| Control Method | Mobile app (iOS and Android) via Bluetooth: color, brightness, pattern, music sync |
| Installation Type | Replacement in the original door-light housing and connector |
| Drilling Required | No |
What's in the Box
- 2 PCS option: 2 x RGB puddle lights
- 4 PCS option: 4 x RGB puddle lights
Installation
- For Model 3, keep the door open and fully lower its window, then remove the lamp; use the corresponding door procedure on other models.
- Release the original lamp carefully without pulling its attached wiring, then unlock the connector.
- Connect the replacement, set the projection orientation and secure it in the housing without trapping the harness.
- Pair the app and test colors and brightness while parked.
Good to Know
Caution
- These are aftermarket replacement lights; matching connectors do not certify every original vehicle function.
- Puddle-light electrical faults can affect window operation.
- Use colored lighting only where allowed and keep brightness suitable for the surroundings.
Care
- Keep the housings and connections dry during installation; inspect any moisture or loose fit.
- Clean the projection lens gently.
FAQ
Can I use it on every Tesla door?
No. Does not fit refreshed S/X, Juniper or Model YL.
How are colors selected?
Use the supplied iOS/Android app instructions to pair over Bluetooth. The controls include colors, gradients, brightness, patterns and music-sync mode.
Does four pieces fit more vehicle versions?
No. Two and four pieces are package sizes; the larger package does not expand model compatibility.
