Rear Bumper Light Assembly for Model 3 Highland
Choose a left, right or paired rear bumper light assembly for the Model 3 Highland rear fascia. The assembly is described with an ABS housing, lens and LED light source. Regional versions differ in lamp functions.
- Rear Bumper Assembly
- ABS Housing

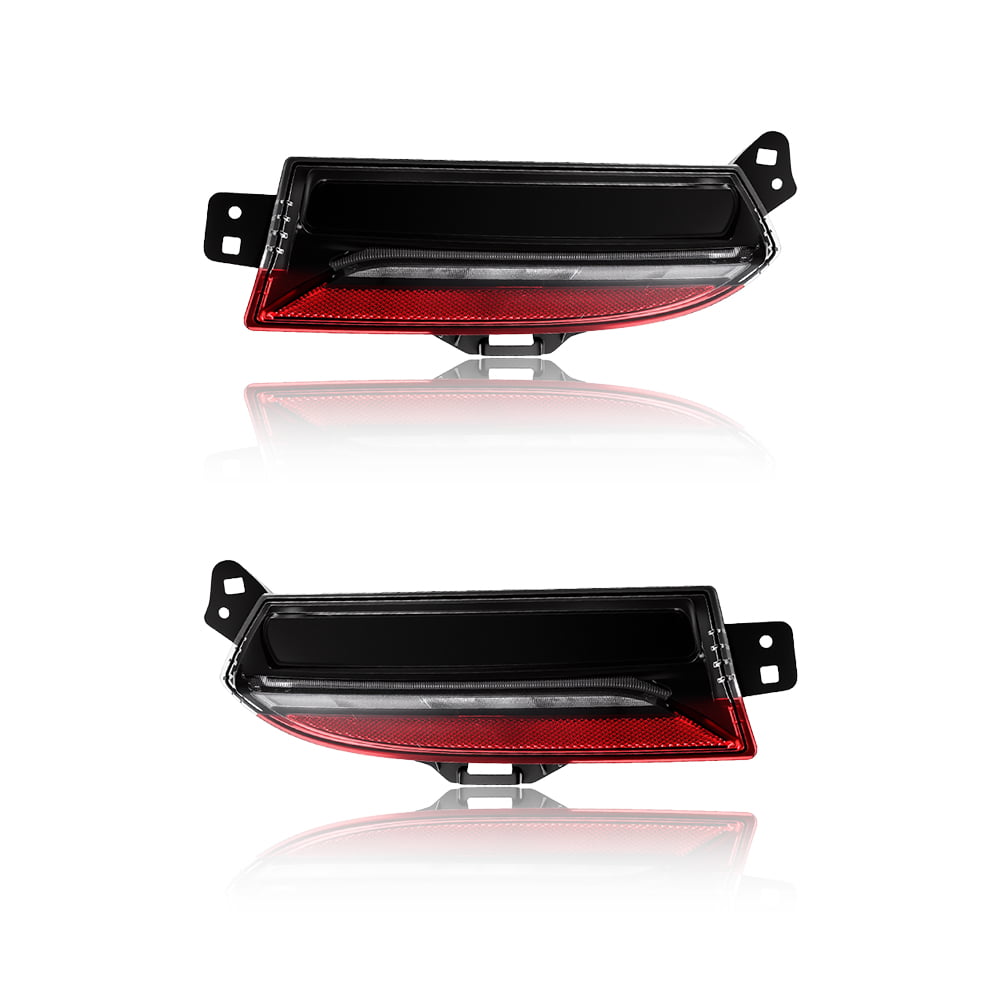

- Left, Right or Pair
Key Features
-
Product Type
Rear bumper light assembly offered for the Highland rear fascia
-
Material
ABS housing with a lens assembly
-
Position / Location
Choose vehicle left, vehicle right or both sides
-
Quantity
Single-side and paired purchase options are separate
-
Light Source
Described as LED; lamp functions differ by vehicle market
Highlights

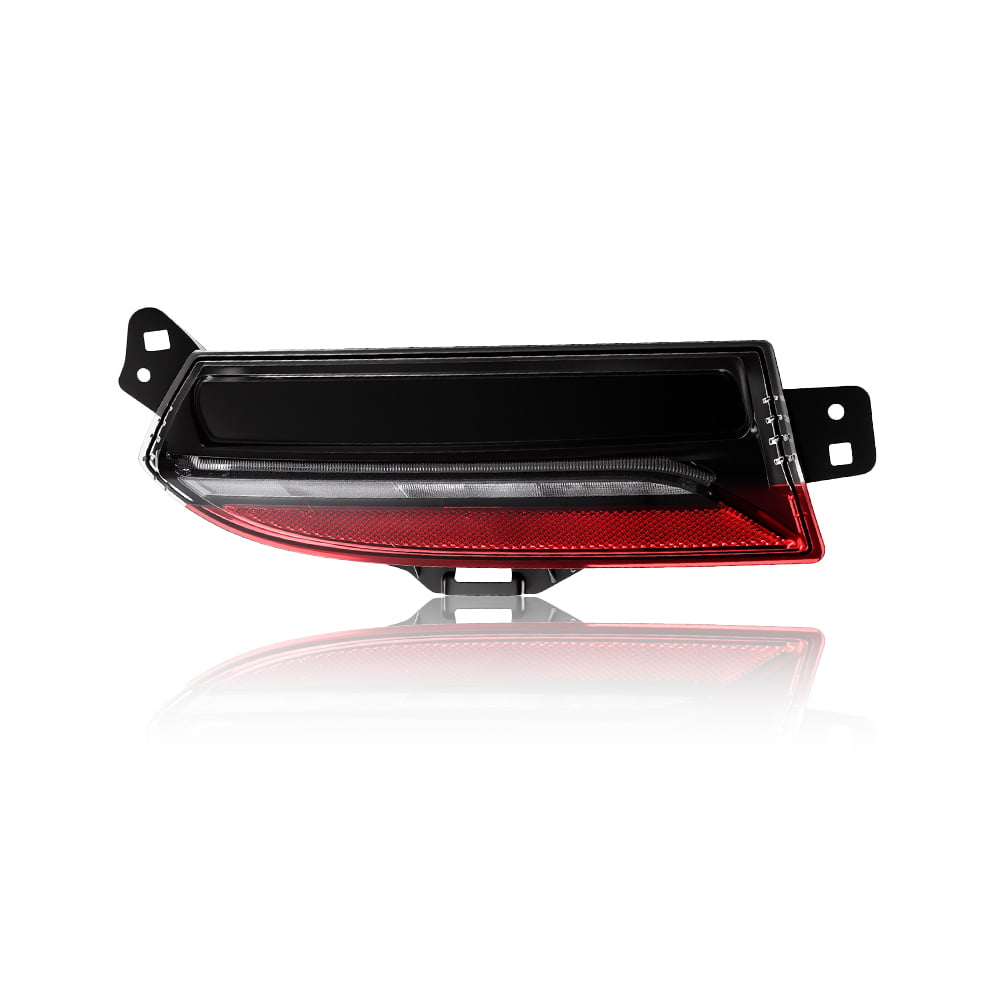

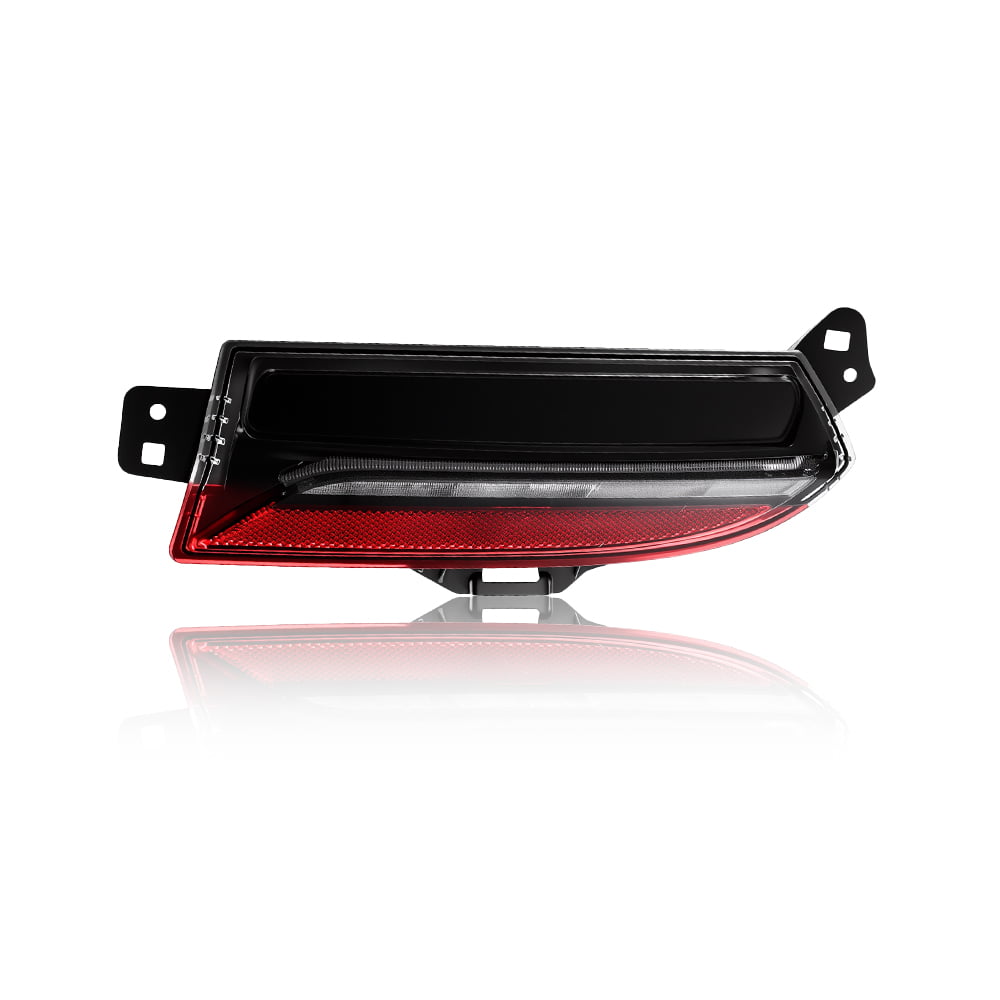

Lens and Bumper Profile

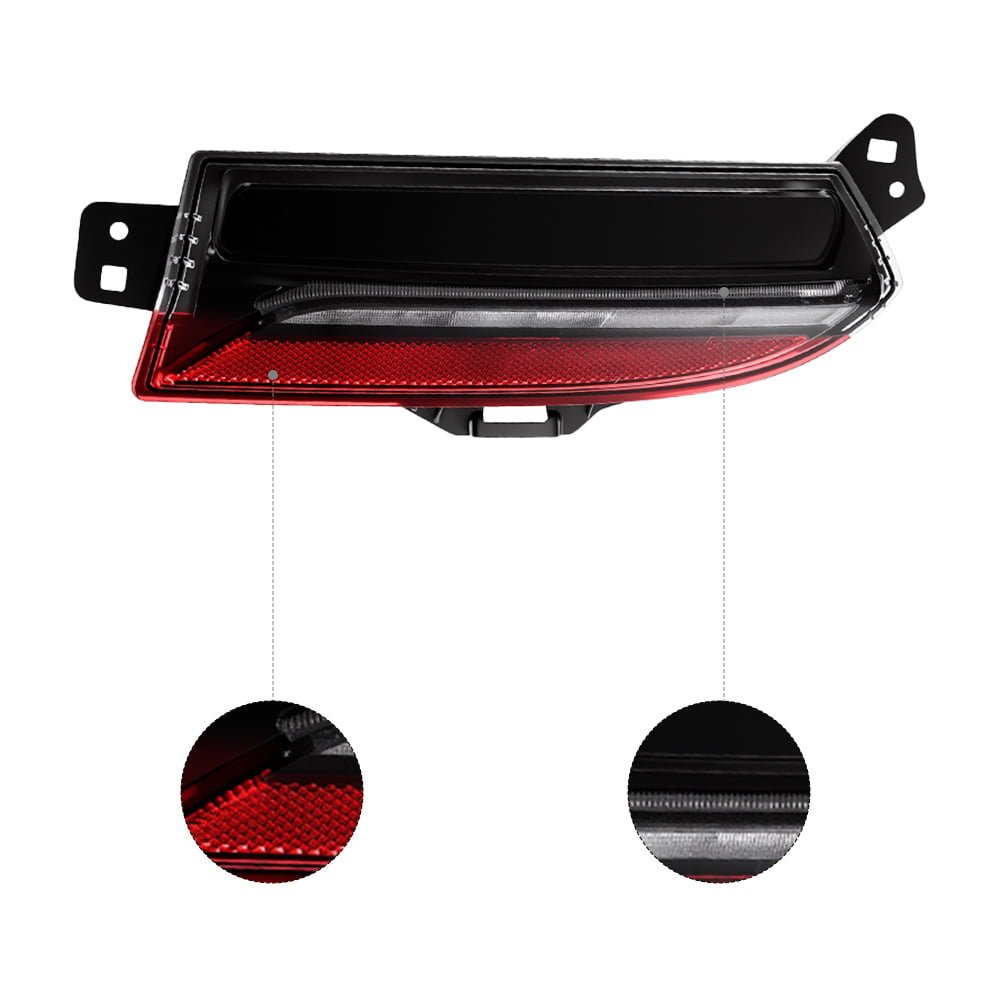

The front view shows a dark upper lens area, a clear narrow strip and a red textured lower section. Side tabs and a lower locating tab extend from the assembly.

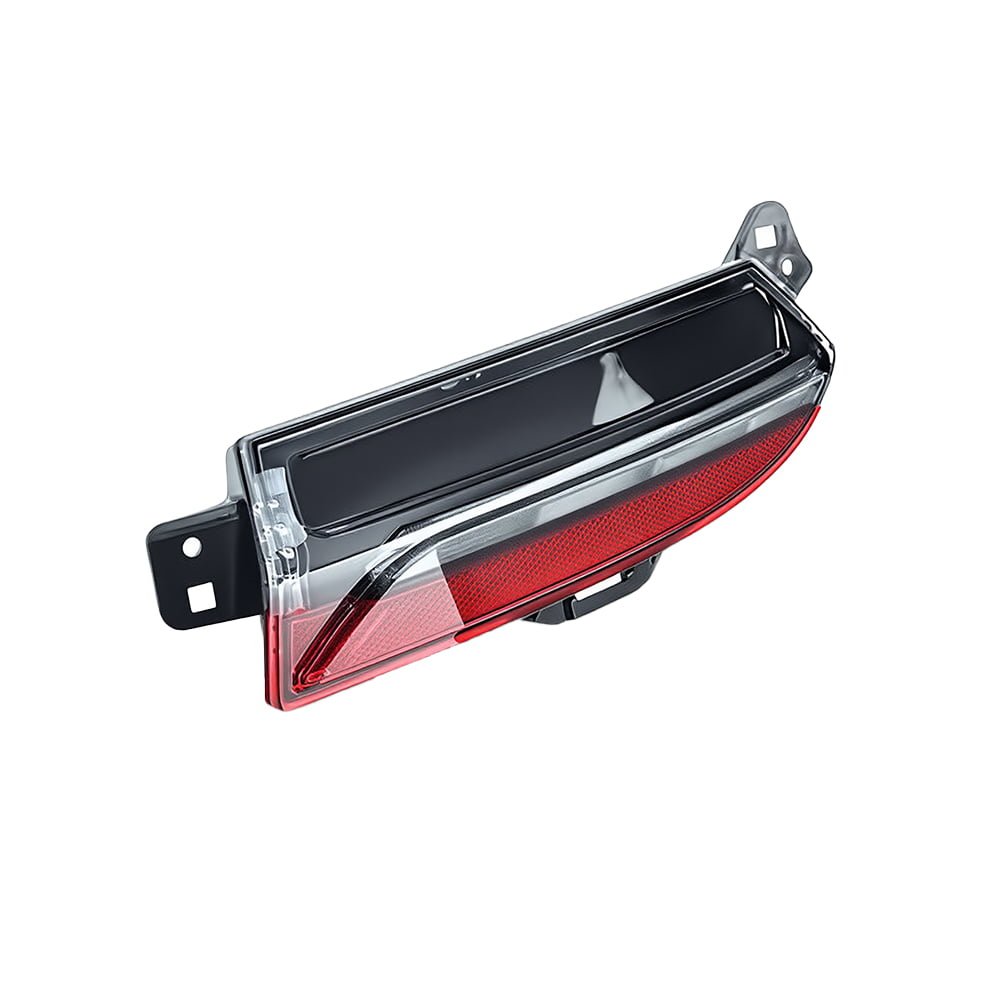

Housing and Mounting Tabs
The angled view shows the shaped lens housing and projecting tabs with mounting holes. Select the vehicle’s left or right side, or choose the paired option.
Compatibility
| Model | Years / Version | Notes |
|---|---|---|
| Model 3 Highland | 2024+ | Left, right or pair |
The earlier 2017–2023 Model 3 has a different rear fascia.
Specifications
| Product Type | LED rear bumper light assembly |
|---|---|
| Compatible Models | Model 3 Highland (2024+), subject to exact market and original-unit matching |

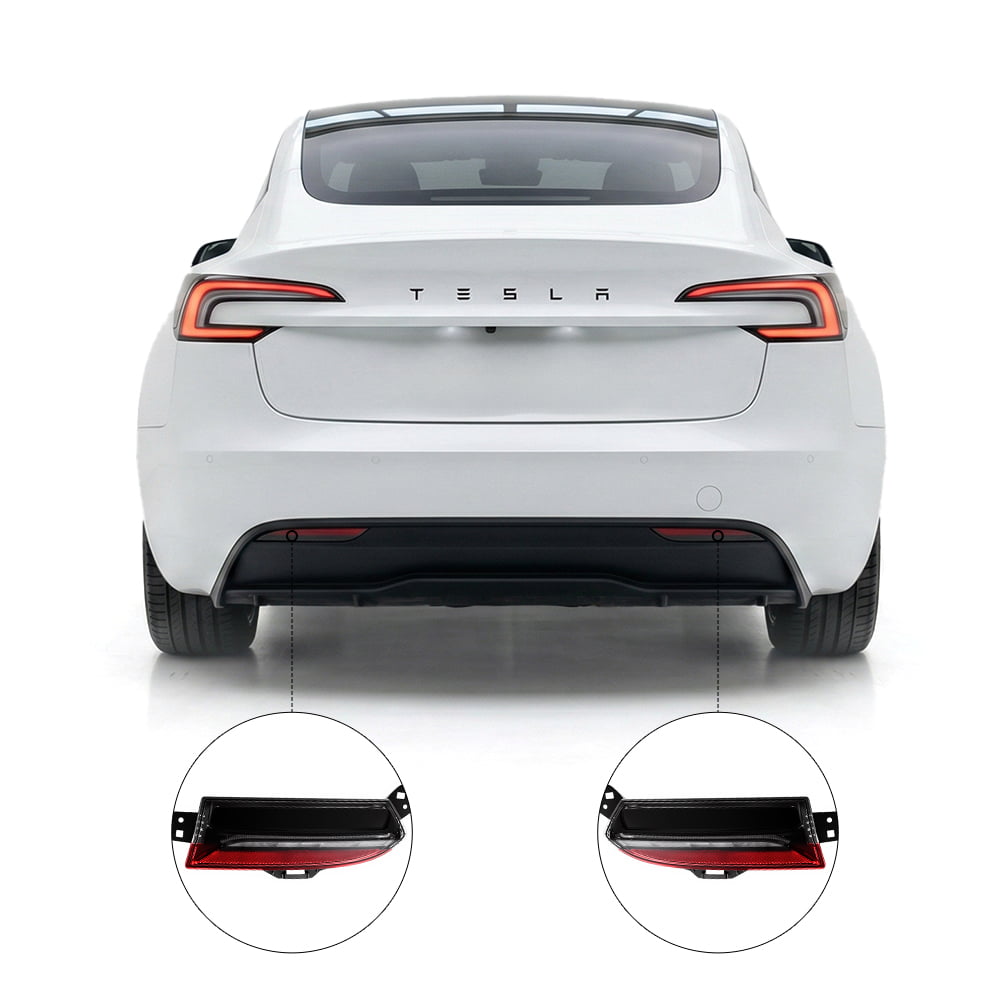

| Position / Location | Rear bumper, vehicle left or right side |
| Material | ABS housing with lens |
| Quantity | 1 left, 1 right, or left-and-right pair, according to selection |
| Light Source | LED, as described for this assembly |
| Reference Numbers | 1901469-00-B / 1901470-00-B; 1901473-00-B / 1901474-00-B, comparison references only |
What’s in the Box
- Selected position option: one left assembly, one right assembly, or one left-and-right pair
Installation
Good to Know
Caution
- Regional rear bumper units serve different reverse, rear-fog and reflector functions; the two reference-number families are not interchangeable.
- The Highland rear-fascia light procedure includes fascia removal, fasteners and a clip.
Care
- Keep lens surfaces clean with a soft cloth and suitable automotive cleaner.
FAQ
What position options are available?
Left, Right and Left & Right. The paired option contains both vehicle sides.
Does left always mean driver side?
No. It means the vehicle’s left side when facing forward. The driver side differs between left- and right-hand-drive vehicles.
Do the reference numbers guarantee worldwide compatibility?
No. Regional units have different reflector, reverse and rear-fog functions.
Can it be changed by prying from outside in five minutes?
No. The Highland rear-fascia light procedure includes fascia removal, fasteners and a clip.
Will it fit the earlier Model 3?
The 2017–2023 Model 3 uses a different rear fascia. This is the Highland application.
