An LED Light Strip Across the Model S Liftgate
This slim LED assembly fits the central liftgate trim area above the license plate on Tesla Model S 2014–2020. Choose a gloss black or water-transfer-printed finish. The ABS light assembly uses a DC 12 V input and offers welcome, running, reverse and brake modes when correctly installed with matching vehicle signal connections.
- Model S 2014–2020
- LED Trim Light
- DC 12 V
- Two Finishes
Hauptmerkmale
-

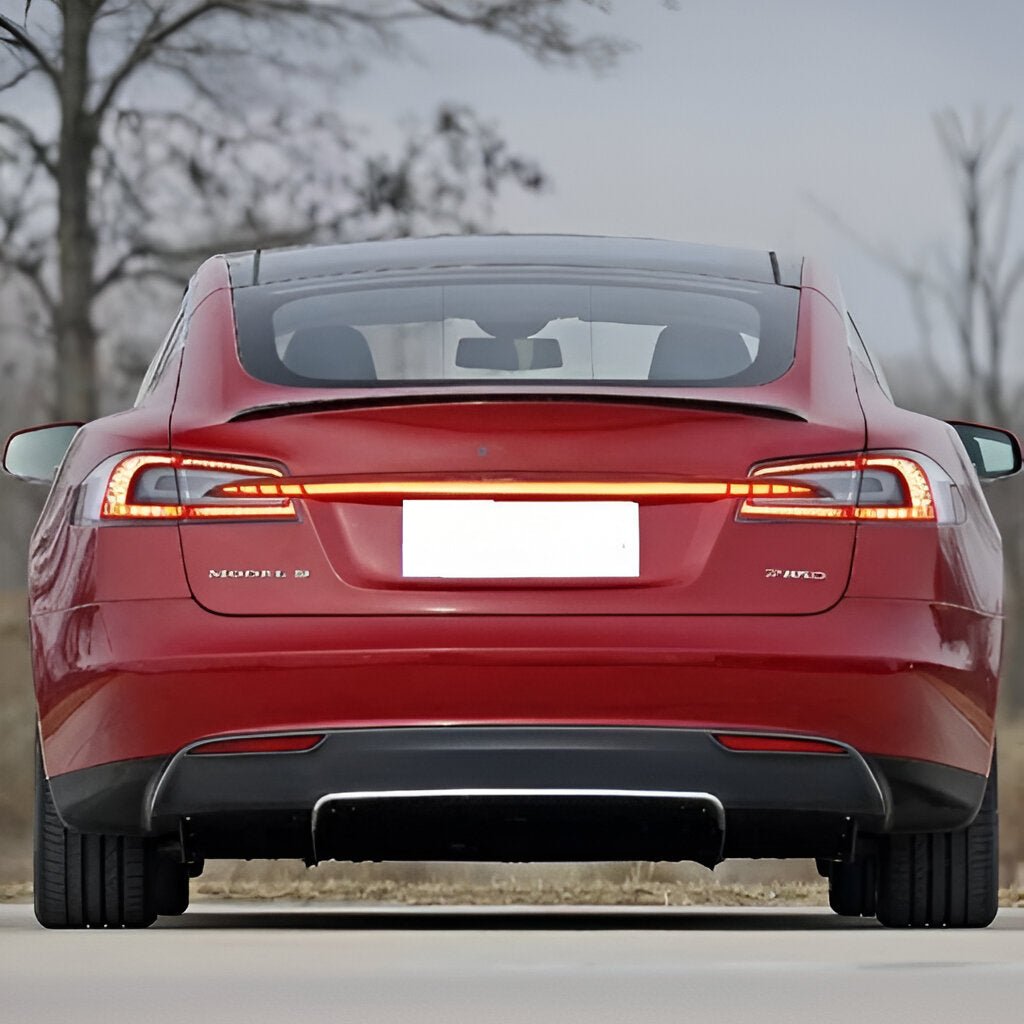

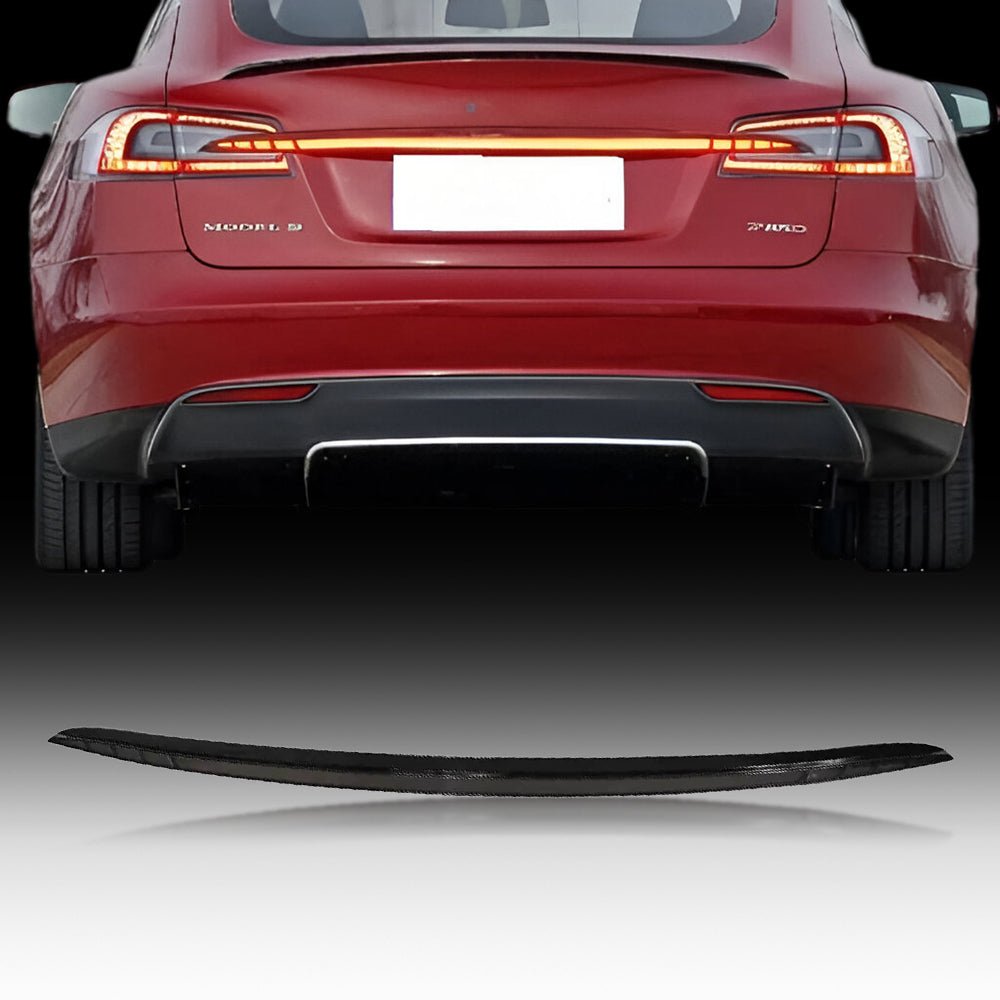

Liftgate Trim Position
The slim assembly sits across the rear liftgate above the license plate, alongside the existing rear lamps.
-

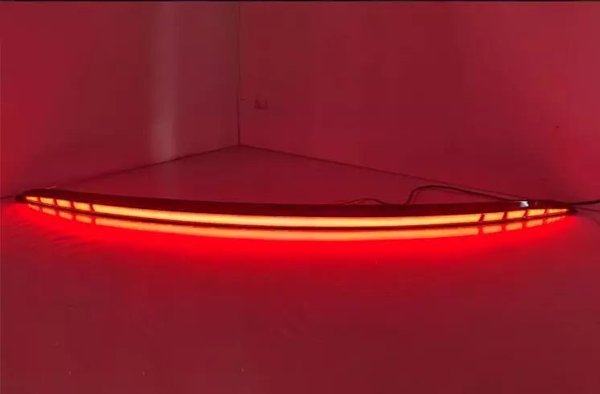

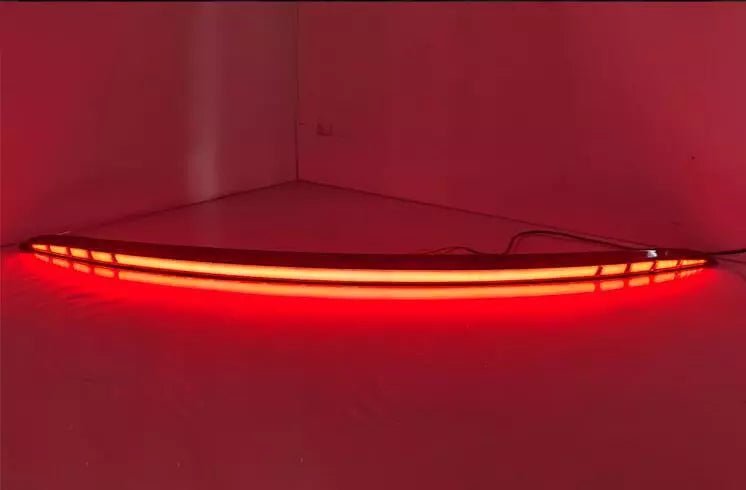

LED Light Strip
The assembly adds a continuous light-strip appearance across the central liftgate trim.
-
Four Mode Design
Welcome, running, reverse and brake modes depend on the correct harness and vehicle signal connections.
-
DC 12 V Input
Runs on the low-voltage supply, not the high-voltage system.
-
Two Finish Options
Choose Gloss Black or Water Transfer Printing; the printed finish has a decorative pattern.
Highlights
Central Liftgate Position
The light strip sits across the applique area above the license plate. The original rear lamps, camera, plate lights and liftgate release stay clear.

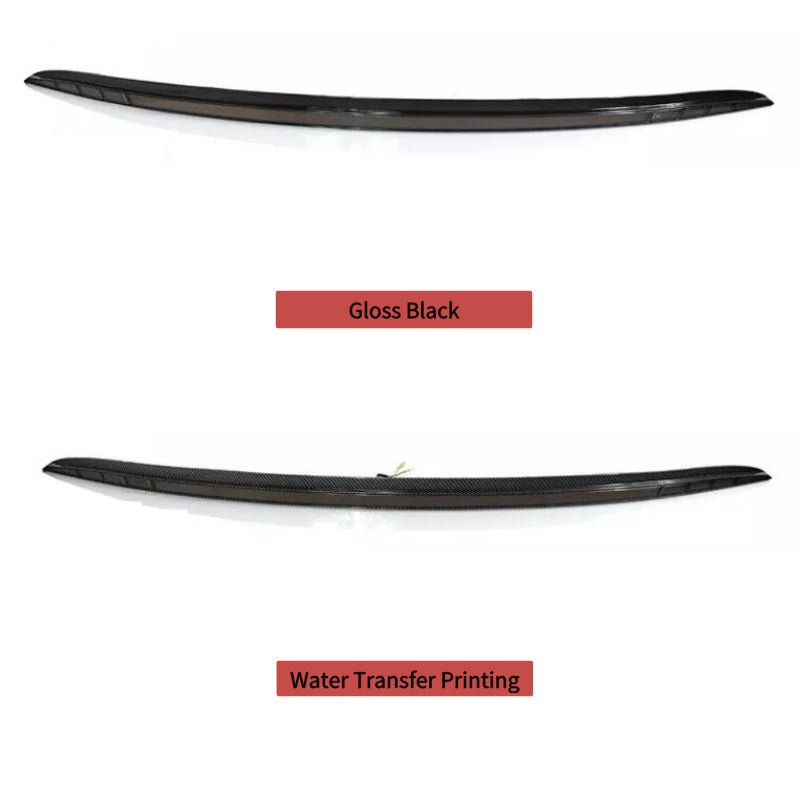

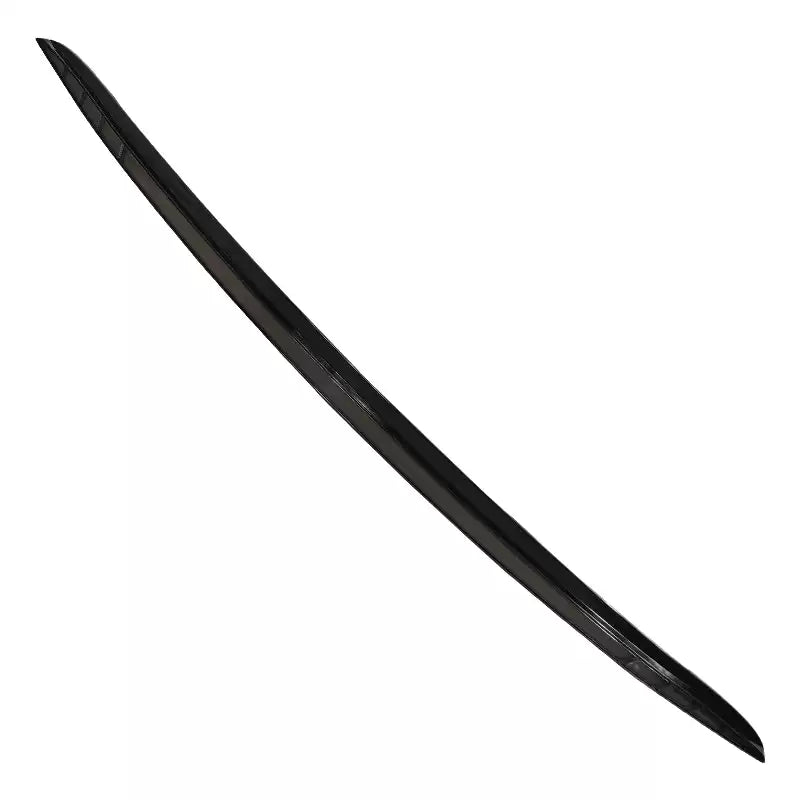

Gloss or Printed Finish
Choose Gloss Black for a plain glossy surface or Water Transfer Printing for the decorative patterned finish. The image shows the two styles.

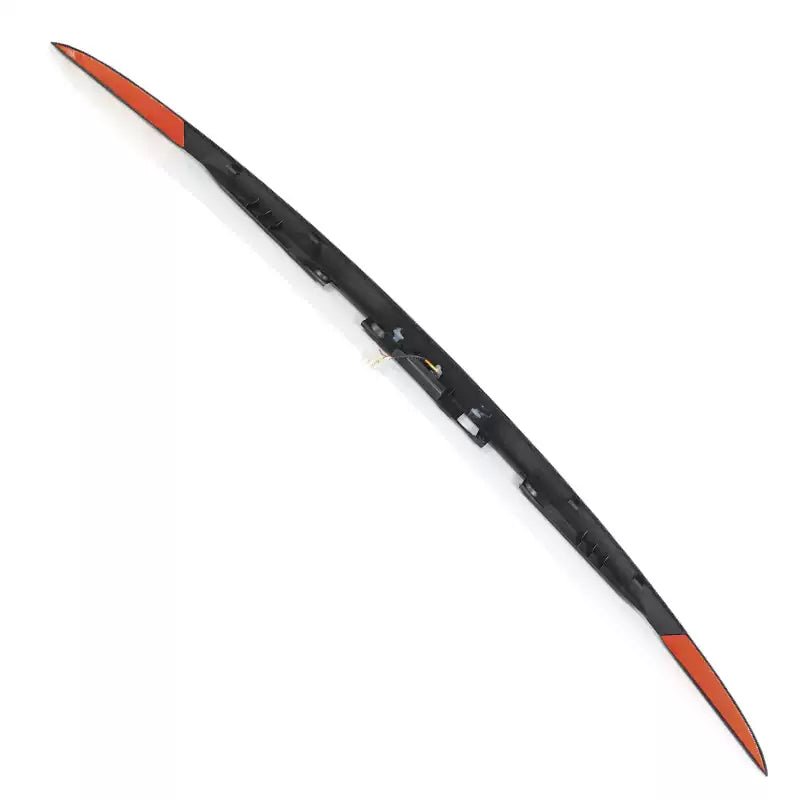

Mounting and Wiring
The assembly has rear mounting features and electrical leads. Fitting keeps the vehicle trim, seals and original lamp functions.
Kompatibilität
| Modell | Years / Version | Hinweise |
|---|---|---|
| Model S | 2014–2020 | Central liftgate applique area. |
This is a central trim-light assembly; the existing left/right lamp units stay in place.
Technische Daten
| Produkttyp | LED rear liftgate trim-light assembly |
|---|---|
| Compatible Models | Tesla Model S 2014–2020 |
| Position / Location | Central liftgate applique area above the license plate |
| Material | ABS with LED |
| Surface Finish | Gloss Black, Water Transfer Printing |
| Menge | 1 light |
| Spannung | DC 12 V |
| Light Source | LED |
| Lighting Modes | Welcome, running, reverse and brake modes; operation depends on matched wiring and vehicle signals |
| Installation Type | Vehicle-specific liftgate trim installation and electrical connection |
What's in the Box
- 1 LED rear trunk trim-light assembly in the selected finish.
Installation
- Follow the appropriate vehicle service procedure to isolate the low-voltage system and protect painted surfaces and original lamp lenses during trim removal.
- Fit the assembly using its specified retainers and mounting method, preserving seals, camera view, plate lights and liftgate-release access.
- Connect to a DC 12 V supply and the signal assignments in the product wiring diagram.
Gut zu wissen
Achtung
- DC 12 V low-voltage supply.
Pflege
- Inspect mounting security, trim edges and seals after fitting and periodically thereafter.
- Wipe with a soft damp cloth; avoid directing pressure-washer spray at joints and electrical connections.
FAQ
Where does the light fit?
It fits the central liftgate applique area above the license plate on Model S 2014–2020.
What finishes are available?
Gloss Black and Water Transfer Printing. The printed option has a decorative surface pattern.
Which lighting modes does it offer?
Welcome, running, reverse and brake modes. Operation depends on the vehicle-specific harness and signal connections.
Is this a complete replacement for the original rear lamps?
It is a central trim-light assembly. The existing lamp units and required tail, stop, turn, reverse, rear-fog and reflector functions, where applicable, must remain correct.
Is every mode approved for road use?
No. No road-use approval is stated.
