Single Suspension Straight-Arm Bushing

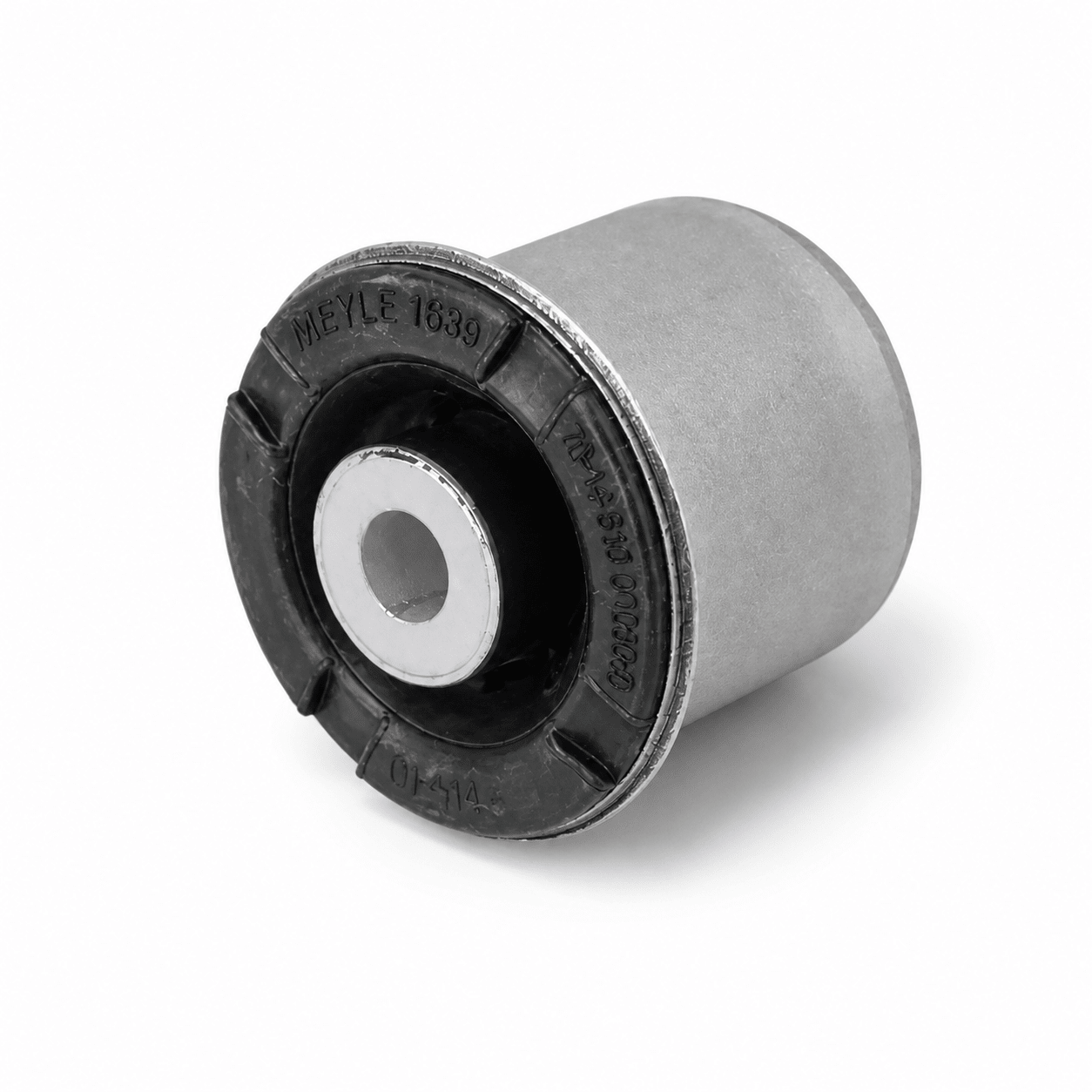

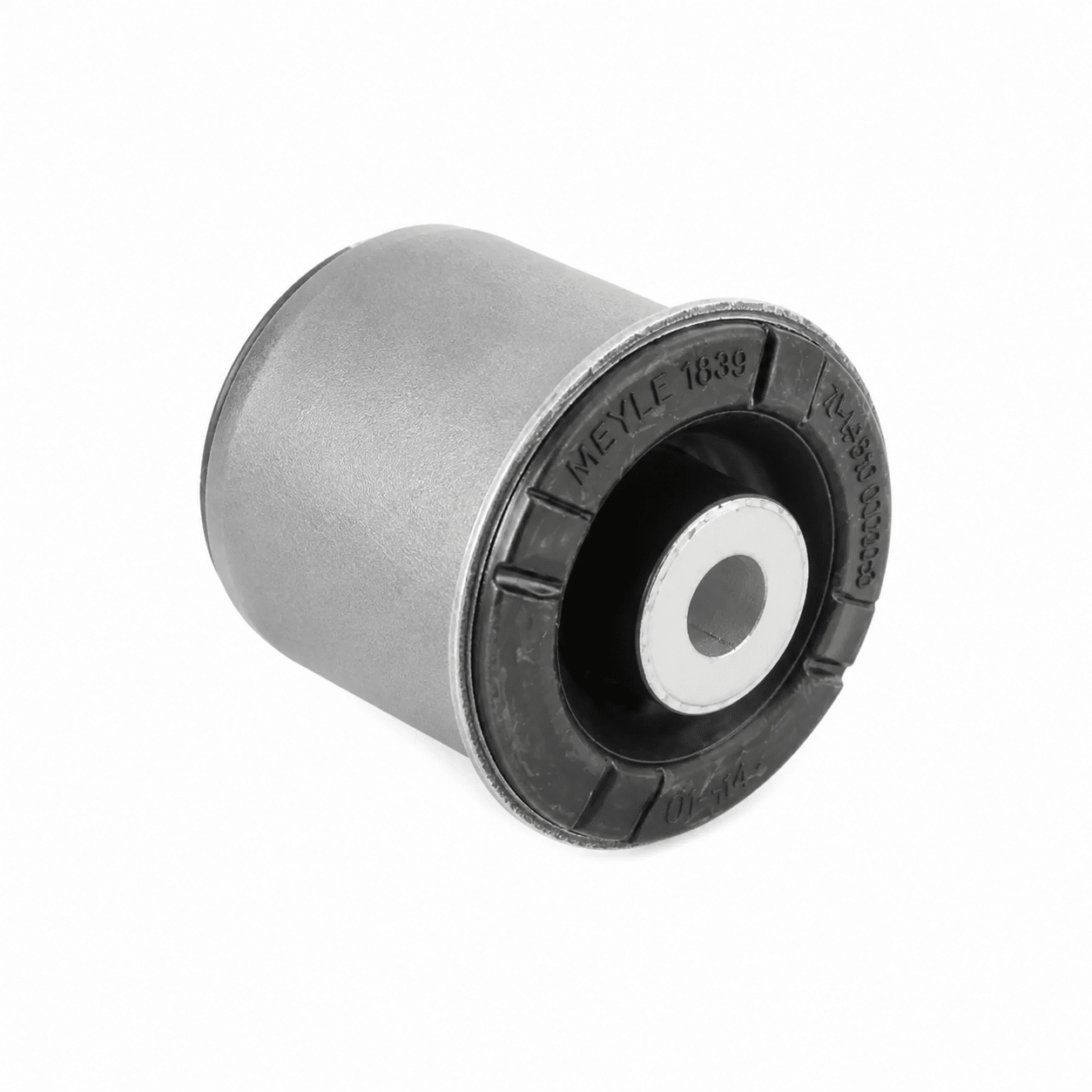

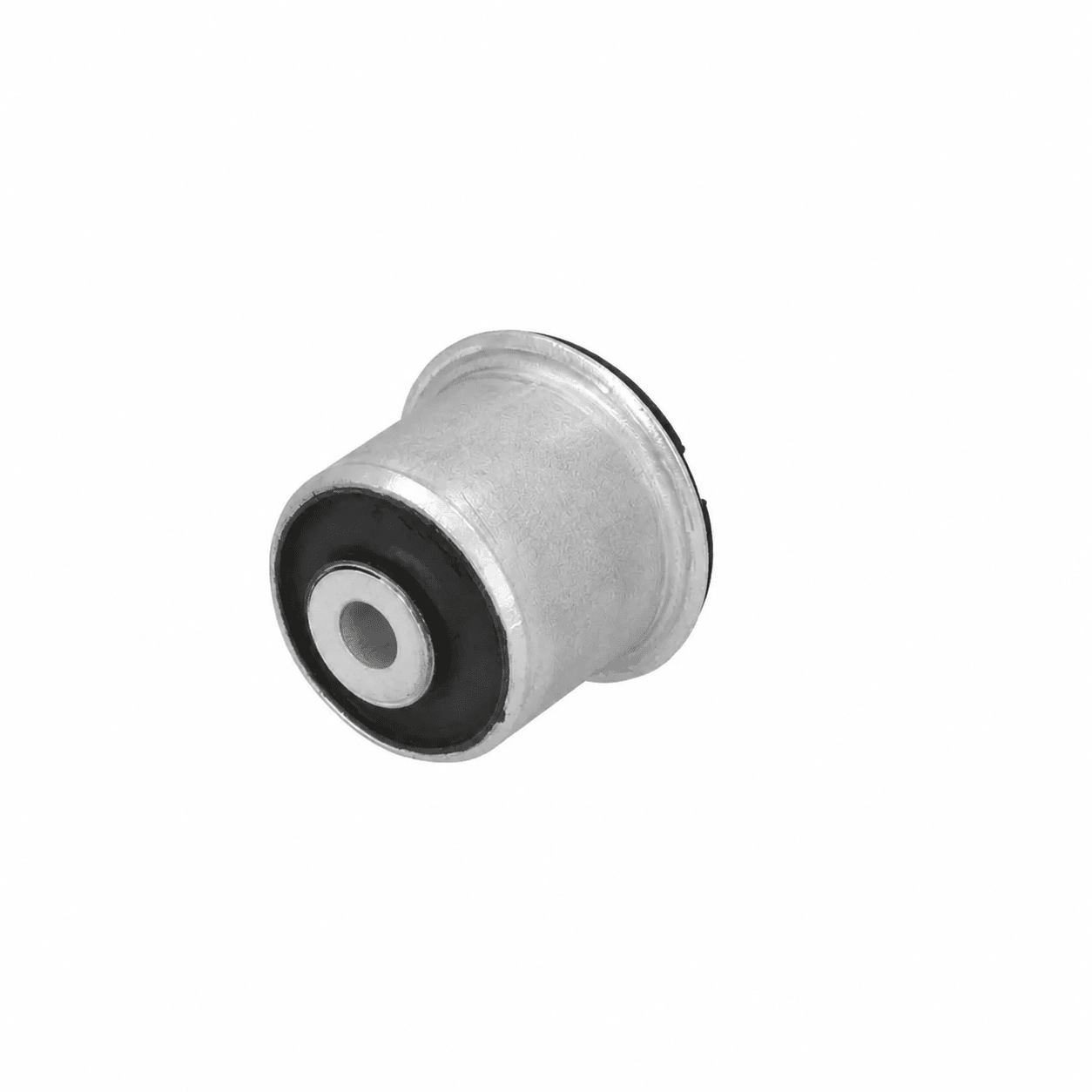

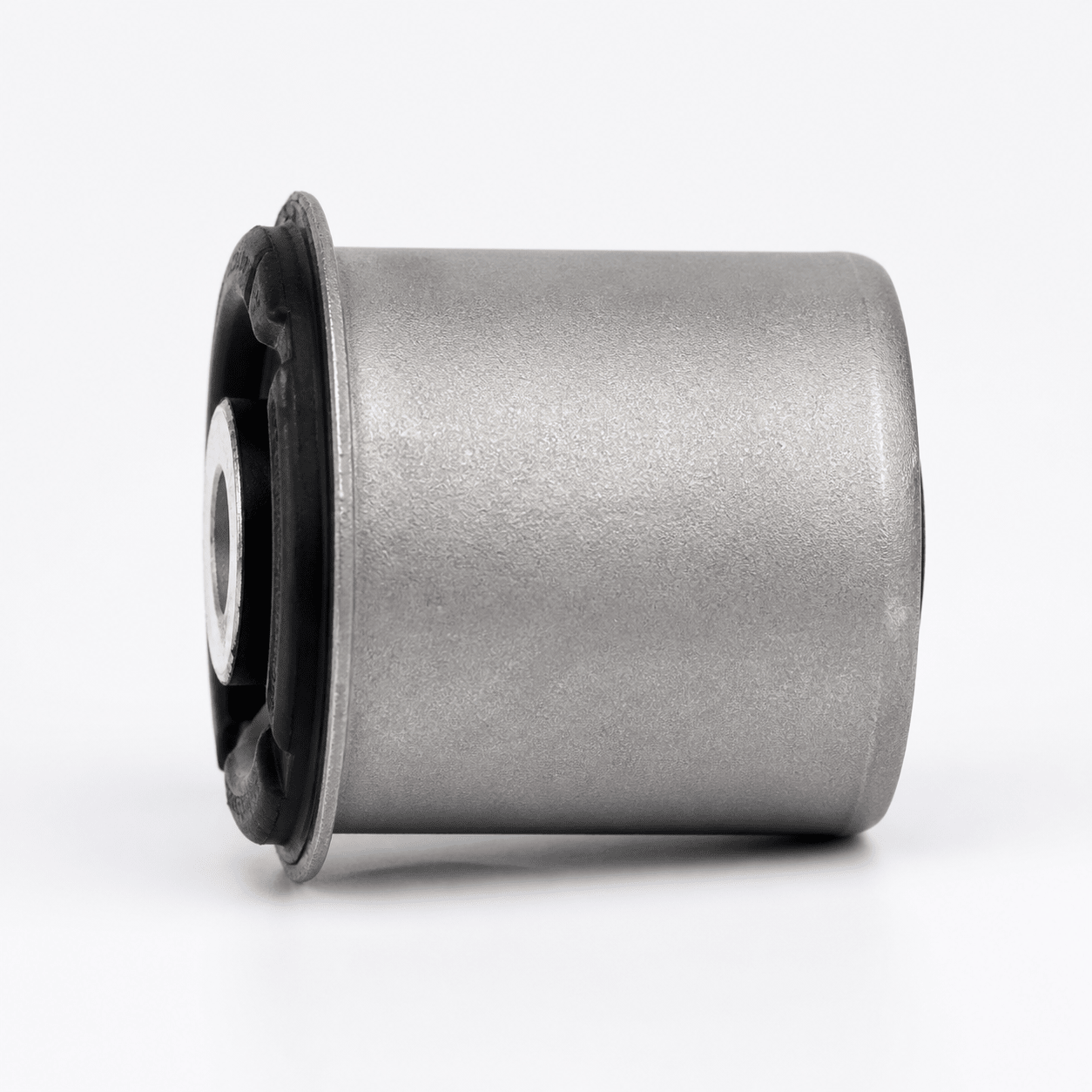

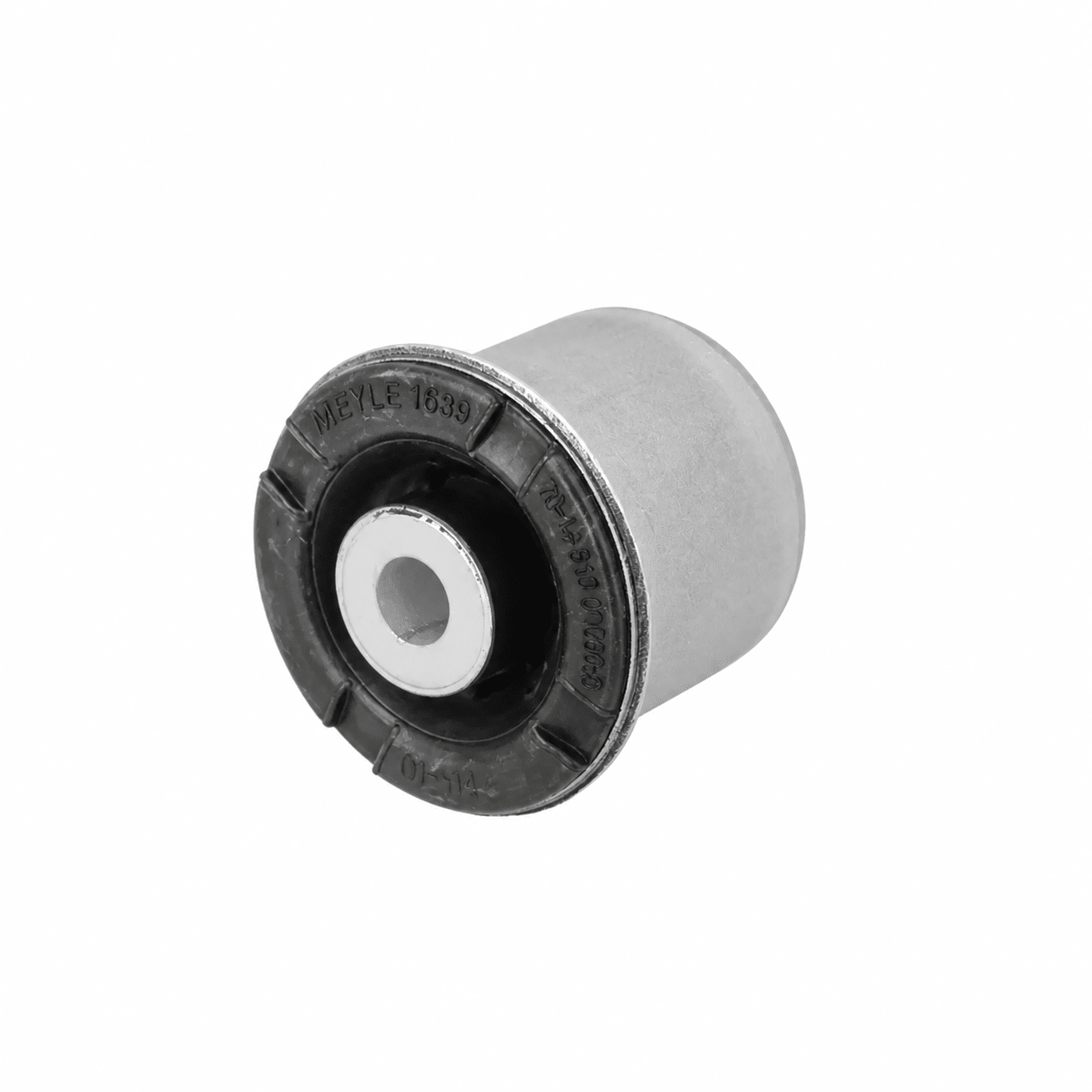

A replacement suspension bushing described for the Model 3 and Model Y, with reference 1044324-00-G. The construction combines a silver aluminum-alloy body with rubber components, and the listing supplies one bushing. Fitting includes press work and a four-wheel alignment.
- Single Bushing
- Reference 1044324-00-G
- Press Fit
Key Features
-
Product Type
A single suspension straight-arm bushing described for the Model 3 and Model Y.
-
Reference Number
Listed against 1044324-00-G.
-
Construction
A silver aluminum-alloy body and resilient rubber components are described for the bushing.
-
Quantity
Supplied as one bushing; determine the number needed from the actual repair plan.
-
Installation
Press-fitted into the straight arm in a set orientation.
-
Alignment
A four-wheel alignment follows the repair.
Highlights
Front Upper Straight Arm
The listing describes a front upper straight-arm application. Reference numbers and generic photos do not establish interchangeability.
Order for the Repair Required
This is one bushing, rather than a pair or complete control-arm assembly. Have the suspension inspected to determine which components and quantities the repair actually needs.
Press Fit and Align
Removal and installation require suitable press tooling and the correct support and orientation, followed by a four-wheel alignment.
Compatibility
| Model | Years / Version | Notes |
|---|---|---|
| Model 3 / Model Y | 2017–2023 listing range | Front upper straight-arm bushing. |
1044324-00-G is the reference part number; it does not indicate genuine Tesla origin or universal cross-reference equivalence.
Specifications
| Product Type | Suspension straight-arm bushing |
|---|---|
| Compatible Models | Model 3 and Model Y; listed 2017–2023 range, subject to actual vehicle production and suspension configuration |
| Position / Location | Described for the front upper straight arm |
| Material | Aluminum alloy with resilient rubber components |
| Color | Silver metal body |
| Quantity | 1 bushing |
| OEM Part Number | 1044324-00-G — comparison reference; not proof of genuine Tesla origin |
| Installation Type | Press fitting with correct tooling and orientation |
What's in the Box
- 1 suspension straight-arm bushing
Installation
- Press-fit the bushing in the original orientation with the specified arm support and press tooling.
- Complete a four-wheel alignment after the repair.
Good to Know
Caution
- A reference number or product photograph does not establish the suspension position.
- Do not force an unmatched bushing into an arm.
Care
- Clunks, vibration, steering looseness or uneven tire wear require diagnosis; they do not identify this bushing as the sole fault.
FAQ
Is this a pair or a complete control arm?
No. The listing supplies one bushing. Determine the repair quantity after inspection.
What does 1044324-00-G mean here?
It is the listed comparison reference; it is not an origin or interchangeability certificate.
Can I fit it to any arm that looks similar?
No. The exact arm, side, dimensions and press orientation must correspond to the vehicle and applicable service information.
What tools does installation need?
Press fitting and suspension service require suitable tooling and support.
Is an alignment needed after replacement?
Yes. A four-wheel alignment is part of the repair.
