Six Complete Front Control Arms for the Pre-Plaid Model S
Refresh the front control arms of a matching pre-Plaid Model S with this six-piece aftermarket kit. It includes two stamped-steel upper arms, two forward lower arms and two rearward lower arms, with ball joints and bushings already pressed in. Fits Model S 2012–early 2021 with arms stamped to the listed OE numbers.
- 6 Complete Front Arms
- Pressed Joints and Bushings
- OE-Number Matching
- Model S 2012–early 2021
Key Features
-
Six Complete Arms
Two steel upper arms, two forward lower arms and two rearward lower arms in one front kit
-
Pressed Ball Joints and Bushings
Each assembly arrives with ball joints and bushings already pressed in, so no press is needed
-
OE-Number Matching
Built to OE numbers 1043965-00-A, 1043966-00-A, 1027351-00-C, 1041570-00-B and 1041575-00-B
-
RWD Stamp Alternatives
Upper arms stamped 6006532 or 6008930 and aft arms stamped 1048951 are the same arm family
-
Pre-Plaid Model S Only
Fits Model S 2012-early 2021 with matching stamps and excludes the 1420-series Plaid and new Model S
-
Air-Suspension Guidance
Enable Jack Mode, use a lift and torque the inner bushing bolts at ride height
Highlights
Six Front Arm Assemblies

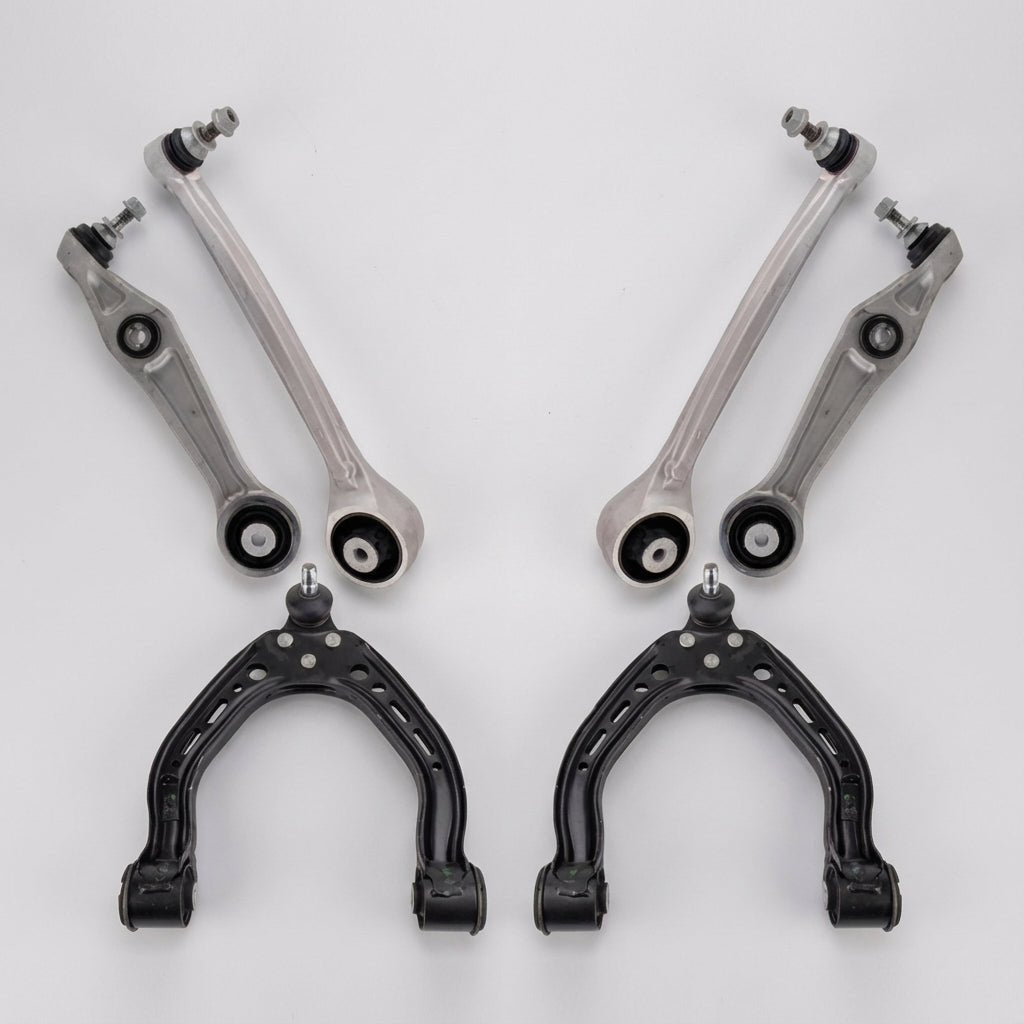

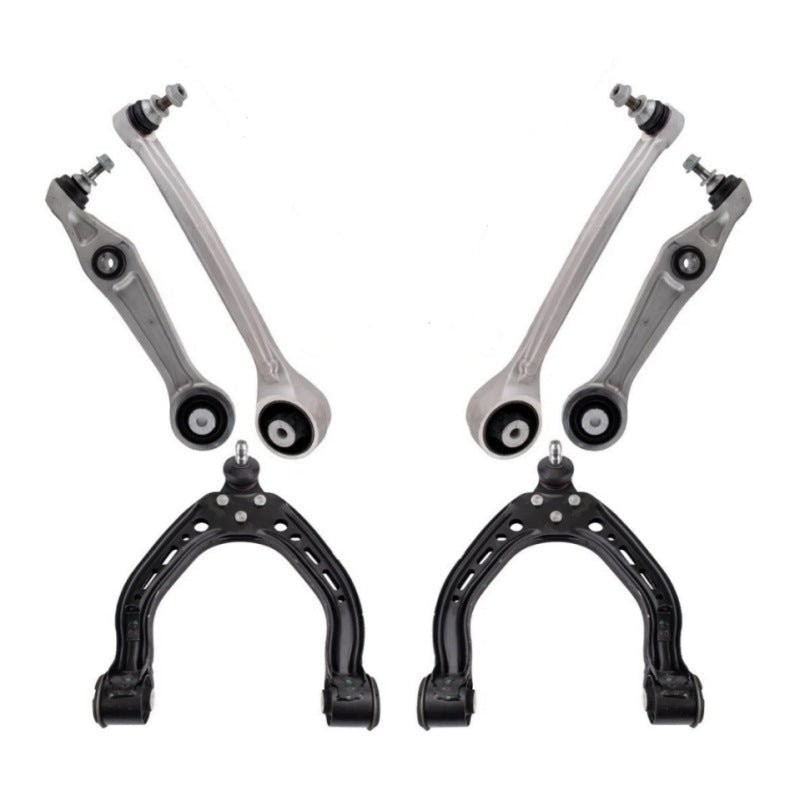

The kit contains left and right steel upper arms, two rearward lower arms and left and right forward lower arms.
Joints and Bushings Installed
Ball joints and bushings are already pressed into the complete arm assemblies, so a separate press operation is not required for assembly.
OE References
The reference and alternative part numbers are listed below.
Compatibility
| Model | Years / Version | Notes |
|---|---|---|
| Model S (RWD, AWD and Dual Motor) | 2012-early 2021 | Arms stamped with the listed OE numbers |
Does not fit the 2021+ Plaid or new Model S, Model X, Model 3 or Model Y.
Specifications
| Product Type | Front control arm kit, 6 complete arm assemblies |
|---|---|
| Compatible Models | Model S 2012-early 2021 (RWD, AWD and Dual Motor when stamps match) |
| Position / Location | Front suspension: steel upper arms, forward lower arms and rearward lower arms |
| Material | Stamped-steel upper arms |
| Quantity | 6 pieces: 2 upper, 2 forward lower, 2 rearward lower |
| Installation Type | Workshop installation on a lift with Jack Mode, then a 4-wheel alignment; bolts and lock nuts are not included |
| Installation Time | Typically half a day plus a 4-wheel alignment |
| Package Contents | 6 complete front arm assemblies with ball joints and bushings pressed in |
| Shipping Weight | 12.5 kg (27.6 lb) |
| OE Reference Numbers | 1043965-00-A, 1043966-00-A, 1027351-00-C (x2), 1041570-00-B, 1041575-00-B |
| Upper Left Alternatives | 1043965-00-B; 6006532-00-A / B |
| Upper Right Alternatives | 1043966-00-B; 6008930-00-A / B |
| Rearward Lower Alternatives | 1027351-00-D / E; 1048951-00-A / B / C |
| Forward Lower Left Alternatives | 1041570-00-A; 6007998-00-C |
| Forward Lower Right Alternatives | 1041575-00-A; 6006664-00-C |

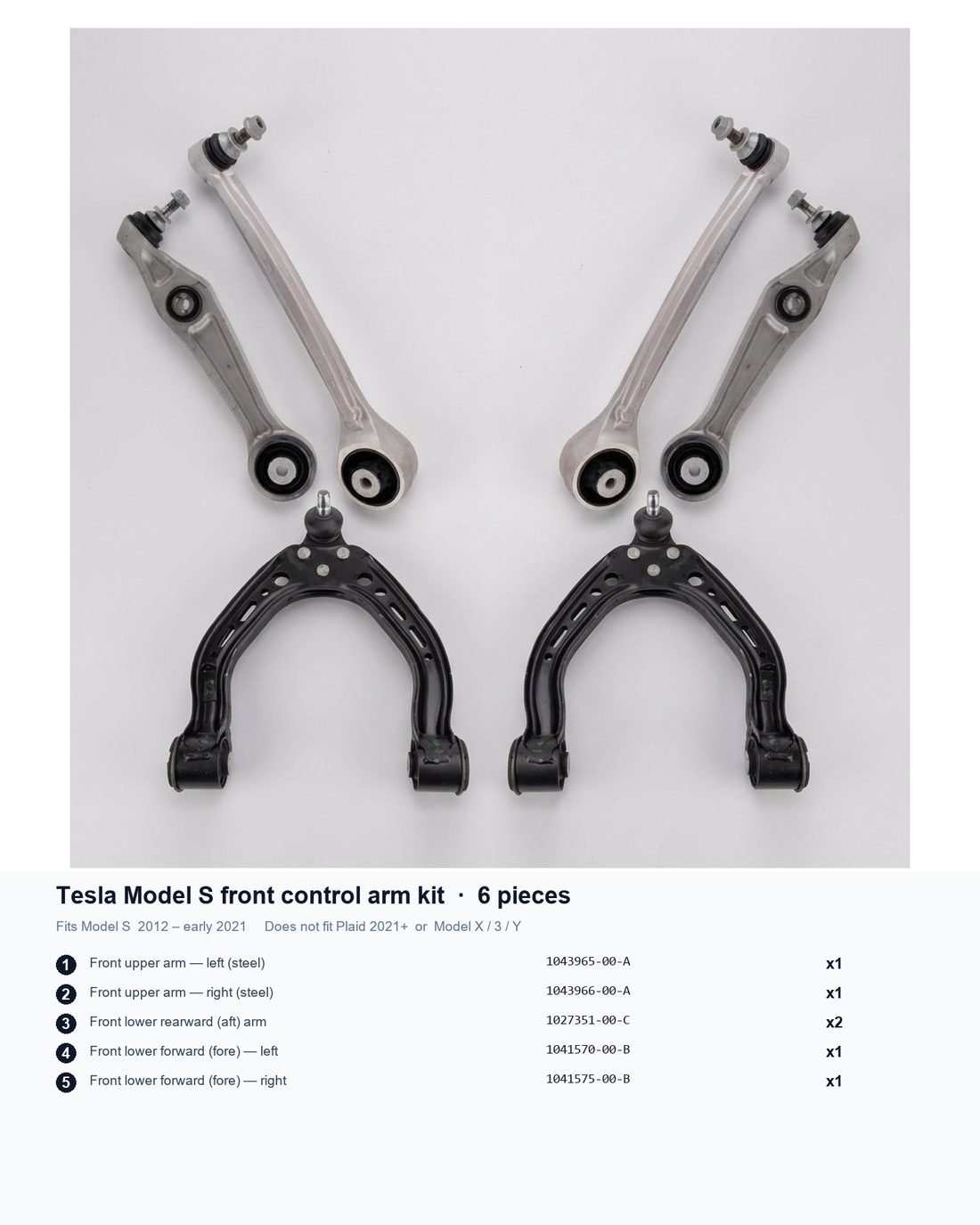

What's in the Box
- 2×Front upper arm (left and right), stamped steel
- 2×Front lower rearward (aft) arm (same part left or right)
- 2×Front lower forward (fore) arm (left and right)
Installation
- For air-suspension cars, the workshop must enable Jack Mode and use the appropriate lifting procedure.
- Follow the Tesla service procedure for the VIN, including replacement one-time fasteners and tightening the inner bushing bolts at the specified ride height.
- Complete a 4-wheel alignment after fitting.
Good to Know
Caution
- Enable Jack Mode before lifting an air-suspension Model S.
- Torque the inner bushing bolts at ride height, not with the wheels hanging, and replace one-time lock nuts.
- A 4-wheel alignment is required after installation.
FAQ
Is this only the upper arms?
No. It contains six front arms: two steel uppers, two rearward lowers and two forward lowers. It does not include rear arms, sway-bar links, tie rods or eccentric bolts.
Does it fit the 2021+ Plaid or new Model S?
No. Plaid and the 2021+ new Model S use 1420321 and 1420326 uppers and a different lower set. The stamp on the arm decides, not the calendar year alone.
Does it fit the Model X?
No. The Model X shares some lower numbers but uses different uppers, so use the Model X kit.
Are these genuine Tesla-boxed parts?
These are aftermarket assemblies made to the listed Tesla OE references, with stamped-steel upper arms. They are not presented as Tesla Service Center boxed originals.
Are bolts and alignment included?
No. The package is six complete arm assemblies. Bolts, one-time nuts and the 2007106 eccentric bolt are not included; the workshop must arrange the required fasteners and alignment.
