Front Lower Control Arm Center Bushing

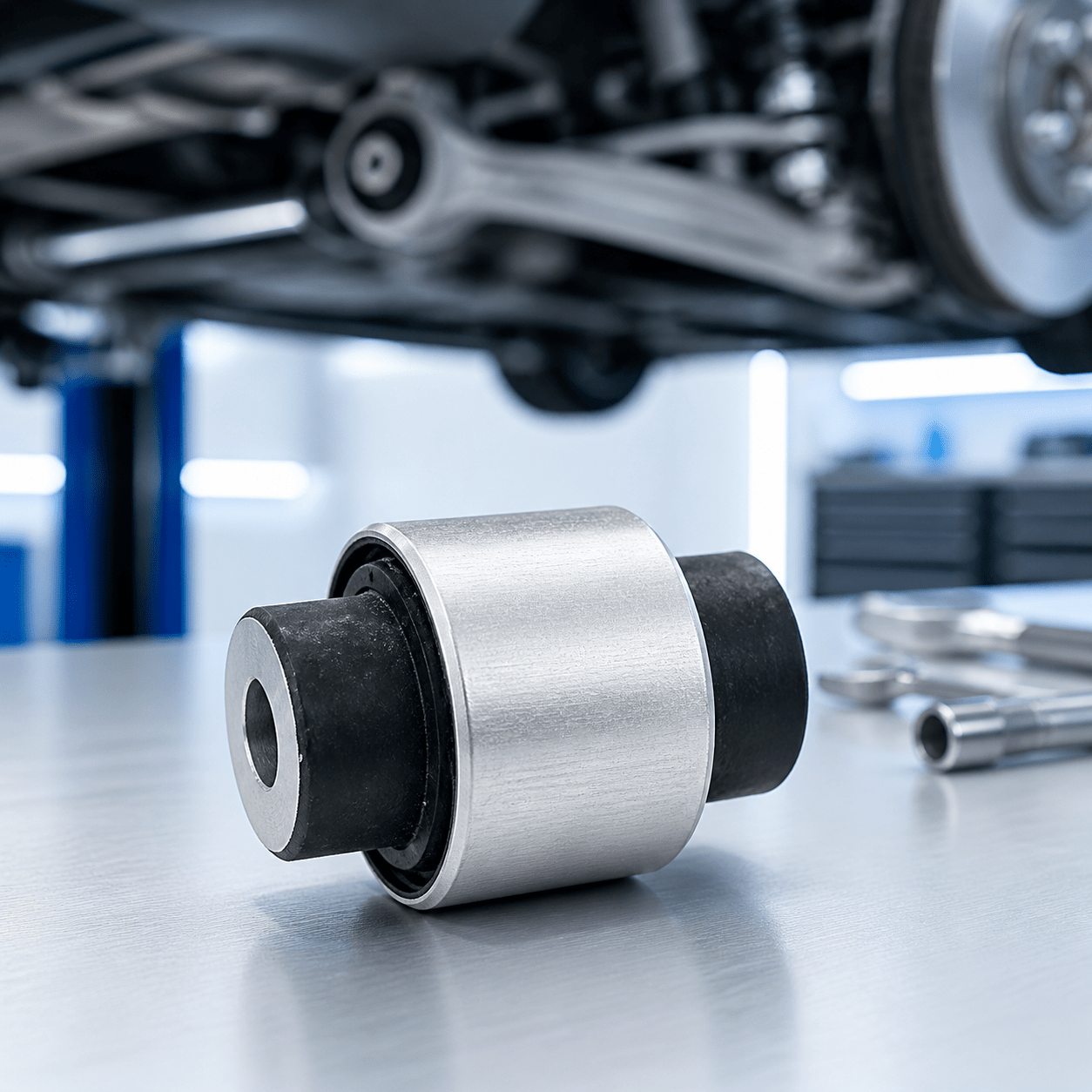

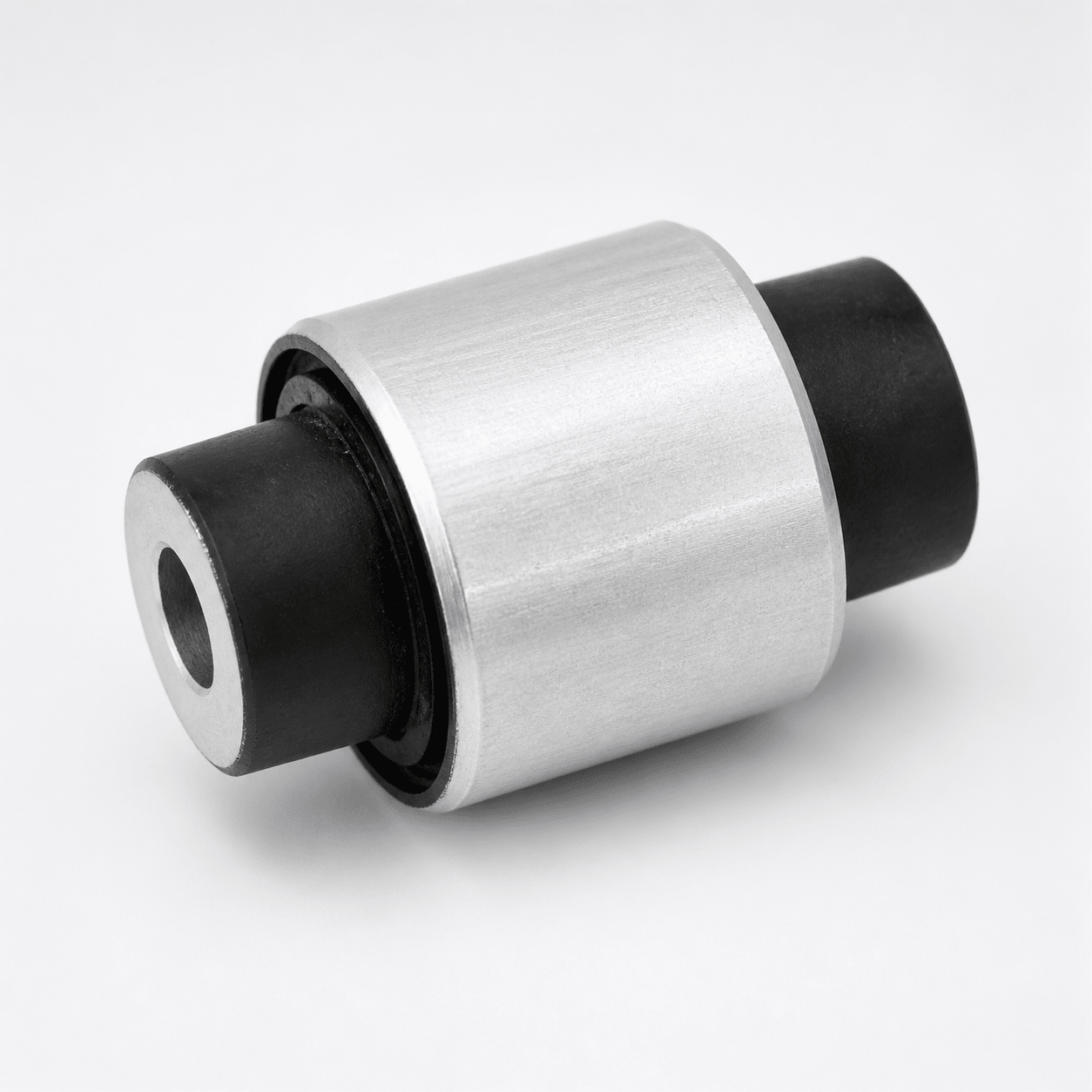

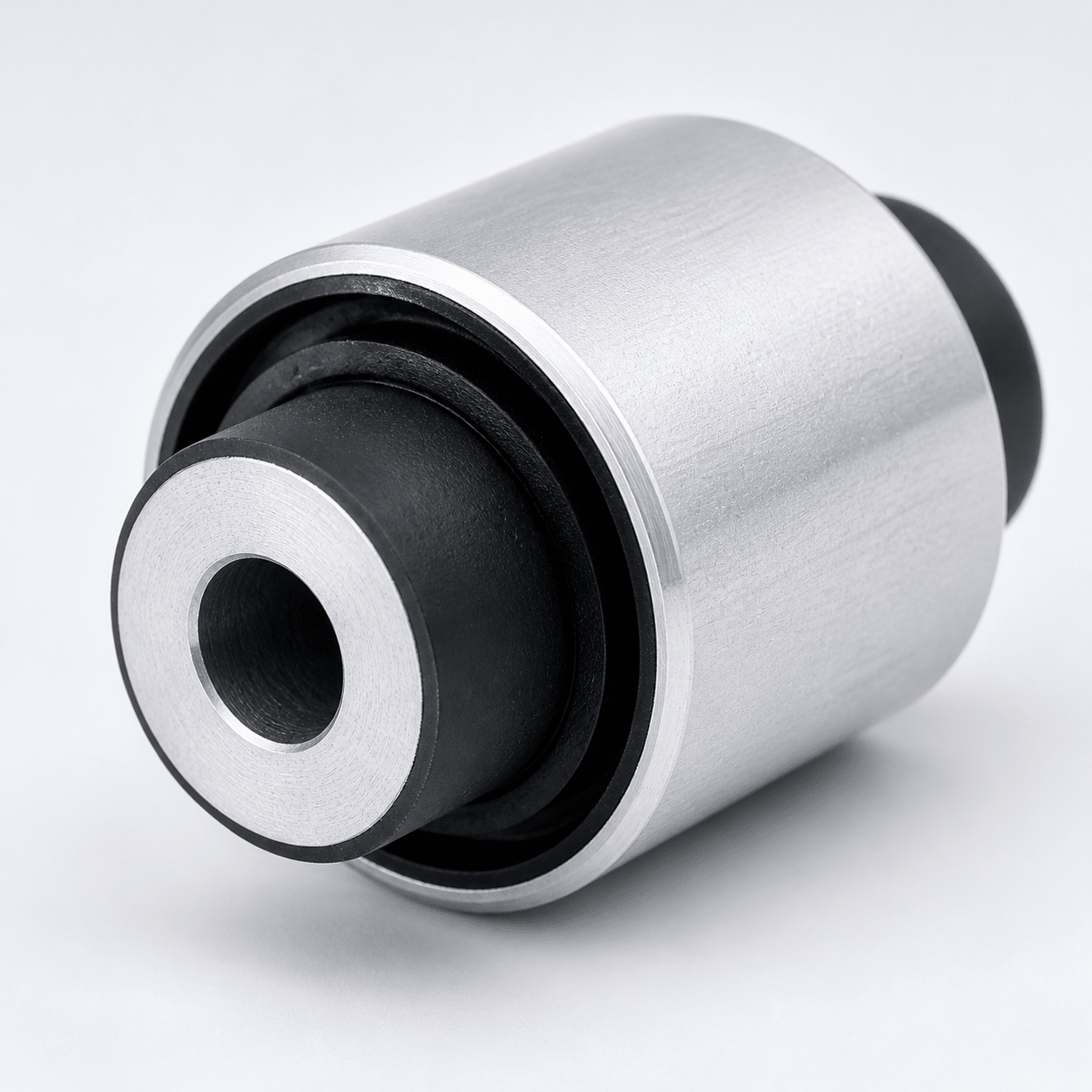

Service a diagnosed worn center bushing with an aftermarket insert referenced to 1044343-00-D. The cylindrical part has a silver metal housing, black bushing and inner sleeve.
- Bushing Component
- Front Lower Arm
- Left or Right
- Ref. 1044343-00-D
Key Features
-
Bushing component
A cylindrical insert for the front lower control arm center mounting point; the control arm is not supplied.
-
Reference 1044343-00-D
Replaces the front lower arm center bushing with reference 1044343-00-D.
-
Metal outer housing
A silver housing surrounds the black bushing and inner sleeve shown in the product views.
-
Left or right mounting position
Fits the left or right front lower arm center mounting point.
-
Generation-specific fit
The vehicle range is Model 3 2021–October 2023 and Model Y 2020–March 2025.
-
Press-fit replacement
The bushing is pressed into the existing front lower arm.
Highlights
Bushing Component Only
The product view shows the cylindrical bushing insert. A complete control arm, ball joint and installation press are not included.

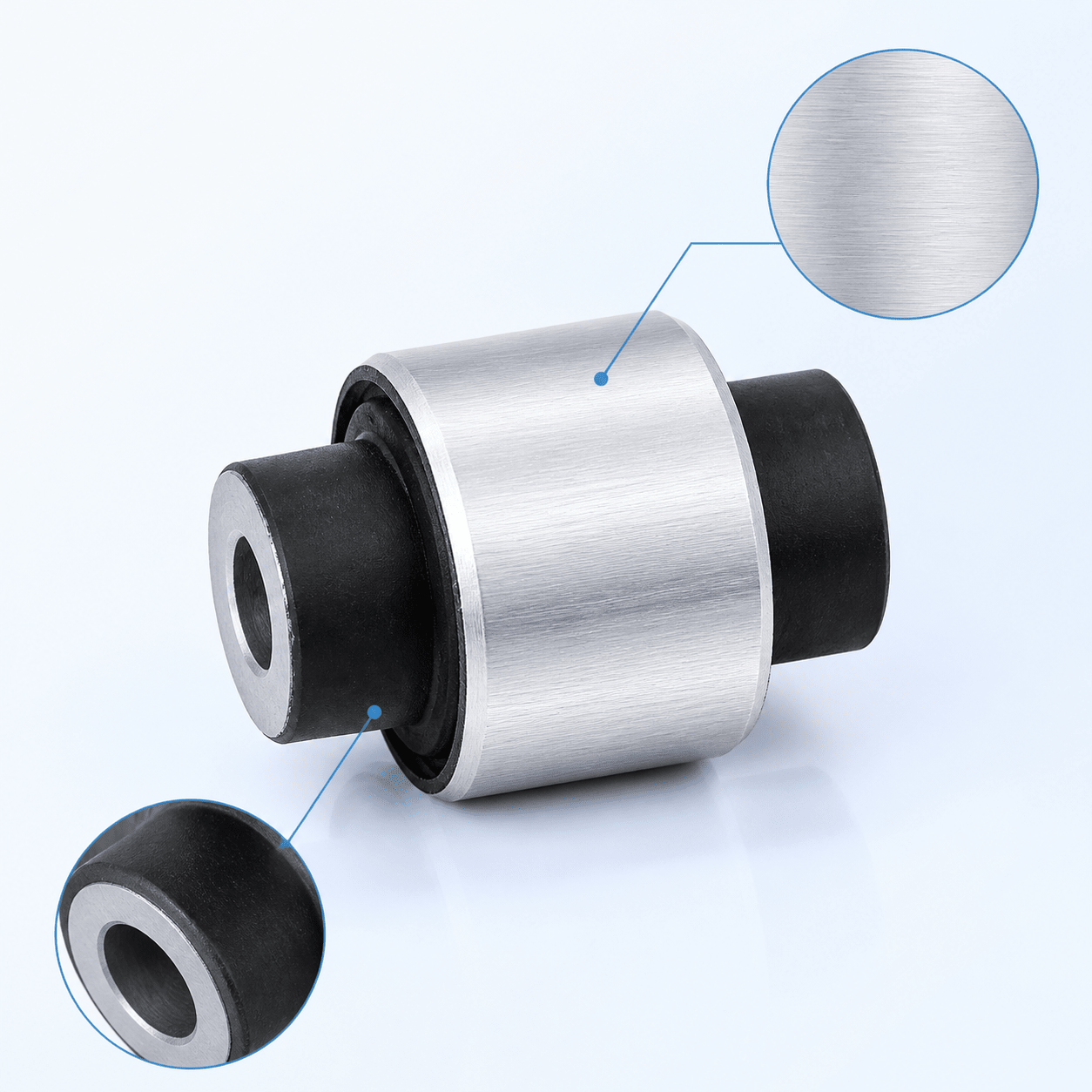

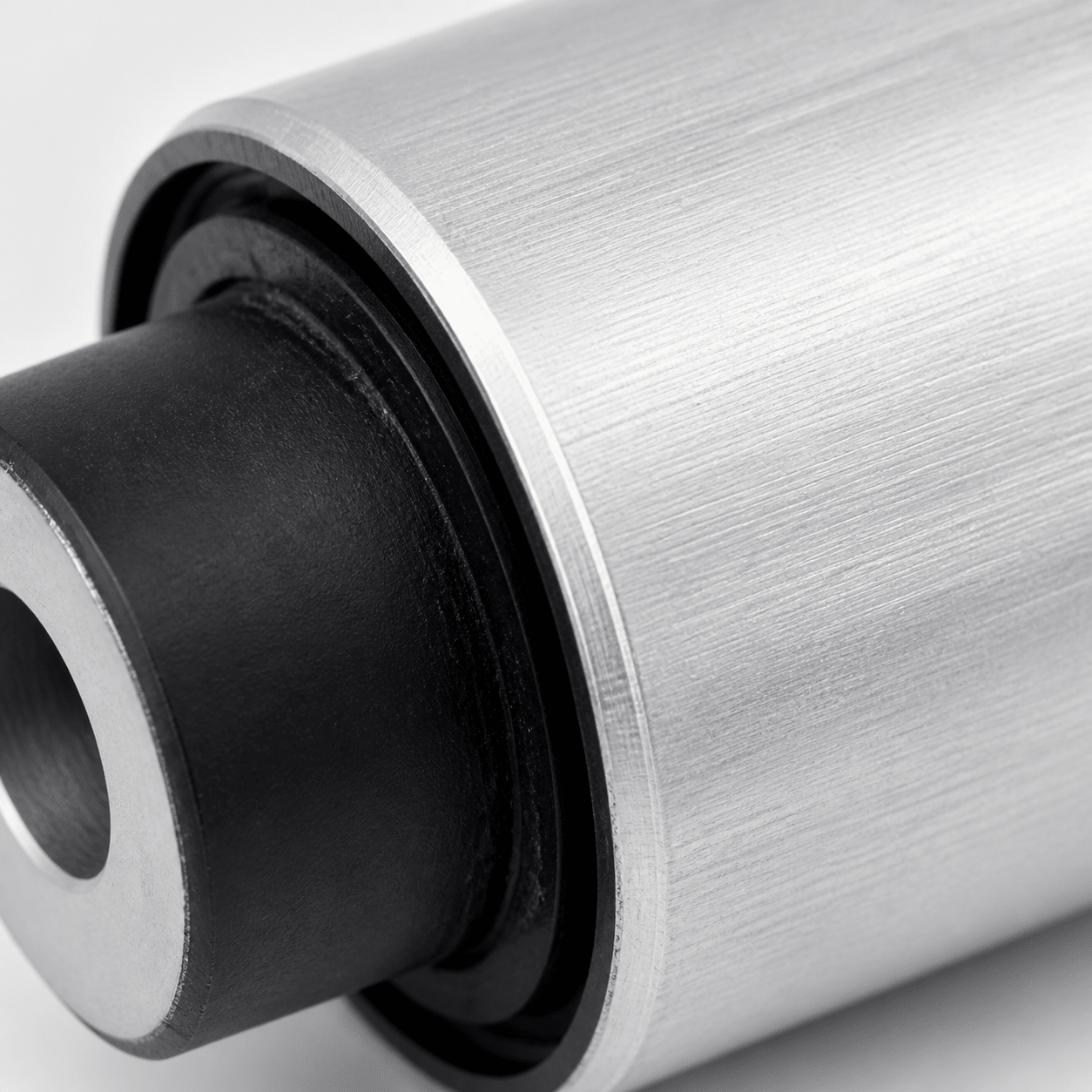

Housing and Inner Sleeve
The silver metal housing surrounds the black bushing and central sleeve.
Diagnose Before Replacement
Noise, vibration or uneven tire wear can have several causes.
Compatibility
| Model | Years / Version | Notes |
|---|---|---|
| Model 3 | 2021–2023.10 | Front lower arm center bushing; reference part number 1044343-00-D |
| Model Y | 2020–2025.03 | Front lower arm center bushing; reference part number 1044343-00-D |
Fits Model 3 2021–2023.10 and Model Y 2020–2025.03. Does not fit Highland or Juniper.
Specifications
| Product Type | Front lower control arm center bushing |
|---|---|
| Compatible Models | Model 3 (2021–2023.10), Model Y (2020–2025.03) |
| Position / Location | Front lower control arm center mounting point; left or right application |
| Material | Aluminum-alloy housing with black bushing insert |
| Surface Finish | Silver metal housing |
| Color | Silver |
| Shipping Weight | 480 g (1.06 lb) |
| Reference Part Number | 1044343-00-D; compatibility reference, not Tesla-origin certification |
What's in the Box
- 1×Front lower control arm center bushing
Installation
- Follow the applicable vehicle and replacement-part procedure for removal, support, orientation and pressing.
- Complete the applicable wheel-alignment requirements.
Good to Know
Caution
- Reference number 1044343-00-D, front lower arm center bushing.
- Press work requires correct support and orientation; a damaged arm needs replacement.
- Follow the vehicle-specific fastener and alignment requirements after repair. No alignment values or bolt torque are supplied here.
- This is an aftermarket replacement component, not a genuine Tesla part or a guarantee of eliminating all suspension noise.
FAQ
Is this a complete control arm?

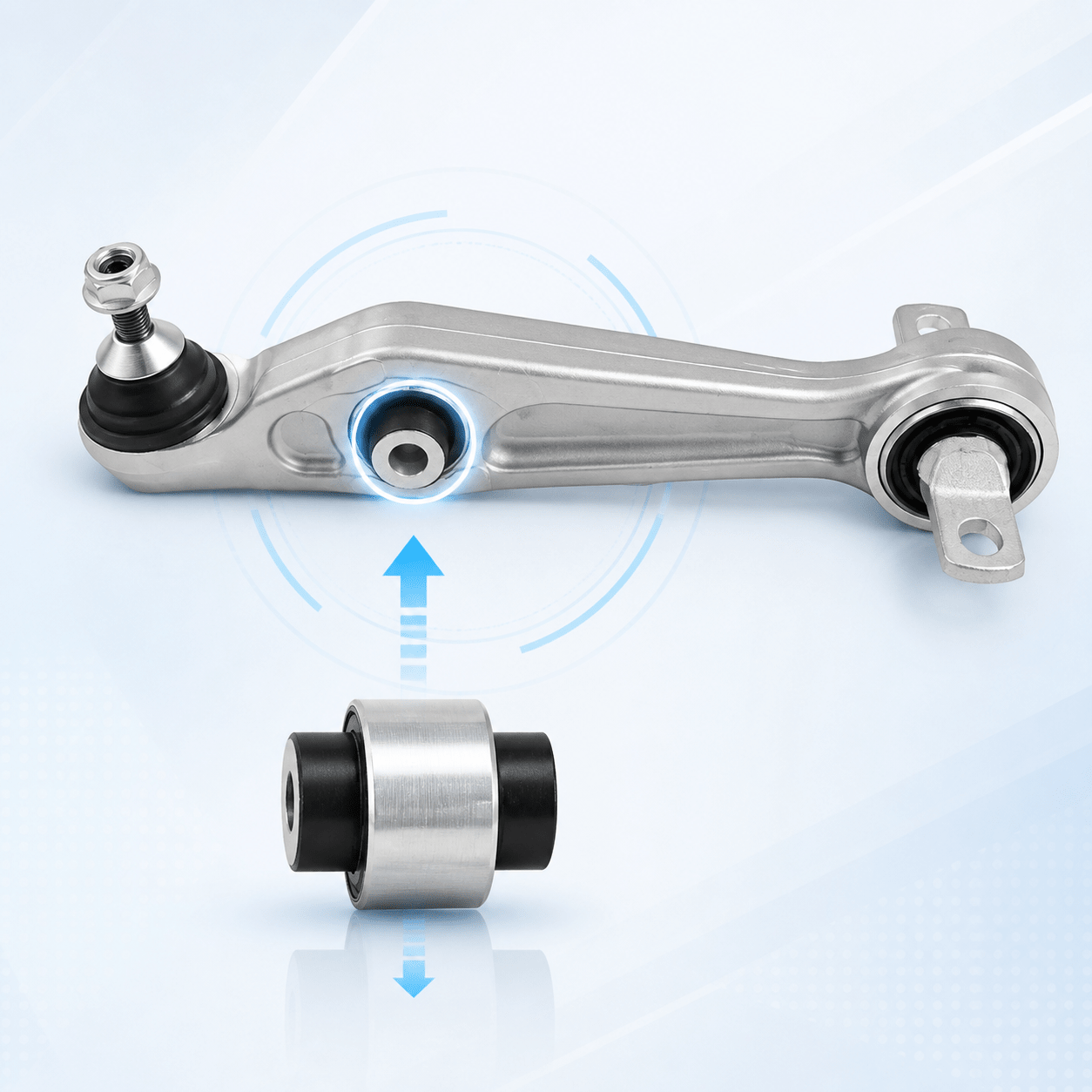

No. It is the center bushing component. The pictured full arm is an application illustration and is not supplied.
Can every worn arm be repaired with a bushing?
No. A damaged arm needs replacement instead of a new bushing.
Will it cure all clunks or uneven tire wear?
No. These symptoms can come from several suspension or tire conditions.
Is alignment needed afterward?
Yes, according to the vehicle suspension-repair and alignment requirements.
