Style 4 Carbon Fiber Steering Rim With LEDs
This made-to-order Style 4 replacement rim combines carbon fiber sections, upholstered grips and upper-rim LED lighting. It is offered for Model 3 2017–2023.08 and USA-made Model Y 2020–2025.02, with no added middle trim or a glossy or matte carbon fiber panel. The retain-heated configuration uses the original heating equipment and connections.
- Carbon Fiber Sections
- Upper-Rim LEDs
- Middle Trim Choice
- Workshop Fit
Key Features
-

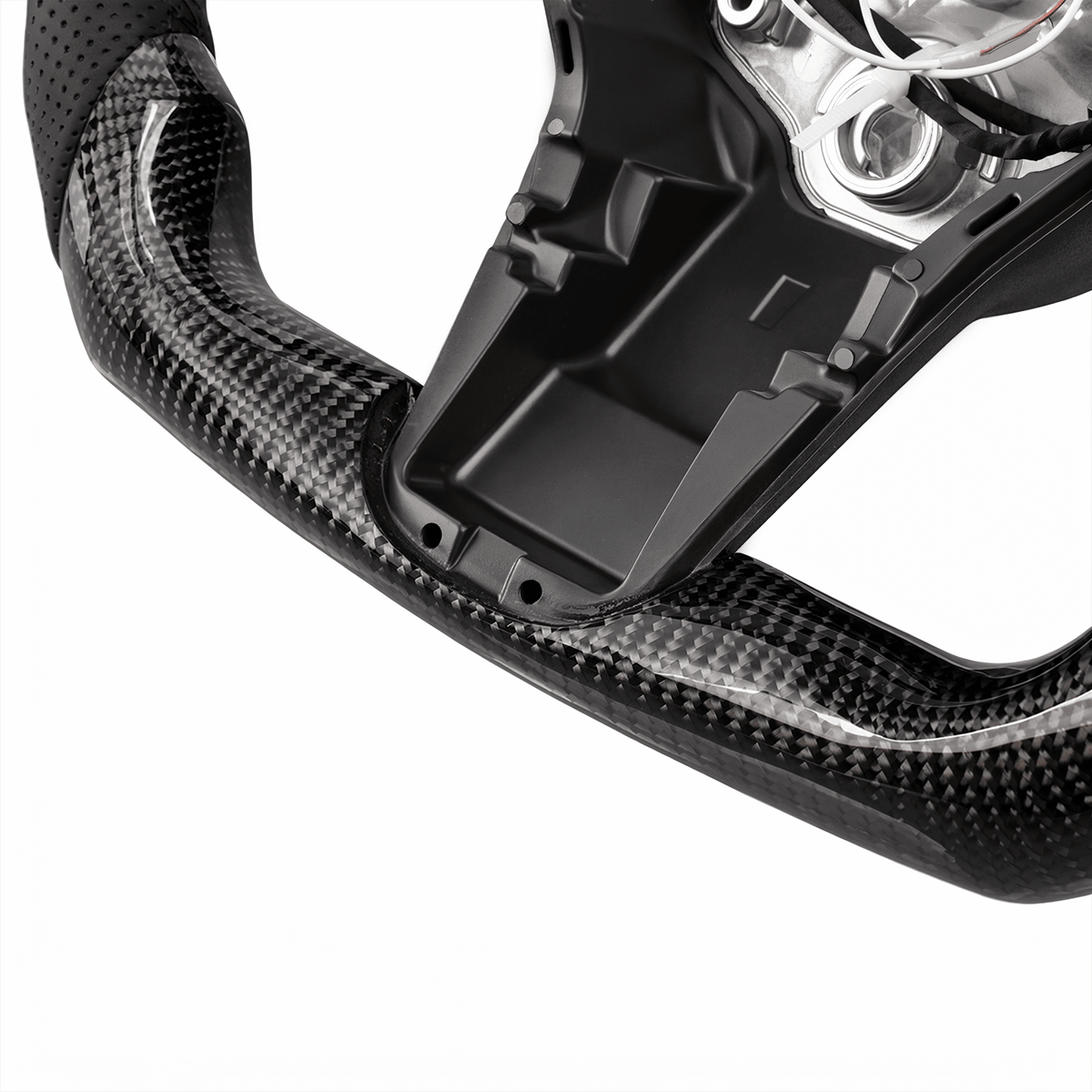

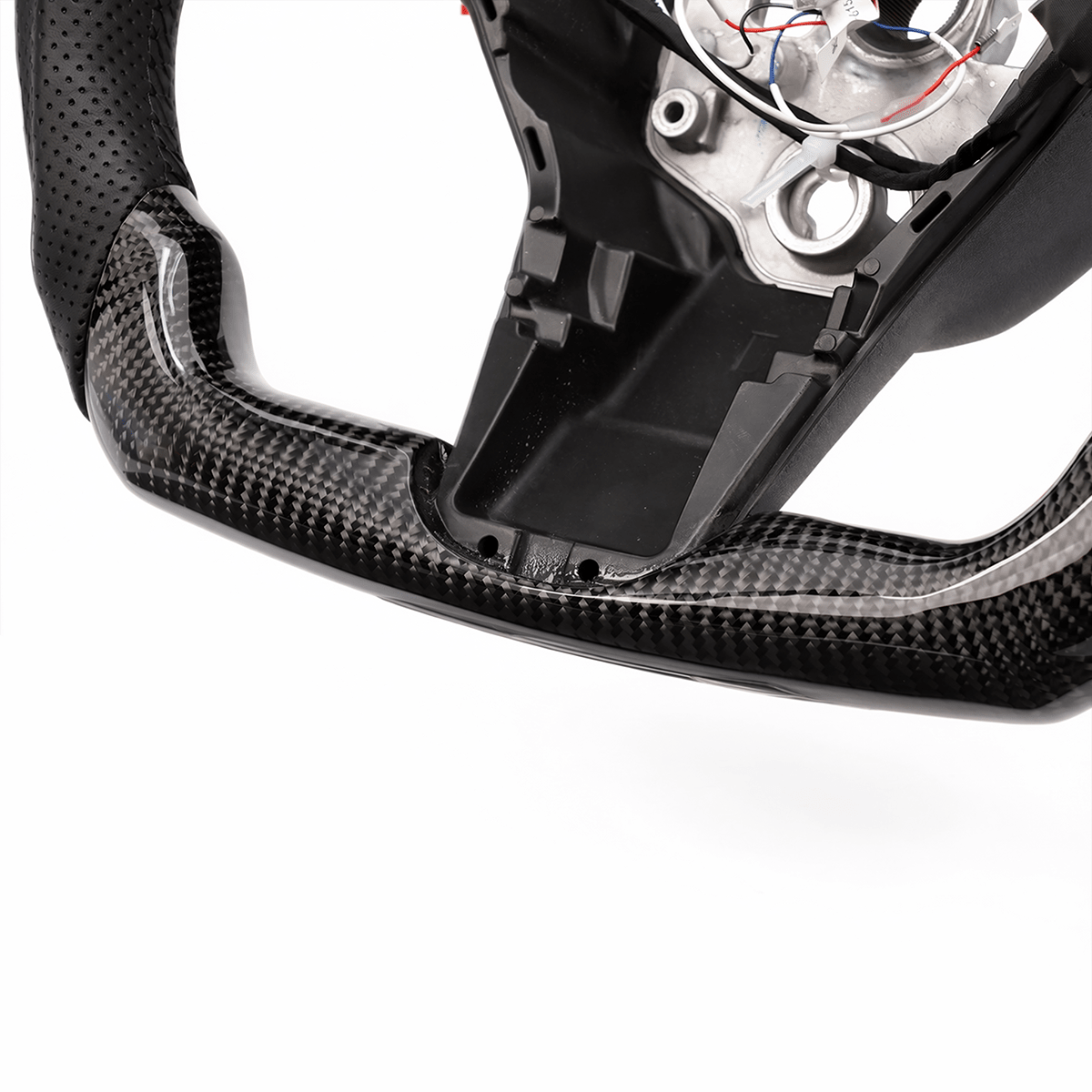

Carbon Fiber Sections
Visible carbon fiber covers the upper and lower rim sections
-
Upper LED Strip
Integrated LEDs run along the top rim beside a small display window
-
Upholstered Grips
Shaped side grips have a perforated surface
-
Middle Trim Options
Choose no added middle trim, glossy carbon fiber or matte carbon fiber
-
Heating Configuration
The purchase configuration is intended to retain compatible existing heating
-
Made-to-Order Wheel
The wheel is produced to order.
Highlights

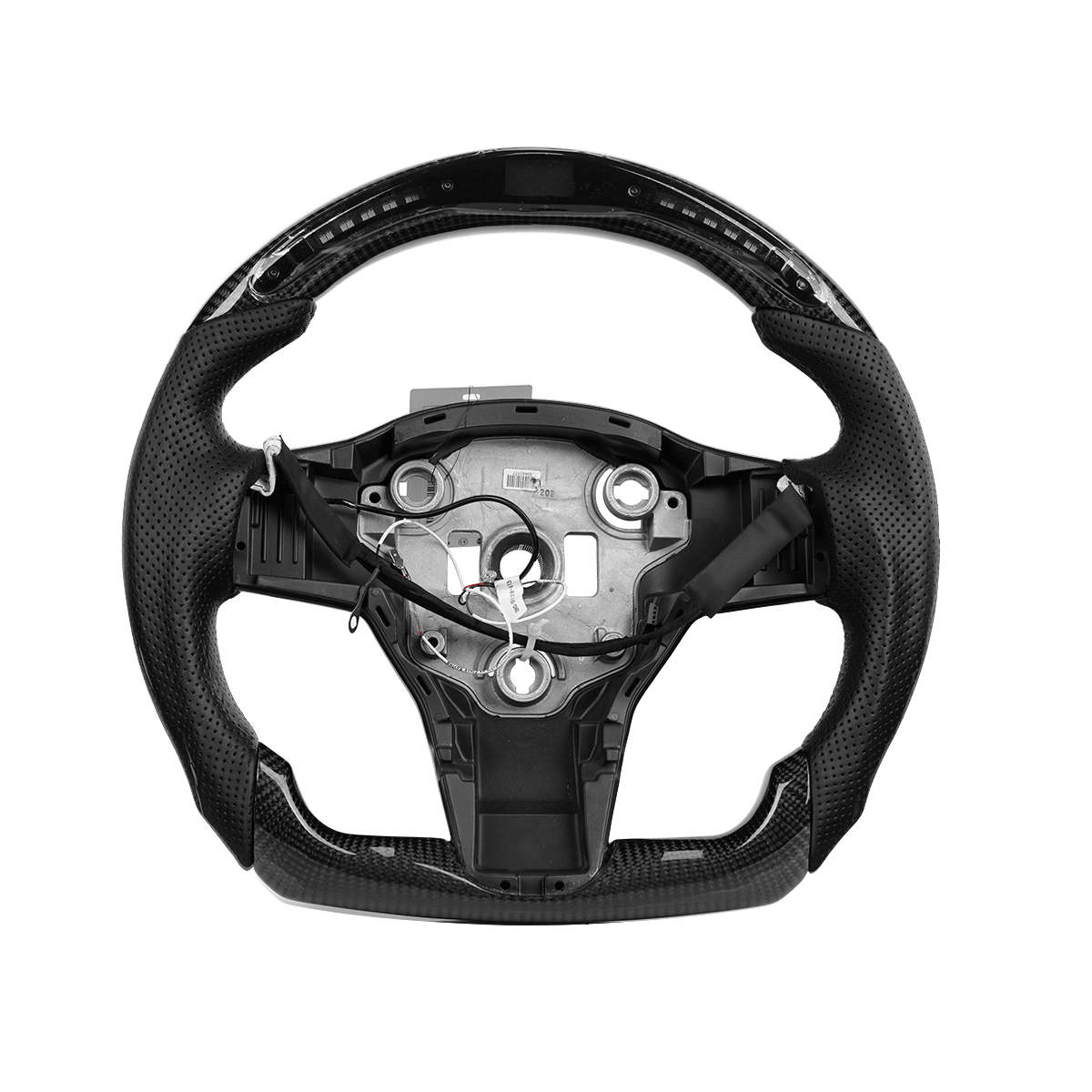

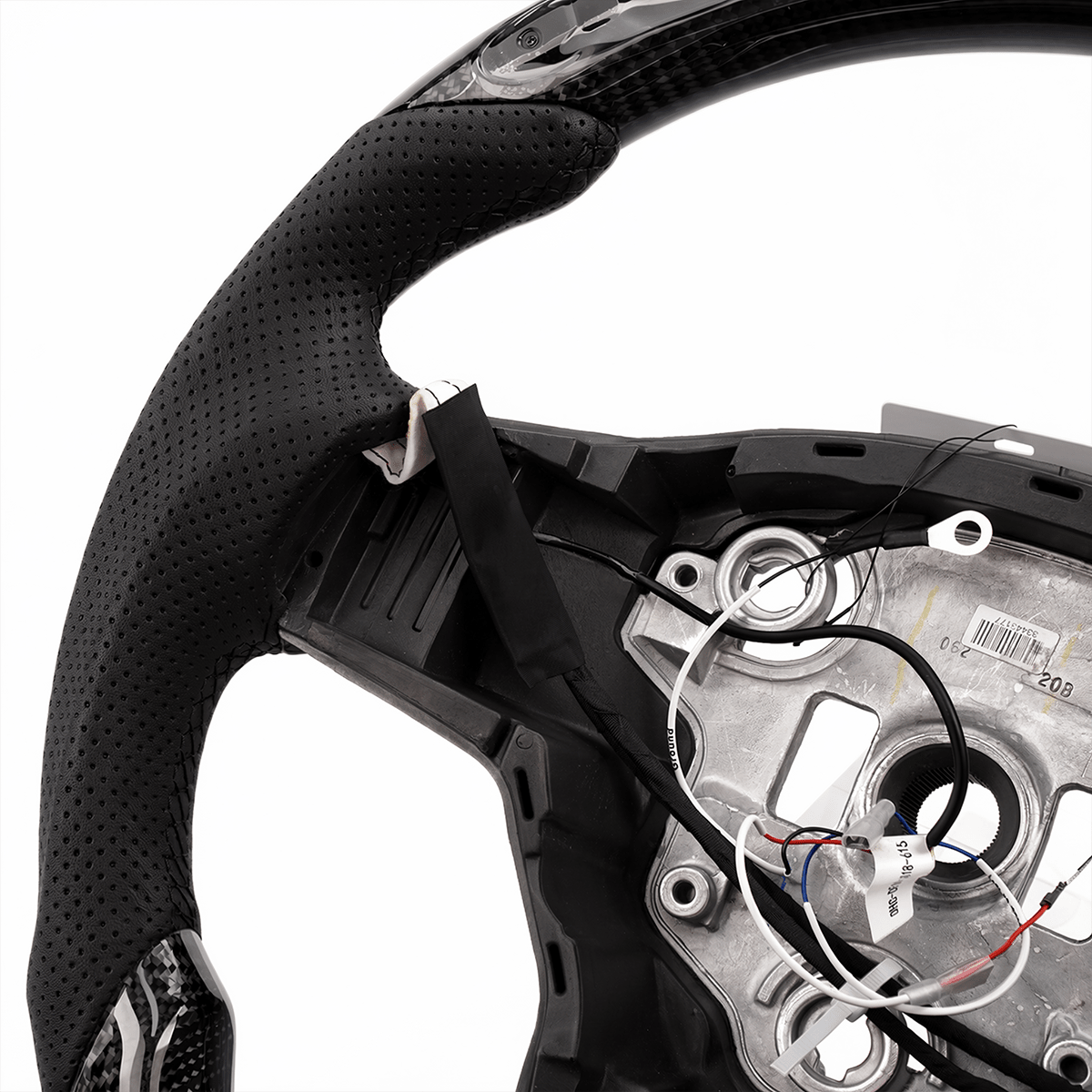

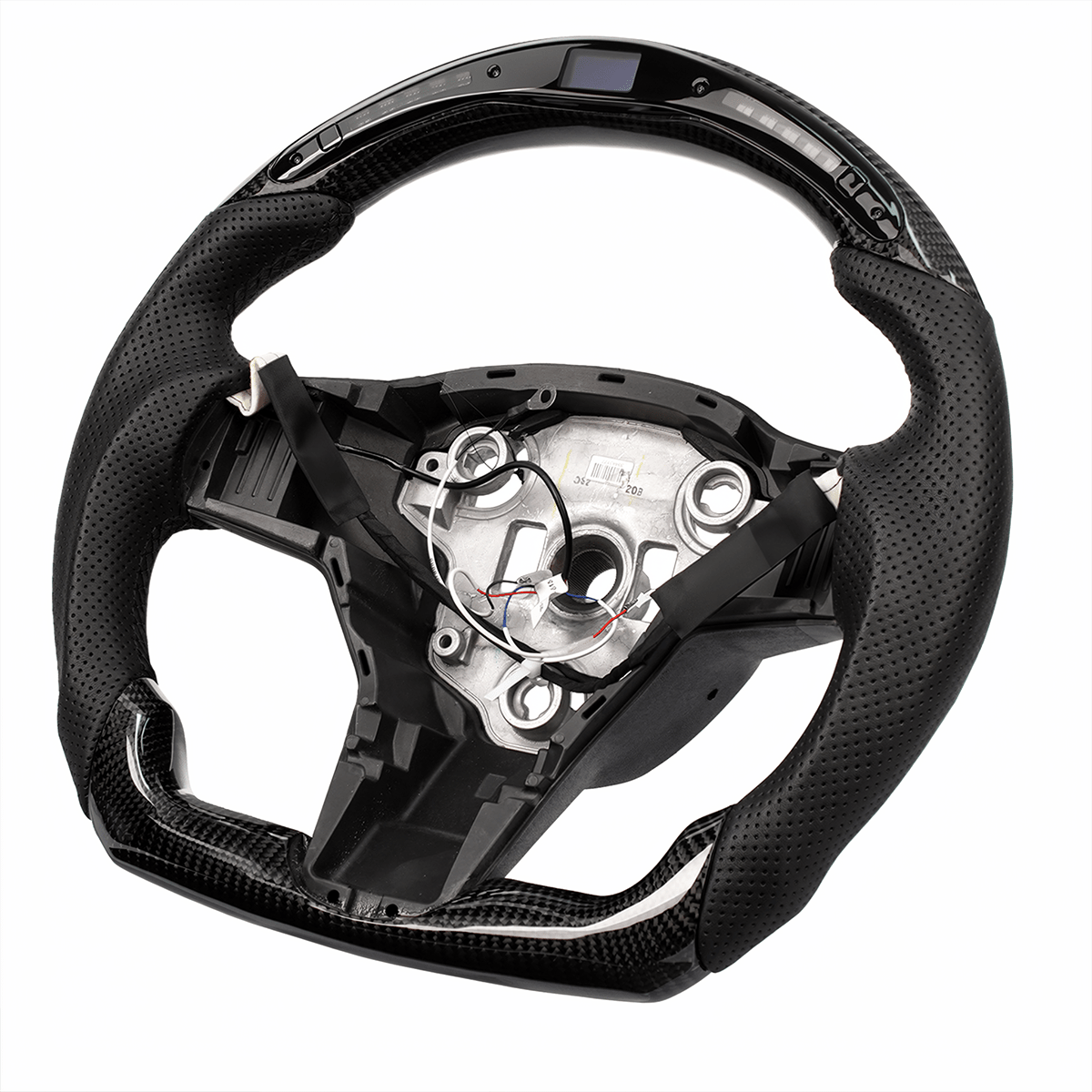

Replacement Rim Structure
The bare rim shown has carbon fiber sections and perforated side grips. Uses the original airbag, retention hardware, horn, controls and wiring.

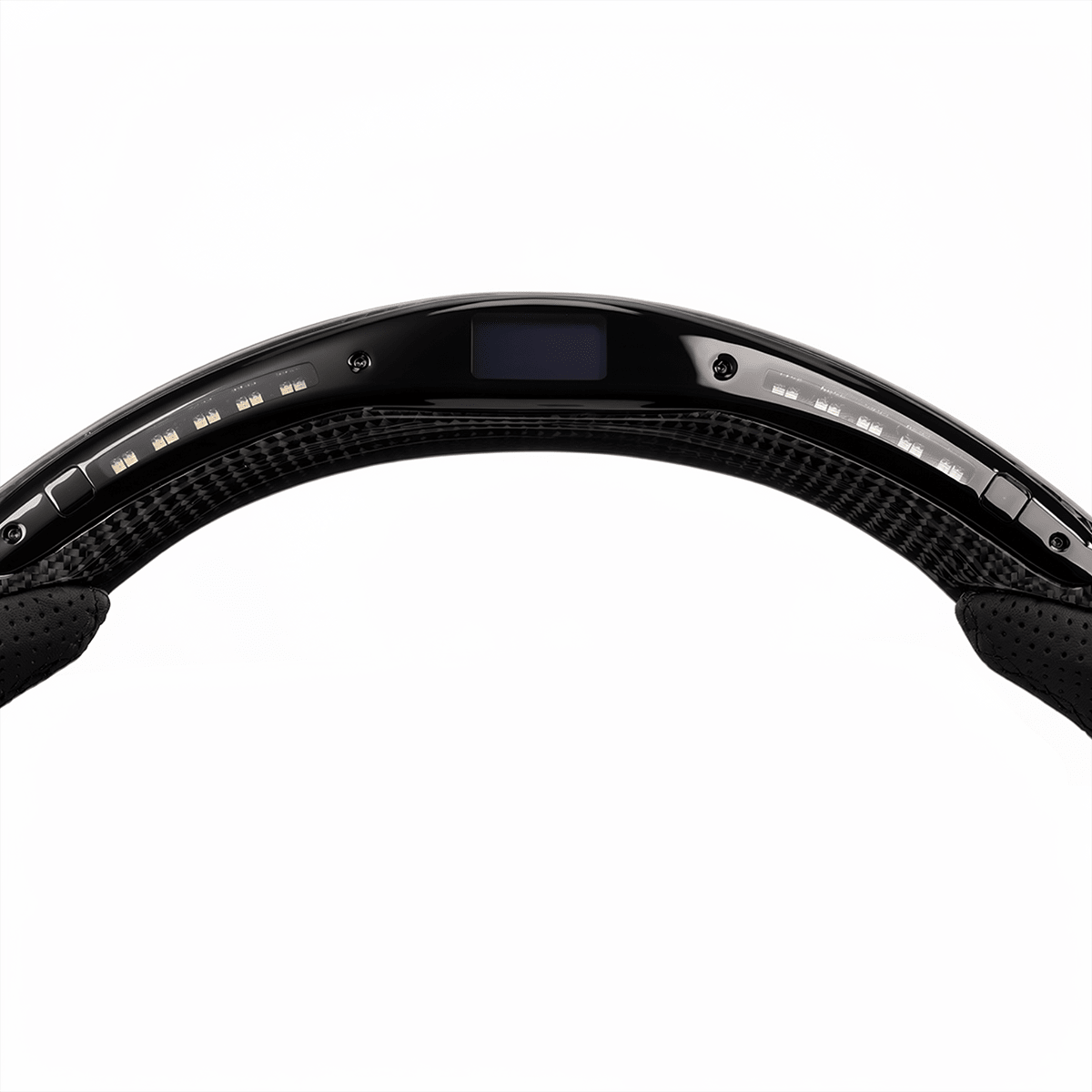

Upper-Rim LED Detail
The LED strip and small display window sit along the upper rim. The added readouts do not replace the vehicle touchscreen.

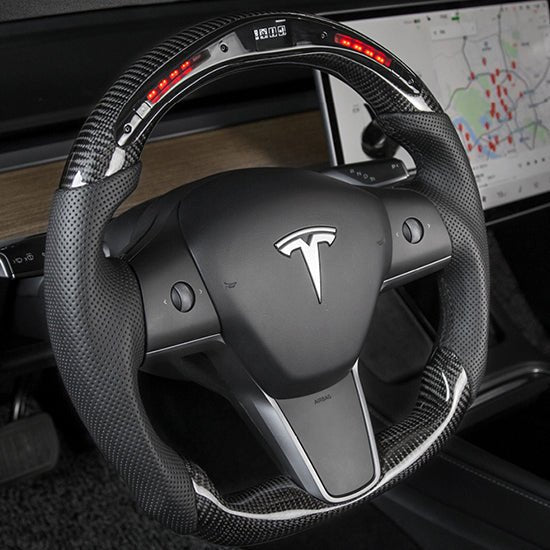

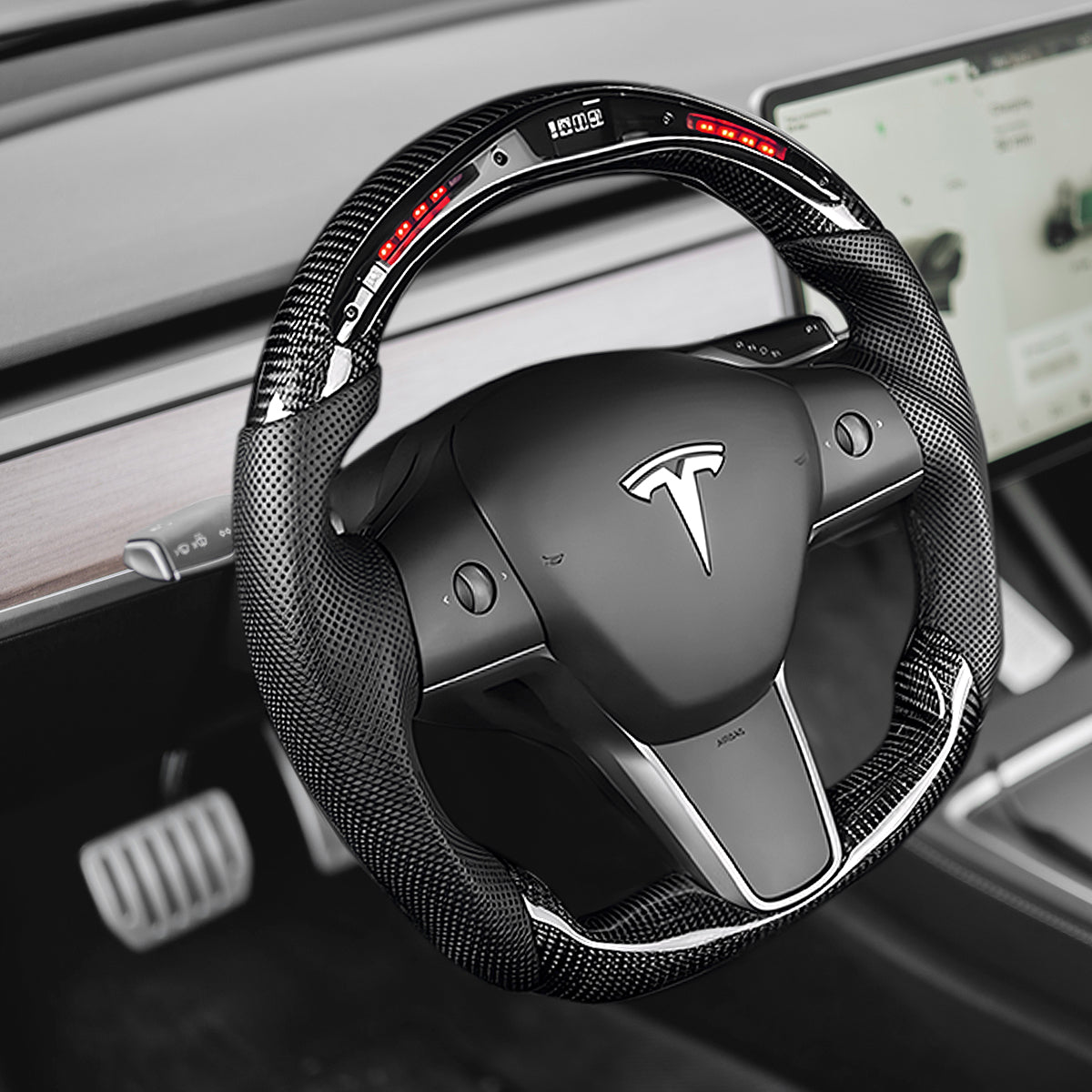

Installed Wheel Example
The photograph illustrates the completed wheel appearance. It does not define the supplied airbag, controls or hardware.
Middle Trim and Heating
Choose no added middle trim or a glossy or matte carbon fiber panel. Heating retention depends on existing vehicle equipment and matching connections; this is not an automatic heating retrofit.
Compatibility
| Model | Years / Version | Notes |
|---|---|---|
| Model 3 | 2017–2023.08 | Reuses the original airbag, controls, wiring and heating equipment |
| Model Y | 2020–2025.02 | Made in USA; reuses the original steering components and electrical equipment |
Fits Model 3 2017–2023.08 and Model Y 2020–2025.02. Model 3 Highland, Model Y Juniper and other factories are outside these purchase options. Obtain the exact LED power, wiring and data-box instructions for the selected vehicle configuration.
Specifications
| Product Type | Style 4 replacement steering-wheel rim with LED lighting |
|---|---|
| Compatible Models | Model 3 2017–2023.08; Model Y 2020–2025.02, made in USA |
| Material | Carbon fiber sections with upholstered grips |
| Surface Finish | Middle trim: none, glossy carbon fiber or matte carbon fiber |
| Light Source | Integrated upper-rim LED lighting |
| Installation Type | Steering-wheel replacement and accessory wiring |
| Heating Function | Retain-heated configuration; uses the existing heating equipment and connections |
Installation
- Remove the original rim and transfer the original components, leaving the airbag module and cover intact.
- Install the rim and transferred components with the vehicle-specific fasteners. Route and connect the LED wiring clear of steering movement.
Good to Know
Caution
- Keep the original airbag module and cover intact. Do not modify, cover or bypass SRS components; installation must follow the vehicle-specific isolation, retention and fastener requirements.
- A socket called 12V is not suitable for every build.
- Tesla recommends avoiding non-Tesla accessories in the low-voltage outlet. If warning messages, malfunctions or excessive heat occur, disconnect the accessory and arrange inspection.
- Added lights and displays do not improve or replace vehicle safety systems. Adjust settings while parked.
Care
- Clean carbon fiber and grip surfaces using suitable non-abrasive products.
FAQ
Does the wheel add heating to an unheated car?
The option is a retain-heated configuration. No. It does not add heating to an unheated vehicle.
Is the airbag included?
The complete supplied parts list is not specified. No. The original airbag, horn, controls and harness are transferred.
Which middle trim can I choose?
The options are no added middle trim, glossy carbon fiber or matte carbon fiber. Choose the panel with the matching vehicle option.
Can I use a generic 12V plug or update file?
Use the exact kit instructions and approved controller configuration.
How long does production take?
This is made to order. The wheel is made to order.
