Model 3 Rear Lamp Replacement Options
Choose an outer turn / brake lamp, an inner tail lamp or a matching combination for a Model 3 2017–2020 application. Left, right and pair options are available. The 3-pin and 4-pin options have different turn-signal and inner-lamp functions.
- Outer or Inner Lamp
- 3-Pin / 4-Pin Options
- Left / Right / Pair
- Model 3 Application
Características principales
-

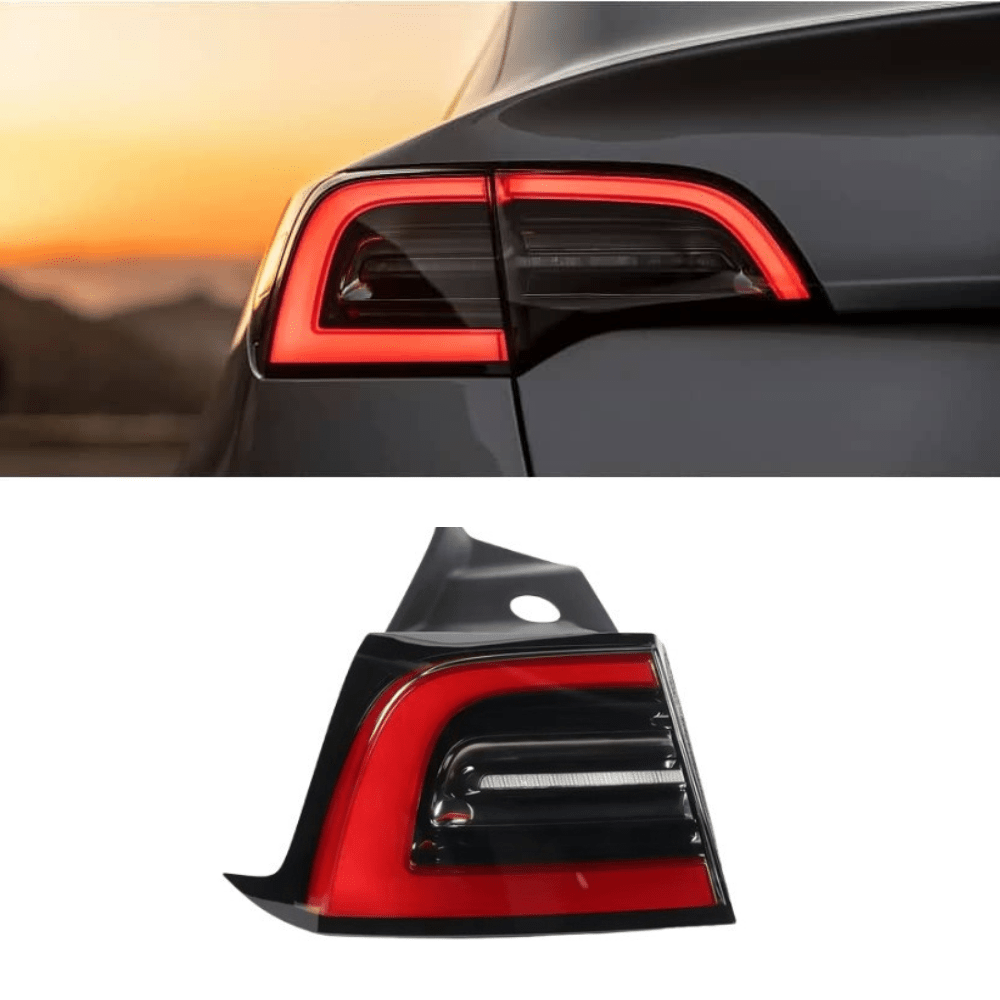

Outer Turn / Brake Lamp

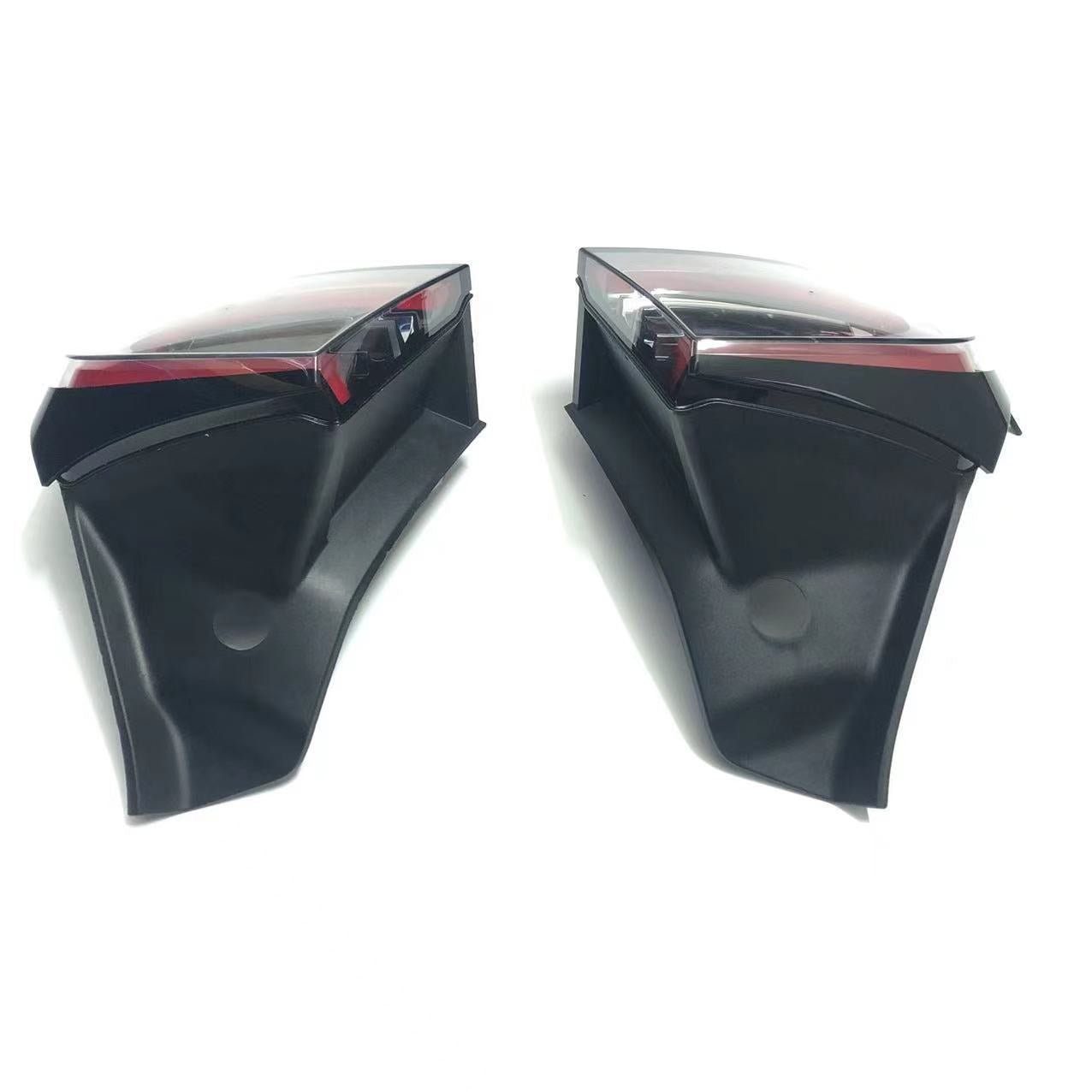

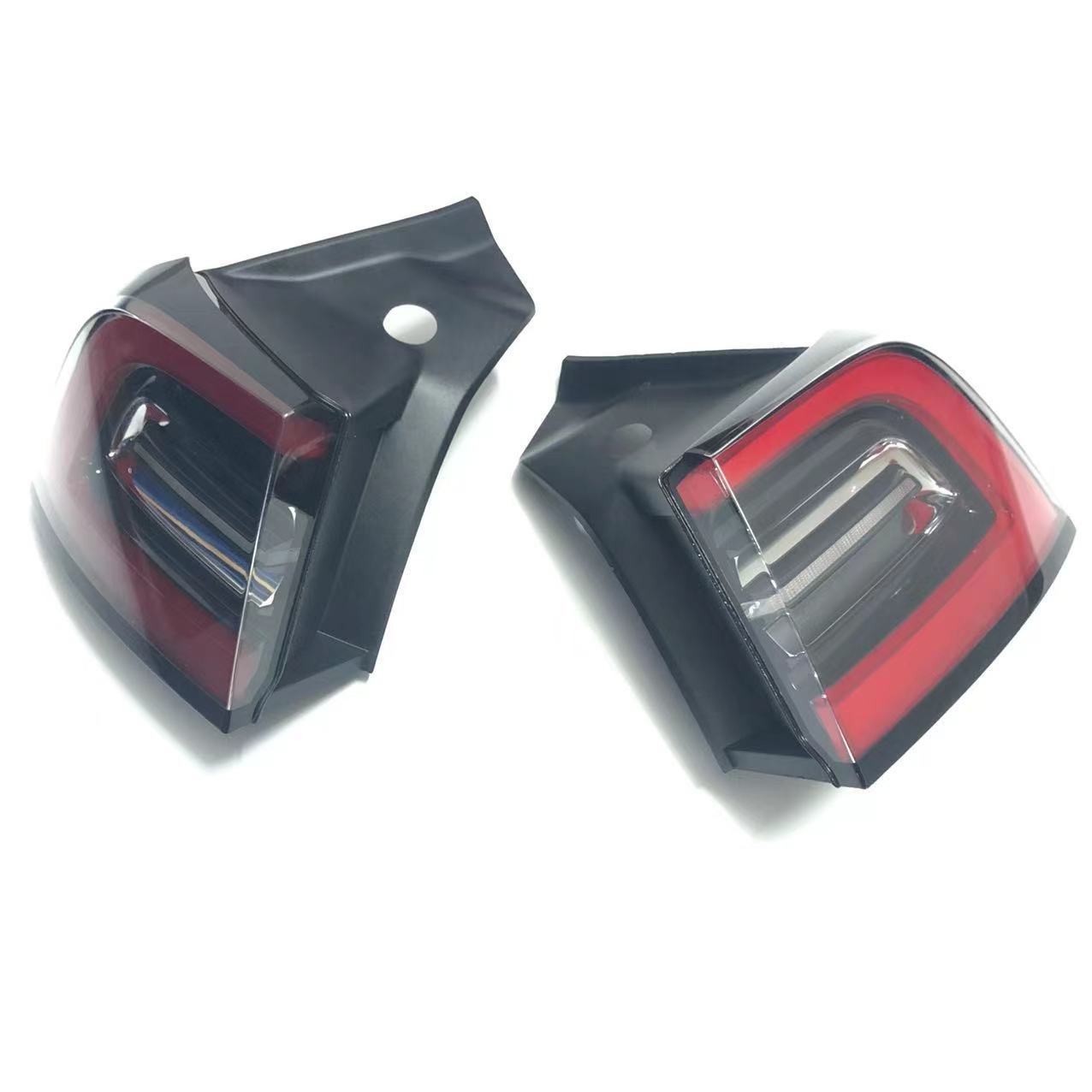

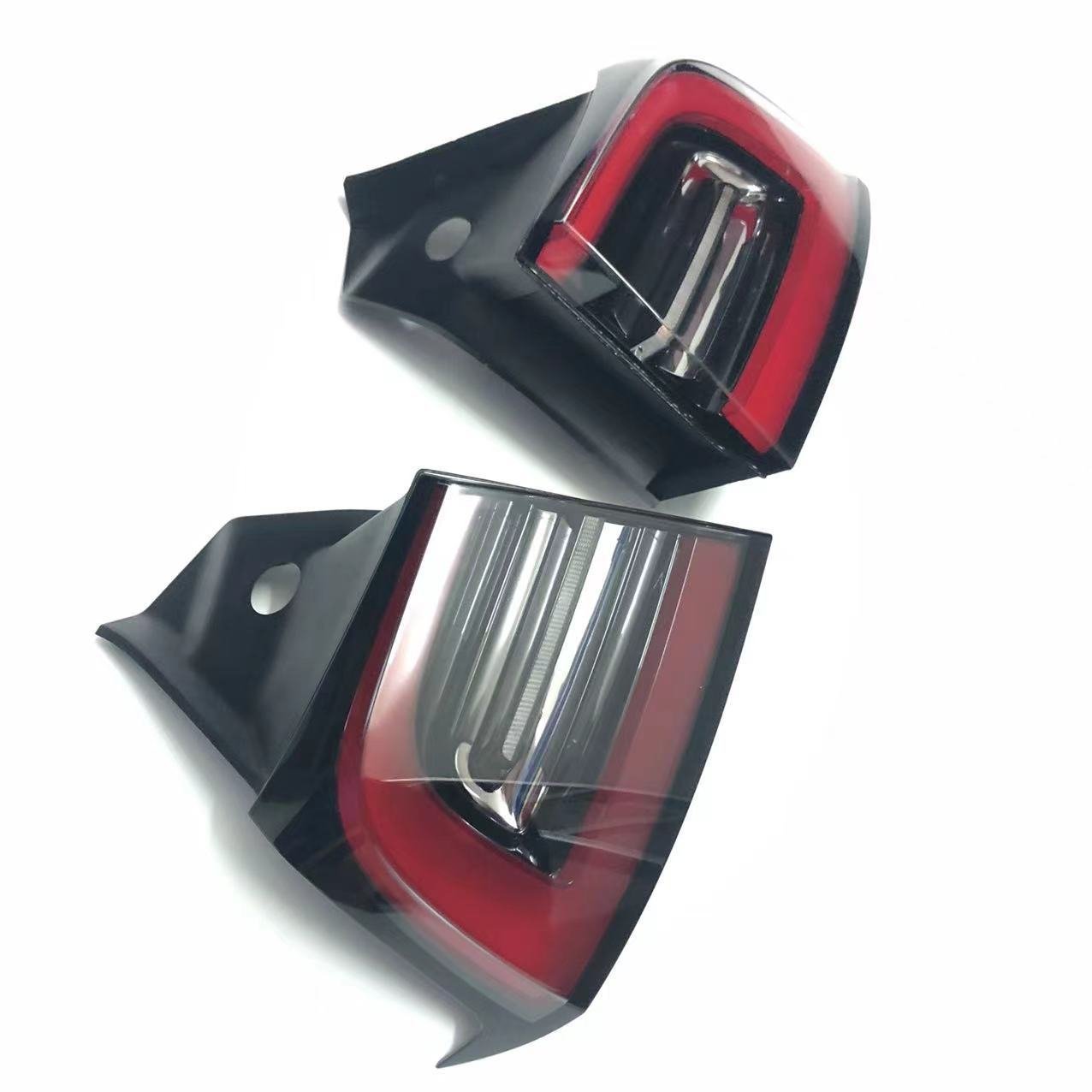

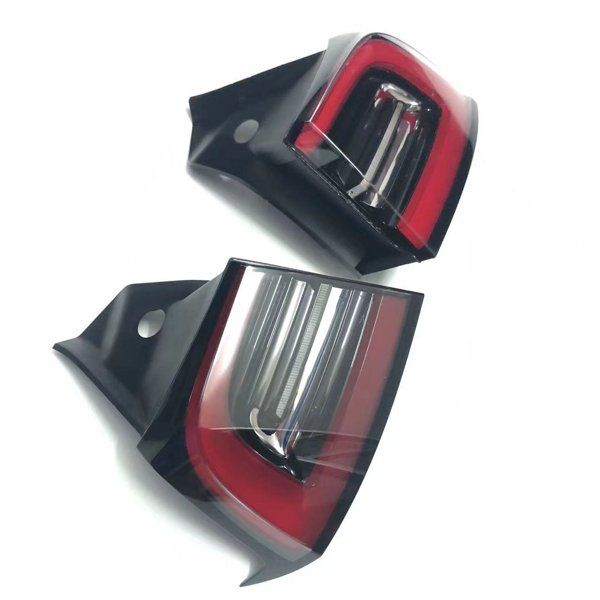

Replace the outer rear lamp using the matching side, housing and connector version.
-
Inner Tail Lamp
A separate inner lamp option; reverse-light and fog-light versions perform different functions.
-
3-Pin Selection
The option names a red turn signal for the outer lamp and white reverse light for the inner lamp.
-
4-Pin Selection
The option names an amber turn signal for the outer lamp and red fog light for the inner lamp.
-
Combined Selection
Order matching outer and inner lamps together for one selected side or both sides.
-
Side Options
Left, Right or Pair.
Aspectos destacados
Outer Turn / Brake Lamp
The outer rear lamp is available for one selected side or a pair. Red-turn and amber-turn versions are separate; lens appearance alone does not identify the version.

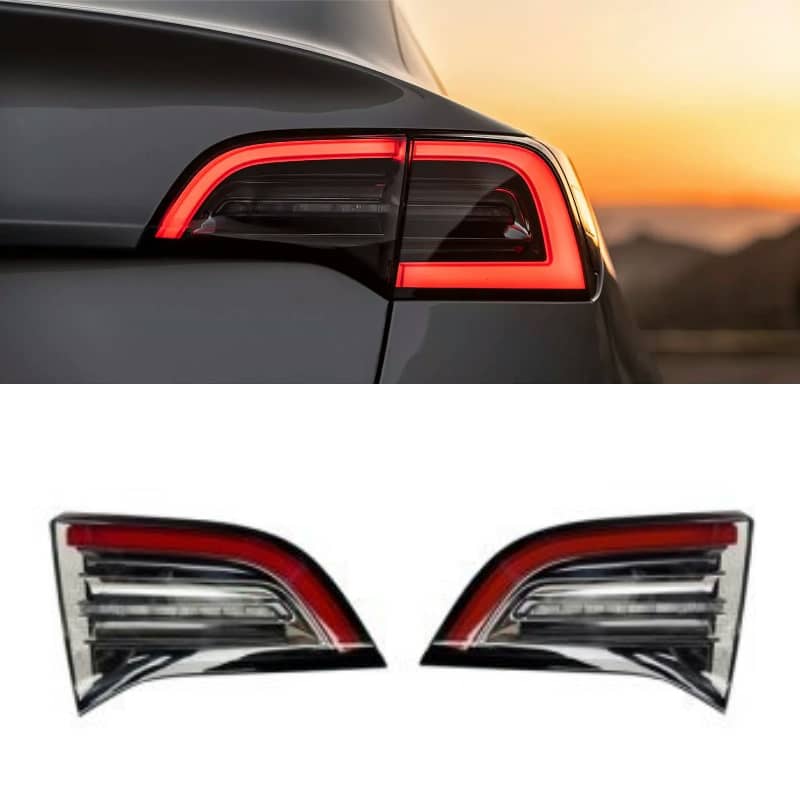

Inner Trunk-Lid Lamp
The inner lamp is a separate assembly. The 3-pin option names a white reverse light; the 4-pin option names a red fog light. These functions are not interchangeable.

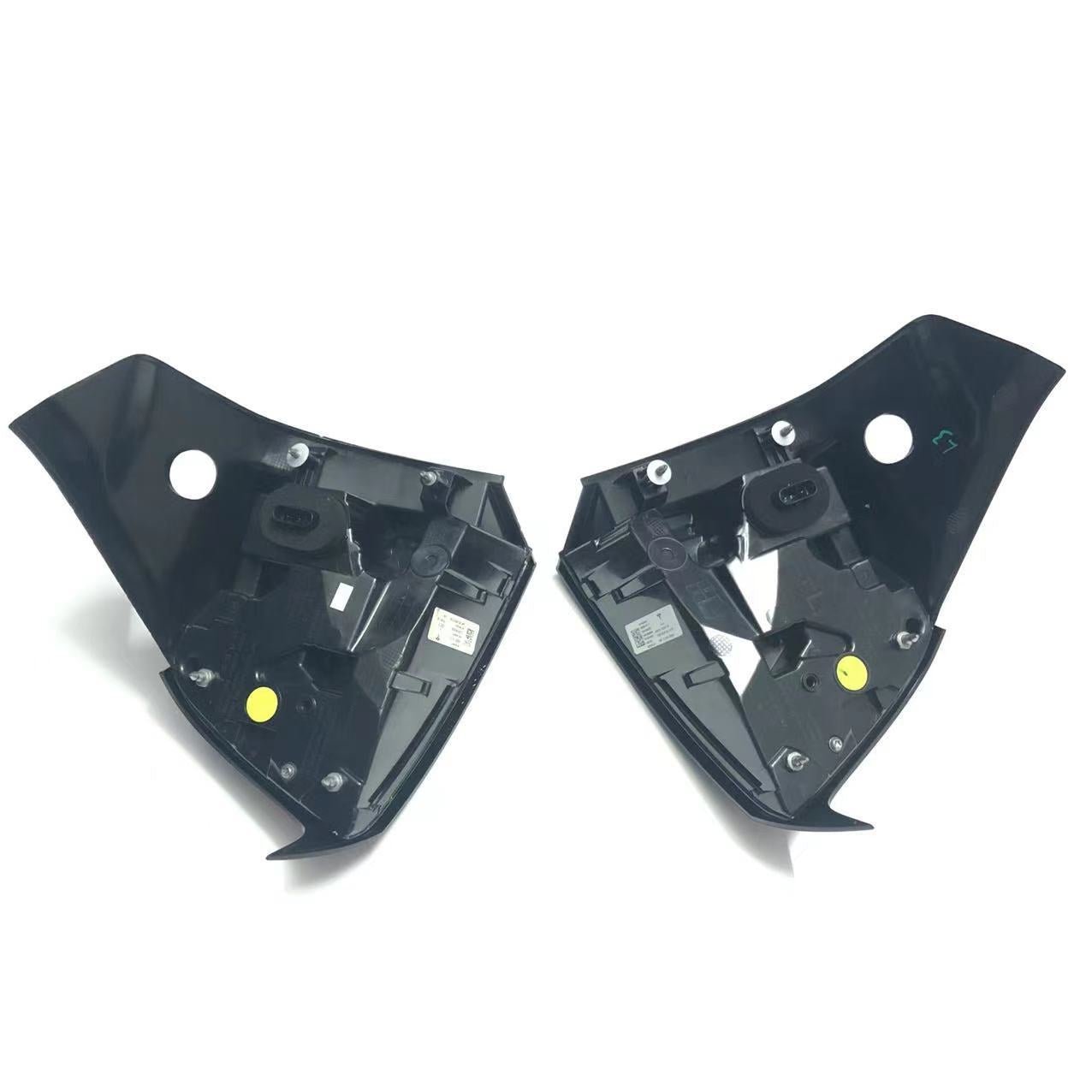

Connector Selection
The option labels group 3-pin as Fremont/Texas and 4-pin as Shanghai/Berlin. Use the actual original lamp connector, complete housing reference and vehicle specification to select the replacement; these labels do not prove every model-year or factory application.
Combined Lamp Selection
The combined option includes outer and inner lamps for Left, Right or Pair. A single lamp-type pair is different from the combined set.
Compatibilidad
| Modelo | Years / Version | Notas |
|---|---|---|
| Model 3 | 2017–2020 | Outer and inner lamps; 3-pin and 4-pin versions. |
Does not fit Model Y, Highland or later Model 3.
Especificaciones
| Tipo de producto | Outer turn / brake lamp and inner tail lamp replacement options |
|---|---|
| Compatible Models | Model 3 2017–2020 application; original housing, connector and market functions must match |
| Position / Location | Rear outer lamp or inner trunk-lid lamp; left or right |
| Color | 3-pin option: red outer turn signal, white inner reverse light; 4-pin option: amber outer turn signal, red inner fog light |
| Cantidad | Single lamp type: one selected side or a pair; combined type: outer and inner lamps for the selected side(s) |
| Connector Type | 3-pin or 4-pin option; actual connector and wiring configuration must match |
| Peso del envío | 1 kg listed for each variant; not a lamp net weight |
Instalación
- Use the vehicle-specific lighting service procedure and matched component instructions. Do not force a connector or improvise pin conversion.
Conviene saber
Precaución
- The 3-pin inner reverse-light option and 4-pin inner fog-light option are functionally different. Do not replace a required reverse or fog function with the other version.
- Choose an actual Left, Right or Pair selection. Please Select is a prompt, not a defined lamp side.
- Photographs do not establish DOT, ECE or other approval.
Preguntas frecuentes
What is the difference between the connector versions?
The 3-pin and 4-pin options have different turn-signal and inner-lamp functions.
Is the inner lamp the same on both options?
No. The 3-pin inner option is named as a white reverse light, while the 4-pin inner option is named as a red fog light. Select the function required for the actual vehicle.
What is the difference between Pair and the combined type?
Pair selects both sides of the chosen lamp type. The combined outer-and-inner type supplies both lamp types for the selected side(s).
Does it fit Model Y or a later Model 3?
No. It fits Model 3 2017–2020 only.
