4-PIN Tail Light Replacements for Model 3 and Model Y
Choose a replacement outer turn/brake lamp, inner trunk or liftgate lamp, or the combination for an original-generation Model 3 or Model Y with a 4-pin connector.
- 4-Pin Version
- Outer or Inner Lamp
- Left / Right / Pair
- Reference Numbers
Características principales
-
Outer or inner lamp
Select the turn/brake lamp on the body, the inner lamp on the trunk/liftgate, or both positions.
-
4-pin connection
4-pin connector interface.
-
Side selection
Left and right are vehicle sides; pair supplies both sides of the chosen lamp type.
-
Reference numbers
Outer left/right references are 1502086-00-D and 1502087-00-D; inner left/right references are 1502088-00-B and 1502089-00-B.
-
Vehicle configuration
Offered in separate plant options.
-
Replacement assembly
Housing, mounting points and seals follow the original lamp. Listed reference numbers identify the application; these are not genuine Tesla parts.
Aspectos destacados

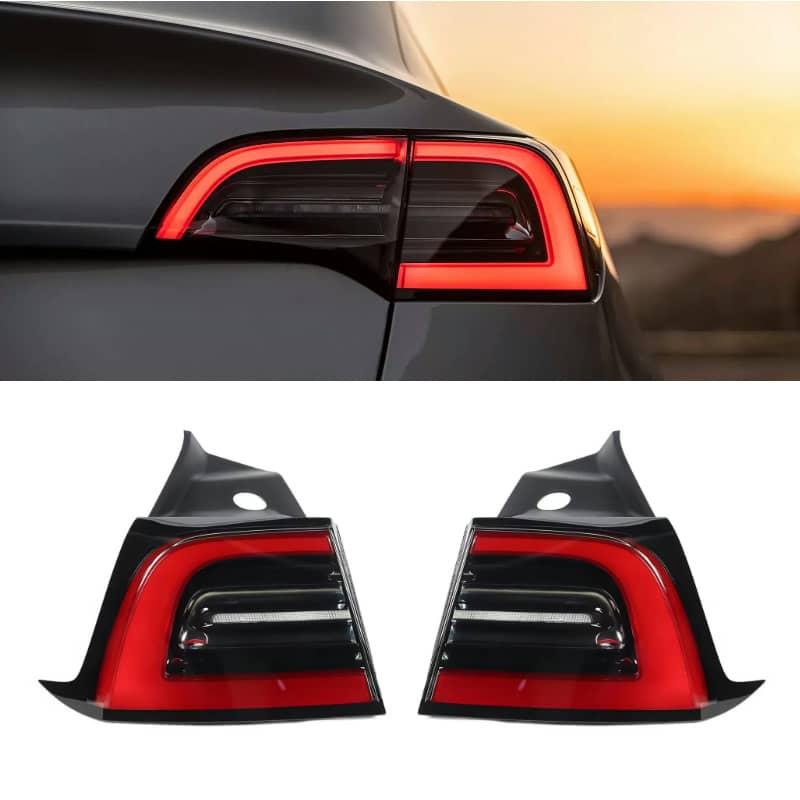

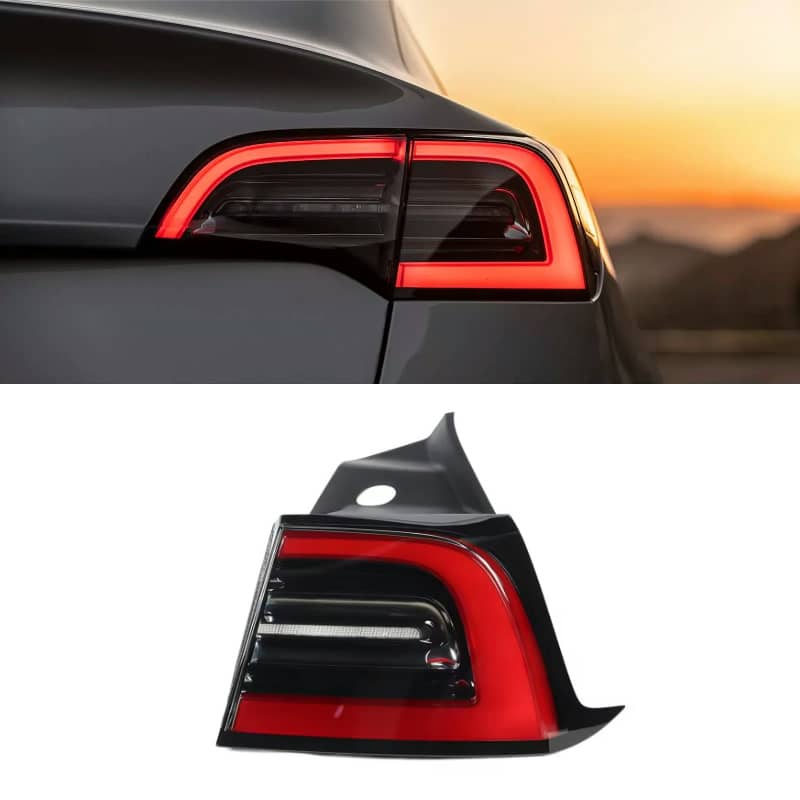

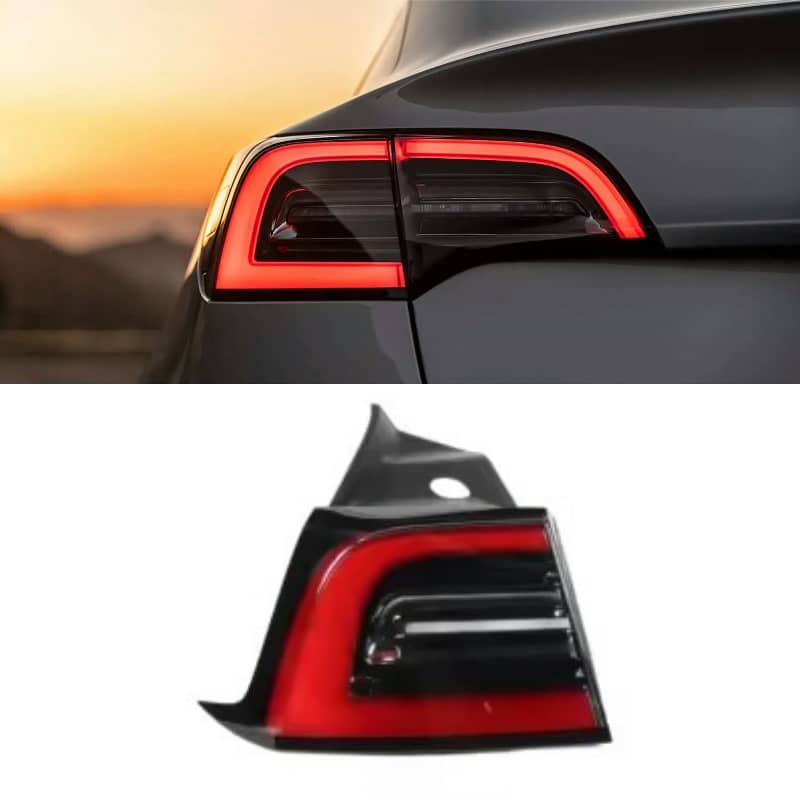

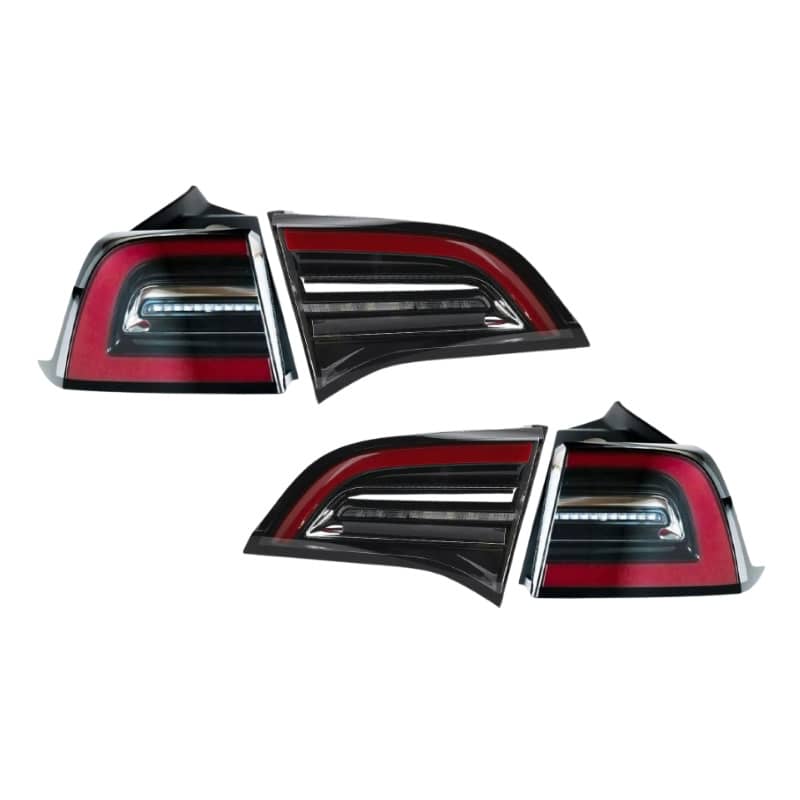

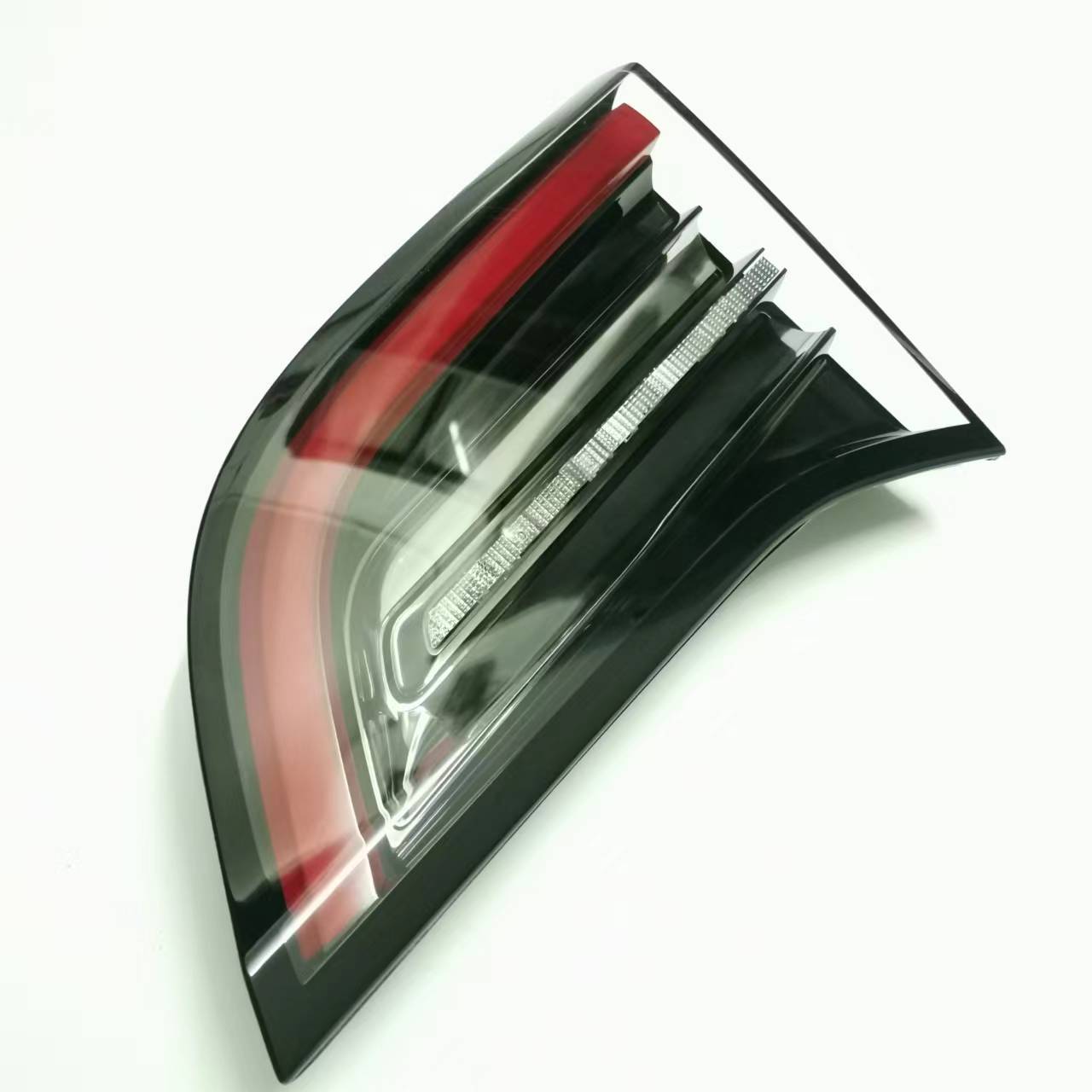

Outer Body Lamps
The pair view shows the outer lamps. Select the required vehicle side or pair; the photograph does not establish every market’s signal color or lamp function.

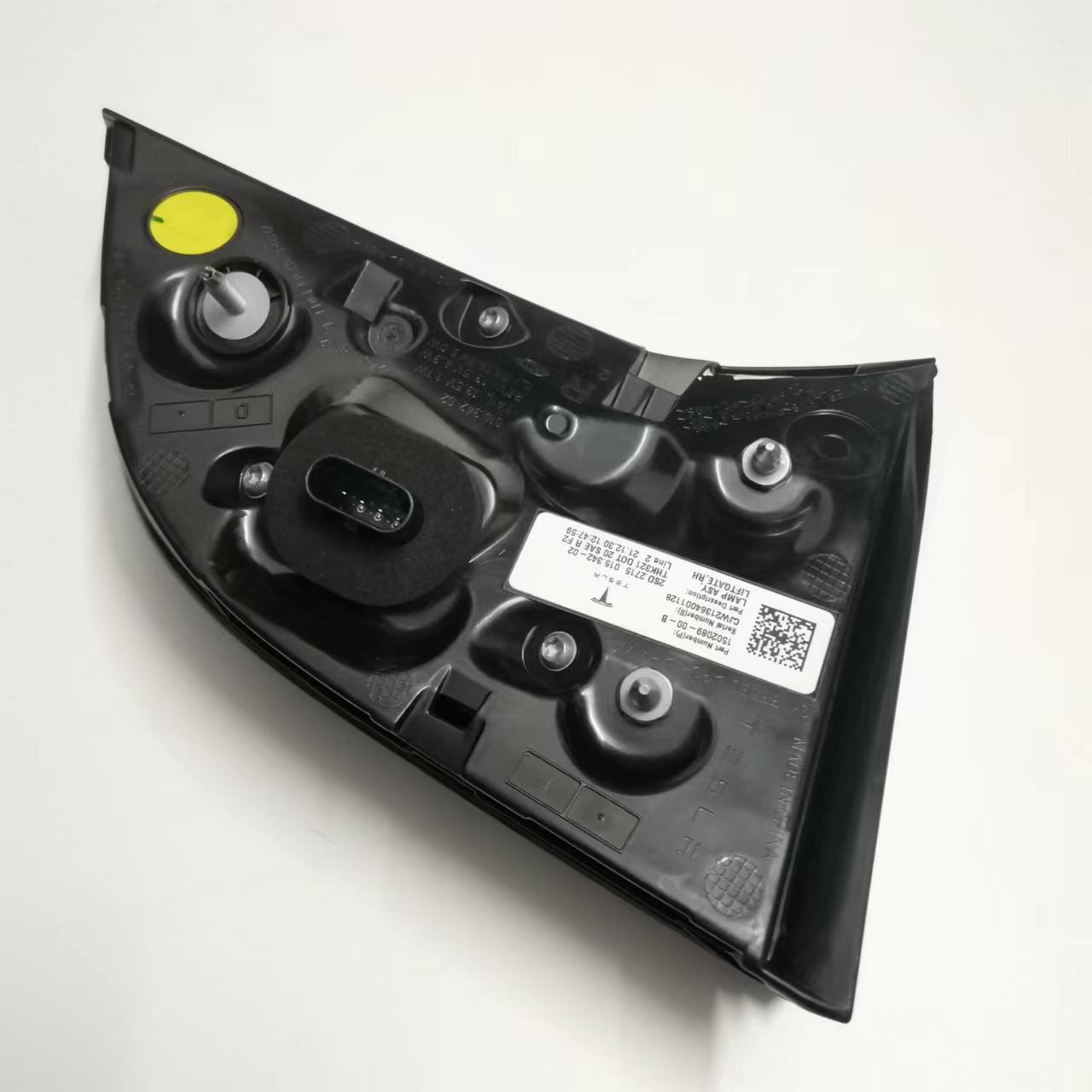

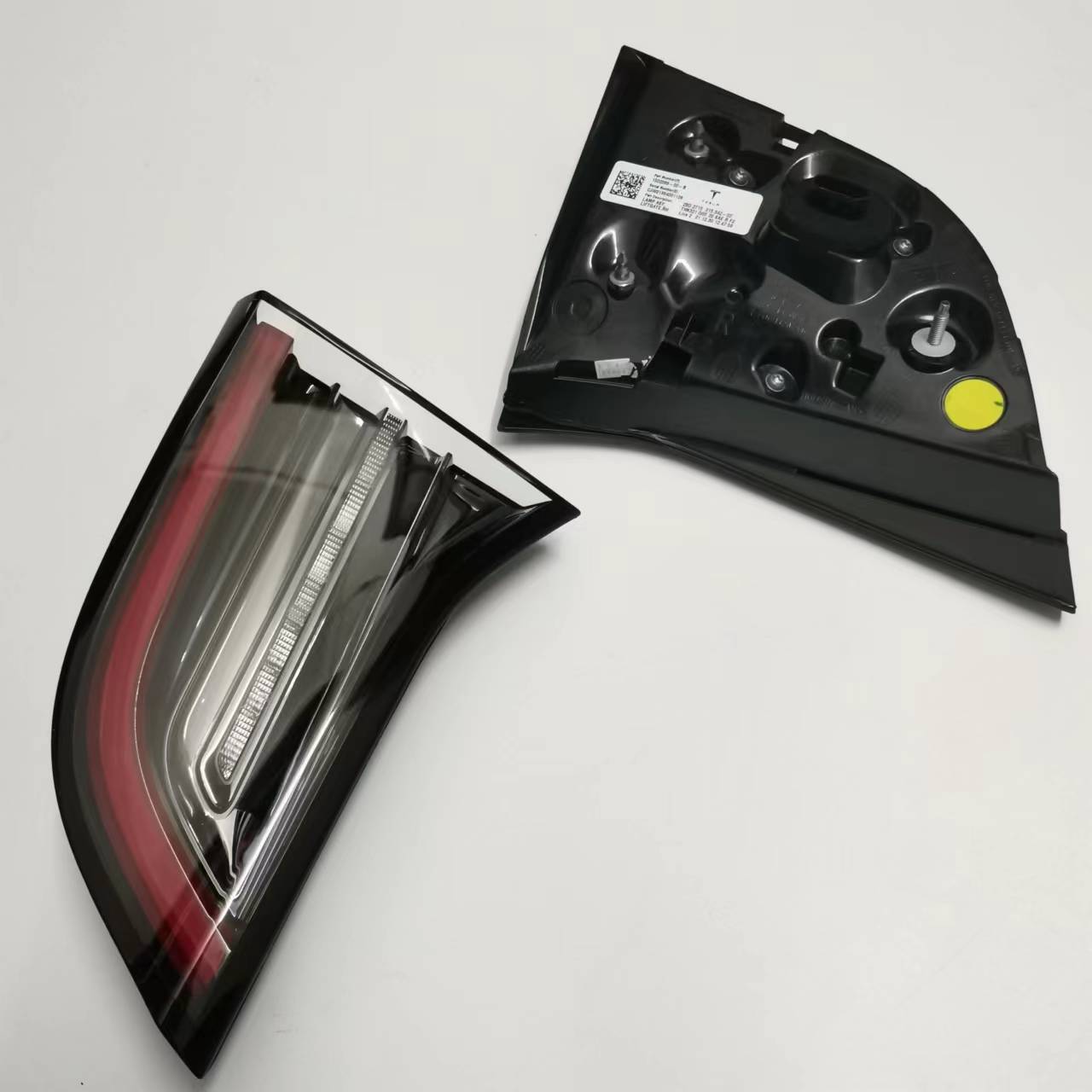

Inner Lamp Mounting Face
The rear view shows an inner lamp’s connector and mounting points.

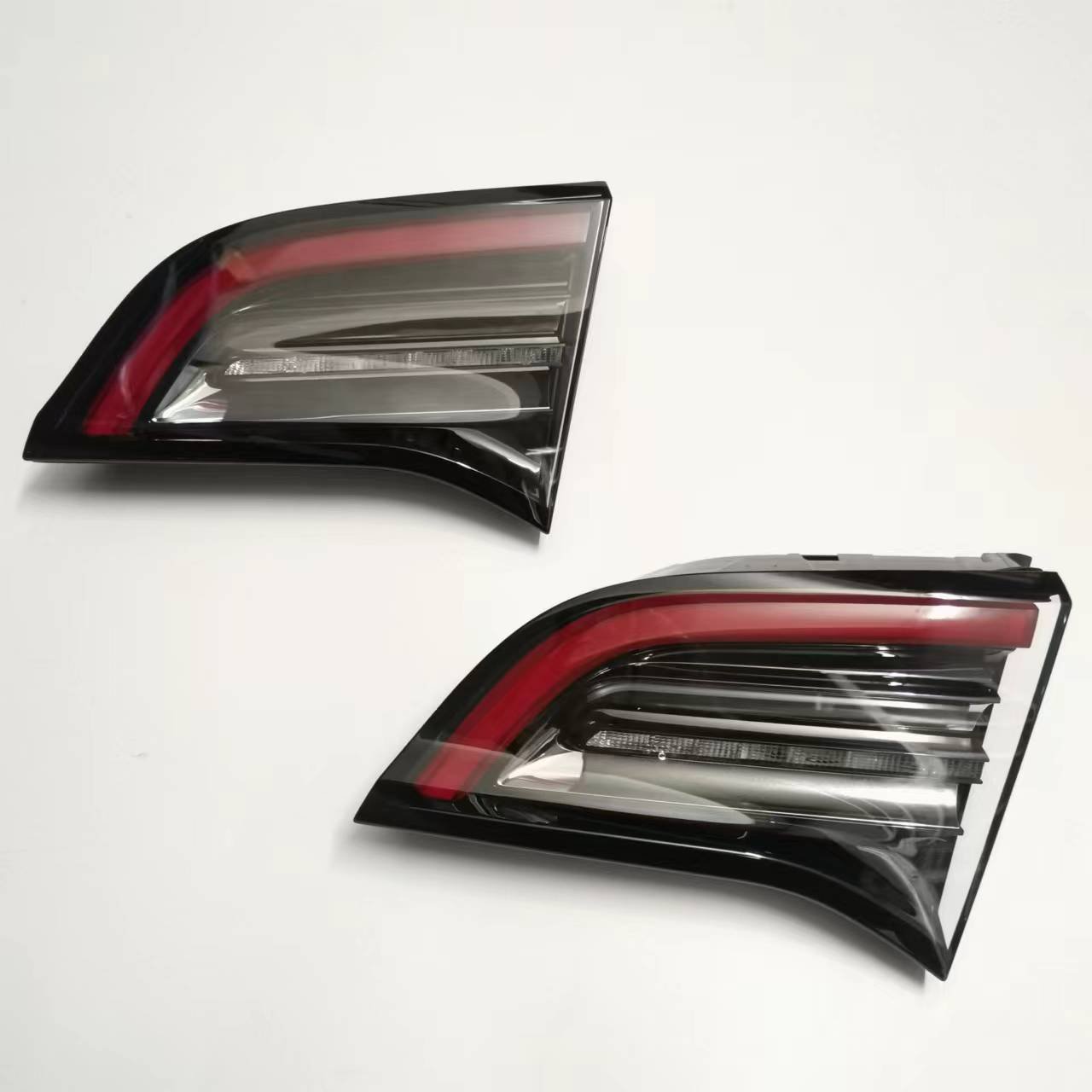

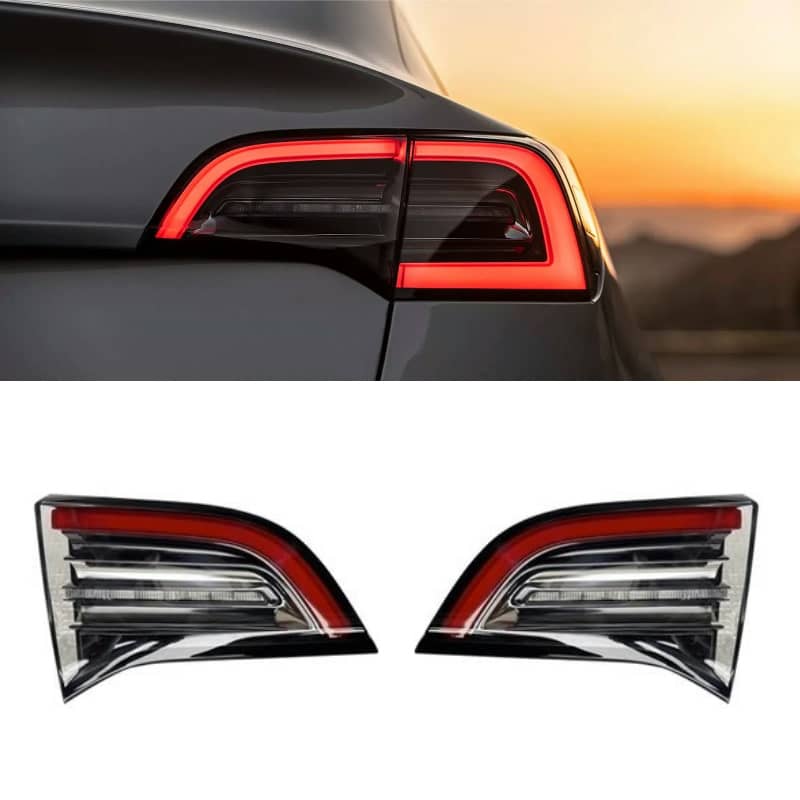

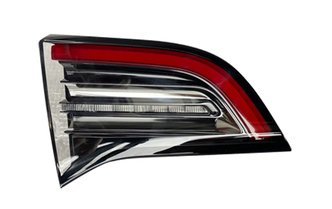

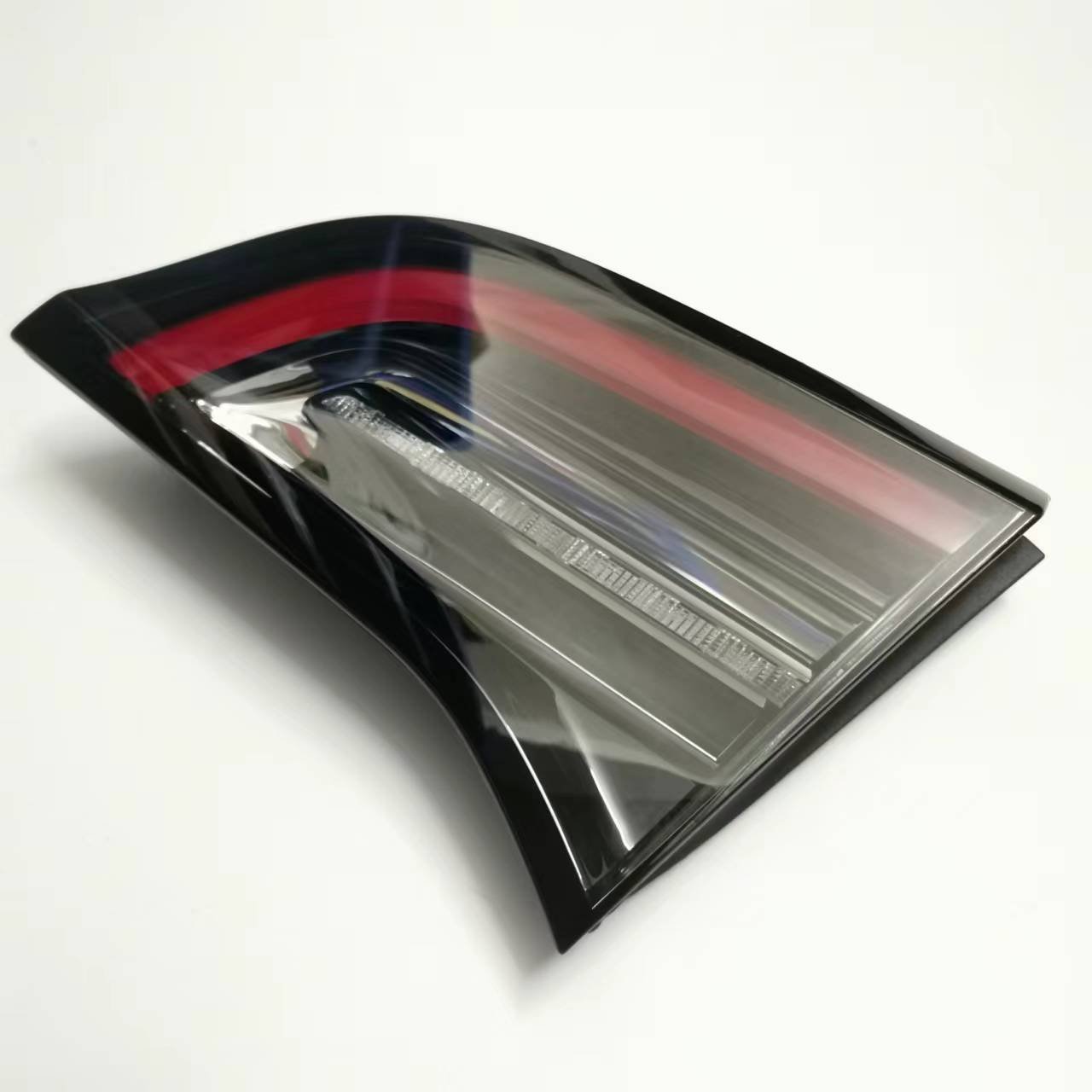

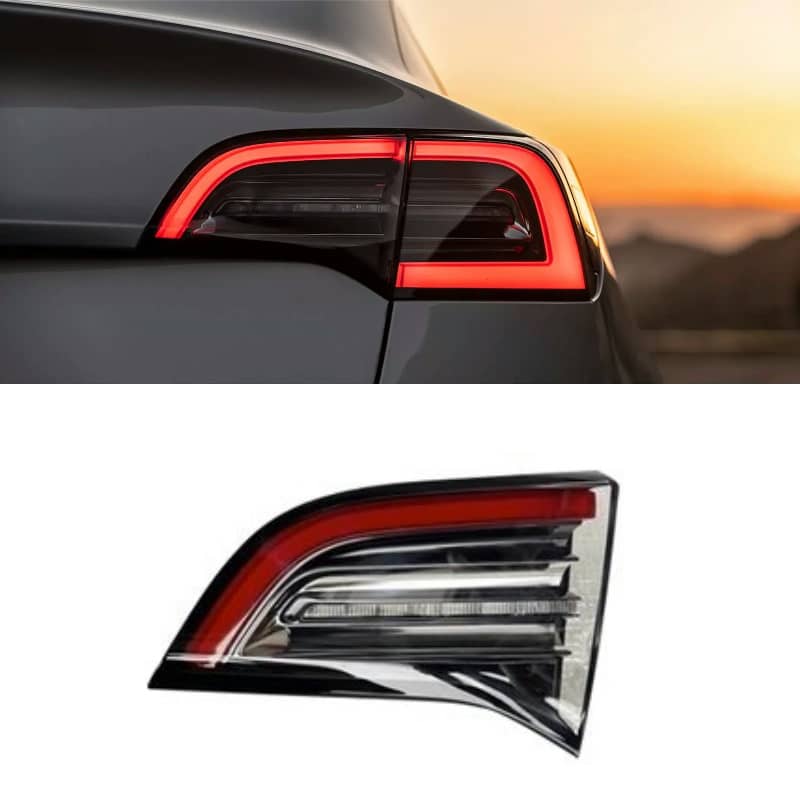

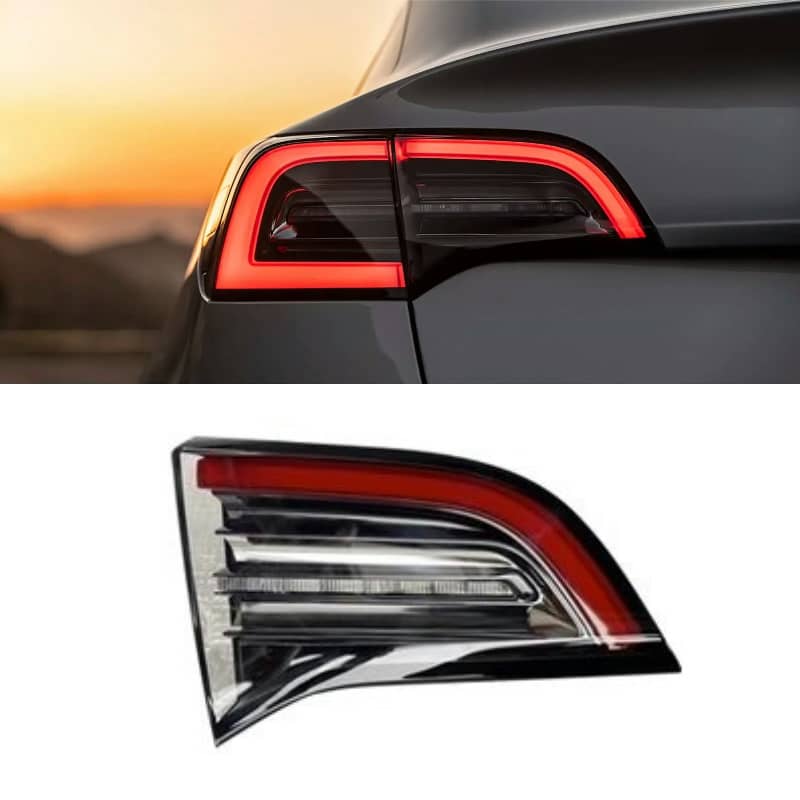

Inner Lamp Pair
Inner lamps sit on the trunk or liftgate and form a separate selection from the outer body lamps. A pair is both sides of the chosen type.
Original Configuration
Covers brake, turn, tail, reverse and rear-fog functions where fitted on the original lamp.
Compatibilidad
| Modelo | Years / Version | Notas |
|---|---|---|
| Model 3 | 2021–2023 | Match reference, 4-pin interface and market functions |
| Model Y | 2020–2024 | Match reference, 4-pin interface and market functions |
Fits original-generation Model 3 2021–2023 and Model Y 2020–2024 with 4-pin lamps. Does not fit Highland or Juniper.
Especificaciones
| Tipo de producto | Turn brake lamp and inner tail light replacement, 4-PIN |
|---|---|
| Compatible Models | Model 3 (2021–2023), Model Y (2020–2024) |
| Position / Location | Rear tail light, left, right or pair |
| Cantidad | One side or both sides of selected lamp type; combined selection includes outer and inner lamps |
| Connector Type | 4-pin |
| Peso del envío | 1 kg (2.2 lb) |
| Reference Part Numbers | Outer L/R: 1502086-00-D / 1502087-00-D; inner L/R: 1502088-00-B / 1502089-00-B (replacement references) |
What's in the Box

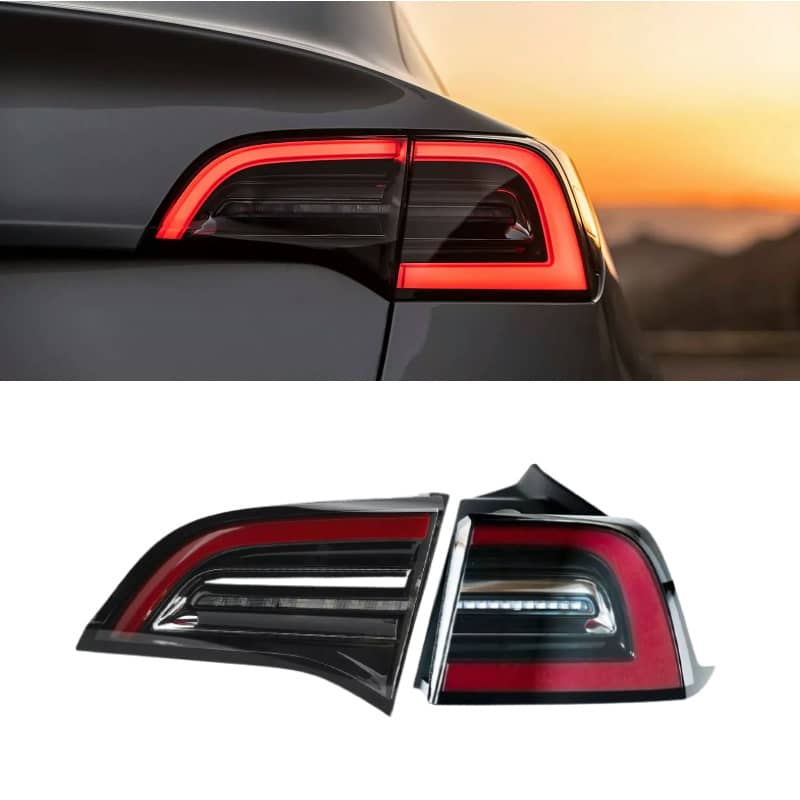

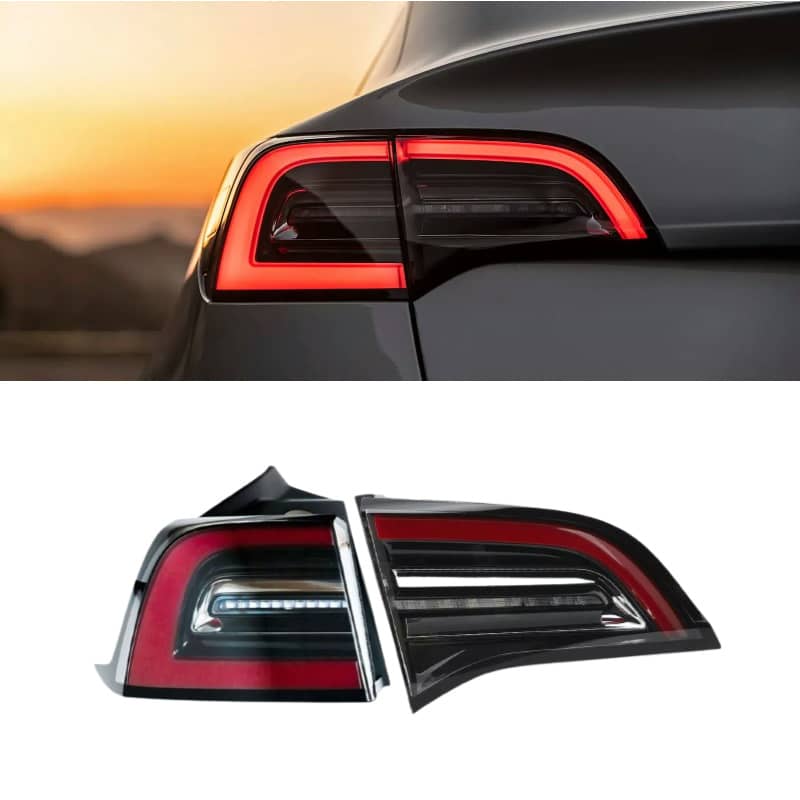

- Selected outer turn/brake lamp, inner lamp, or outer-and-inner combination, in the chosen left/right/pair configuration
Instalación
- Match lamp type, side, original reference, connector and market functions before removing the original assembly.
- Access the body or trunk/liftgate lamp; release trim and connector locks without pulling the wiring.
- Secure the assembly at the mounting points without trapping wiring or forcing connectors.
- Refit fasteners, seals and trim using the vehicle procedure.
- Test the original lighting functions, including reverse and rear fog where fitted.
Conviene saber
Precaución
- Choose a real manufacturing-plant option; “Please Select” is a placeholder.
- These are replacement lamp assemblies; reference numbers and example photos do not certify genuine-Tesla manufacture or road approval.
Cuidado
- Clean the lens gently with a soft cloth and avoid solvents that can damage its surface.
Preguntas frecuentes
Does it fit 3-pin vehicles?
No. This version is 4-pin only.
What comes with the pair option?
A pair covers the left and right sides of the chosen type. The combined type includes inner and outer lamps; it differs from an outer-only or inner-only pair.
Are these original Tesla parts?
No. The listed references identify the replacement application.
