A Type 2 to Type 2 Charging Cable

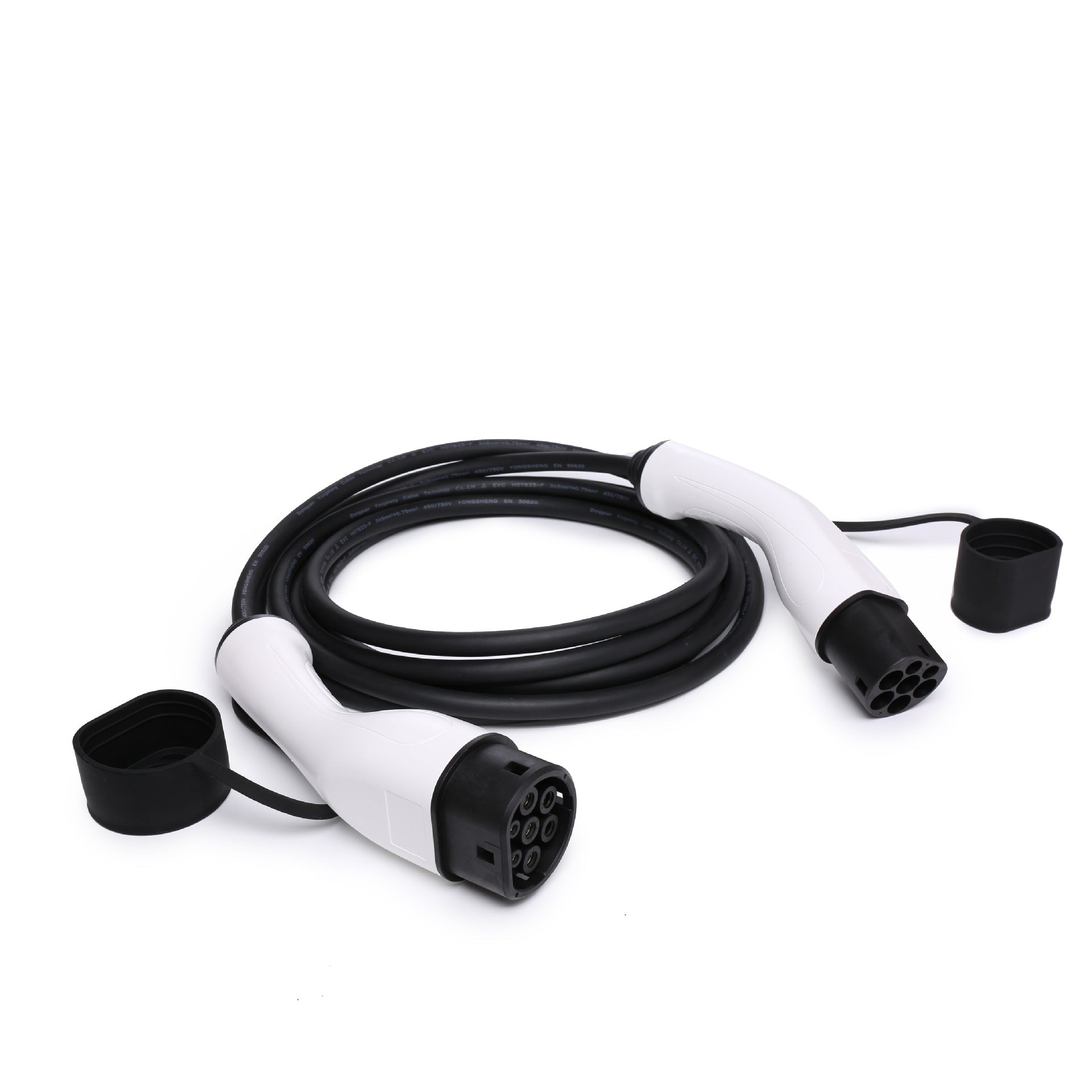

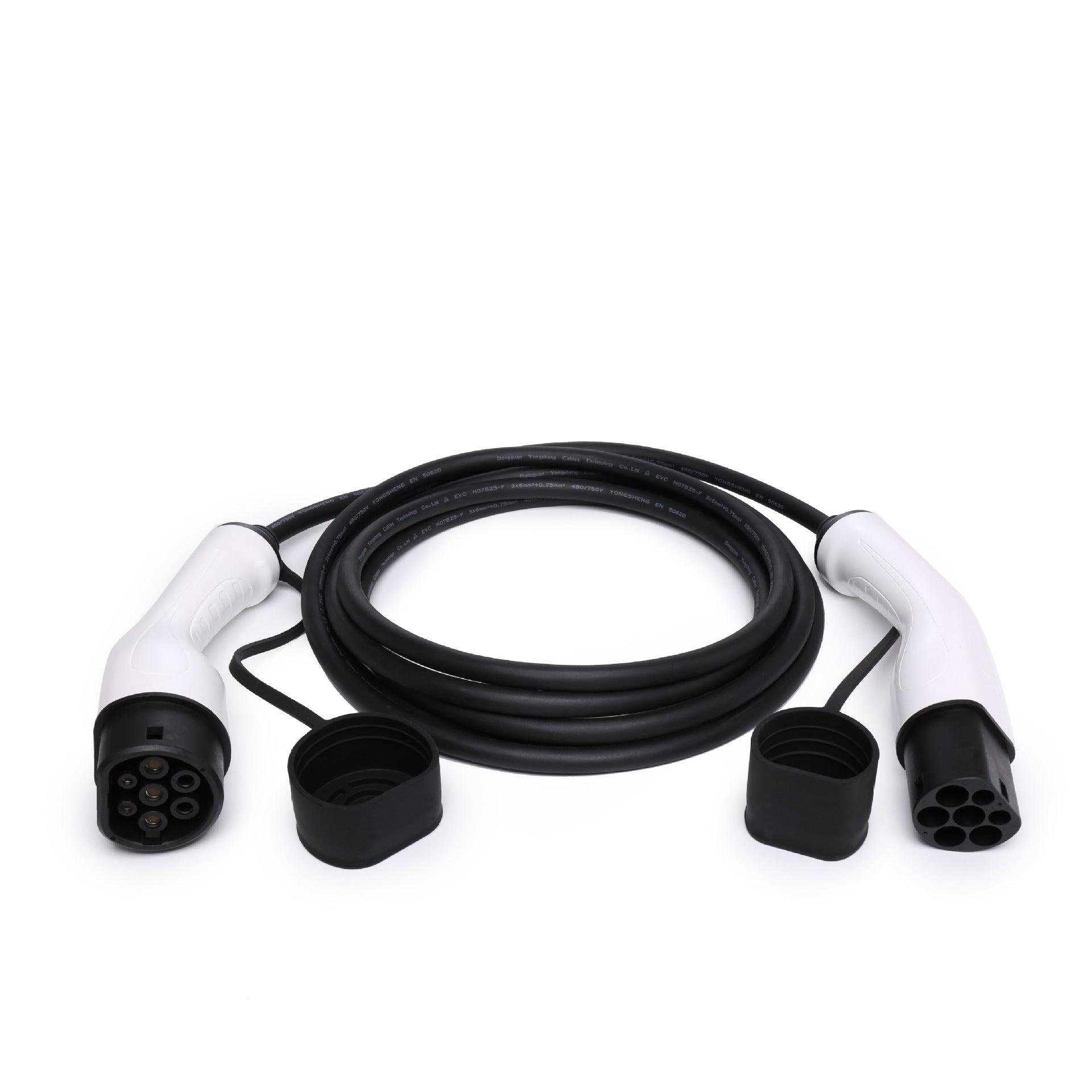

A 5 m (16.4 ft) Type 2 to Type 2 AC charging cable described with copper conductors, a TPE jacket and easy-grip connector handles. The listed configuration is 32 A and up to 22 kW on a supported three-phase supply. The connector outline alone does not prove three-phase wiring. Actual power is limited by the cable, station and vehicle onboard charger.
- Type 2 to Type 2
- 5 m Cable
- Listed 32 A
- Listed 32 A / 22 kW
Key Features
-

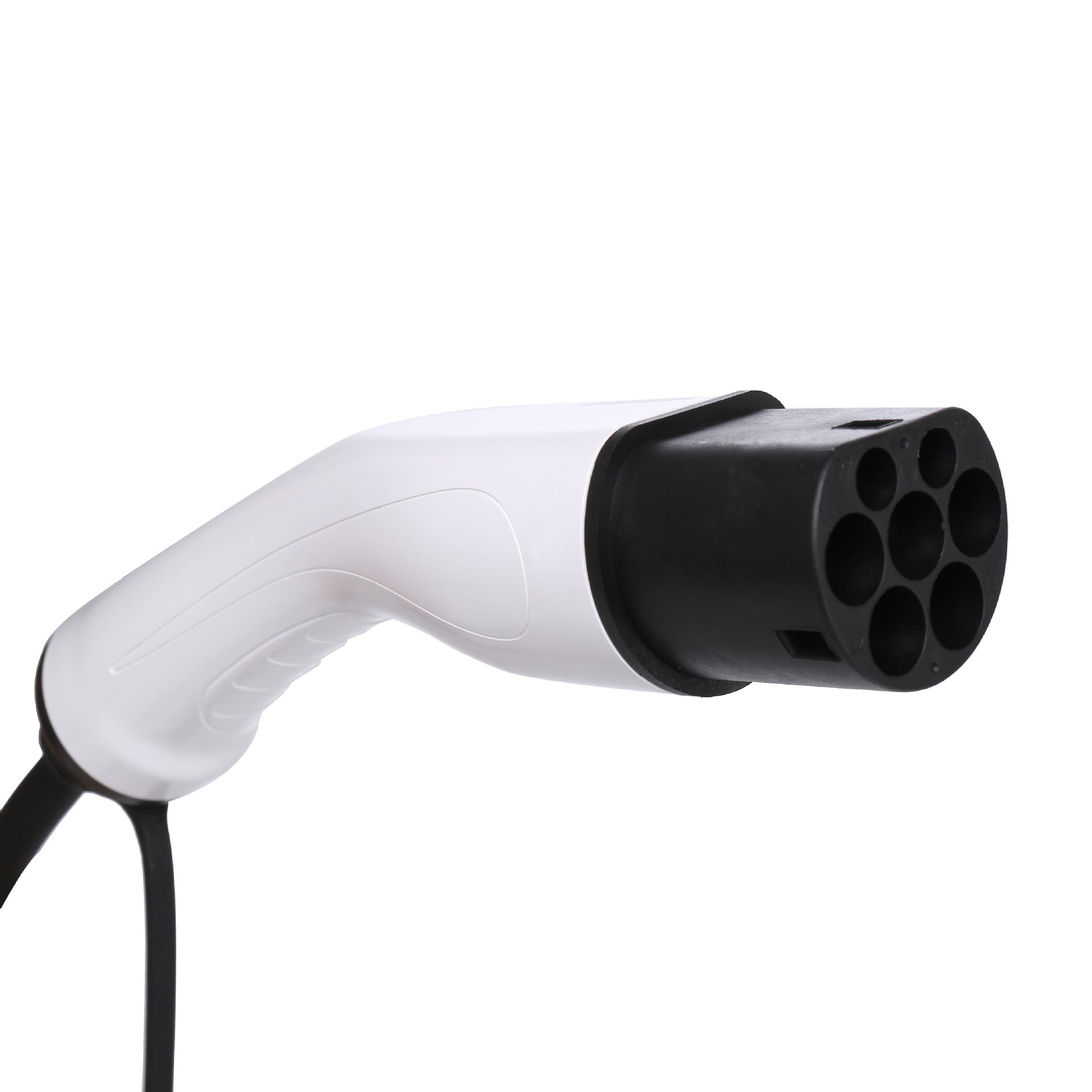

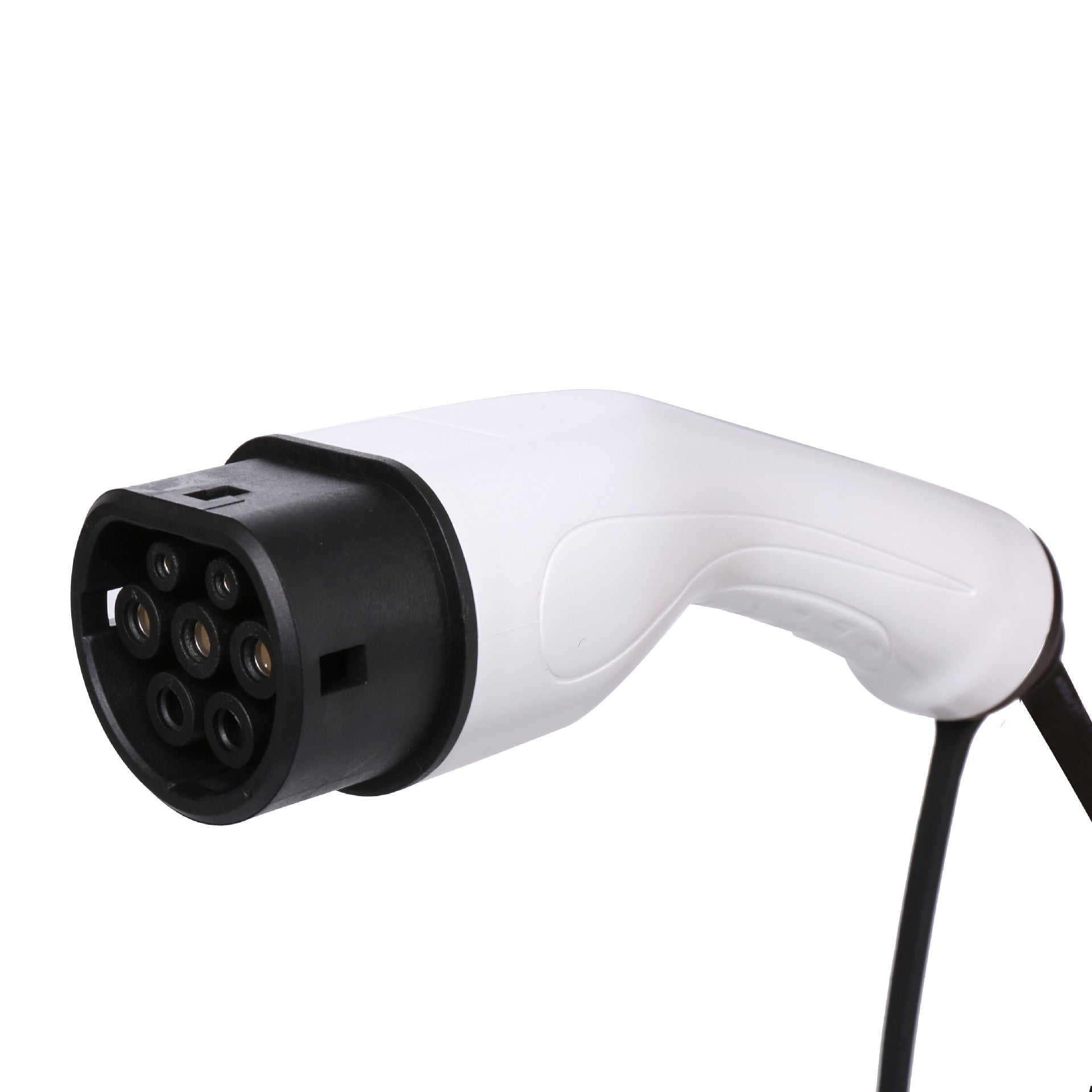

Type 2 Interfaces
Connects a compatible AC station socket and Type 2 vehicle inlet
-
Five-Meter Length
Listed cable length is 5 m or 16.4 ft
-
Copper and TPE
Copper conductors and TPE cable jacket are described
-
Listed Ratings
32 A and up to 22 kW for the described supported three-phase configuration
-
Actual AC Rate
Vehicle onboard charger and station limits govern the session
-
Phase Configuration
Listed for three-phase use up to 22 kW
Highlights
Type 2 AC Cable
For matching Type 2 AC vehicle inlets and station sockets.
Five-Meter Reach
Listed length: 5 m.
Phase Support
The cable label states the rated current and phase configuration.
Compatibility
| Model | Years / Version | Notes |
|---|---|---|
| Vehicles with a Type 2 inlet | Includes Tesla Model 3, Y, S and X with a Type 2 inlet; NACS and J1772 inlets are not covered |
For Type 2 AC station sockets and vehicle inlets. NACS and J1772 inlets are not covered. Physical connector shape does not establish 22 kW support.
Specifications
| Product Type | Type 2 to Type 2 (Mennekes) EV charging cable |
|---|---|
| Compatible Models | Type 2 vehicle inlets, including compatible Tesla Model 3, Y, S and X |
| Material | TPE cable jacket and copper conductors (described) |
| Current | 32 A maximum (listed) |
| Power | Up to 22 kW for the listed supported three-phase configuration; actual cable/vehicle/station limits apply |
| Charging Standard | Type 2 (Mennekes), Mode 3 |
| Connector Type | Type 2 to Type 2 |
| Cable Length | 5 m (16.4 ft) |
| Warranty | 2-year replacement coverage described |
| Shipping Weight | 2 kg (4.4 lb) |
Installation
- Connect and lock the Type 2 ends at the vehicle and the station.
- Stop charging and wait for the unlock before disconnecting and storing.
Good to Know
Caution
- A Type 2 shell or listed 22 kW figure does not prove three-phase wiring.
- Actual charging power is limited by the vehicle onboard charger, station supply and cable rating. Do not bypass locks or disconnect under load.
- No TÜV, IP54, 10,000-cycle or extreme-weather performance is promised here.
Care
- Store the cable in a dry place and coil it loosely.
- Wipe the connectors clean and dry after use in wet conditions.
- Avoid driving over the cable and keep it away from extreme heat.
FAQ
Will the cable make every Tesla charge at 22 kW?
No. Actual AC charging is limited by the vehicle onboard charger, station and supplied cable configuration.

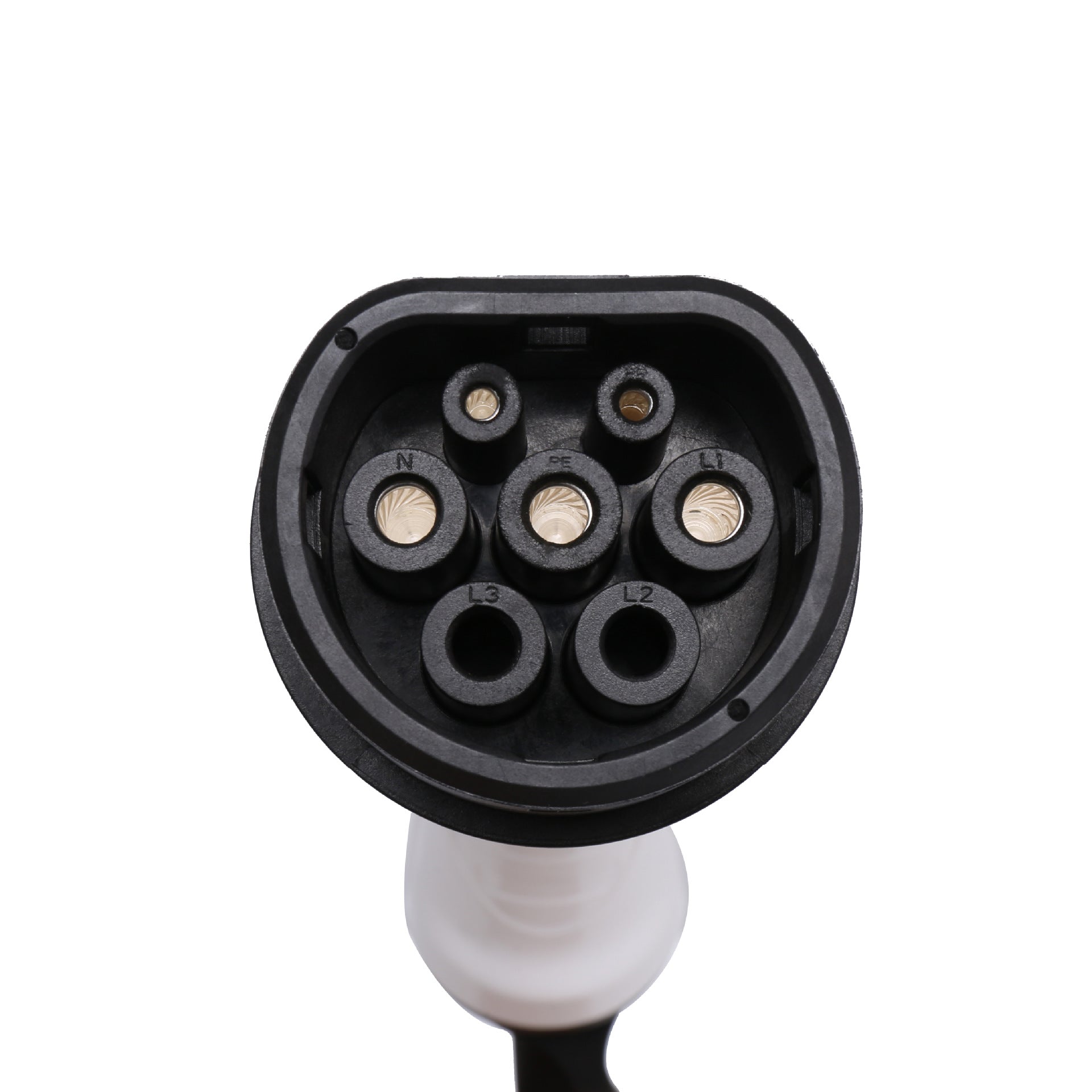

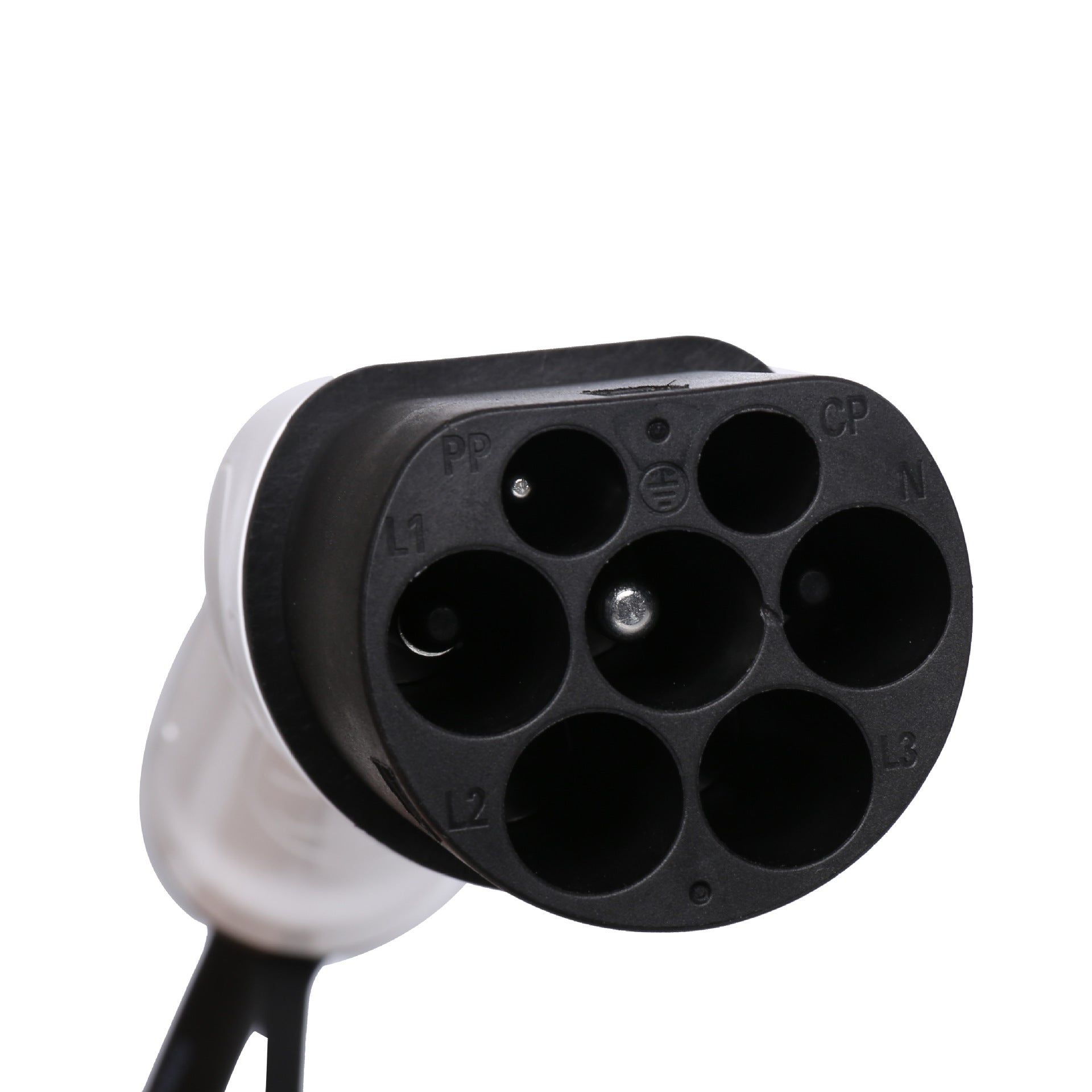

Does a Type 2 connector prove three-phase wiring?
No. Phase wiring is shown on the cable label, not by the connector shape.
What length is listed?
5 m, approximately 16.4 ft.
Is a storage bag included?
A storage bag is not listed as part of the package.
What warranty coverage is described?
Two-year replacement coverage is described.
