Type 2 to Tesla Charging Adapter – AC or DC Version
A compact Type 2 (Mennekes) to Tesla charging adapter with an ABS housing and silver-plated copper terminals. AC and DC versions are separate purchase options.
- Type 2 to Tesla
- AC / DC Options
- Compact Adapter
Key Features
-
Connector application
A Type 2 (Mennekes) to Tesla adapter for a specifically matched vehicle port and charging station.
-
Two purchase versions
AC is SKU TSL7806 and DC is SKU TSL7813.
-
Housing construction
The adapter has an ABS housing around its electrical connector assembly.
-
Terminal construction
Copper conductors and silver-plated terminals are described for the adapter.
-
Portable form

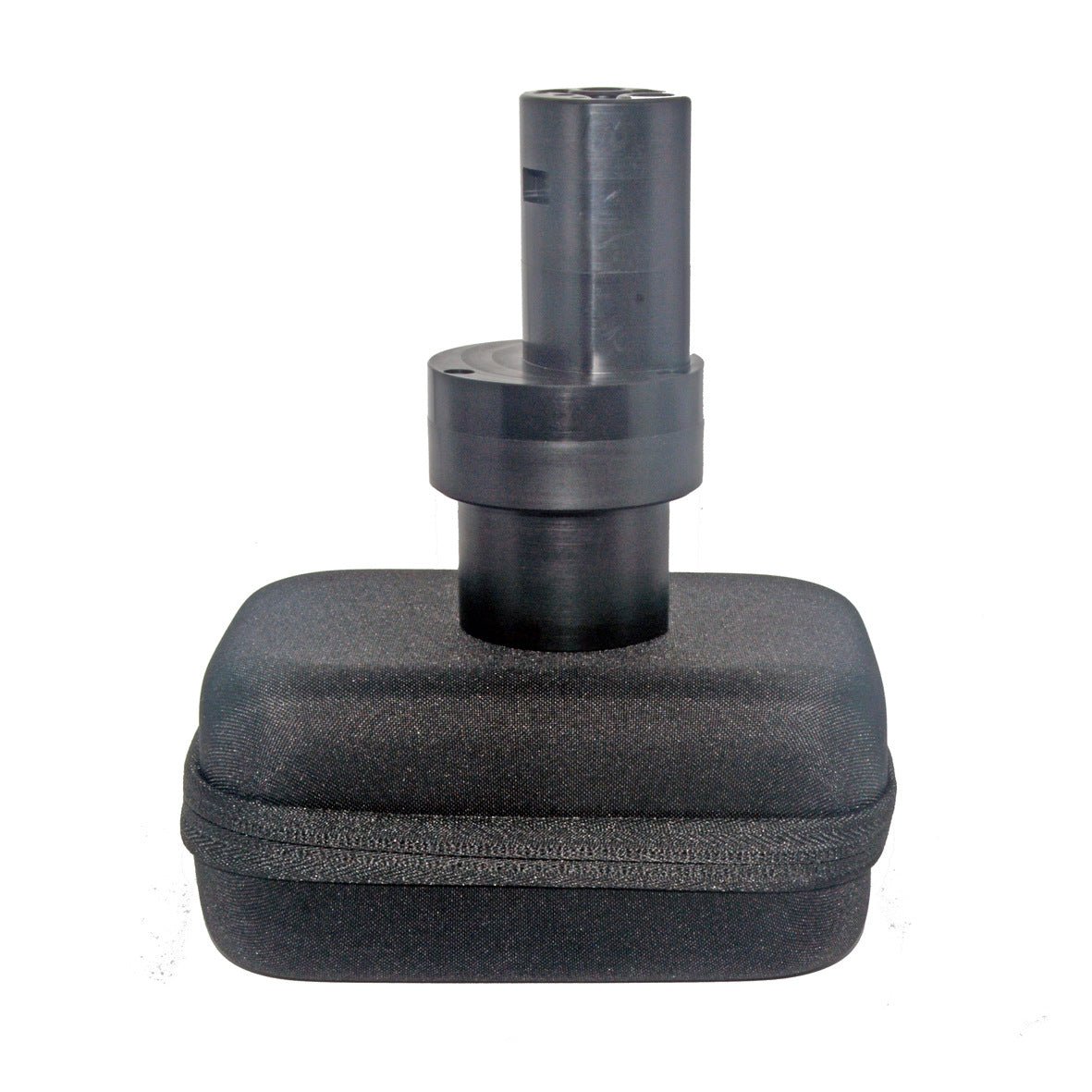

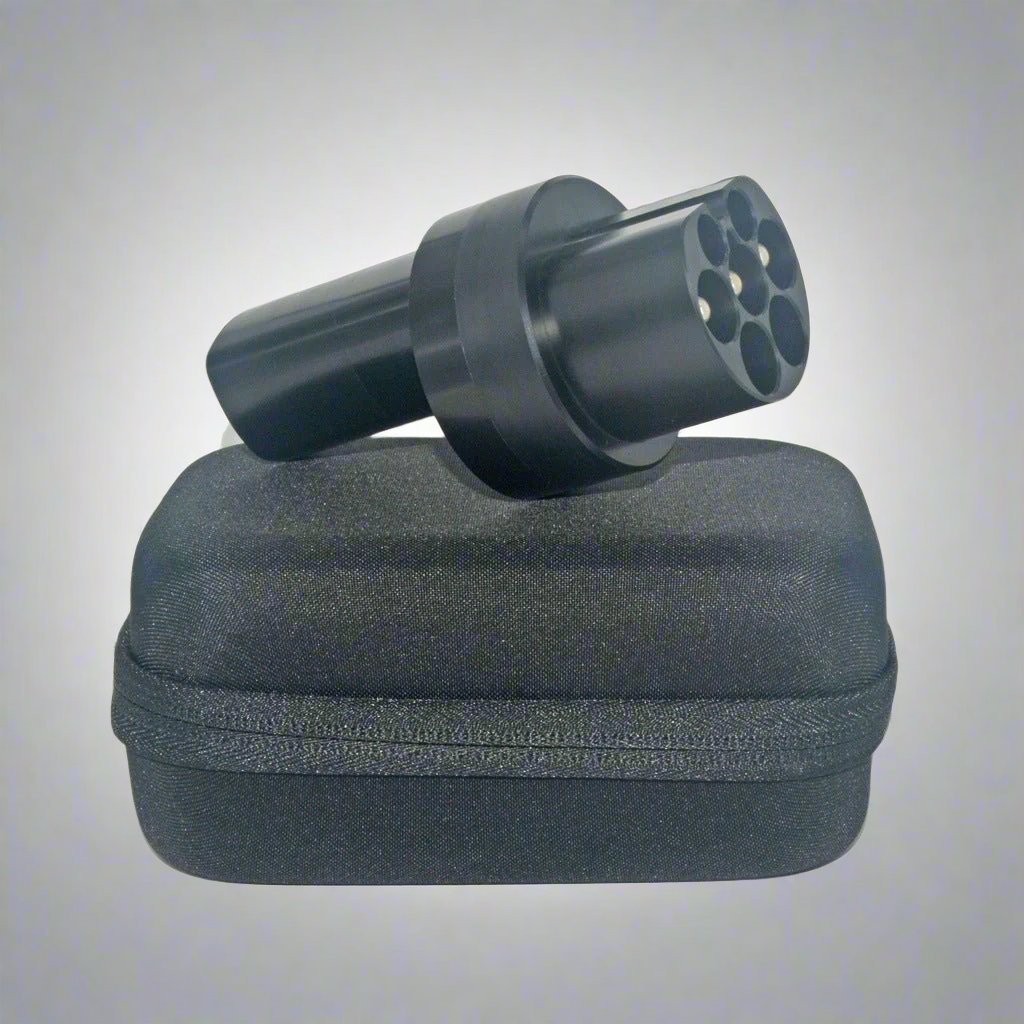

The compact body can be stored in a dry protective case or bag between uses.
Highlights
Type 2 Connector Form

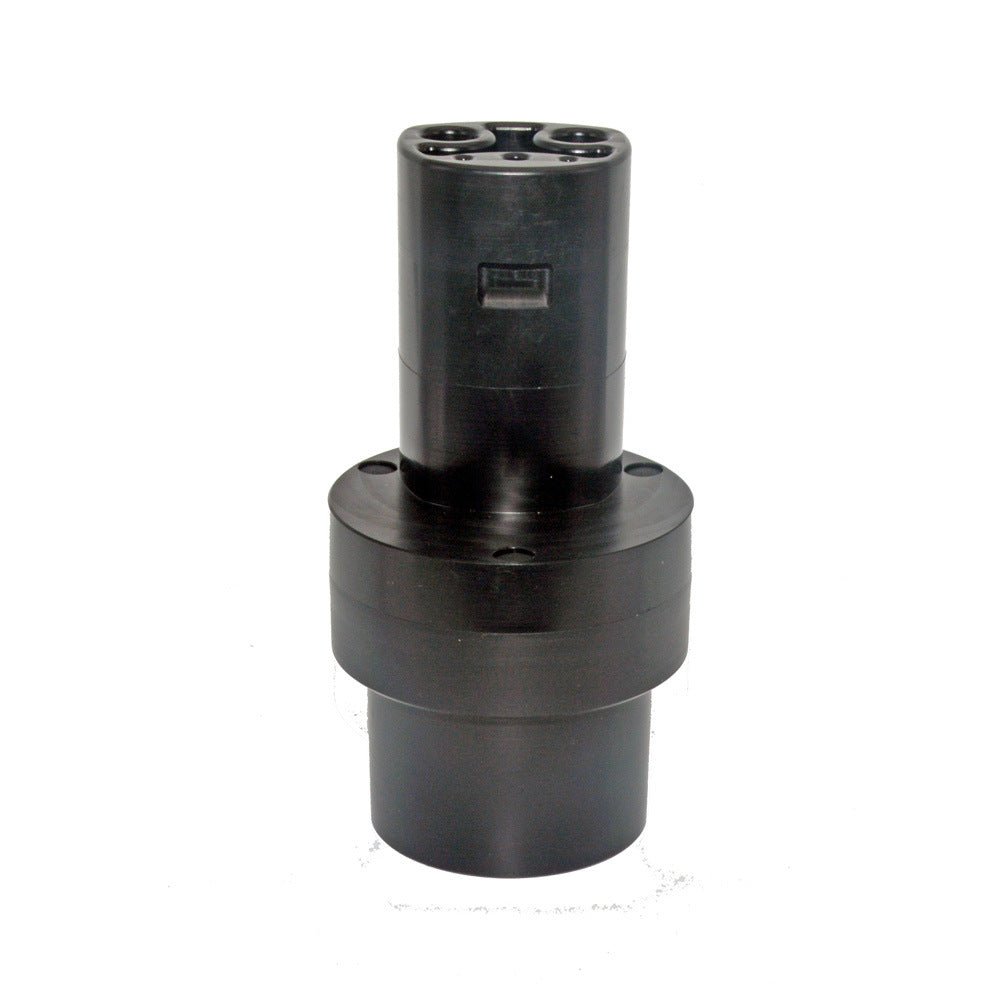

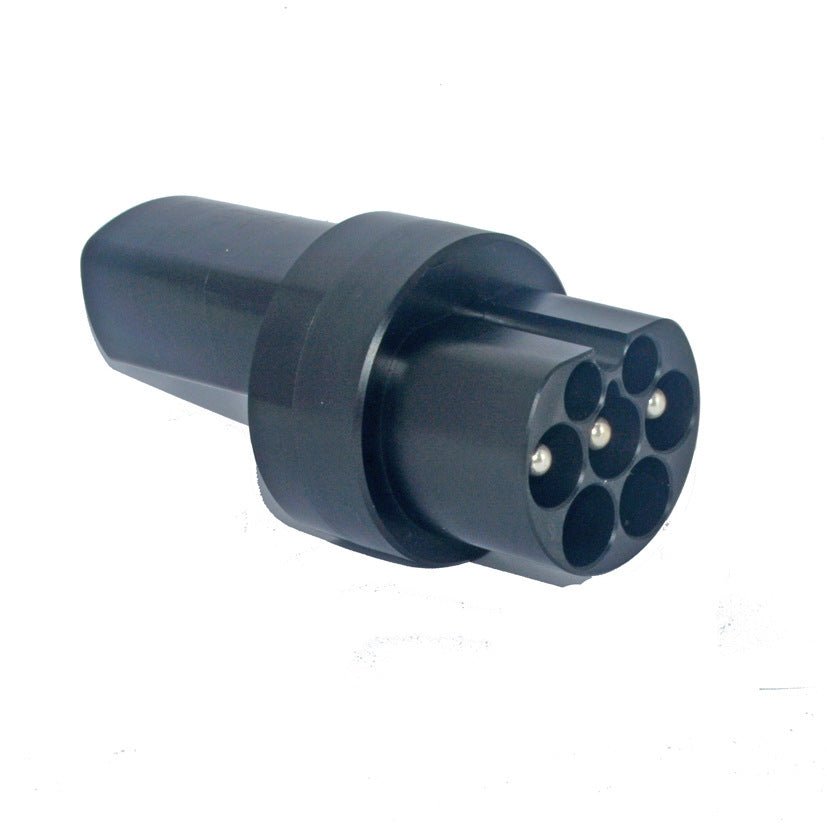

The isolated product image shows the dark adapter housing, a raised collar and a round connector face with seven contact positions. It illustrates the hardware form; the photograph does not identify the selected AC/DC electrical capability or a vehicle-market approval.
Compatibility
| Model | Years / Version | Notes |
|---|---|---|
| Model 3 | Exact vehicle build and market | AC – TSL7806; DC – TSL7813 |
| Model Y | Exact vehicle build and market | AC – TSL7806; DC – TSL7813 |
| Model S | Exact vehicle build and market | AC – TSL7806; DC – TSL7813 |
| Model X | Exact vehicle build and market | AC – TSL7806; DC – TSL7813 |
| Cybertruck | Exact vehicle build and market | AC – TSL7806; DC – TSL7813 |
Specifications
| Product Type | Type 2 to Tesla charging adapter |
|---|---|
| Compatible Models | Model 3, Y, S, X and Cybertruck |
| Material | ABS housing; copper conductors with silver-plated terminals |
| Color | Dark housing |
| Weight | 1.25 kg listed shipping weight per option; not net adapter weight |
| Connector Type | Type 2 (Mennekes) to Tesla port |
| Version Options | AC – TSL7806; DC – TSL7813 |
What’s in the Box
- Selected charging adapter version
Good to Know
Caution
- Avoid heavy rain, damaged contacts and forced connections. Do not treat visual connector fit as charging approval.
Care
- Store dry in a protective case or bag; a case or bag is not included.
- Keep debris and moisture away from electrical contacts.
FAQ
Which AC or DC option should I select?
AC is TSL7806 and DC is TSL7813. The two versions are not interchangeable.
Does it work with every Tesla?
No universal fit is established by the model list. The charging port depends on vehicle build and market, and the station and adapter must support the same electrical interface and protocol.
Can I use it in heavy rain?
Avoid heavy rain and wet electrical connections.
What charging rate will it deliver?
A general product rating or the DC option name does not establish a supported charging rate for every setup.
