Replacement Liners by Wheel-Well Position
Replace a damaged inner wheel-arch liner, one part per position. This range has front and rear choices for the original Model Y and front-left and front-right choices for the Model Y Juniper.
- Replacement Liner
- Position-Specific
- Reference-Numbered
- Juniper Front Options
Key Features
-
Position-Specific Liner
Select the front-left, front-right, rear-left or rear-right replacement for the required wheel well.
-
Part-Number Reference
Each position has a listed reference number.
-
Original Model Y Options
The original-body Model Y range has front and rear choices.
-
Juniper Front Options
The Juniper options cover front left and front right only; the rear choices are for the original body.
-

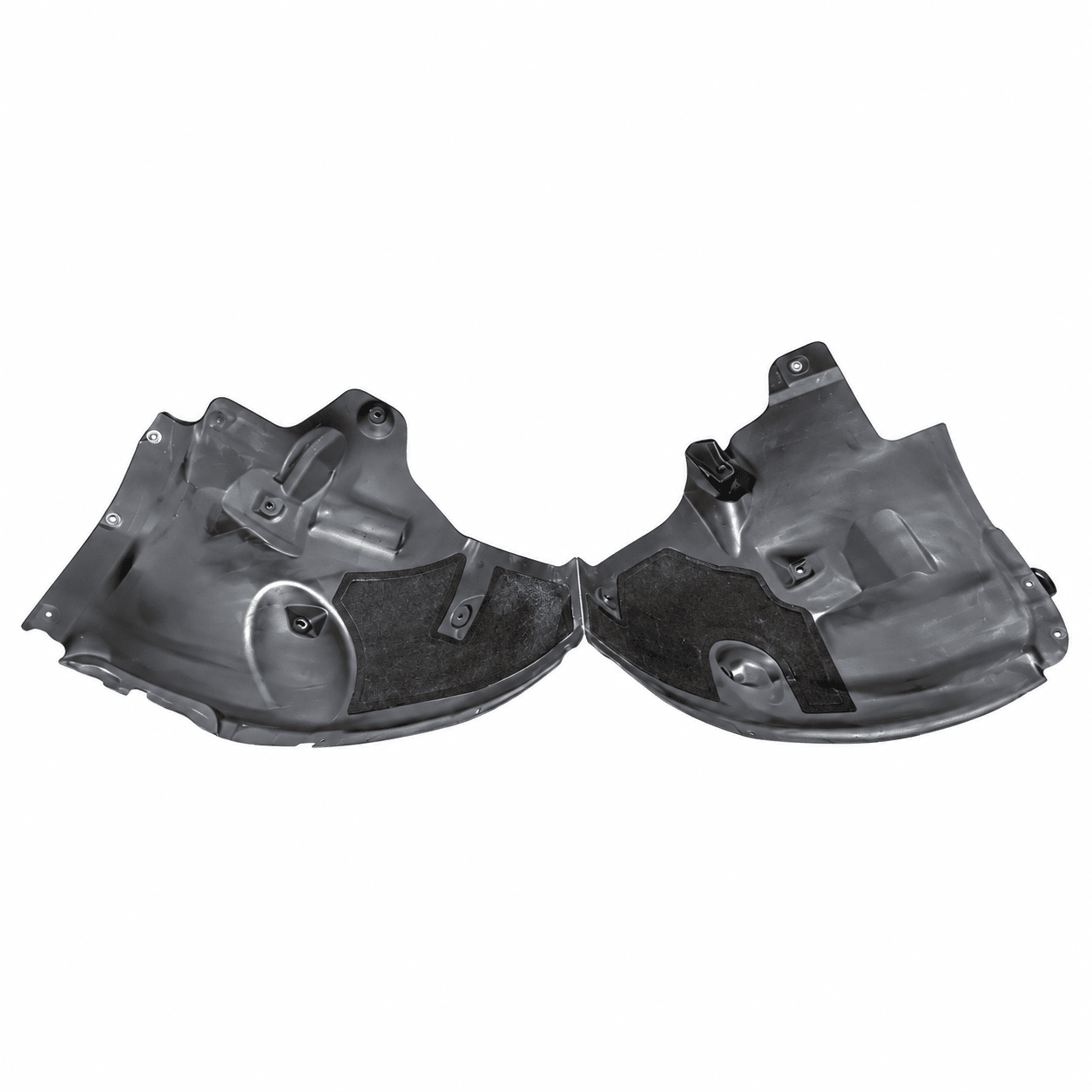

Mounting-Point Match
The replacement needs matching contours, holes and fasteners; do not drill or force a mismatched liner into place.
-

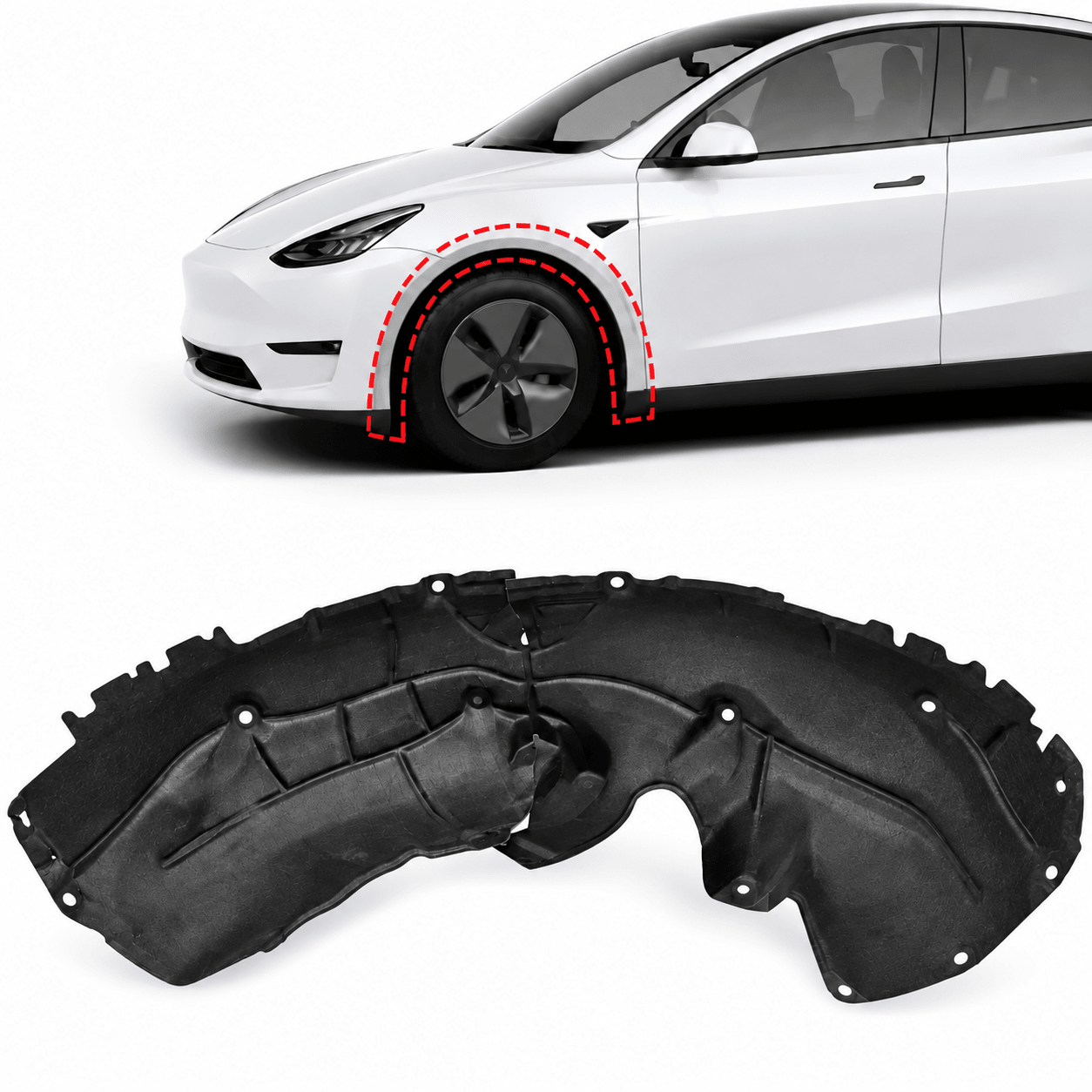

Wheel-Well Coverage
Replacing a damaged liner restores a fitted barrier in the wheel well when the correct part is securely installed.
Highlights

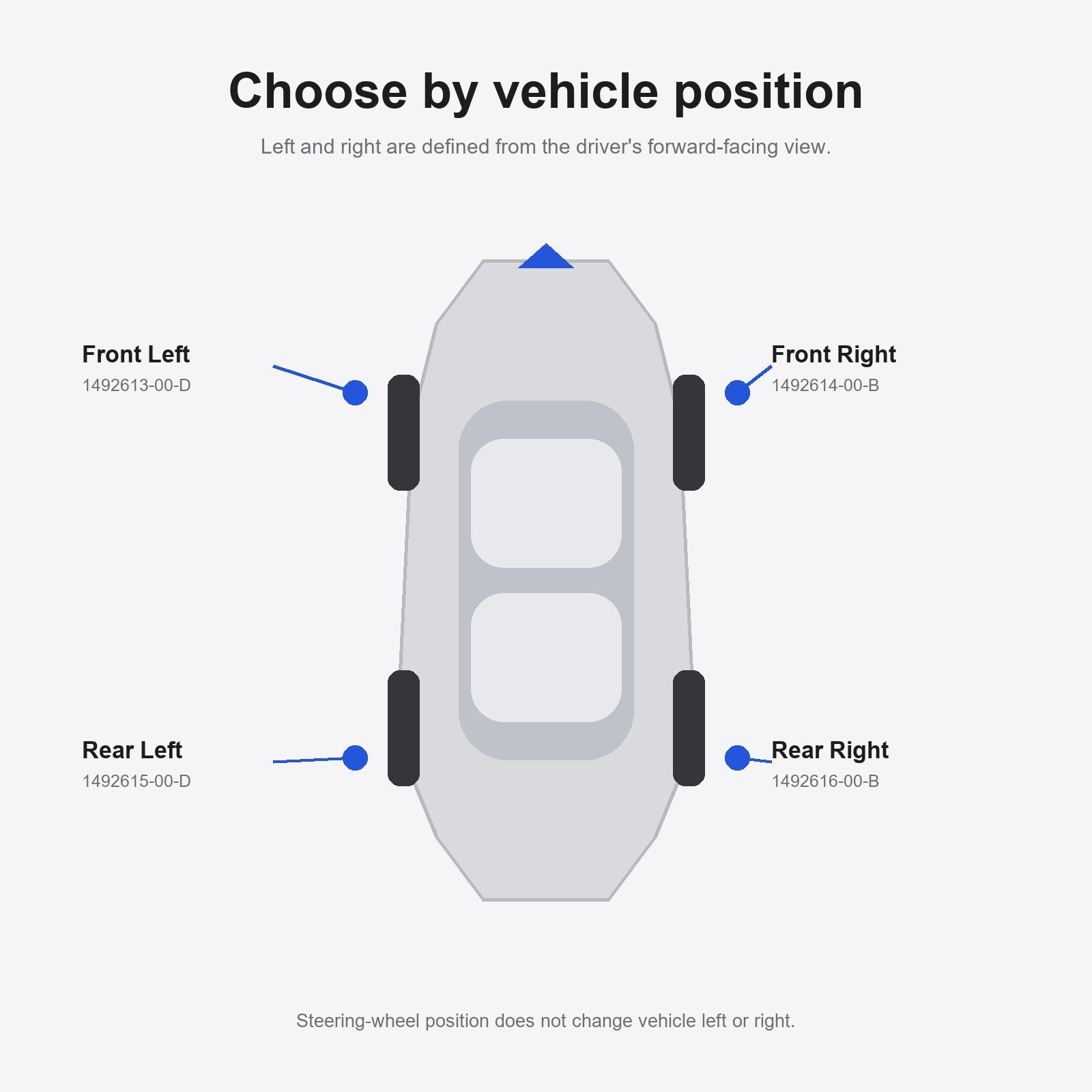

Choose the Vehicle Position
Left and right are defined while facing forward in the vehicle. Match front left, front right, rear left or rear right to the part you need; each choice supplies one liner.

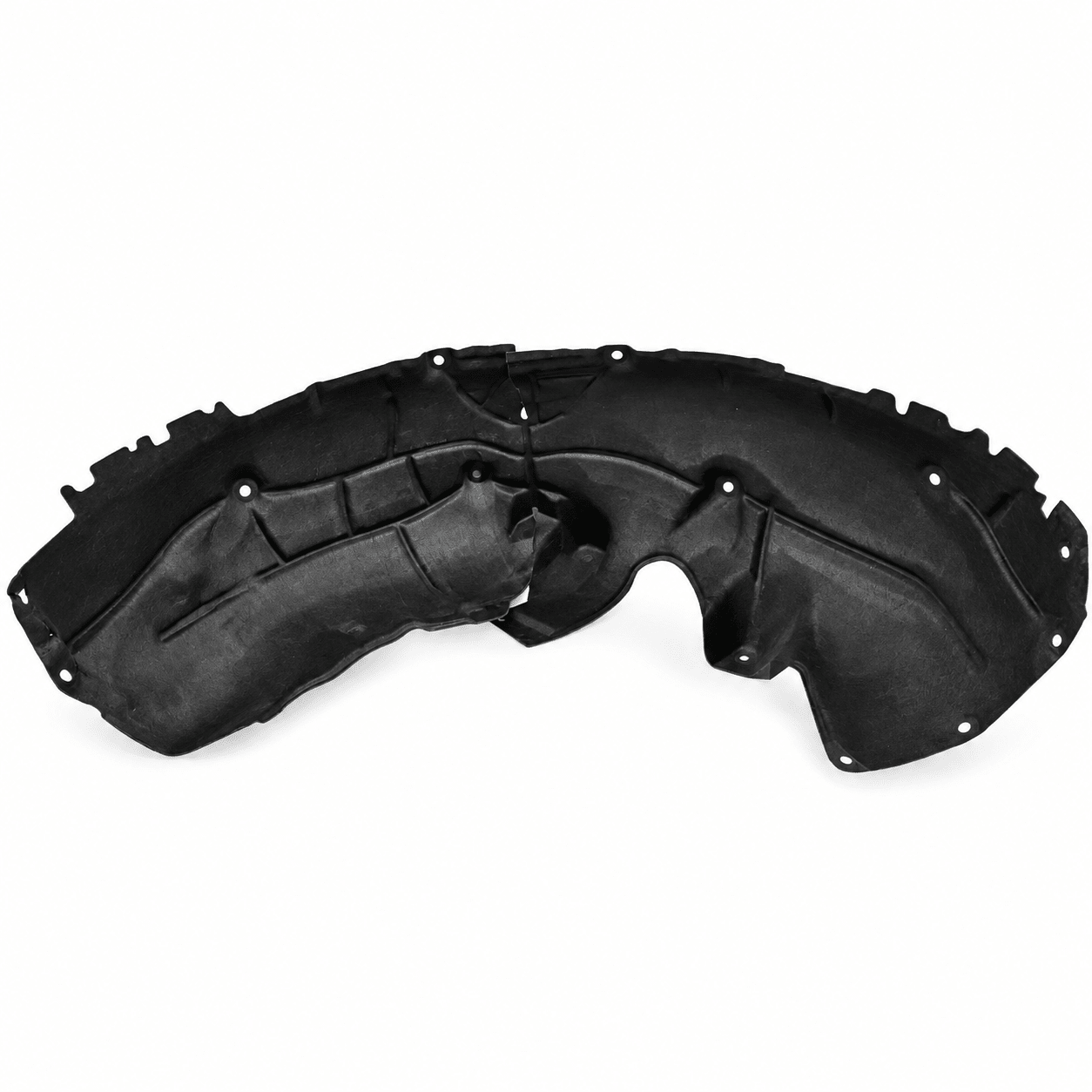

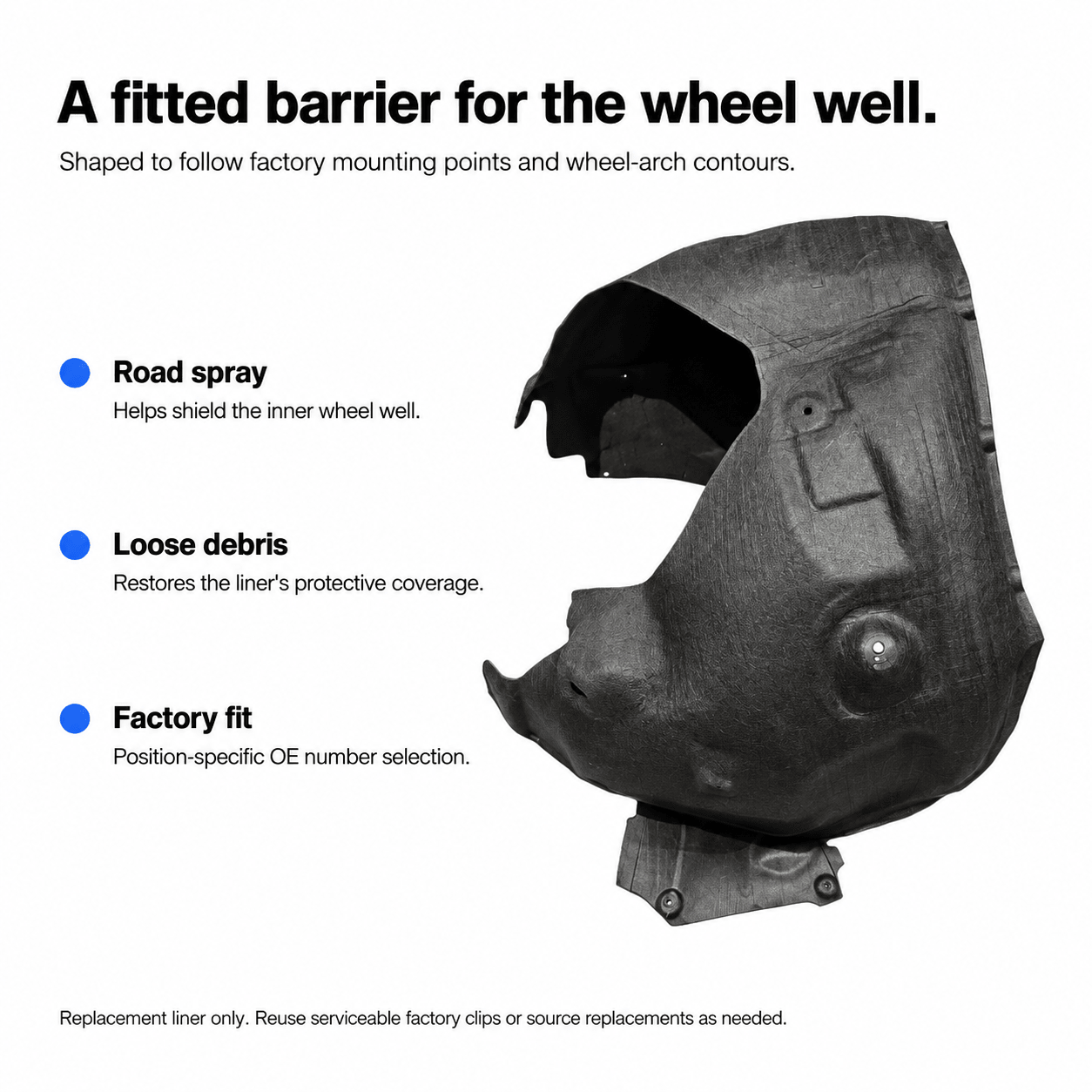

Restore Wheel-Well Coverage
The shaped liner fits inside the wheel well as a barrier against normal road spray and loose debris. Full coverage depends on selecting the correct contour and securing every required attachment.
Attachments
Build configurations and liner revisions can use different attachment layouts.
Compatibility
| Model | Years / Version | Notes |
|---|---|---|
| Model Y | 2020–March 2025 | Original/pre-refresh body: front-left, front-right, rear-left and rear-right choices. |
| Model Y Juniper | 2025+ | Front-left and front-right choices only. |
The rear choices apply to the original Model Y body. A 2025 registration can span body generations.
Specifications
| Product Type | Replacement inner wheel-arch liner |
|---|---|
| Compatible Models | Original Model Y 2020–March 2025 front and rear choices; Juniper 2025+ front choices, subject to VIN-specific part and attachment match |
| Position / Location | Front left, front right, rear left or rear right; one selected position |
| Quantity | 1 liner for the selected position |
| OEM Part Number | Reference FL 1492613-00-D; FR 1492614-00-B; RL 1492615-00-D; RR 1492616-00-B |
| Installation Type | Replacement at the original attachment locations with vehicle-specific fasteners |
| Shipping Weight | Front choices 2.2 kg (4.85 lb); rear choices 2.6 kg (5.73 lb), shipping weights rather than measured net liner weights |
What's in the Box
- 1 wheel-arch liner for the selected position.
Installation
- Follow the applicable vehicle service procedure for safe support, wheel access and removal of the relevant garnish and liner attachments; do not work under an unsupported vehicle.
- Install with the correct serviceable or replacement clips and vehicle-specific fasteners. Follow the documented procedure and torque for the actual build, without treating one configuration’s hardware as universal.
- Refit removed panels and the wheel as instructed.
Good to Know
Caution
- Maintain tire, steering, suspension and nearby hose/wiring clearance; do not drill new mounting holes or leave a liner loose.
Care
- Inspect attachment points and the liner for cracks or looseness after road debris impacts.
- Remove accumulated debris gently without damaging the liner or nearby hoses and wiring.
- Have a loose, rubbing or damaged liner corrected before continued driving.
FAQ
Which reference number corresponds to each position?
Front left: 1492613-00-D; front right: 1492614-00-B; rear left: 1492615-00-D; rear right: 1492616-00-B.
Do the rear choices cover Juniper?
The Juniper choices in this range are front left and front right only. The rear-left and rear-right choices are for the original Model Y body.
Does one order provide a complete set?
Each position choice supplies one liner. Select the corresponding part separately for each wheel well that needs replacement.
