2-Pack HEPA Activated Carbon Cabin Air Filters for Tesla Model 3 / Model Y

Activated-Carbon Cabin Air Filter 2-Pack

This set supplies two cabin HVAC filters with pleated media and an activated-carbon layer, in black-and-white or black-and-blue styles. Each filter is listed at 25.5 × 15.5 × 3 cm. A T20 removal tool and instructions are included.

2 Cabin Filters
Activated Carbon
2 Style Options
T20 Tool Included

Key Features

Two-Filter Set

Two replacement cabin HVAC filters are supplied for the matching two-filter compartment.
Pleated Media

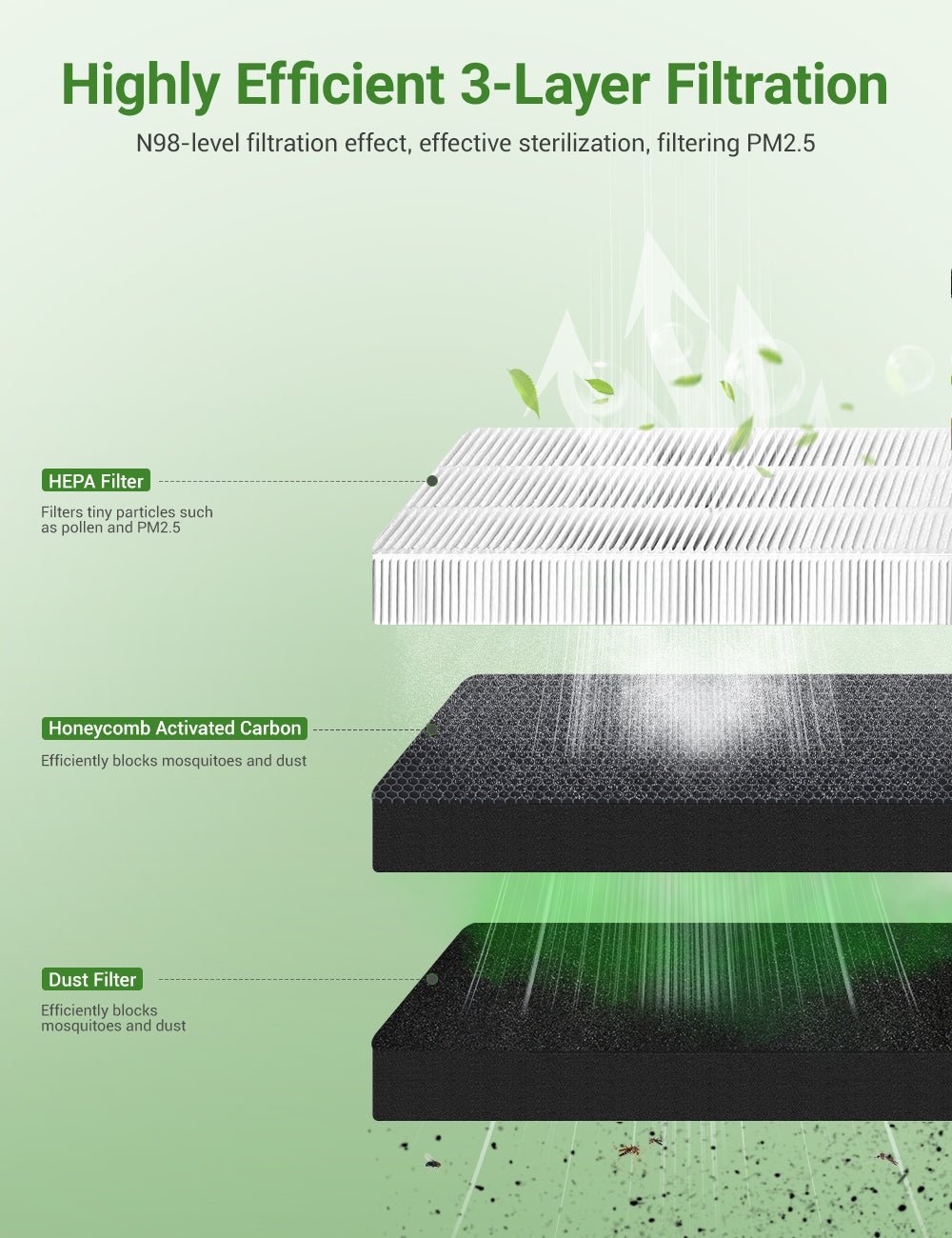

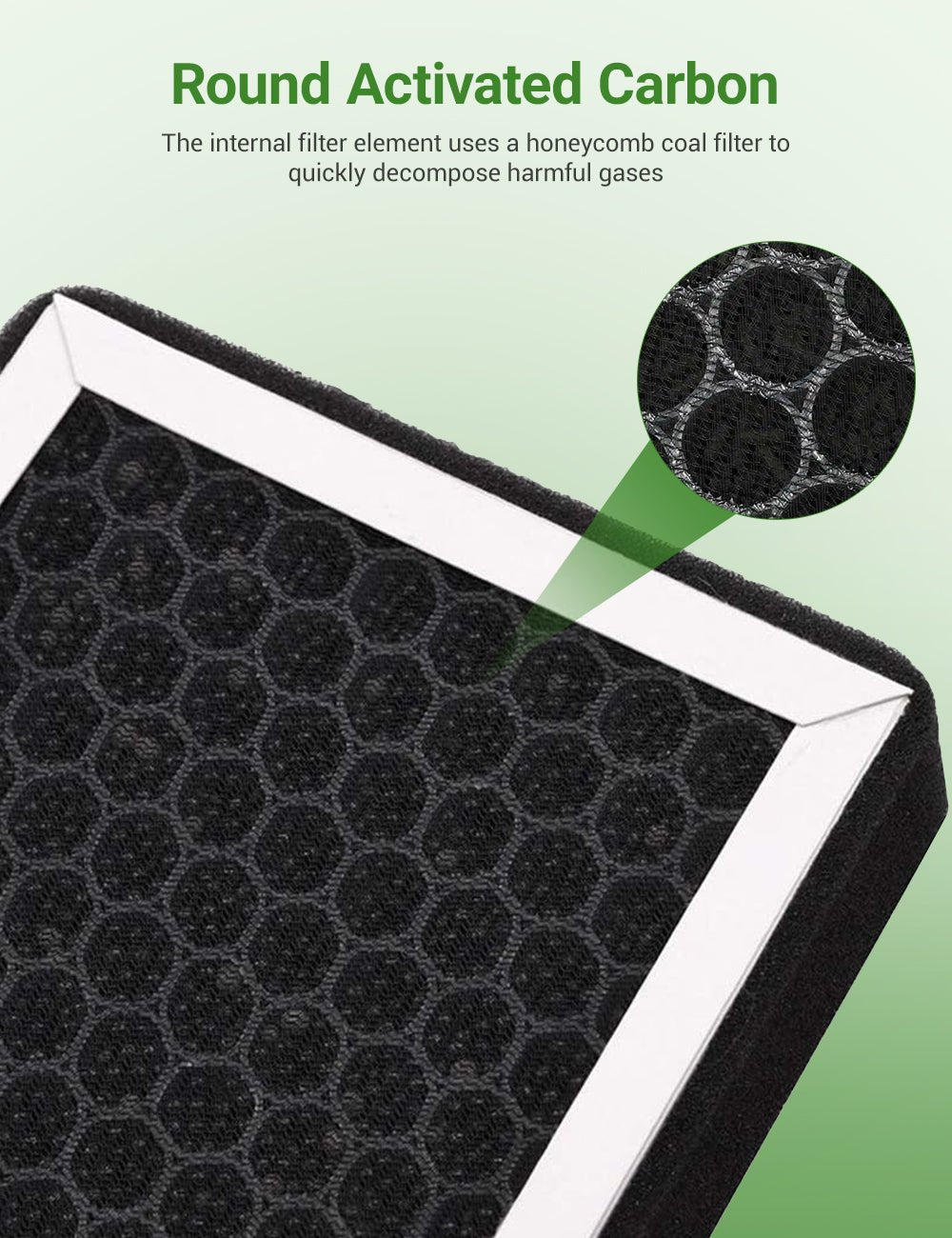

Each filter has a pleated filtering face and an activated-carbon layer.
Two Styles

Choose Style 1 Black and White or Style 2 Black and Blue.
Listed Dimensions

Each filter is listed at 25.5 × 15.5 × 3 cm.
Frame Construction

The listing describes an ABS frame with PVC-bonded edges.
Included Tool

A T20 Torx removal tool and installation instructions are listed in the package.
Airflow Orientation

Use the marked airflow arrows and the procedure for the actual vehicle, rather than deciding direction by filter color.

Highlights

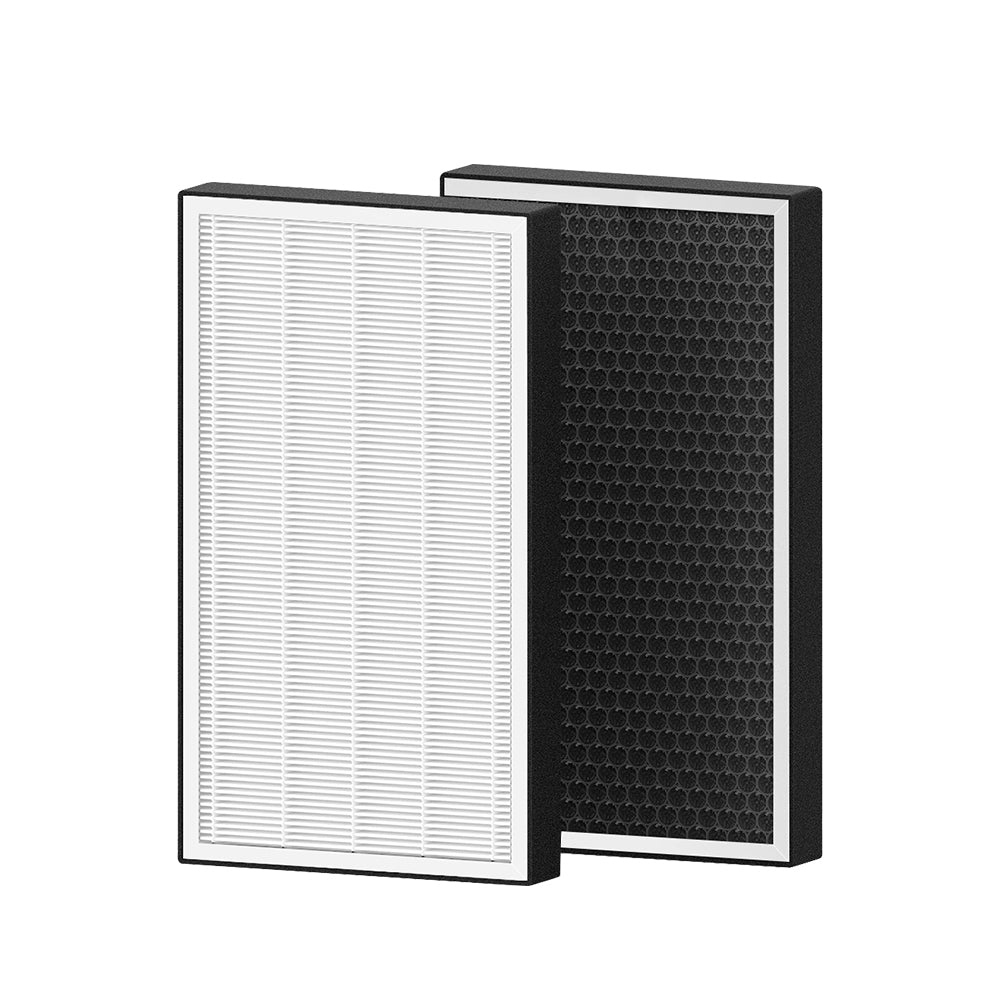

Pleated Face and Carbon Layer - TESVX Cabin Air Filter — Pleated Face and Carbon Layer

The pictured filter has a pleated face and a dark activated-carbon layer. The set is for the matching interior cabin HVAC compartment; it does not add a separate underhood HEPA system.

Filter Size

Each filter is listed at 25.5 × 15.5 × 3 cm and fits the two-filter compartment.

Choose the Style

Select black and white or black and blue. Color does not determine airflow direction; use the filter markings and the vehicle-specific installation procedure.

Vehicle-Specific Access

A T20 tool is listed with the kit, but cover screws or locking tabs vary by vehicle. Model Y panel order also changes around February 2025.

Compatibility

Model	Years / Version	Notes
Model 3	2017–2026	Including Highland.
Model Y	2020–2026	Including Juniper.
Model Y L	2026+	Listed application.

Fits Model 3 2017–2026 including Highland, Model Y 2020–2026 including Juniper, and Model Y L 2026+.

Specifications

Product Type	Activated-carbon cabin HVAC filter set
Compatible Models	Listed Model 3 (2017–2026), Model Y (2020–2026), Model Y L (2026+)
Position / Location	Interior cabin HVAC filter compartment
Material	Pleated filter media with activated carbon; ABS frame and PVC-bonded edges
Color	Style 1 Black and White / Style 2 Black and Blue
Quantity	2 filters
Dimensions	25.5 × 15.5 × 3 cm per filter
Installation Type	Replace the two matching cabin filters; access fastener or tabs vary by vehicle
Shipping Weight	720 g

What's in the Box

2×Activated-carbon cabin air filters
1×T20 Torx removal tool
Installation instructions

Installation

Difficulty: Moderate
Tools: Included T20 tool; trim tools and correct screw driver/socket as required for the actual cover

Turn off climate control and follow the cabin-filter access procedure for the actual model and build.
Support removed trim and release connectors by their housings, without pulling wires. Use the correct screw or locking-tab method; do not disturb orange high-voltage cables.
Remove the upper filter, then raise and remove the lower filter.
Follow the marked airflow direction. The Tesla Model 3 and Model Y procedures specify arrows toward the rear, with the lower filter installed first and the upper filter above it.
Close the cover without forcing the frame and refit connectors and trim. Stop and obtain service help if the fit or airflow is abnormal.

Good to Know

Caution

Do not force a filter that differs from the removed part.
Use the vehicle-specific cabin-filter procedure. Panel order and cover retention differ by build; a supplied T20 tool is not the correct fastener tool for every vehicle.
Follow the airflow arrows, not a generic black-side-facing-cabin rule. The Tesla Model 3 and Model Y procedures specify arrows toward the rear for the compartments described.
Do not pull on connector wires or disturb orange high-voltage cables. Stop if access is unclear, a filter cover is missing or cables are damaged, and obtain service help.
These filters replace interior cabin filters; they do not add the separate factory underhood HEPA system or establish hospital-grade air, pathogen removal or allergy treatment.

Care

Inspect and replace filters according to the vehicle’s maintenance schedule and actual dust or odor conditions. A persistent smell or airflow problem may need further HVAC diagnosis.
Do not rinse or scrub the filter media. Keep new filters dry until installation.

FAQ

Which direction should the filters face?

Use the airflow markings and actual vehicle procedure. The Tesla Model 3 and Model Y procedures described specify arrows toward the rear; do not choose direction from the media color.

Is T20 the correct tool for every cover?

No. Some covers use a different fastener or locking tabs. The T20 tool is included.

Does this add the factory HEPA system?

No. It is a replacement set for the interior cabin HVAC filters. A separate underhood factory HEPA assembly is a different system.

What is included?

Two activated-carbon cabin filters, one T20 Torx removal tool and installation instructions. Select the black-and-white or black-and-blue style.
