Starlink Mini Pole Clamp with Two Mounting Orientations
Attach a Starlink Mini to a suitable round pole or rail using this clamp and support tube. The jaws assemble for vertical or horizontal mounting, and the Mini connects through its matching pipe adapter. The pictured installation guide covers 20–50 mm poles with different bolt lengths.
- Starlink Mini
- Vertical or Horizontal
- Bolted Clamp
- 20–50 mm Pictured Range
Key Features
-
Mini interface
The support tube connects through the matching Starlink Mini pipe adapter.
-
Two orientations
Assemble the clamp jaws for a vertical pole or horizontal round rail using the matching slots and hardware.
-
Sized fasteners
The installation diagram shows 20–50 mm round poles with three M6 bolt lengths.
-
Bolted assembly
Socket-head bolts and hex keys secure the jaws, backplate and support tube; tightening tools are required.
-
Rotating tube connection
Position the Mini around the tube, leave cable slack and secure the rear retaining screw after alignment.
-
Separate mount
The clamp and support tube are an accessory for your existing Mini; the satellite terminal and supporting pole are separate.
Highlights

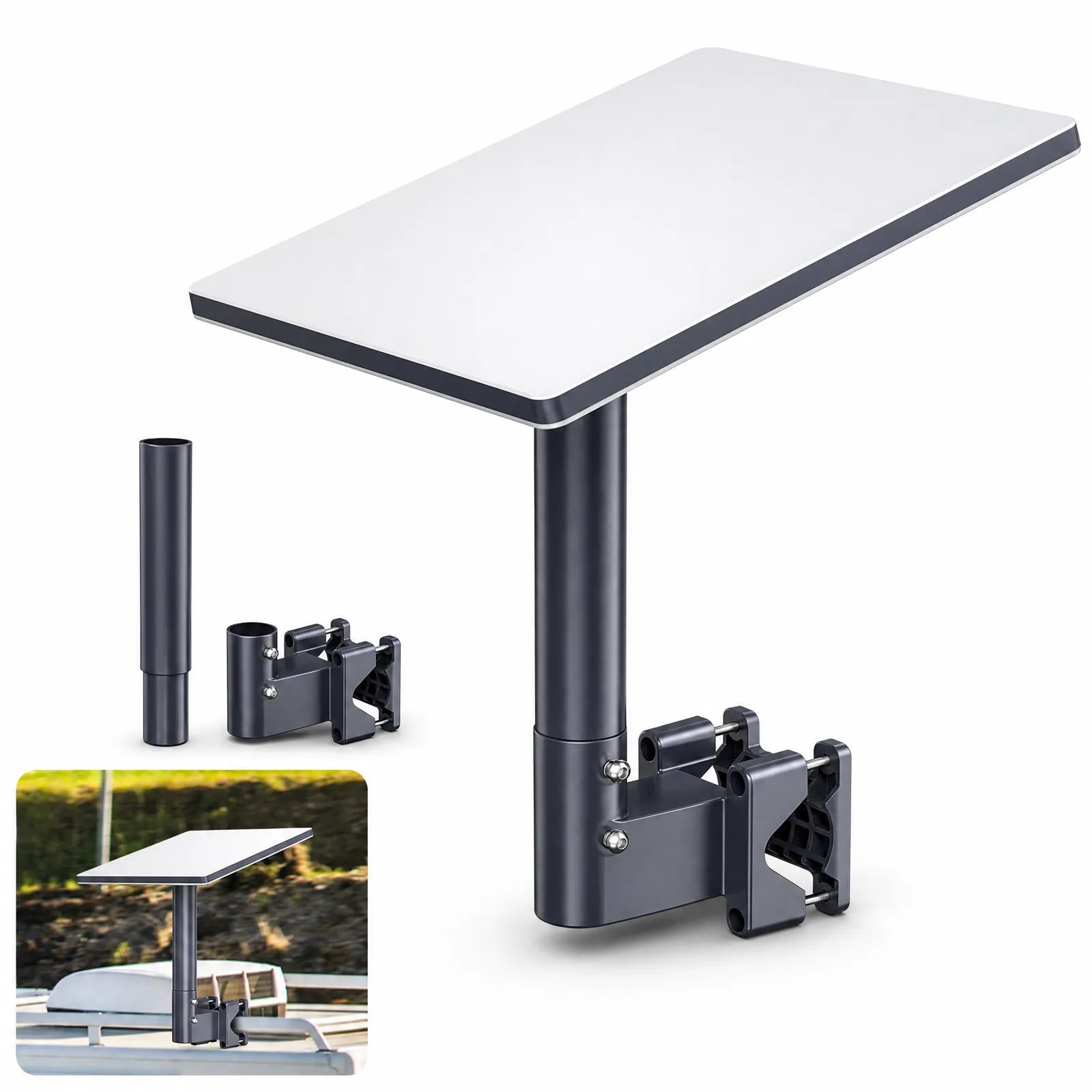

Clamp and Support Tube
The Mini sits above the support tube while the bolted jaws grip the supporting pole.

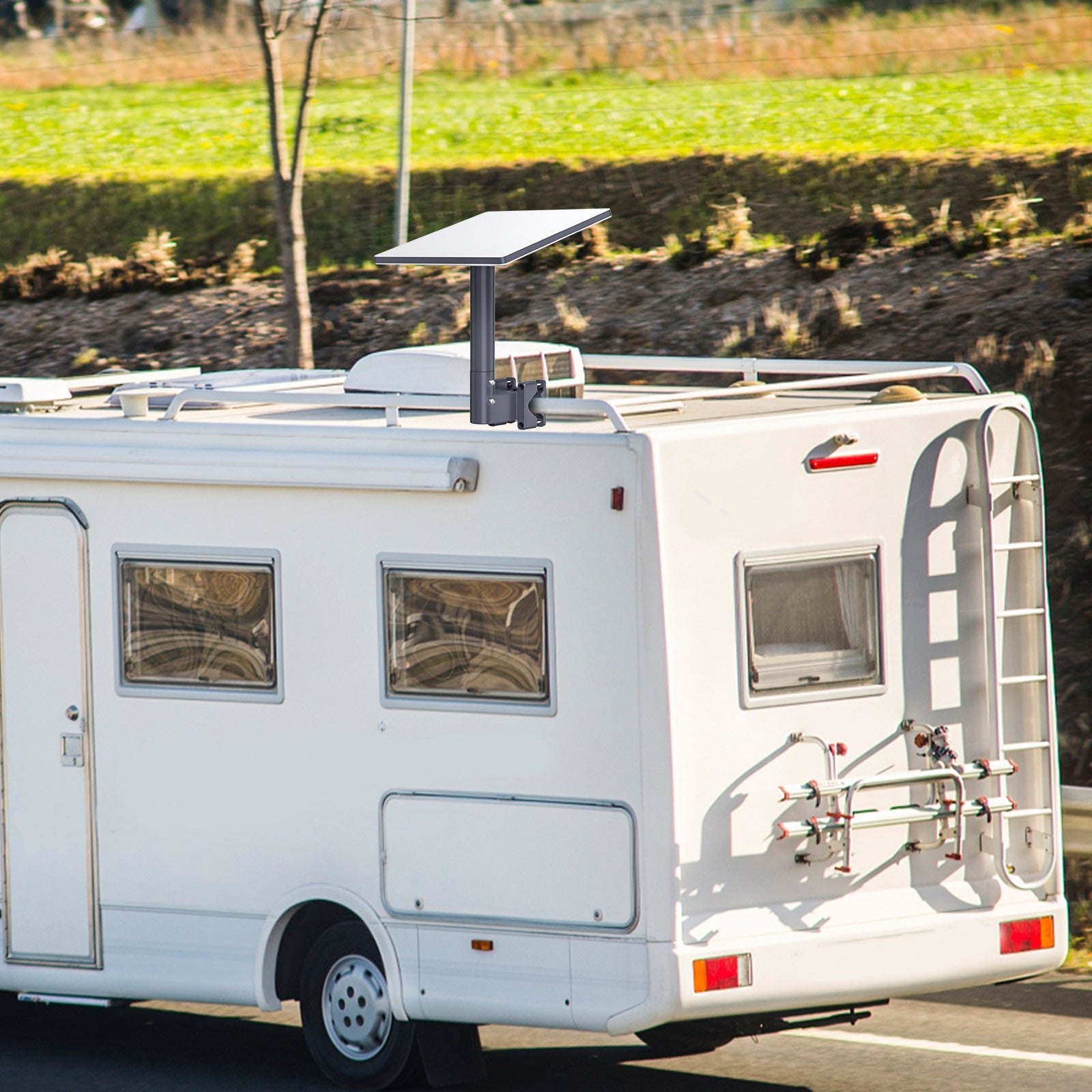

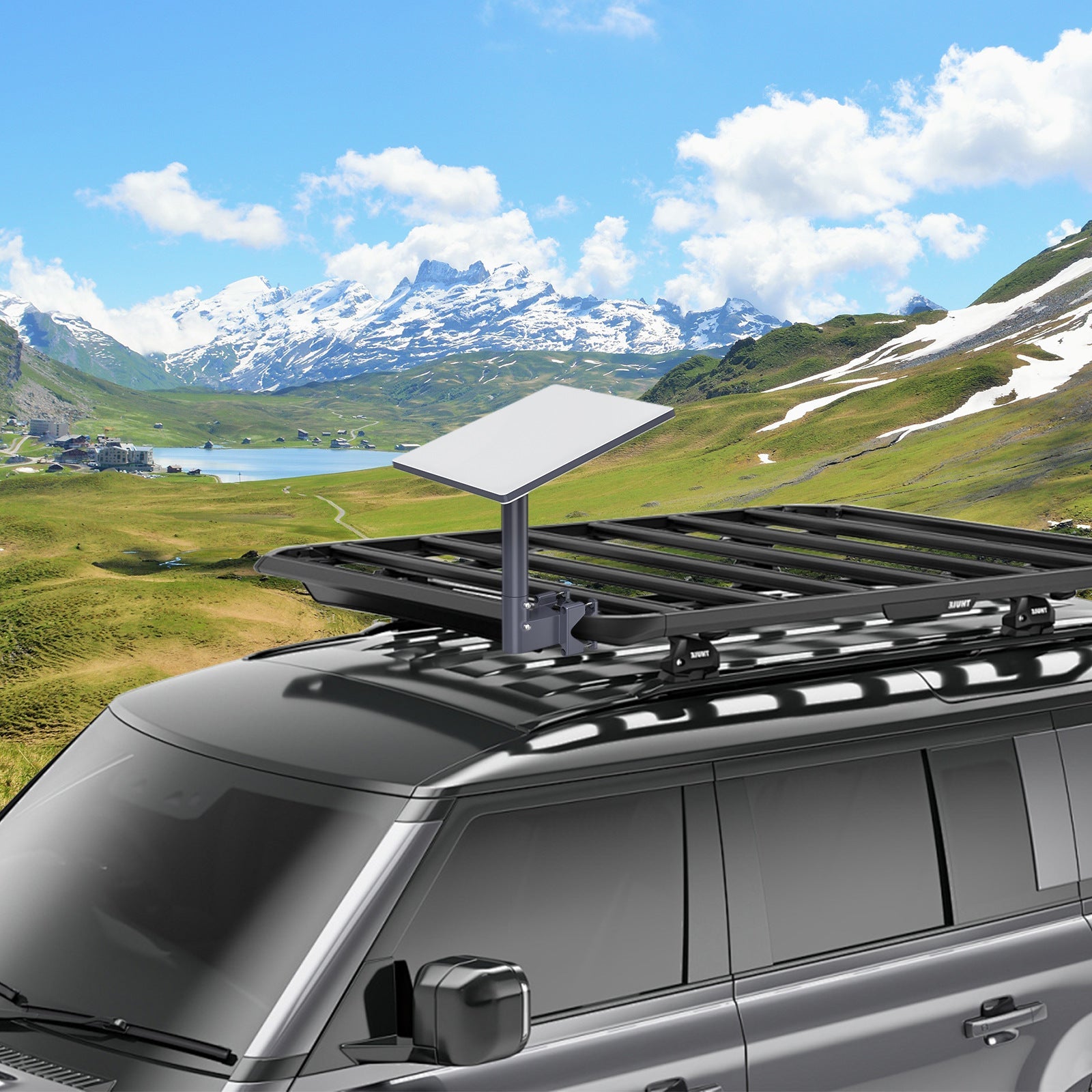

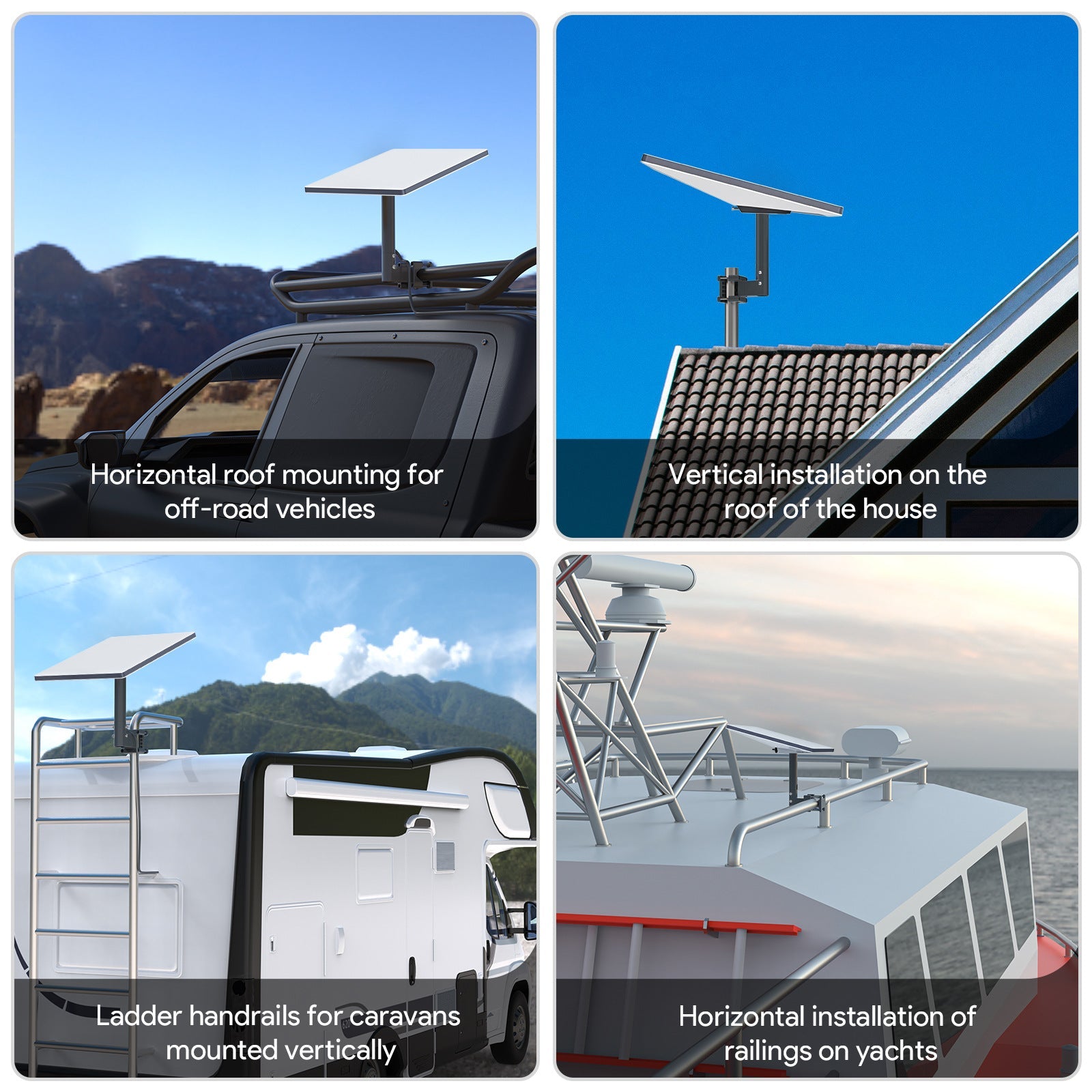

Mounting Position Examples
An elevated pole position can provide space around the Mini.
Vertical or Horizontal Assembly
Align the clamp jaws with the appropriate slots for a vertical pole or horizontal round rail.
Bolt Lengths by Pole Size
The pictured guide specifies M6 × 30 mm for 20–32 mm poles, M6 × 40 mm for 33–42 mm and M6 × 55 mm for 43–50 mm.
Compatibility
| Model | Years / Version | Notes |
|---|---|---|
| Starlink Mini | Matching Mini pipe adapter; measured round pole and correct fasteners required. |
For the Mini interface shown. This is not an adapter for the Standard dish. Vertical and horizontal are clamp orientations, not two separate mounts.
Specifications
| Product Type | Starlink Mini pole clamp and support tube |
|---|---|
| Compatible Models | Starlink Mini with matching pipe adapter |
| Position / Location | Vertical round pole or horizontal round rail |

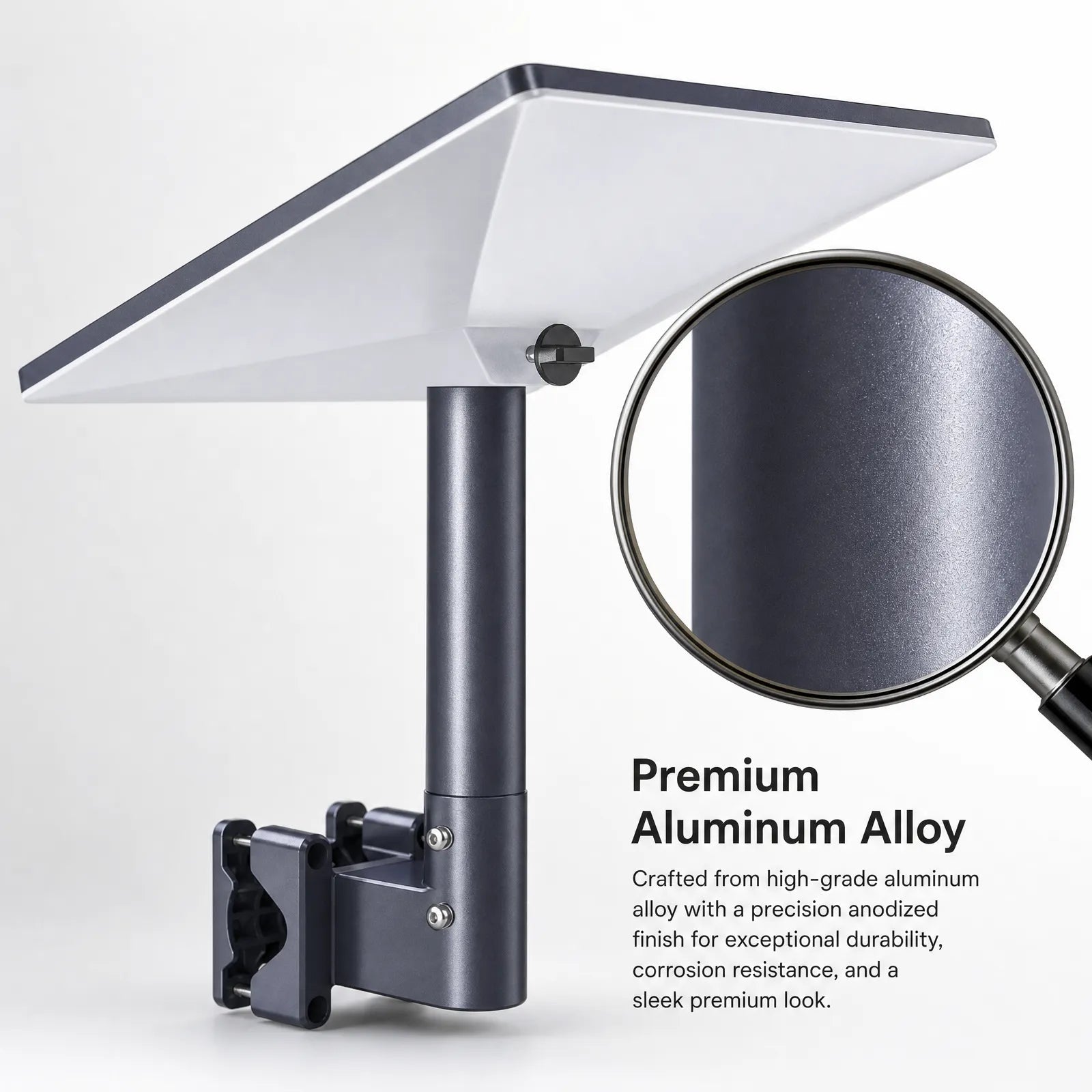

| Material | Aluminum alloy mount construction |
| Dimensions | Pictured pole diameter: 20–50 mm |
| Installation Type | Bolted clamp assembly with hex keys |

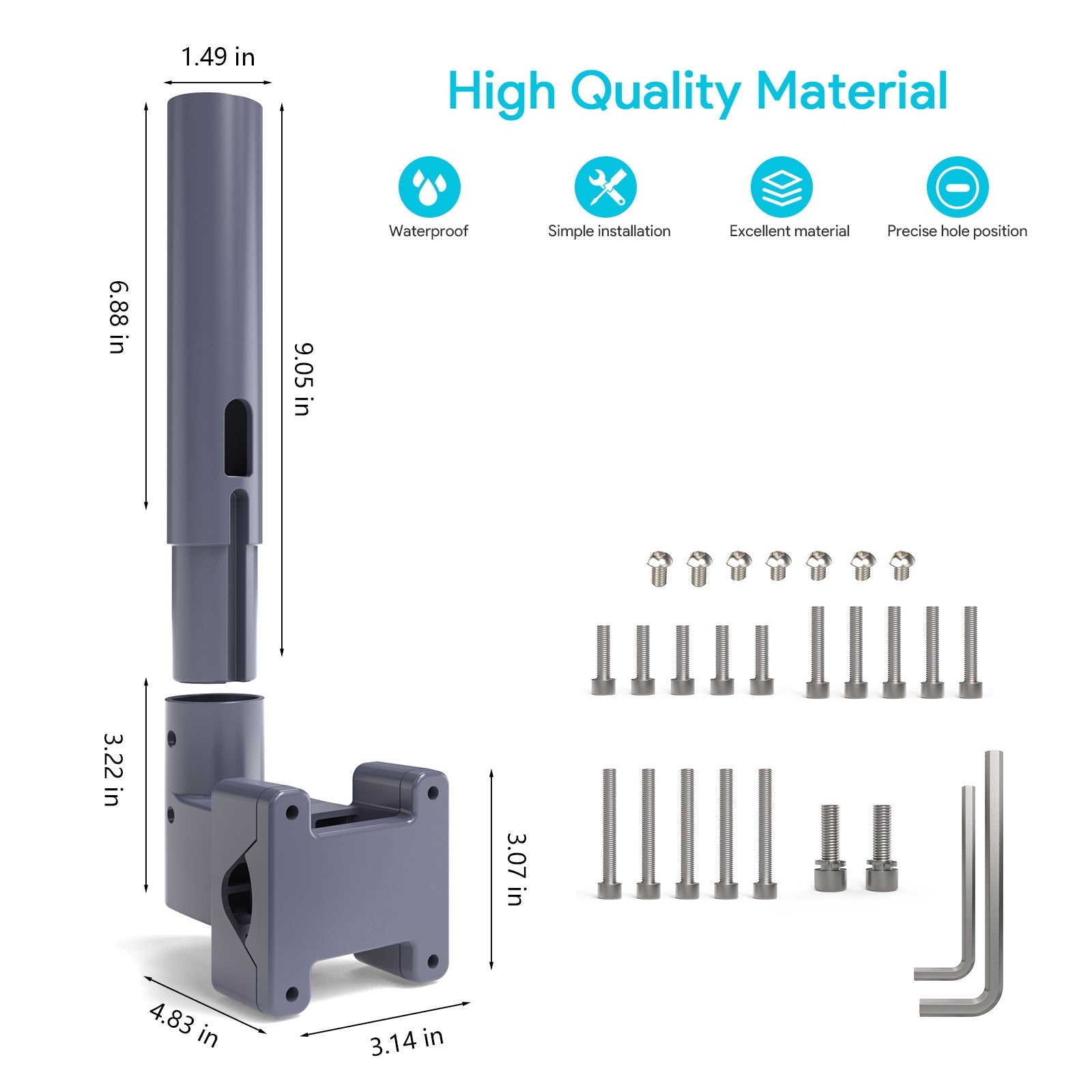

| Package Contents | Pole clamp and support tube with installation hardware |
| Shipping Weight | 1.1 kg |
What's in the Box
- 1×Starlink Mini pole clamp and support tube assembly
- Installation hardware
Installation
- Align the clamp jaws with the vertical or horizontal slots for your support; assemble the connecting bolts and spring washers as shown in the product guide.
- Place the jaws and backplate around the support. Use the bolt length for the pole size and tighten evenly.
- Insert and secure the support tube. Route the cable through the matching Mini pipe adapter and engage the adapter with the Mini.
- Set the Mini orientation with cable slack and secure the rear retaining screw.
Good to Know
Caution
- The pictured guide pairs M6 × 30 mm bolts with 20–32 mm poles, M6 × 40 mm with 33–42 mm, and M6 × 55 mm with 43–50 mm.
- The Mini connects through its matching pipe adapter. The Mini terminal is separate.
- Vehicle and boat illustrations show mounting positions; no speed or wind-load rating is given.
- Keep the cable free of pinching and sharp bends. Rotation requires enough slack and must not wind the cable around the pole.
Care
- Inspect clamp contact, fasteners and the adapter connection before each use and after changes to the installation.
- Clean dirt from the clamp contact surfaces; dry parts before storage. Remove the installation from service if a part is loose, damaged or corroded.
FAQ
What does dual mounting mean?
The clamp jaws can be assembled for a vertical pole or a horizontal round rail. It describes two orientations of one mount assembly.
Which pole diameter and bolts should I use?
The pictured guide shows 20–50 mm poles in three bolt-length bands. M6 × 30 mm bolts fit 20–32 mm poles, M6 × 40 mm fit 33–42 mm and M6 × 55 mm fit 43–50 mm.
Is installation tool-free?
No. The pictured assembly uses socket-head bolts, washers and hex keys to secure the clamp, backplate and tube.
Can I use it on a moving vehicle or boat?
These examples do not provide a speed or wind-load rating.
