Direct DC Power for a Gen 3 Standard Router
This wired step-up converter takes a suitable 12V or 24V DC source and provides a listed 57V output for the matching Starlink Gen 3 Standard router power input. It has an aluminum housing, bare-wire input leads and a round DC output plug. Choose the 2 M or 3 M cable option for your installation.
- 12V / 24V DC Input
- 57V DC Output
- Gen 3 Standard Router
- 2 M / 3 M Options
Key Features
-
Direct DC Conversion
Steps a suitable 12V or 24V DC supply up to the listed 57V output.
-
Gen 3 Router Connection
The round DC output plug is intended for the Starlink Gen 3 Standard router power input.
-
Rated Output
The listed output capacity is 57V at 4.5A, with 256W specified for the converter.
-

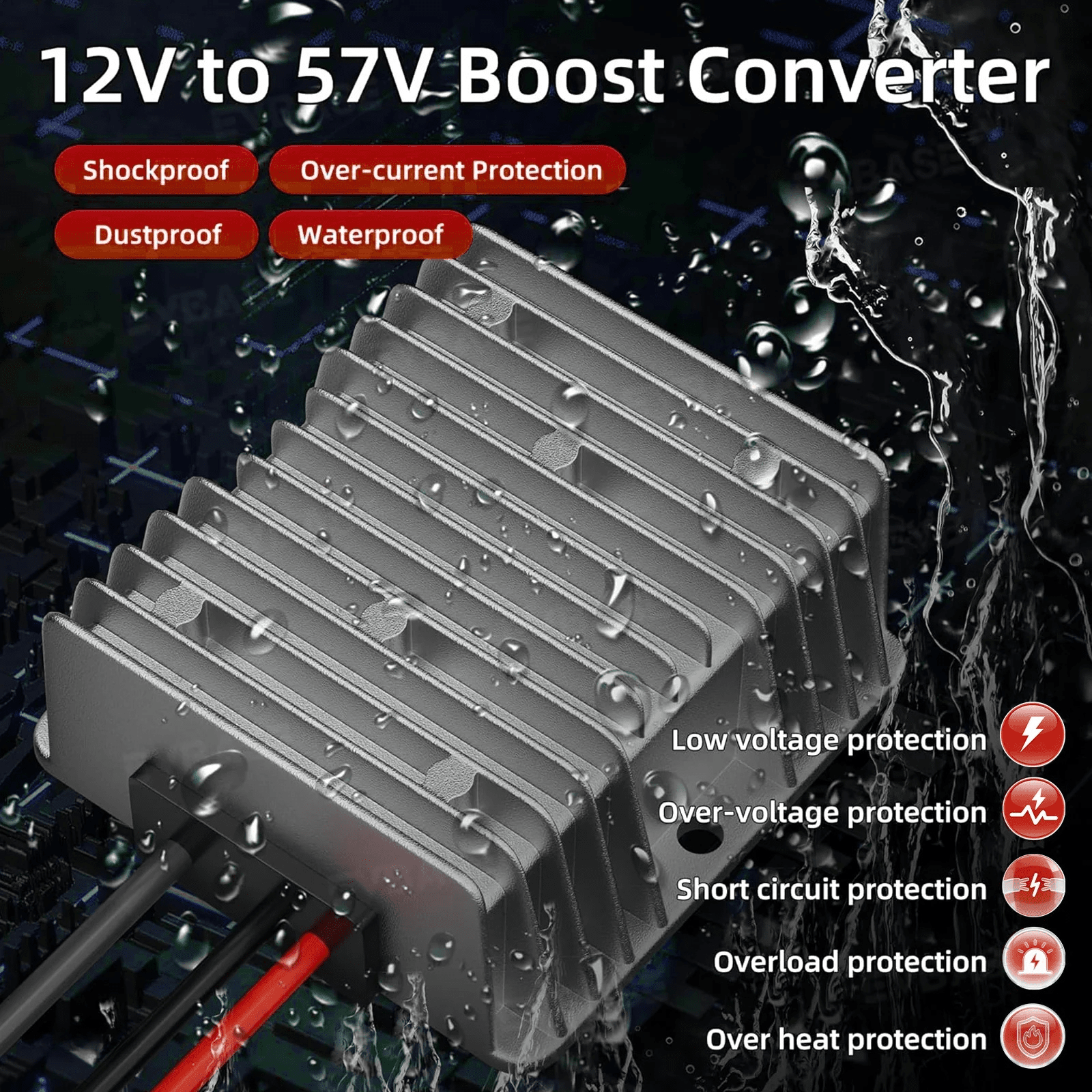

Aluminum Housing
The finned body and silicone potting form the converter housing.
-
Wired Input
Separate bare-wire input leads connect to a protected DC circuit.
-
Two Cable Options
Available with a 2 M or 3 M cable.
Highlights

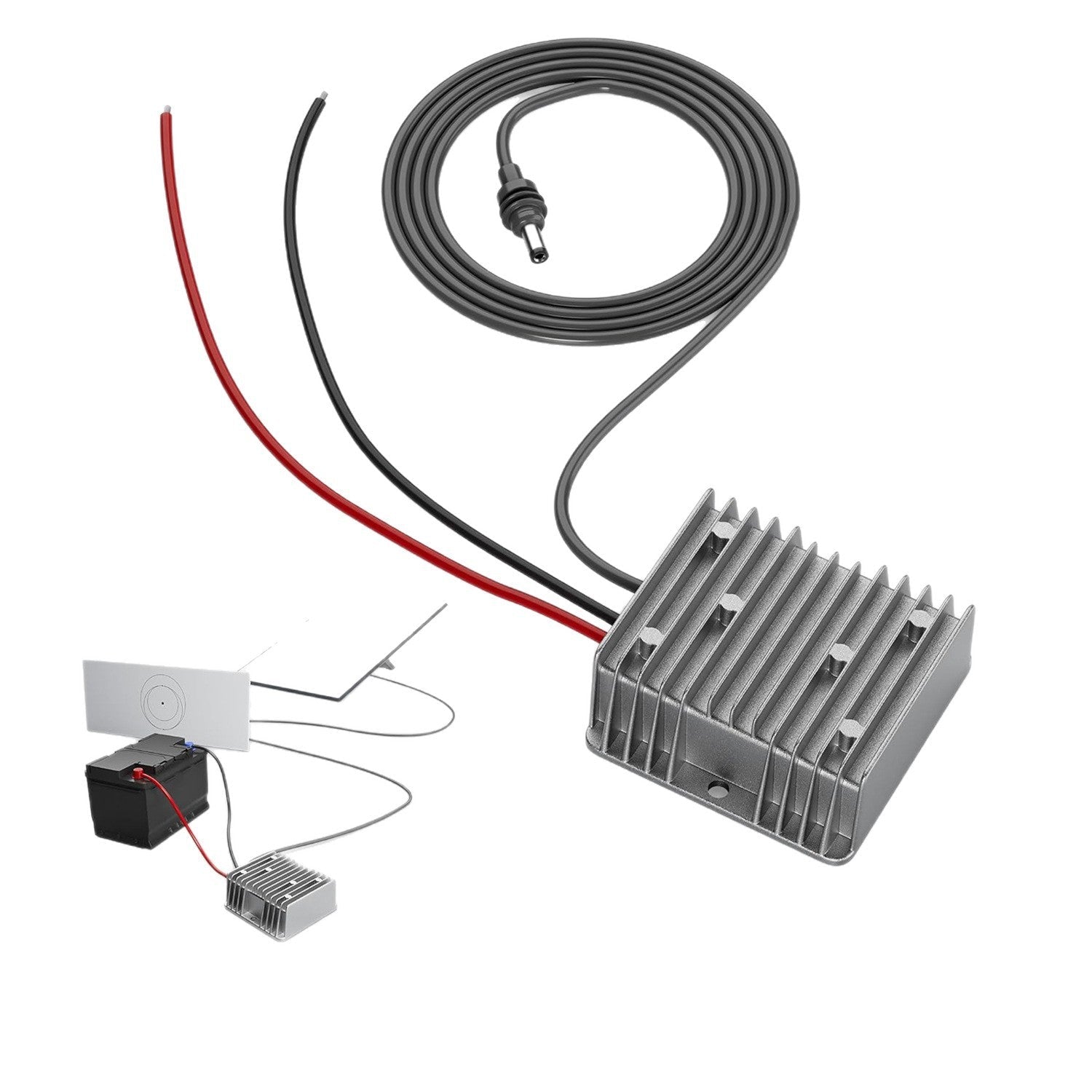

Converter and Output Cable

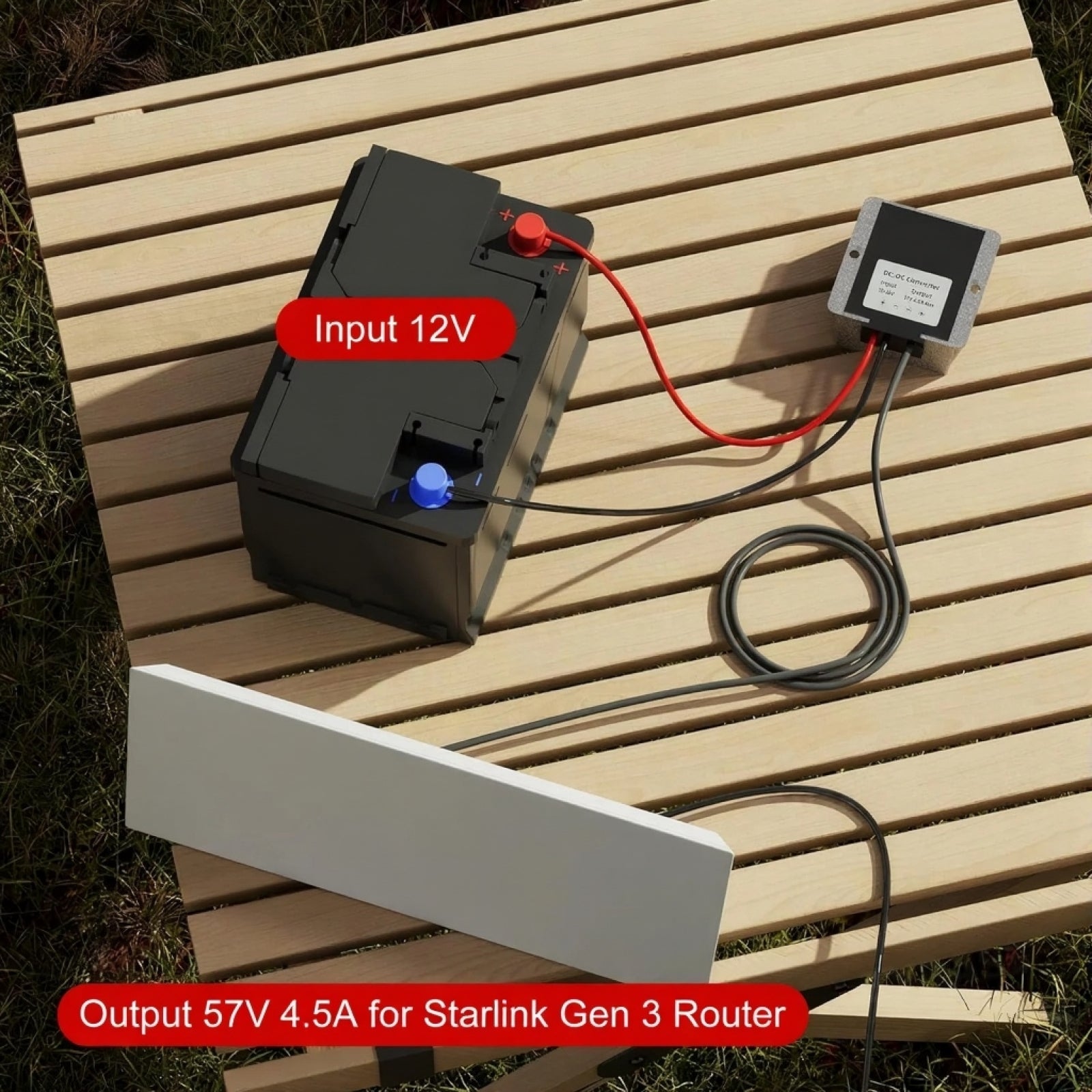

The product photo shows the finned housing, separate input leads and round DC output plug. The small system illustration is for context, not a complete wiring diagram; the battery and Starlink equipment are separate.
A Direct DC Path
DC-to-DC conversion can be used in an appropriately designed battery installation without an AC inverter in the power path. Actual power use depends on the converter, wiring and Starlink load.
Router Power Connection
The plug connects to the Gen 3 Standard router power port. This cable does not connect directly to the dish or replace an Ethernet cable.
Plan the Input Circuit
The listed 4.5A is output current at 57V. The lower-voltage input has its own current, cable and protection requirements.
Compatibility
| Model | Years / Version | Notes |
|---|---|---|
| Starlink Gen 3 Standard router | Router DC power input only. Not Gen 2 motorized. |
The DC input circuit and any vehicle-specific wiring are not included with this aftermarket converter.
Specifications
| Product Type | DC step-up power converter |
|---|---|
| Compatible Models | Starlink Gen 3 Standard router; not Gen 2 motorized |
| Material | Aluminum housing; silicone potting; PVC cable jacket and copper wire |
| Input | 12V or 24V DC |
| Output | 57V DC, 4.5A rated output |
| Power | 256W listed output capacity |
| Connector Type | Bare-wire DC input leads; round DC output plug |
| Cable Length | 2 M / 3 M selectable options |
| Waterproof Rating | IP67 converter body; connections must be kept dry |
Installation
- With the power source disconnected, size and protect the input circuit for the converter requirements and cable route.
- Secure the converter with ventilation and protect the cables against movement, sharp edges and heat. Keep all electrical terminations dry.
Good to Know
Caution
- For the matching Starlink Gen 3 Standard router power input only. Do not connect directly to a dish, Ethernet port, Gen 2 or an unmatched device.
- The output current is not the required battery input current.
- Disconnect DC power before wiring. Insulate and secure all terminations, provide suitable circuit protection and keep connections dry. Do not copy an illustration as a complete wiring diagram.
- No vehicle-specific electrical connection is supplied here.
- The converter rating does not establish operation under every startup or heating load.
Care
- Keep the housing ventilated and free of debris; do not cover the cooling fins.
- Keep wire joints and the plug connection dry. The listed IP67 body rating does not make an exposed wired system suitable for immersion.
- Disconnect power before inspecting or servicing damaged cables or connections.
FAQ
Does it power the dish directly?
The output plug is intended for the matching Gen 3 Standard router power input. Keep the proper router-to-dish cable and do not connect this output to a dish or Ethernet port.
Can I use it with Gen 2 or Mini?
This listing is for the Gen 3 Standard router. Does not fit Gen 2, Mini or other hardware that has a different power requirement or connector.
Does 4.5A mean the battery only needs to supply 4.5A?
No. That is the listed output current at 57V, not the input current.
Is it guaranteed to run Snow Melt?
No. The listed output rating is not a guarantee for every installation.
What is included with the cable-length options?
Each option is the converter with a 2 M or 3 M cable. Starlink equipment and the battery shown in illustrations are separate.
