An Electric Strut Frunk Kit for the Model 3 and Model Y
Add powered opening and closing to the front trunk with this electric-strut and control-unit kit. Select the version for your Model 3 year, or your pre-Juniper Model Y year and production factory. The kit supports compatible screen, app, frunk-button and original-key-fob commands and includes a manual pull-rope release.
- Electric Frunk Kit
- Vehicle-Specific Versions
- Control Unit Included
- Manual Release
Key Features
-
Powered Frunk Operation
An electric-strut kit for opening and closing the front trunk
-
Electric Strut Specifications
Steel, nitrogen-filled; listed 330 mm mounting distance and 100 mm stroke
-
Vehicle-Specific Versions
Select the Model 3 year or Model Y year and production-factory version
-
Control Inputs
Supports screen, app, frunk-button and original-key-fob commands with compatible vehicle setup
-
Obstacle Response
Includes a stop-and-reverse function that must be commissioned using the supplied instructions
-
Manual Release
Includes an emergency pull-rope device
-
ECU and Hardware
Includes a control unit with buzzer, mounting hardware and instructions
Highlights
Powered Front Trunk

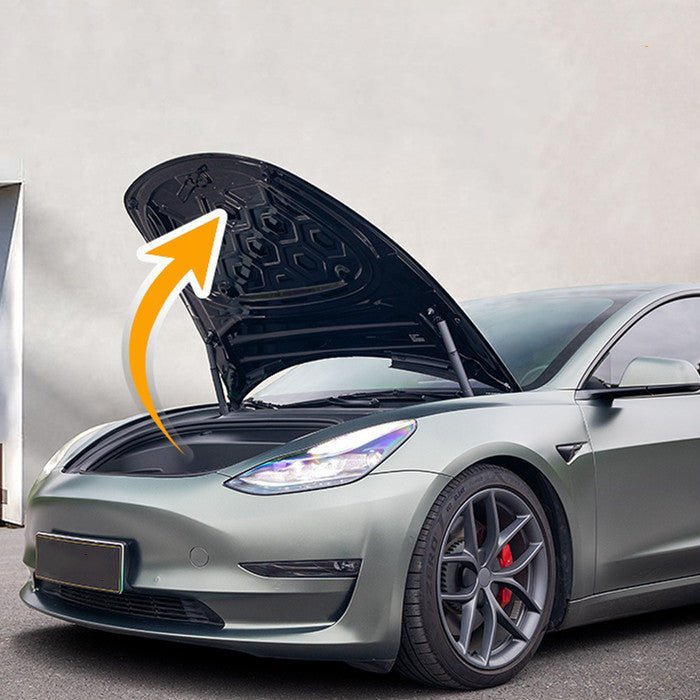

The electric-strut system opens and closes the front trunk on compatible Model 3 and pre-Juniper Model Y vehicles. Choose the matching vehicle version.

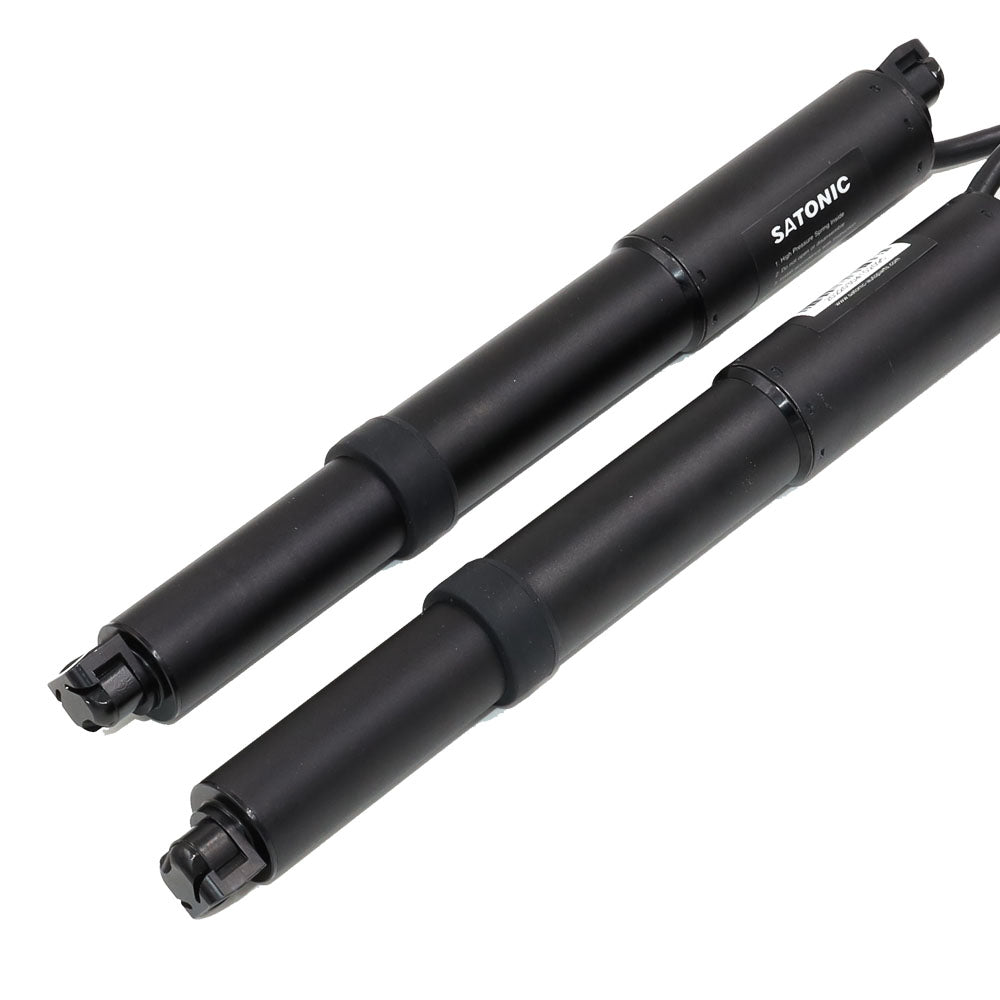

Electric Struts
The steel nitrogen-filled struts are listed with a 330 mm mounting distance and 100 mm stroke.

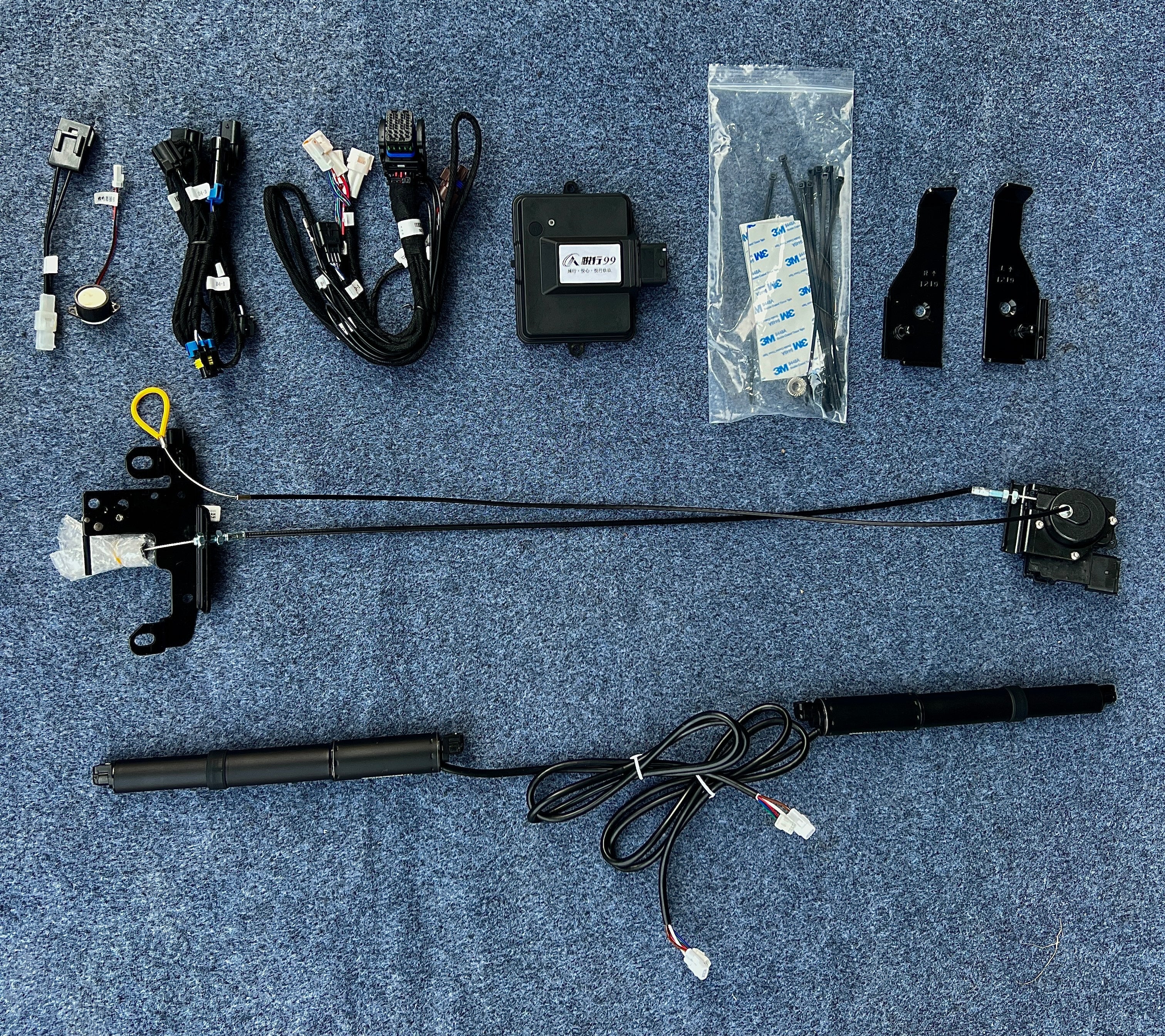

Controller and Hardware
The kit includes the control unit with buzzer, emergency pull-rope device, mounting hardware and installation instructions. The hardware layout may vary by selected vehicle version.
Control and Commissioning
Compatible vehicle commands operate the kit. The obstacle-response function is commissioned using the supplied procedure.
Compatibility
| Model | Years / Version | Notes |
|---|---|---|
| Tesla Model 3 | 2017-2020 | Variant TSL2315-A |
| Tesla Model 3 | 2021-2023 | Variant TSL2315-B |
| Tesla Model 3 Highland | 2024+ | Variant TSL2315-D |
| Tesla Model Y | 2020-2024 | Shanghai and Fremont variant TSL2315-oldC, or Berlin and Austin variant TSL2315-C |
Not compatible with the Model Y Juniper. Select the variant that matches your model year and, for the Model Y, your factory.
Specifications
| Product Type | Auto power frunk system with an electric strut |
|---|---|
| Compatible Models | Model 3 2017-2023, Model 3 Highland 2024+ and Model Y 2020-2024; not compatible with the Model Y Juniper |
| Position / Location | Front trunk (frunk) |
| Material | Steel electric strut, nitrogen filled, with a double oil seal |
| Control Method | Tesla touchscreen, mobile app, frunk button and key fob |
| Installation Type | Vehicle-specific strut, controller and hardware installation |
| Package Contents | 1 power frunk system with electric strut, built-in ECU buzzer, emergency pull rope device, mounting hardware and installation instructions |
| Shipping Weight | 3400 g (7.50 lb) |
What's in the Box
- 1×Electric power frunk system
- Electric strut with nitrogen filling
- Built-in ECU buzzer
- Emergency pull rope device
- All necessary mounting hardware
- Installation instructions
Installation
- Choose the version for the vehicle year and, for Model Y, production factory.
- Commission the obstacle-response function using the supplied procedure.
- Locate the emergency pull-rope access.
Good to Know
Caution
- Does not fit Model Y Juniper. The Model Y 2020–2024 kits come in separate factory versions.
FAQ
Does it fit the Model Y Juniper?
No. The Model Y 2020–2024 kits fit the pre-Juniper vehicle, in Shanghai/Fremont and Berlin/Austin versions.
Which Model 3 versions are offered?
Model 3 2017–2020, Model 3 2021–2023 and Model 3 Highland 2024+.
How do I use the manual release?
The kit includes an emergency pull-rope device for manual release.
