Portable Type 2 EV Charger with 2.4-Inch Display & EU, UK or AU Plug for Type 2 EVs

Type 2 AC Charging with a Choice of Mains Plug

This portable charging unit connects a mains supply to a vehicle’s Type 2 inlet. Four plug versions are listed, with adjustable current limits from 10 A to 16 A depending on the option. The cable is listed at 16 ft, approximately 4.9 m, with a display on the inline controller.

Type 2
4 Plug Versions
Adjustable Current
Listed 16 ft Cable

Key Features

Type 2 Vehicle Connector

The vehicle-side connector is the Type 2 format.
Four Mains Options

Europlug, UK 3pin industrial plug, AU/NZ Plug and UK plug are separate versions for grounded sockets.
Version-Specific Current

The Europlug and UK industrial options list 8/10/13/16 A, the UK option 8/10/13 A and the AU/NZ option 8/10 A settings.
Portable Cable Assembly

The charger combines a mains lead, inline control unit and vehicle connector; the listed cable length is 16 ft, approximately 4.9 m.
Display on the Unit

A nominal 2.4-inch display is listed on the inline controller. Use the supplied operating instructions to interpret status and select the current.
Circuit Matching

The selectable maximum is not permission to overload a circuit.

Highlights

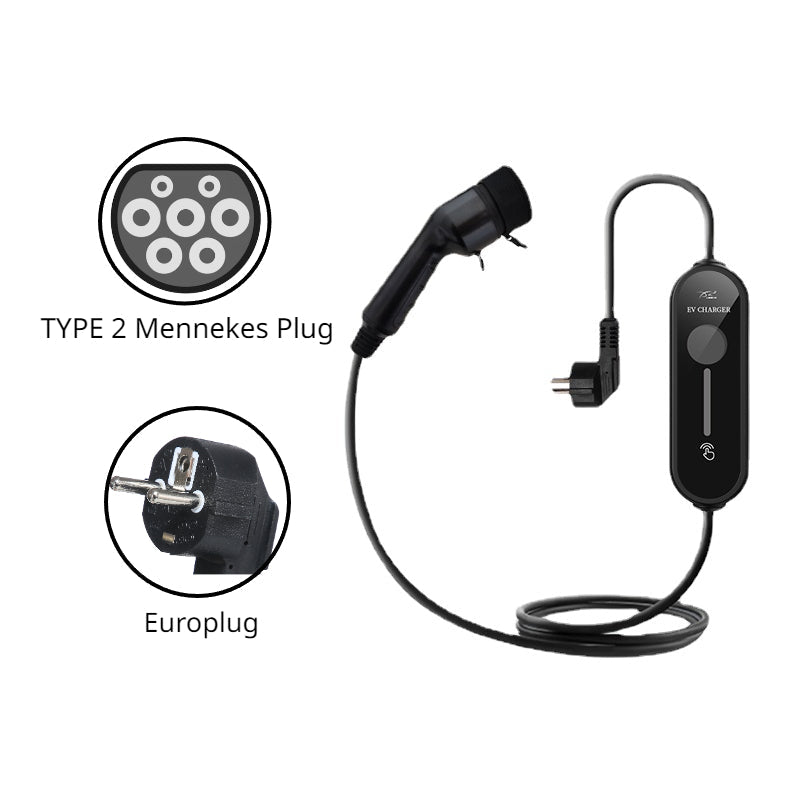

Type 2 and the Europlug Reference - TESVX EV Charger — Type 2 and the Europlug Reference

The illustrated Europlug version shows the vehicle connector, inline controller and mains plug. This is one plug version; choose the actual configuration needed for your socket and vehicle.

Different Limits for Each Plug

Europlug and UK 3pin industrial plug list up to 16 A, UK plug up to 13 A and AU/NZ Plug up to 10 A. Their nominal listed power values are 3.5, 2.9 and 2.3 kW respectively; actual charging depends on the vehicle and supply.

Charging Circuit

A matching-looking socket does not prove continuous-load capacity; the unit requires a grounded socket and circuit protection rated for the selected current.

Compatibility

Model	Years / Version	Notes
Vehicles with a Type 2 AC inlet		Type 2 AC inlet; mains plug per selected version.

Select Europlug, UK 3pin industrial plug, AU/NZ Plug or UK plug. Please select plug is a prompt, not a plug version. Type 2 refers to the vehicle connection; mains plugs and regional requirements are separate.

Specifications

Product Type	Portable AC EV charging unit
Material	PC + ABS housing
Screen Size	Nominal 2.4 inch
Voltage	Europlug 220 V; UK industrial / UK / AU/NZ 230 V, as listed
Current	Europlug / UK industrial 8/10/13/16 A; UK 8/10/13 A; AU/NZ 8/10 A
Power	Nominal listed 3.5 kW Europlug / UK industrial; 2.9 kW UK; 2.3 kW AU/NZ
Charging Standard	Type 2 vehicle connection
Connector Type	Type 2 vehicle side; selected mains plug
Cable Length	Listed 16 ft, approximately 4.9 m
Shipping Weight	4 kg; not product net weight

Installation

Difficulty: Moderate
Tools: Grounded socket and circuit

Connect the charger and select a current within the charger, socket, circuit and vehicle limits.
Stop charging and disconnect before removing the connectors.

Good to Know

Caution

Requires a grounded socket and circuit protection that carry the selected continuous charging current.
Please select plug is a placeholder, not a plug version.
Do not force incompatible connectors, bypass grounding or use improvised adapters. Keep connectors dry and stop use for damage, overheating or reported faults.
A Type 2 inlet alone does not establish compatibility with every vehicle, mains supply or market configuration.

Care

Store the unit dry and protect the cable and connectors from impact and contamination.
Inspect before each use and stop using damaged components or a unit reporting faults.
