Replace Damaged Model Y Mirror Glass
This heated mirror glass insert replaces cracked or damaged glass on the left or right side mirror of the Tesla Model Y while you keep your working mirror housing and adjuster. Each insert comes with an attached backing plate, heater film and two heater terminals. It is a heating-only version without automatic dimming, and a new aftermarket replacement, not a genuine Tesla part.
- Heated
- Left or Right
- Backing Plate Included
- Non-Auto-Dimming
Key Features
-
Glass Insert Repair
Replaces the reflective face and its backing without replacing the mirror housing
-
Heater Film
A built-in heater film connects through two individual metal terminals
-
Left or Right
Choose the vehicle's left (LH) or right (RH) side; one insert per order
-
Backing Plate Included
The mirror glass comes with an attached backing plate
-
Non-Auto-Dimming
This is the heating-only version without electrochromic dimming
-
Aftermarket Part
A new aftermarket replacement, not a genuine Tesla part
Highlights

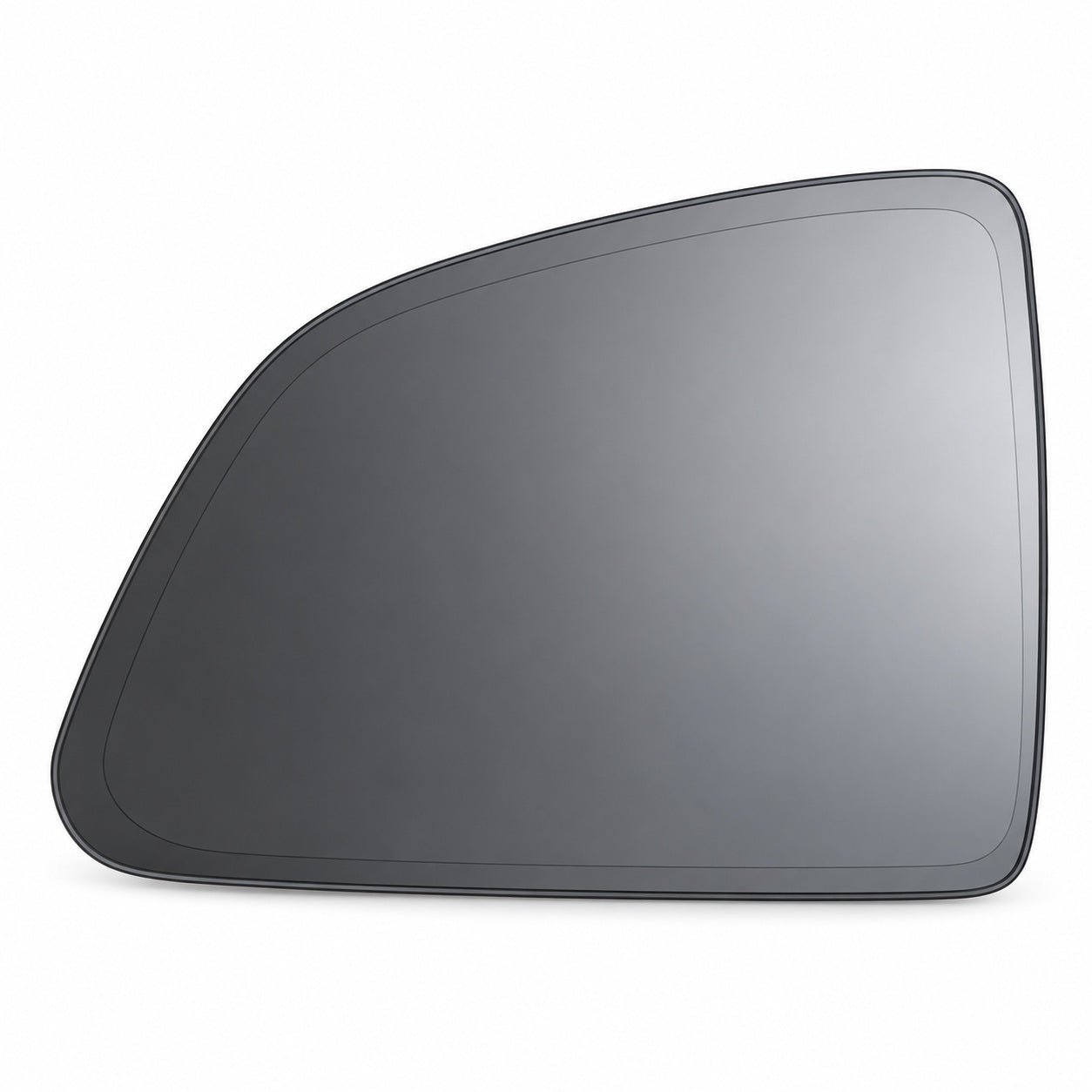

Left-Side Insert
The Left (LH) option is for the vehicle’s left side when facing forward. It is sold as one insert, regardless of whether the steering wheel is on the left or right.

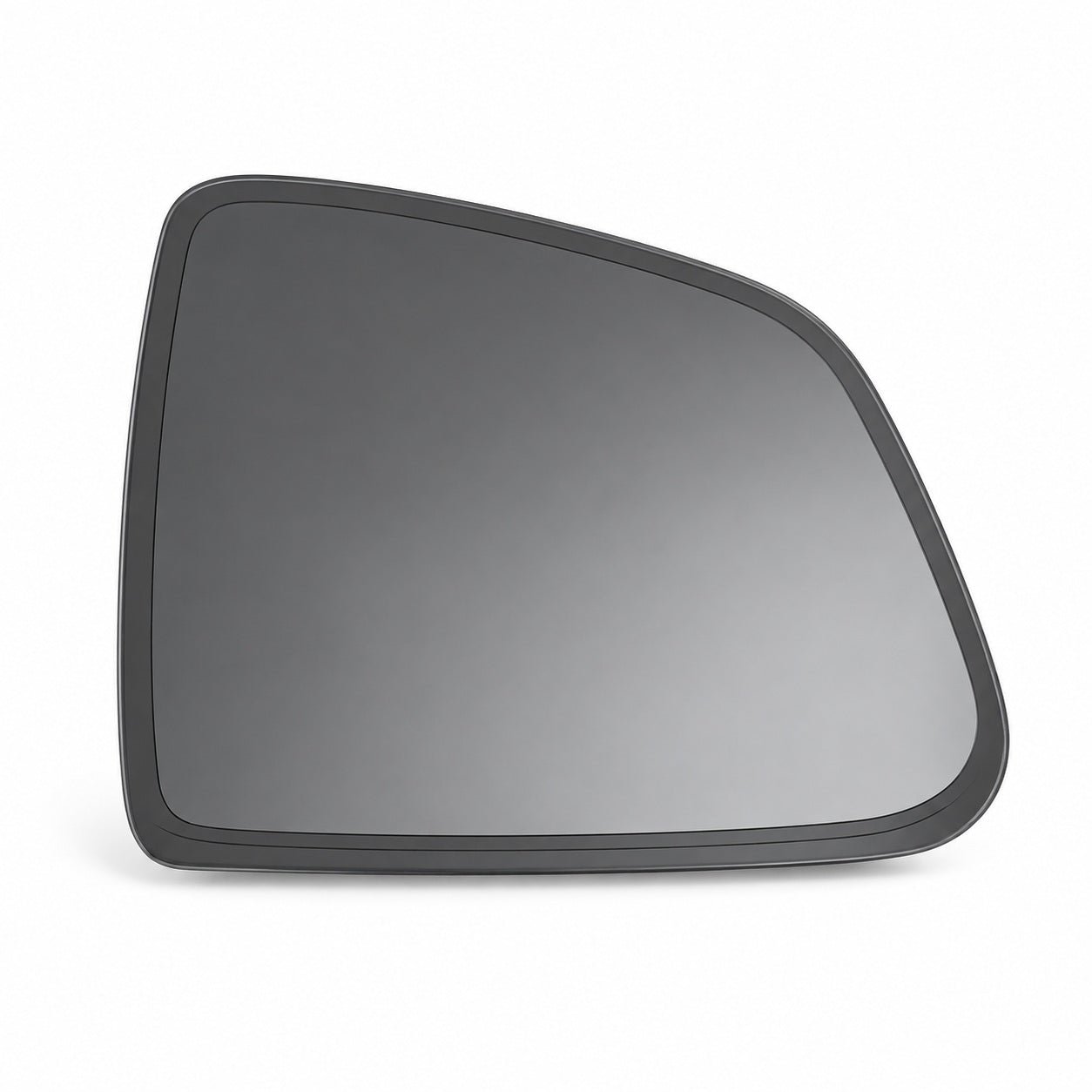

Right-Side Insert
The Right (RH) option is for the vehicle’s right side when facing forward. To replace both sides, order one of each; two of one option are for the same side.
Heating Without Auto-Dimming
Each insert includes a backing plate, heater film and two heater terminals. It does not provide electrochromic automatic dimming, and the photos show the reflective face rather than the connections.
Identify the Actual Glass
1495624-00-A (LH) and 1495625-00-A (RH) are original-glass identification references. They do not establish interchangeability or matching market-specific optics for this aftermarket insert.
Compatibility
| Model | Years / Version | Notes |
|---|---|---|
| Model Y | Non-auto-dimming replacement glass. |
No year range is specified. LH/RH side alone does not determine the glass specification.
Specifications
| Product Type | Heated mirror glass insert with backing plate, aftermarket replacement |
|---|---|
| Compatible Models | Tesla Model Y |
| Position / Location | Left (LH) or right (RH) side mirror |
| Material | Mirror glass with attached backing plate and heater film |
| Quantity | 1 insert for the selected side |
| Connector Type | Two individual heater terminals |
| OEM Part Number | Original-glass identification references: LH 1495624-00-A; RH 1495625-00-A. These are not assigned interchange numbers for this insert. |
| Installation Type | Circular clip-on backing for the mirror adjustment mechanism |
| Package Contents | 1 mirror glass with backing plate, heater film and two heater terminals |
| Shipping Weight | 500 g; catalog shipping weight, not measured insert weight |
What's in the Box
- 1×Mirror glass insert with attached backing plate, heater film and two heater terminals
Installation
- Support the glass and protect the housing.
- Release the matching mounting tabs with suitable plastic tools and identify the existing connectors before disconnection. Do not pull on the wiring.
- Connect the compatible heater circuit to the insert’s two terminals. This insert has no auto-dimming connection; the fitter must handle any separate existing circuit correctly rather than modifying or bridging it.
- Seat the backing evenly on the adjuster.
Good to Know
Caution
- Heated, non-auto-dimming glass only; choose a separate electrochromic glass replacement if you want to keep auto-dimming.
- Glass inserts do not repair a broken housing, adjustment motor or folding mechanism.
- Mirror glass has market-specific optical specifications.
- Original glass reference numbers are listed for identification; they are not interchange numbers for this aftermarket insert.
- If preserving factory auto-dimming is required, choose a replacement with that function. Do not bridge or improvise wiring for an unsupported dimming circuit.
Care
- Clean with a soft cloth and products compatible with the mirror face and backing. Avoid scraping, harsh abrasives or soaking the electrical connections.
FAQ
Is one selection a pair?
No. One selection supplies one mirror-glass insert for the chosen side. To replace both sides, order one Left (LH) and one Right (RH).
Are these genuine Tesla parts?
No. These are new aftermarket replacement mirror-glass inserts for Model Y.
Does this glass automatically darken at night?
No. Both side options are heated, non-auto-dimming glass.
Can this repair a loose or broken mirror motor?
No. Repair the mounting or adjustment mechanism first. This product replaces the mirror glass and its backing plate.
