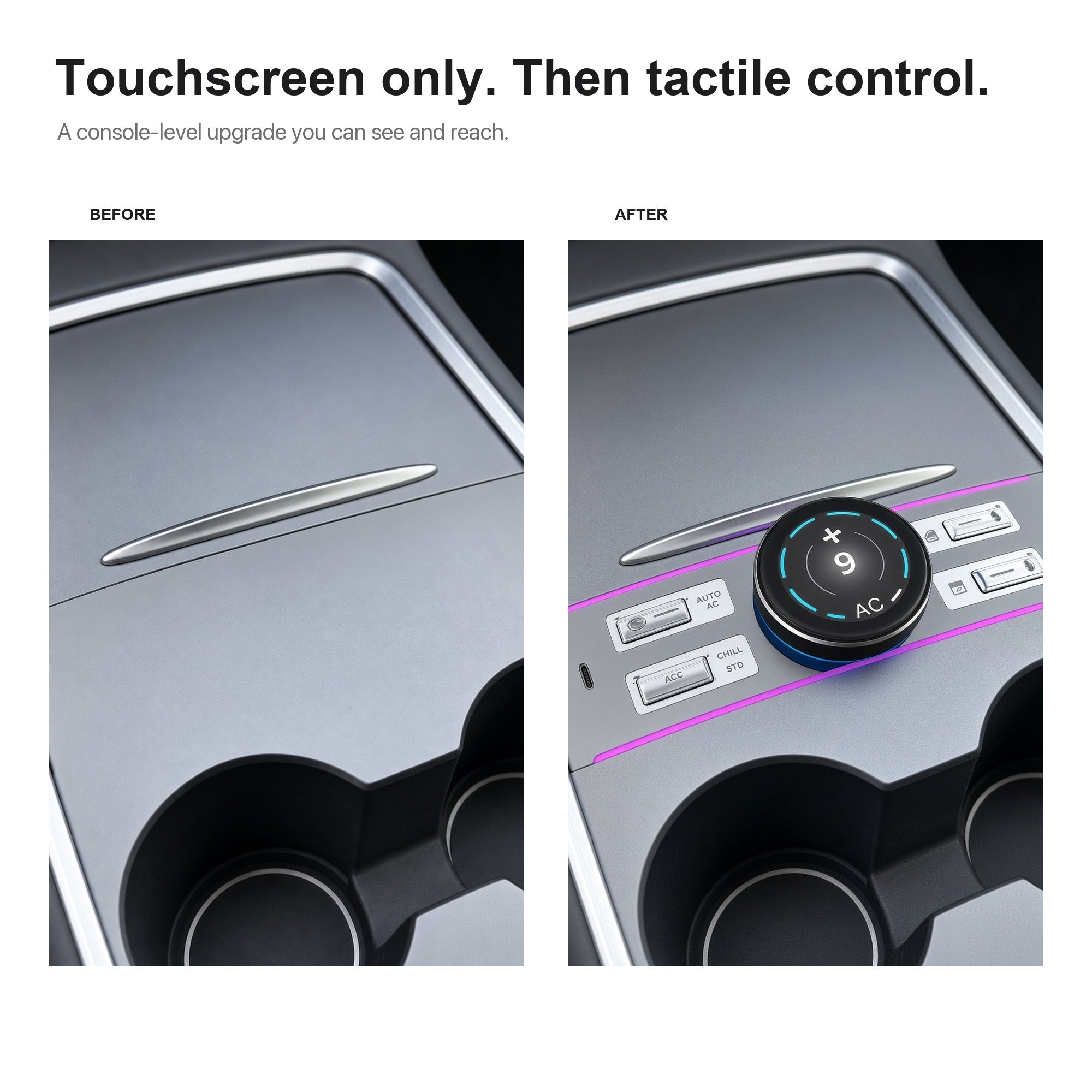

Put Common Controls Under Your Hand
This center-console dock combines a 1.46-inch round IPS LCD at 360 × 360 resolution, a rotary knob, four shortcut keys and two USB-C ports. Each panel version is made for one console generation. Supported vehicle functions depend on the car’s equipment and the dock’s software configuration.
- Rotary Knob
- 4 Shortcut Keys
- Round IPS Display
- Dual USB-C

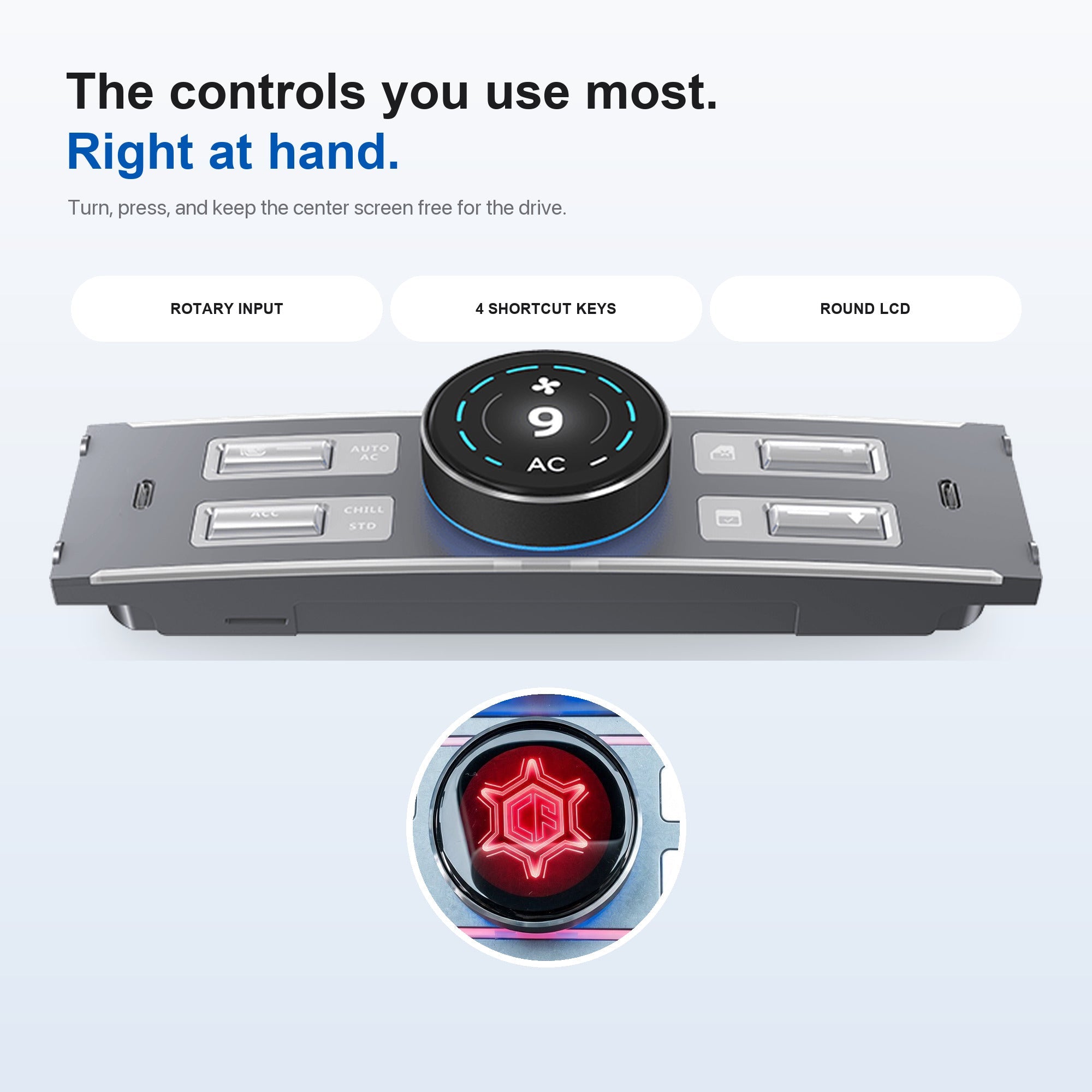

Key Features
-
Ten-Mode Rotary Knob
Turn and press to select supported climate, media, passenger-seat, lock and mirror functions; availability depends on the matched hardware and software.
-
Four Shortcut Keys
Direct keys for automatic climate, acceleration mode, rear-window lock and glove box, with hold actions on three keys
-
Round IPS Display
A 1.46-inch round LCD with 360 × 360 resolution shows the active control
-
Custom Display Image
Upload a custom image or logo to the round display
-
Dual USB-C Ports
One USB-C port at each end of the panel, listed at 5 V
-
Panel-Light Switching
Switch the panel-light effect for after-dark use
-
Two Console Versions
Options for pre-refresh and refreshed Model 3 and Model Y consoles
Highlights

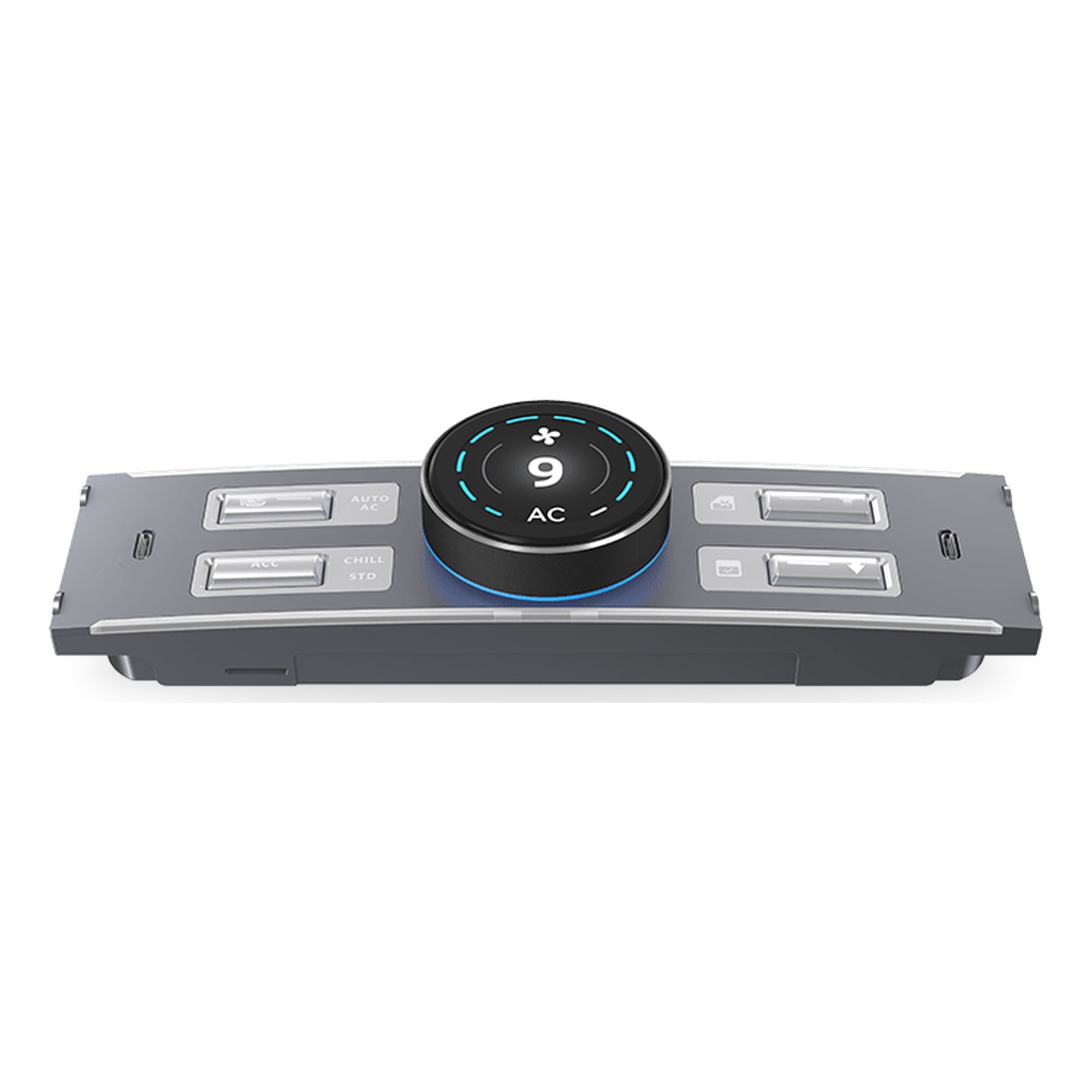

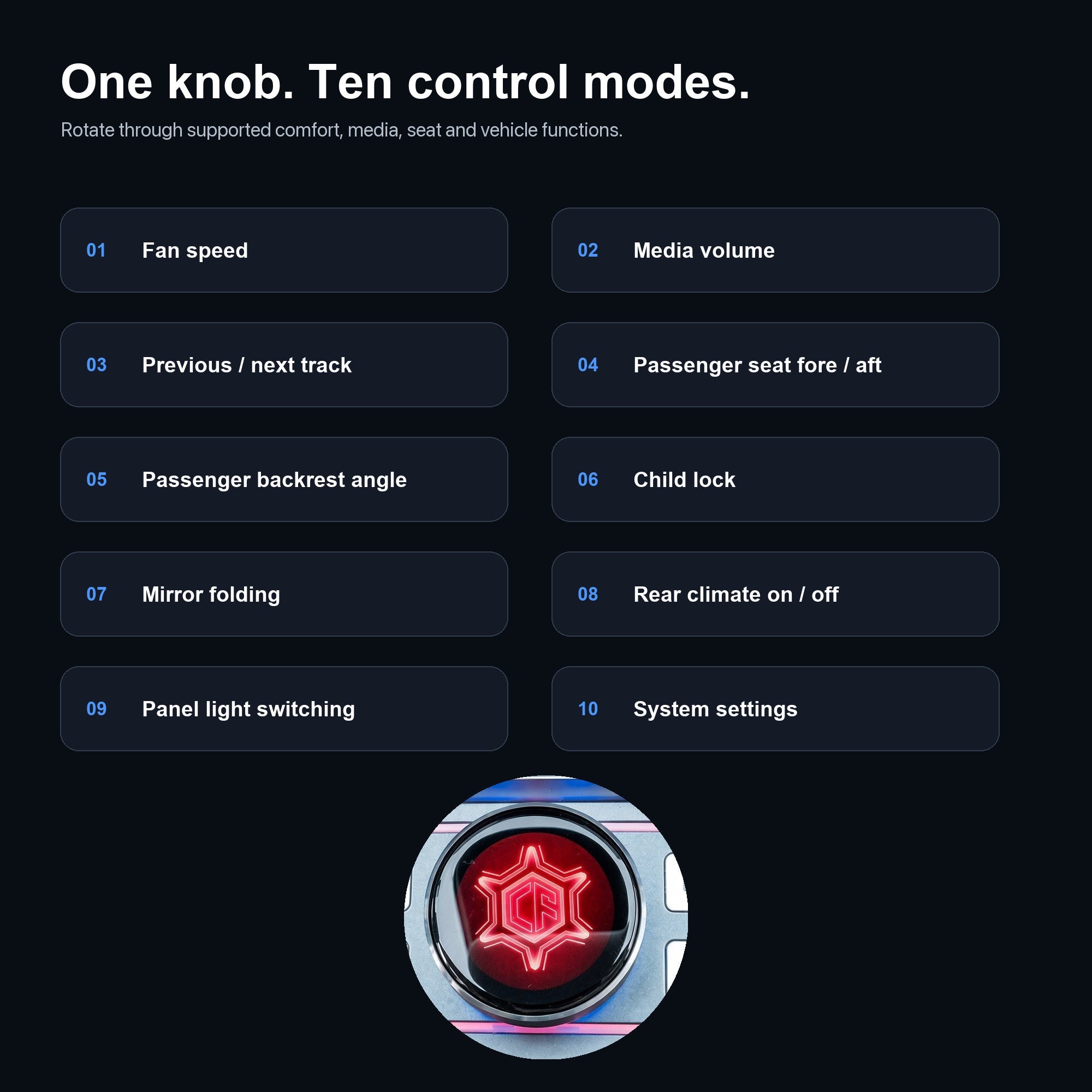

One Knob, Ten Modes
Rotate through climate fan speed, media volume, previous and next track, passenger seat fore and aft, passenger backrest angle, child lock, mirror folding, rear climate on and off, panel-light switching and system settings. The available functions depend on the vehicle and matched dock configuration.

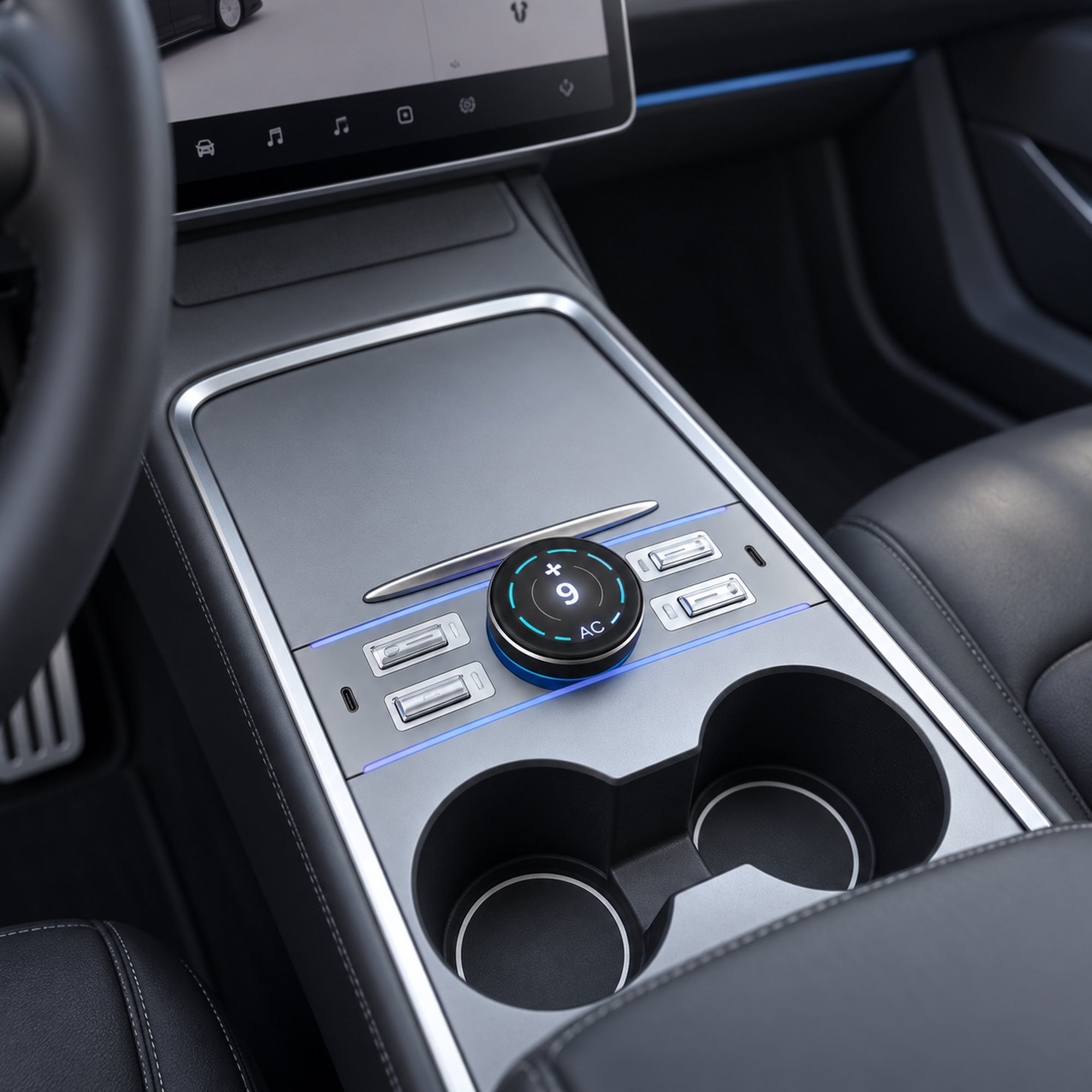

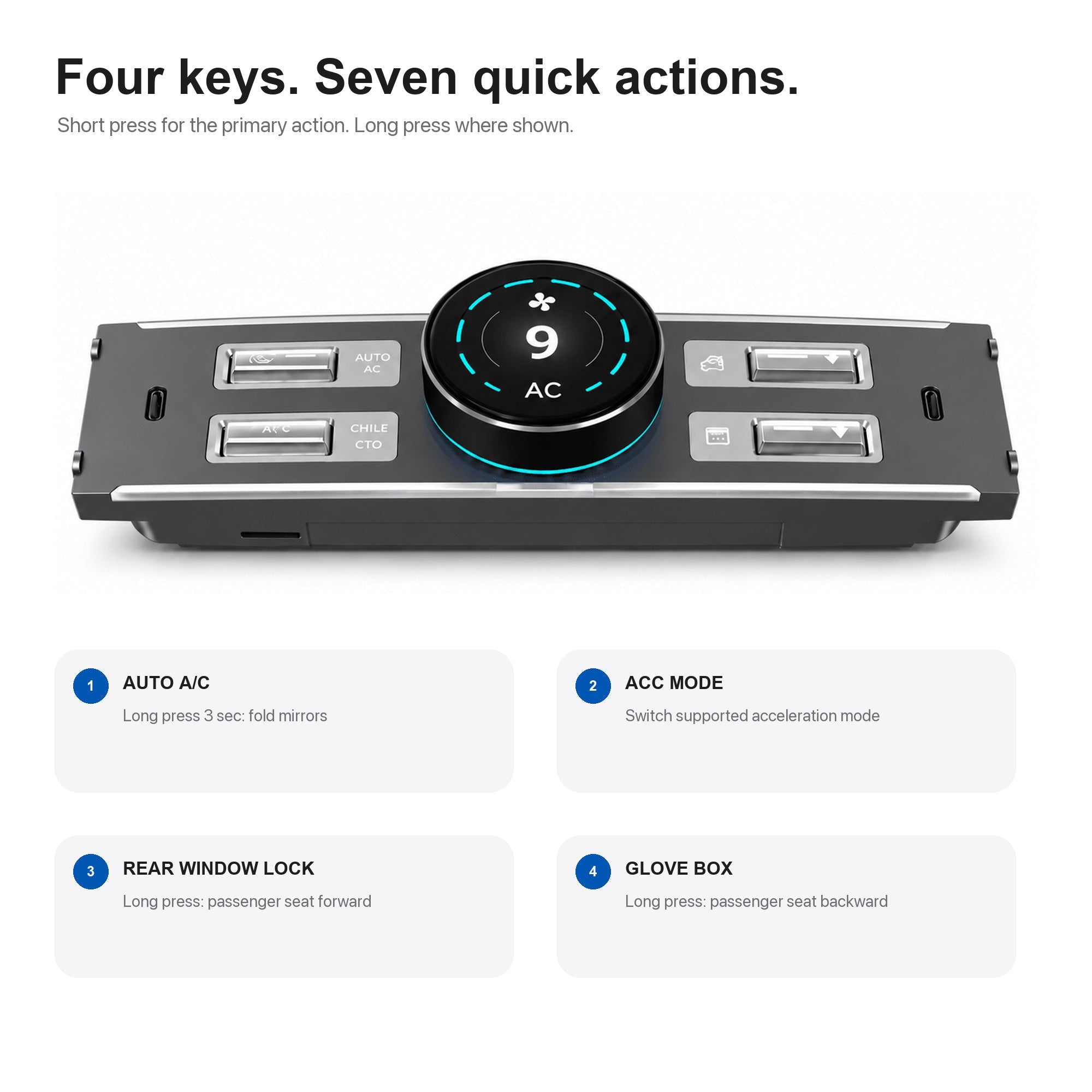

Four Keys, Seven Actions
Upper left is automatic climate, with a 3-second hold to fold the mirrors. Lower left switches the supported acceleration mode. Upper right locks the rear windows, with a hold to move the passenger seat forward. Lower right opens the glove box, with a hold to move the passenger seat backward.

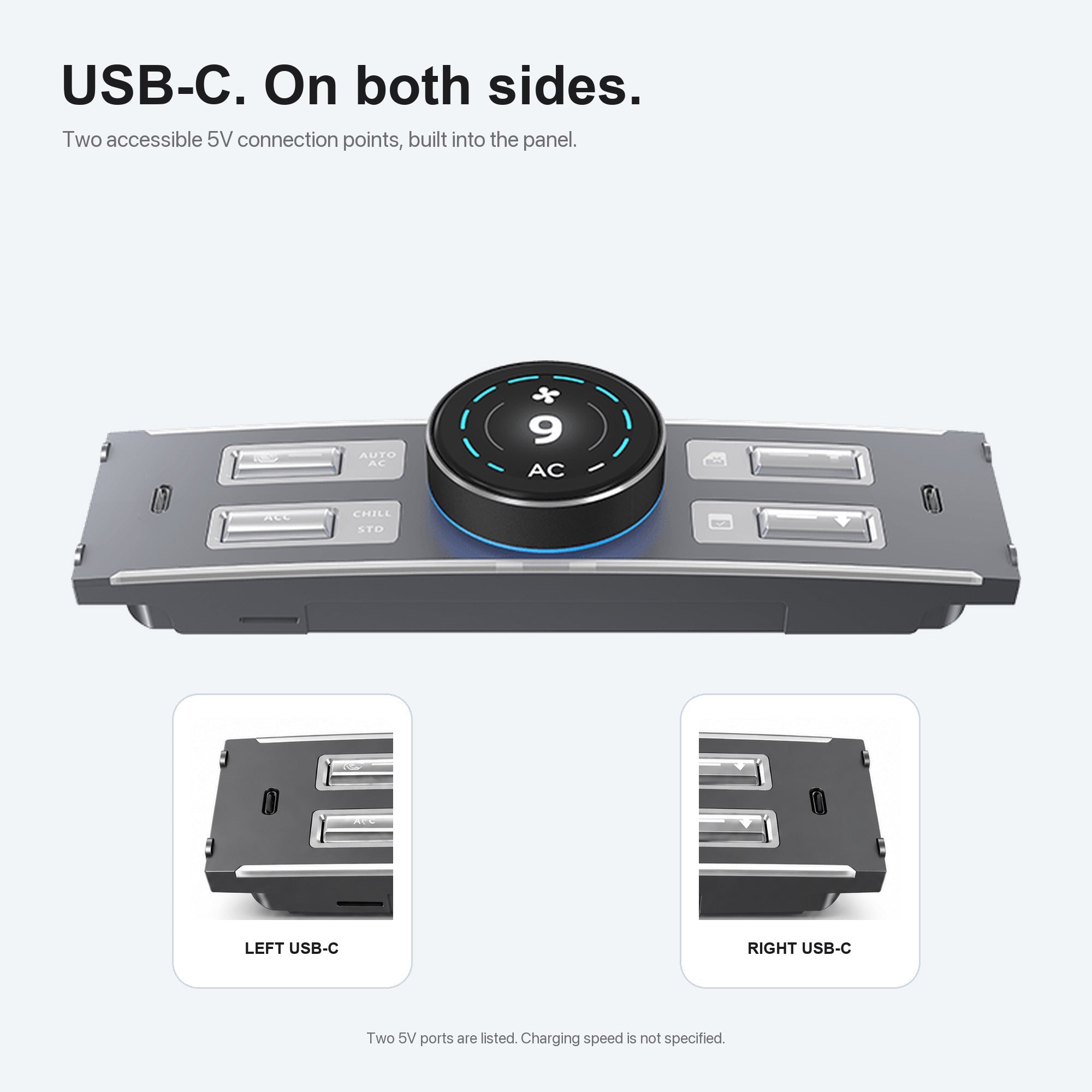

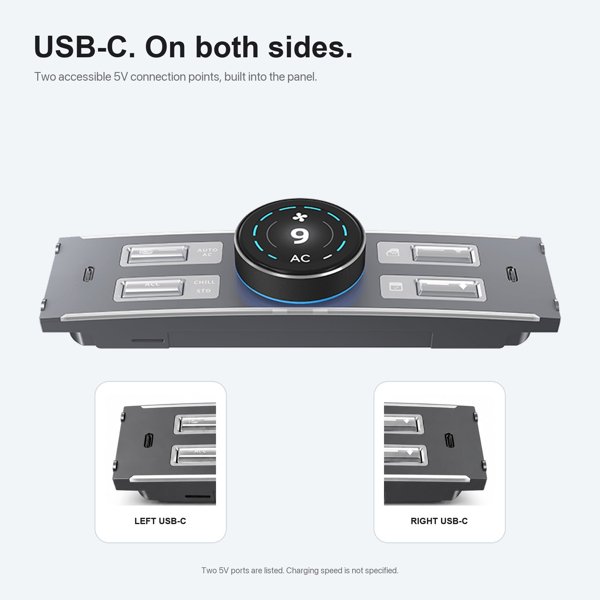

USB-C on Both Sides
One USB-C port sits at each end of the panel. The specification lists 5 V and does not give a fast-charging power rating.

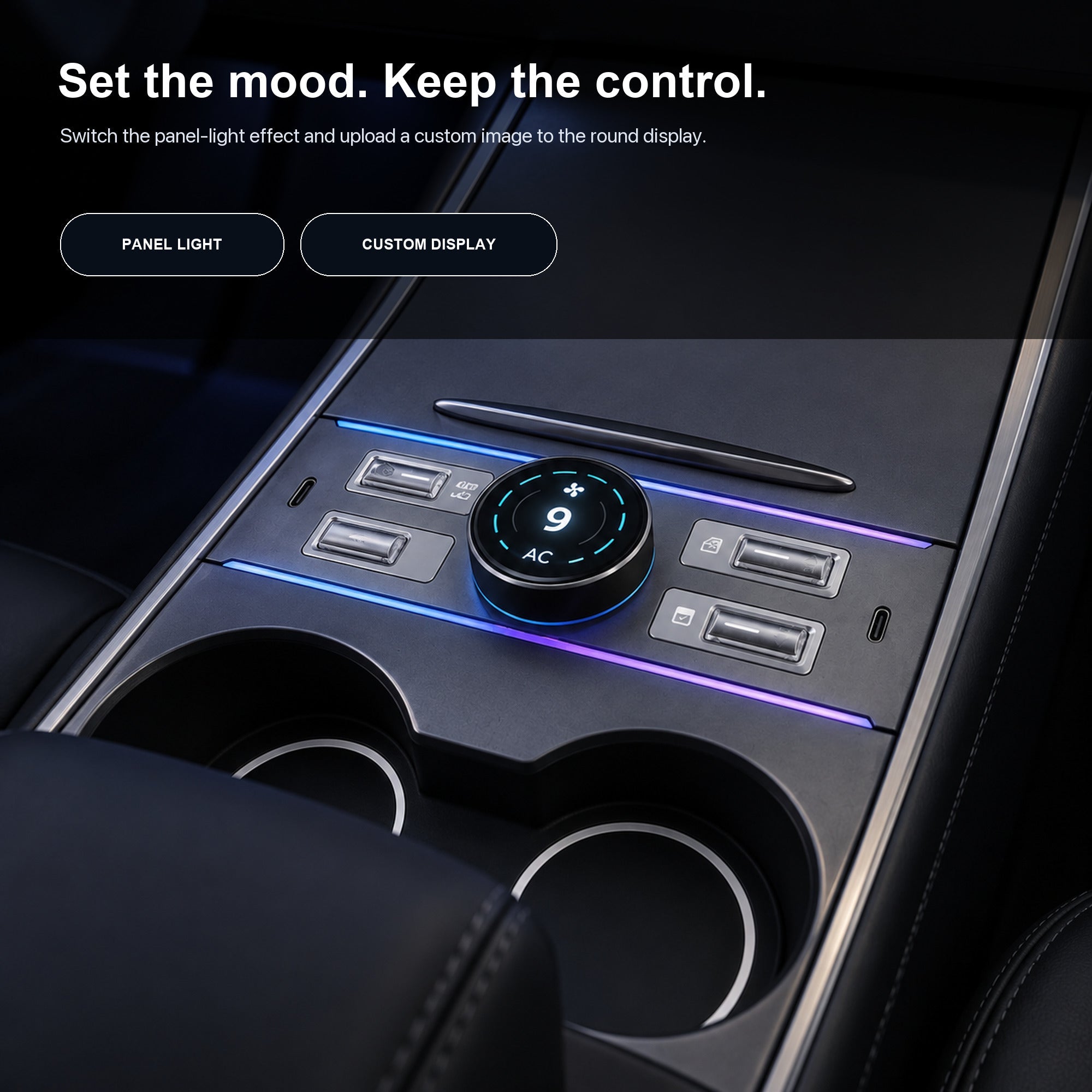

Round Display and Light Effects
Switch the panel-light effect and upload a custom image or logo to the round display while the rotary controller stays ready for the next task.

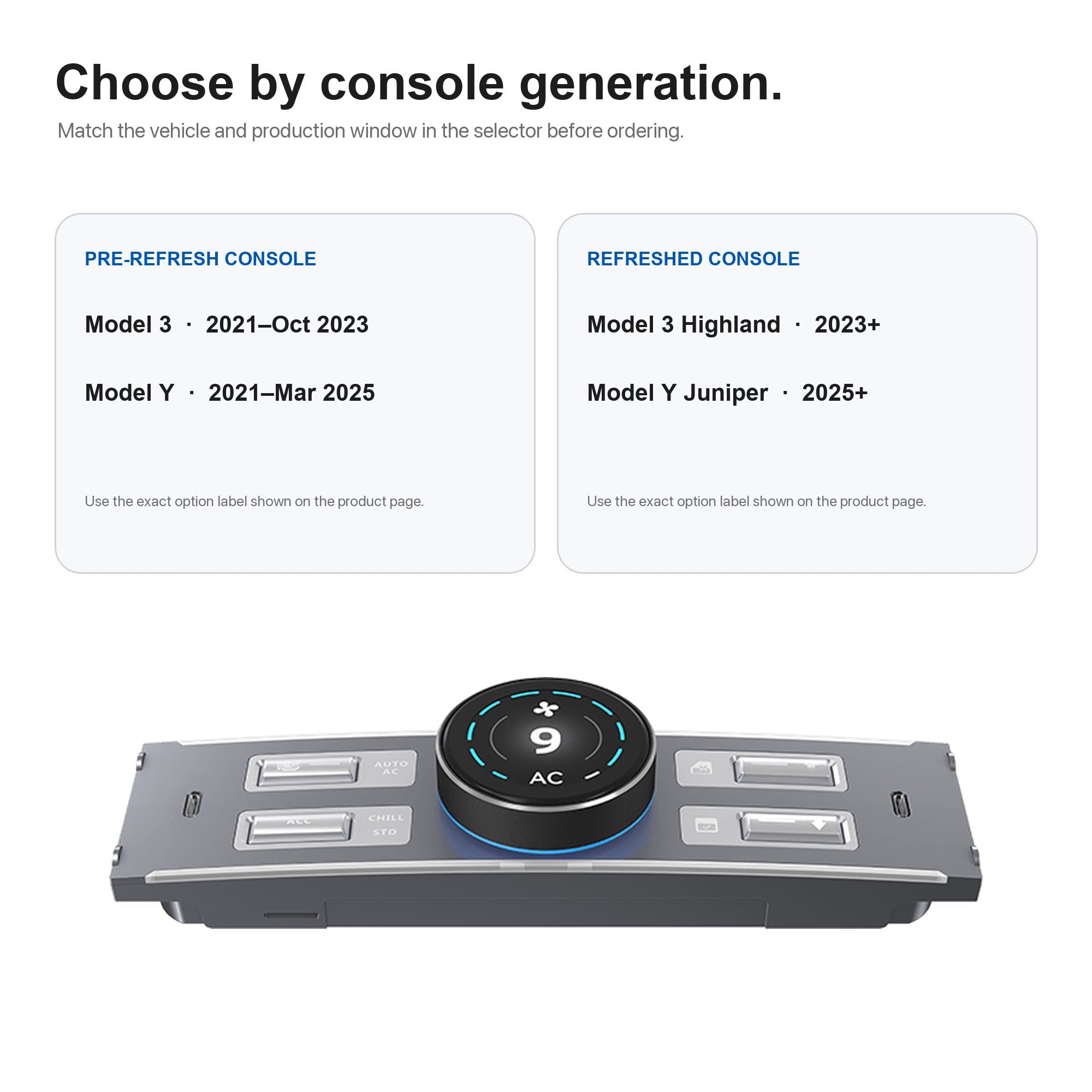

Compatibility
| Model | Years / Version | Notes |
|---|---|---|
| Model 3 | 2021–2023.10 | Pre-refresh console |
| Model Y | 2021–2025.03 | Pre-refresh console |
| Model 3 Highland | 2023+ | Refreshed console |
| Model Y Juniper | 2025+ | Refreshed console |
The selector offers TSL7017 for the pre-refresh console and TSL7017-new for Highland/Juniper. Not every software version supports every action.
Specifications
| Product Type | Console LCD rotary control dock with dual USB-C |
|---|---|
| Compatible Models | Model 3 2021–2023.10, Model Y 2021–2025.03; Model 3 Highland 2023+, Model Y Juniper 2025+ |
| Position / Location | Center console panel position |
| Screen Size | 1.46 in (3.7 cm) round |
| Resolution | 360 × 360 |
| Display Type | Round IPS LCD |
| Ports | 2 × USB-C, one on each side |
| Voltage | 5 V (USB-C ports) |
| Control Method | 1 rotary knob with 10 modes and 4 shortcut keys with 7 actions |
| Installation Type | Vehicle-specific interconnect harness; panel seats into the console position |
| Shipping Weight | 260 g (0.6 lb) |

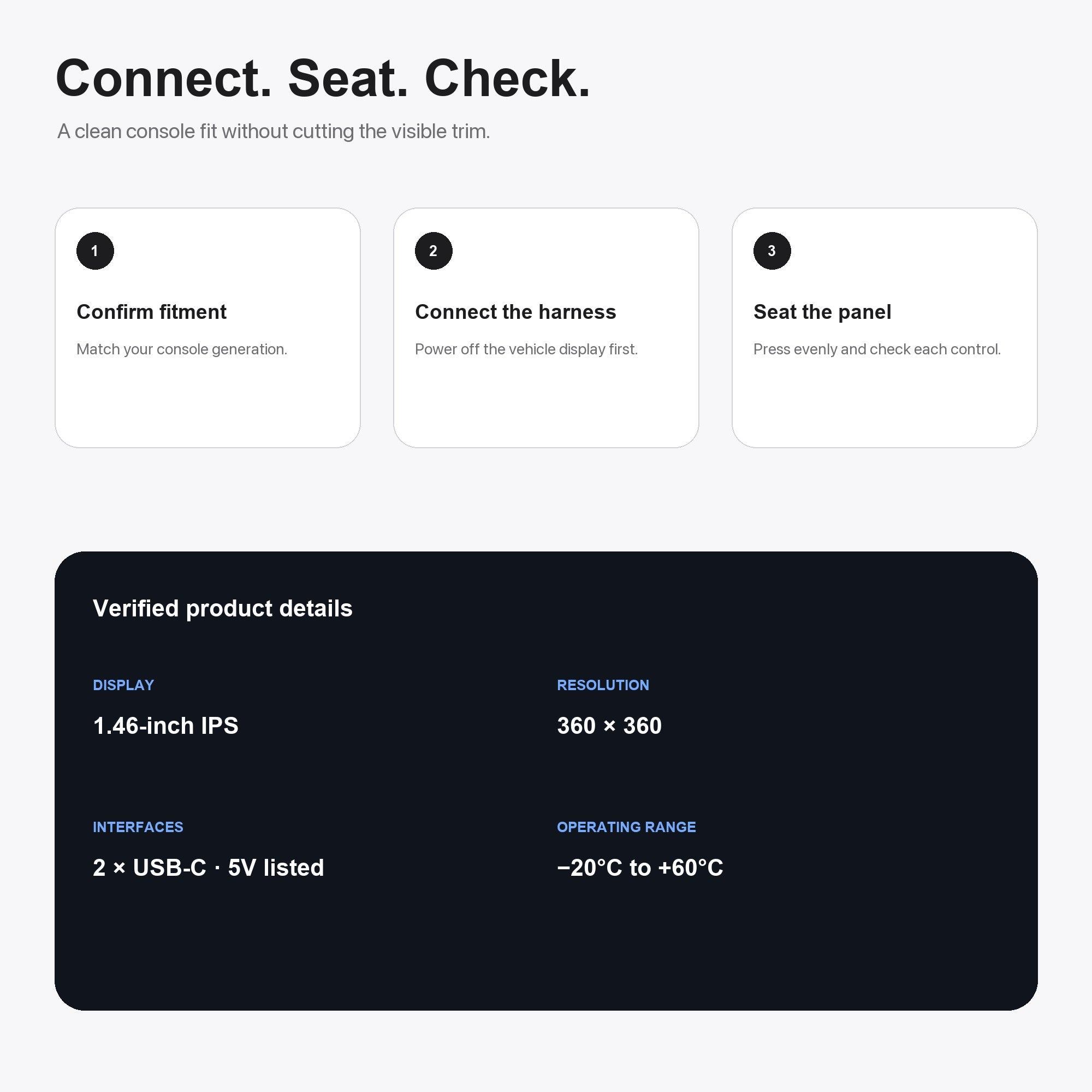

Installation
- Route the harness clear of moving console parts and seat the panel evenly without trapping wires.
Good to Know
Caution
- Function availability depends on equipment and software configuration.
- Installation uses vehicle electrical connections; use the applicable isolation procedure and matching kit instructions, rather than relying on a dark display alone.
Care
- Keep liquids out of the knob, keys, display and USB ports; clean with a soft cloth.
- Configure the display and learn control mappings while parked. Use the original vehicle controls if a function does not respond correctly.
FAQ
Does the dock have dual USB-C ports?
Yes. The dock has one USB-C port on the left and one on the right.
Do the USB-C ports support fast charging?
The specification lists 5 V and does not provide a fast-charging wattage, so no fast-charge output is stated.
Do all listed controls work on every vehicle?
The product lists ten knob modes and seven key actions. Availability can vary with vehicle equipment and software or firmware configuration.
Can the round LCD show a custom image?
Yes. Custom image or logo upload is listed as a supported display function.
Which version fits which console?
TSL7017 fits the pre-refresh console; TSL7017-new fits Highland/Juniper.
