8.8-Inch Instrument Display for Model 3 and Model Y
Place a supplementary IPS touch display behind the steering wheel for vehicle information and compatible phone navigation or audio. The 8.8-inch screen uses a 1280 × 480 resolution and a Linux interface with Chinese and English languages. Choose the left-hand-drive kit for the actual vehicle generation.
- 8.8-Inch IPS Touch
- 1280 × 480 Pixels
- Linux Interface
- Left-Hand Drive
Key Features
-

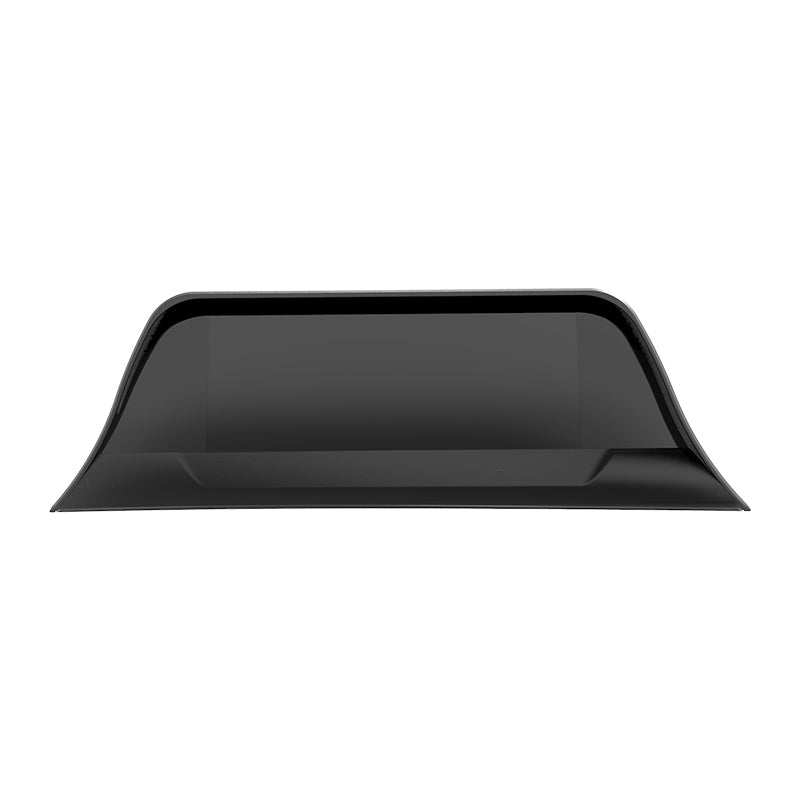

8.8-Inch Touch Display
An IPS screen with 1280 × 480 resolution provides a driver-facing panel behind the steering wheel.
-
Vehicle Information
Supported vehicle signals include gear, speed, light indicators, battery and range, plus door and seat-belt reminders; available information depends on the vehicle and software.
-

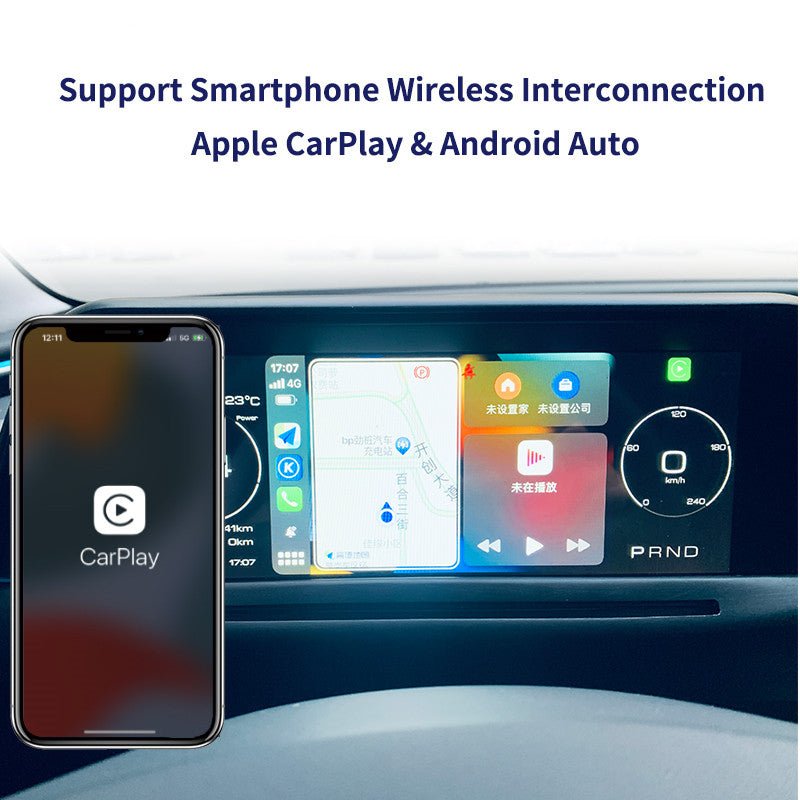

Phone Interconnection
Connect a compatible phone for navigation, music and online radio; supported phone functions depend on the device and connection software.
-
Linux Interface
The system offers Chinese and English languages and a cluster-style graphic layout.
-
OTA Update Support
The display supports online system updates; use software intended for the exact unit and follow its update instructions.
-
Vehicle-Specific Harness
Each model kit has its own power and interface harness.
Highlights

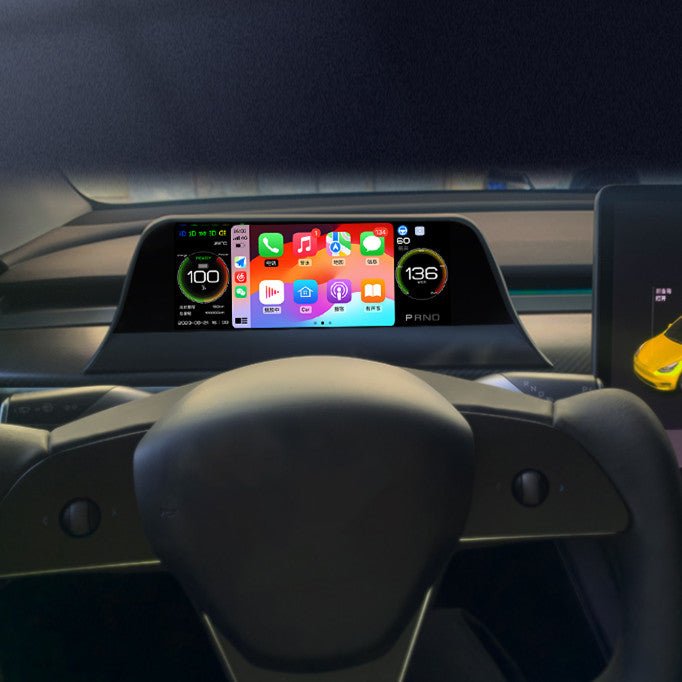

Driver-Facing Display

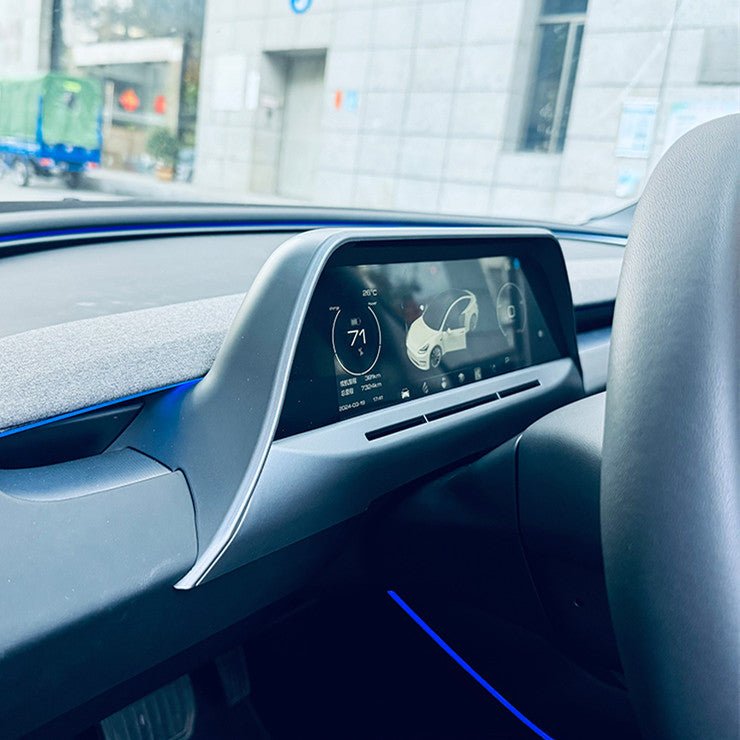

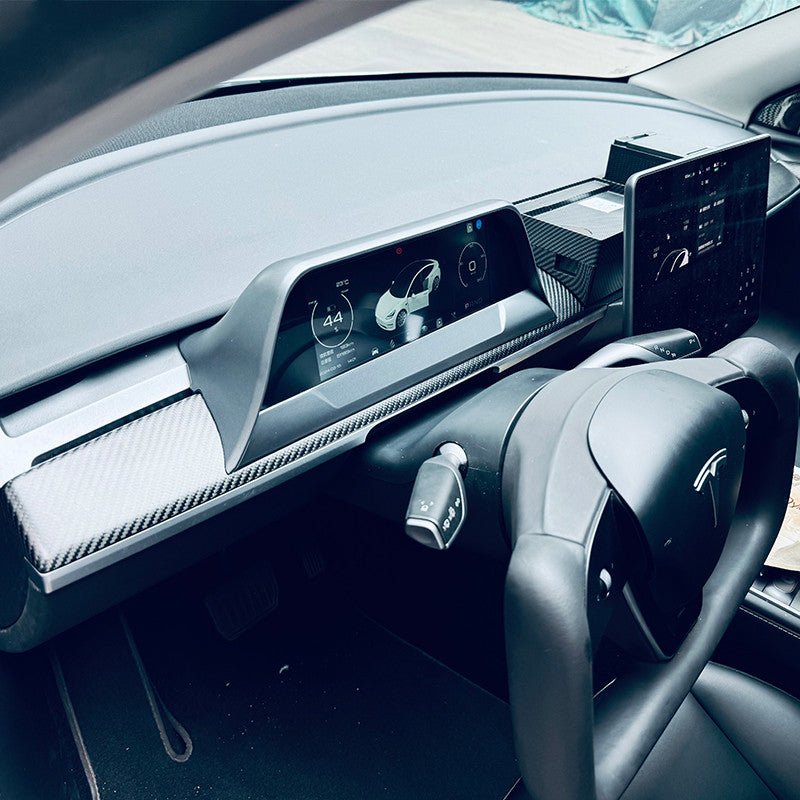

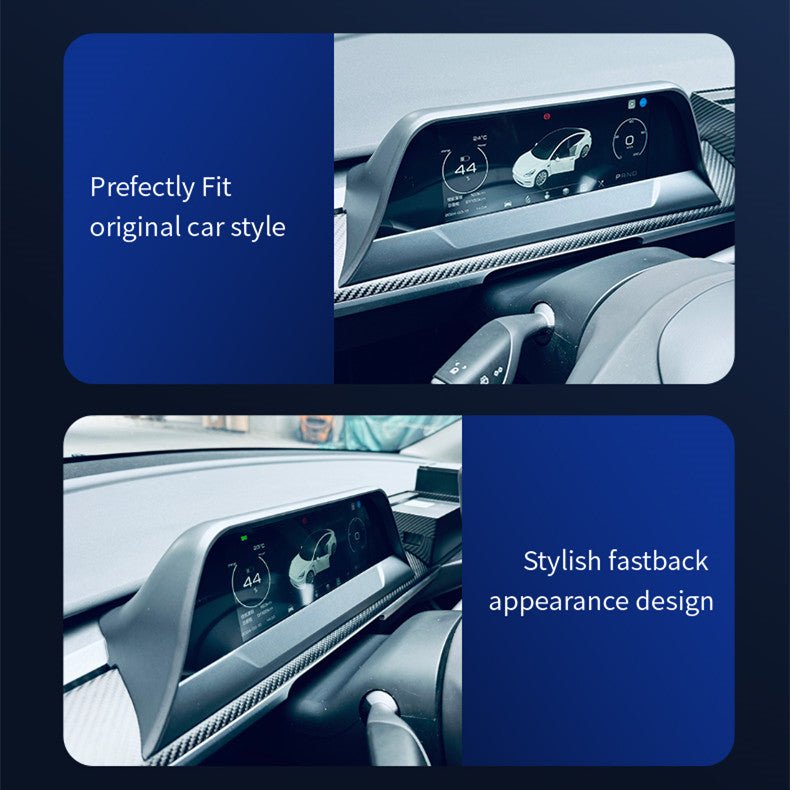

The installed example shows the screen positioned behind the steering wheel with a cluster-style graphic layout. Dashboard trim and steering-wheel accessories pictured are not part of the display packing list.
Vehicle and Phone Information
Supported vehicle signals can be shown alongside compatible phone navigation and audio functions.
Matching Model Kit
The older Model 3/Y, Highland/Juniper and Model YL kits have separate vehicle selections.
Compatibility
| Model | Years / Version | Notes |
|---|---|---|
| Model 3 | 2017–October 2023 | Left-hand drive; older Model 3/Y kit TSL6509 |
| Model Y | 2020–March 2025 | Left-hand drive; older Model 3/Y kit TSL6509 |
| Model 3 Highland | 2024+ | Left-hand drive; Highland/Juniper kit TSL6509-new |
| Model Y Juniper | 2025+ | Left-hand drive; Highland/Juniper kit TSL6509-new |
| Model YL | 2026+ | Left-hand drive; Model YL kit TSL6509-YL |
Each vehicle selection has its own electrical version; Please select is not a vehicle option.
Specifications
| Product Type | Instrument cluster display |
|---|---|
| Compatible Models | Tesla Model 3 2017-2023.10 and Model Y 2020-2025.03, Model 3 Highland 2024+ and Model Y Juniper 2025+, and Model YL 2026+; left-hand drive only |
| Position / Location | Driver-facing dashboard display behind the steering wheel |
| Material | ABS and PC housing |
| Screen Size | 8.8 inch (22.4 cm) |
| Resolution | 1280 × 480 pixels |
| Display Type | IPS touch screen |
| Operating System | Linux, with Chinese and English languages |
| Processor / Memory | ARK1668 CPU |
| Ports | USB 2.0 expansion interface |
| Installation Type | Vehicle-specific interface harness |
| Hand Drive (LHD/RHD) | Left-hand drive |

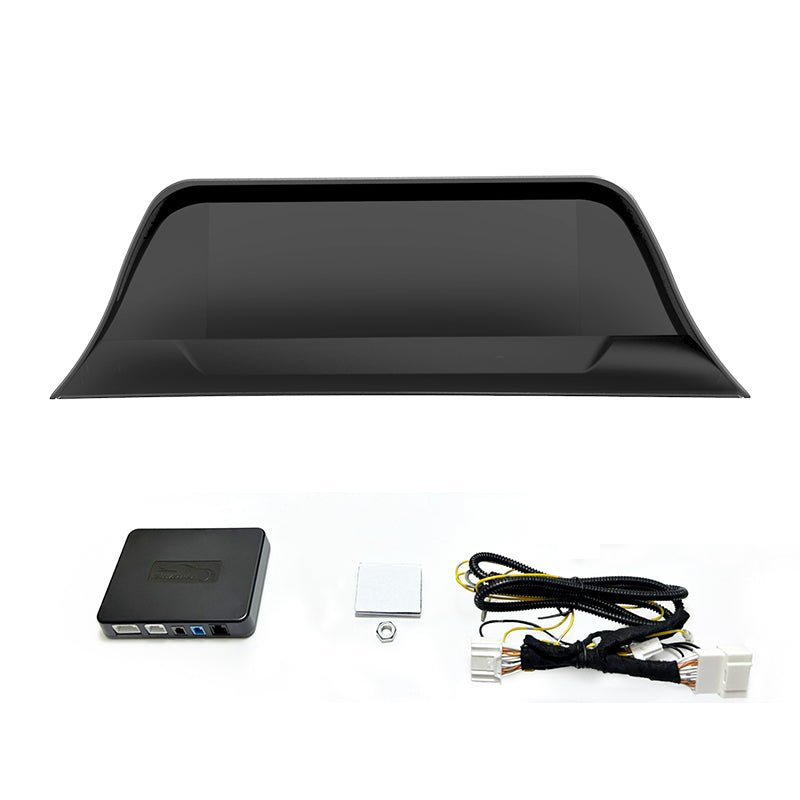

What's in the Box
- 1×8.8 inch instrument cluster display
- 1×Power cord
- 1×USB cable
- 1×Fixed base bezel
- 7×Screws
- 1×User manual
Installation
- Connect its low-voltage power and original-interface harness. Do not guess wiring assignments or cut vehicle wiring to force a mismatch.
- Mount the display and route cables as instructed, keeping airbags, vents, sensing equipment and the full steering adjustment range clear.
- Pair a compatible phone and adjust settings.
Good to Know
Caution
- Use the original vehicle display for essential driving information and warnings. This supplementary screen does not replace the vehicle controls, restraint indicators or warning systems.
- Connect only through the product-approved low-voltage arrangement. Do not connect to high-voltage components or guess terminal assignments, polarity or pinouts.
- Set up phone pairing and menus while parked; avoid video and distracting interaction while driving. Do not choose the Please select placeholder vehicle option.
Care
- Clean the display with a soft microfiber cloth; avoid abrasive cleaners and spraying liquid into the housing or connectors.
- Keep screen brightness suitable for driving conditions and use the original vehicle warnings as the reference.
- Use updates intended for the exact unit and follow the product instructions; do not interrupt a running update.
FAQ
Does it fit right-hand-drive vehicles?
The available driver-position option is Left Hand Drive.
Is this a windshield-projected head-up display?
No. It is a physical 8.8-inch dashboard screen positioned behind the steering wheel.
What is in the packing list?
One display, one power cord, one USB cable, one fixed-base bezel, seven screws and one user manual.
Does it connect by plug shape alone?
No. It uses the specified low-voltage connection and the kit’s own harness.
Does it replace the original Tesla screen?
No. It provides supplementary vehicle information and compatible phone functions; retain the original screen and warning systems.
