Model Y Rear Console Refrigerator
Keep beverages in a compressor-cooled compartment at the rear of your Model Y center console. The front-opening refrigerator mounts below the rear air outlet, with a beverage organizer inside and controls at the top.
- Compressor Cooling
- Rear Console Mount
- Front-Opening Door
- Beverage Organizer
Key Features
-
Compressor Cooling
A compressor-cooled compartment provides space for beverages during travel.
-

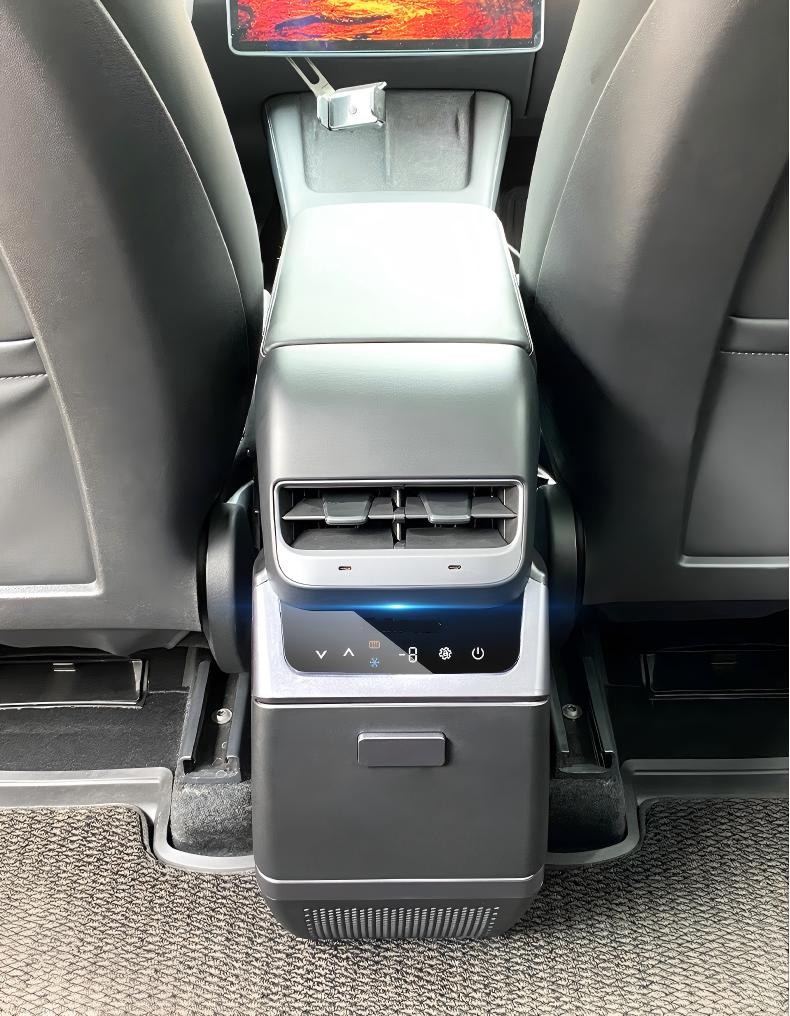

Rear Console Position
The unit mounts at the rear of the front center console, below the retained rear air outlet.
-

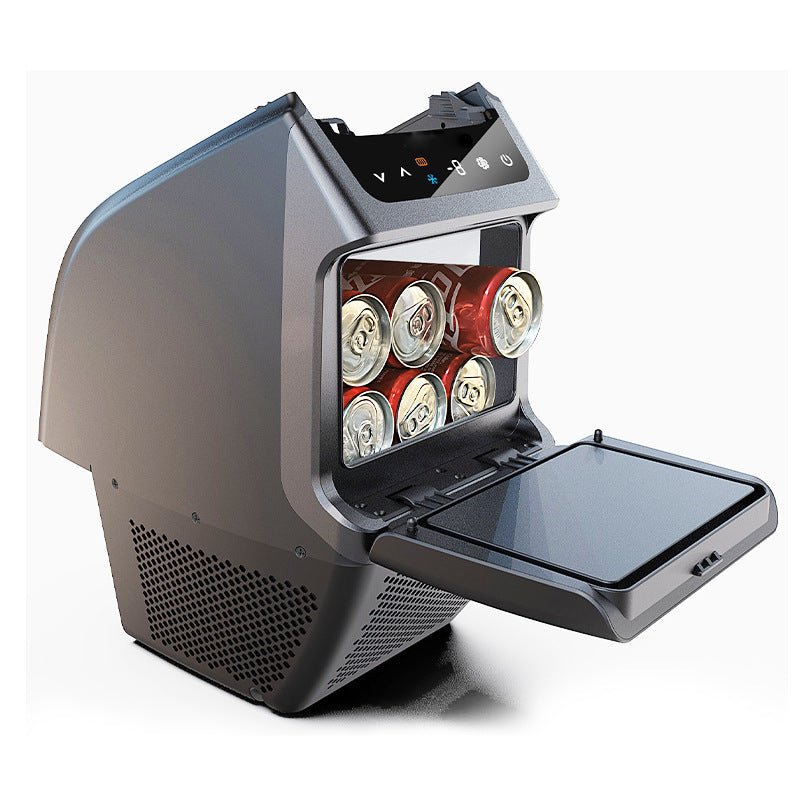

Front-Opening Door
The door folds down to provide access to the chilled compartment.
-
Beverage Organizer
A holder insert separates beverage positions inside the compartment.
-
Integrated Controls
A control panel is positioned at the top of the refrigerator housing.
-
Harness Installation
Fitting involves rear console trim removal and a Y-split harness connection behind the air outlet.
Highlights

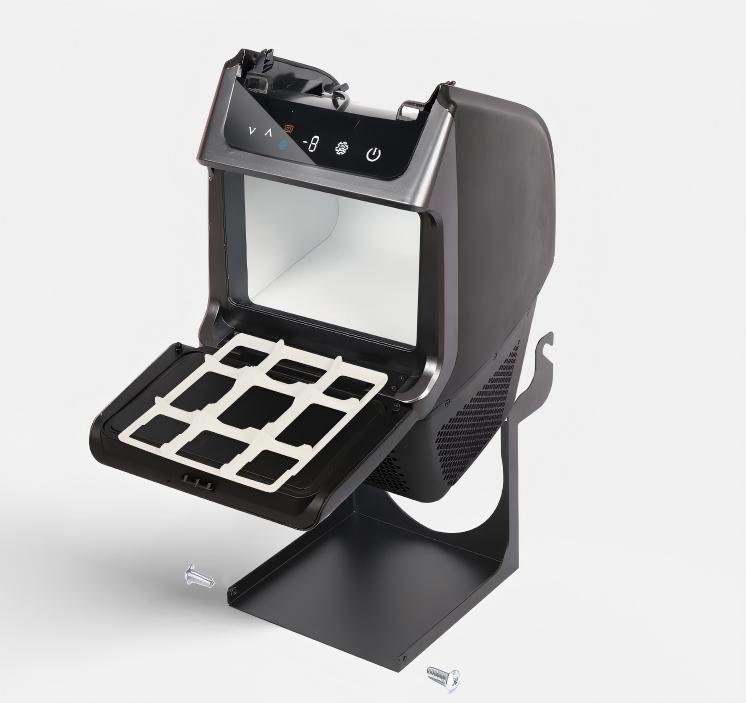

A Front-Opening Compartment
The door folds down for access to the interior. The unit mounts behind the front center console rather than inside the rear seat armrest.

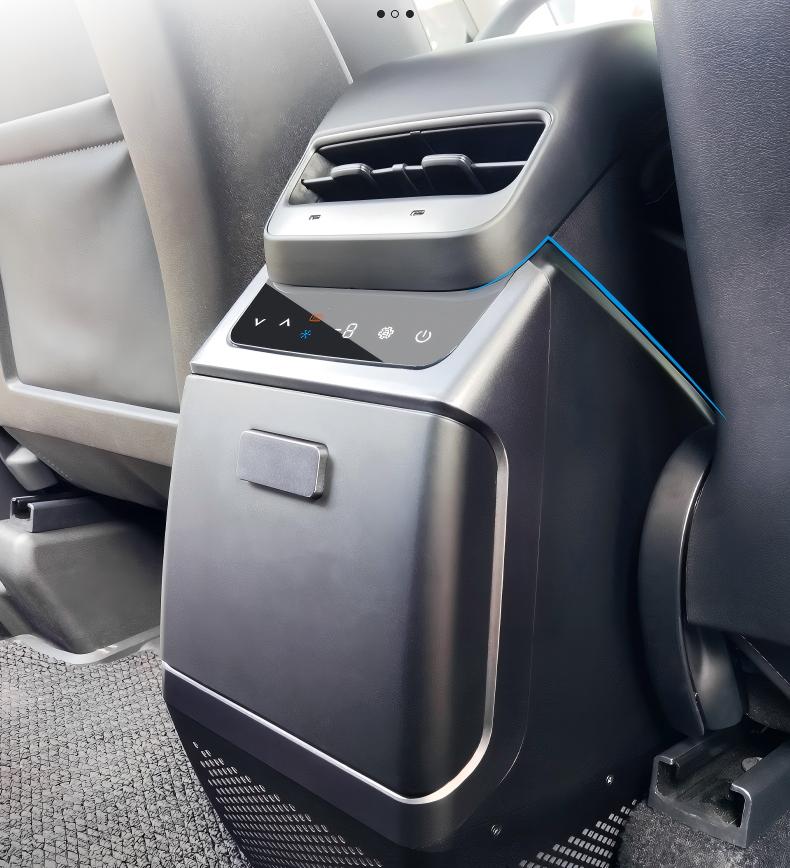

Rear Console Installation
The refrigerator sits below the retained rear air outlet.

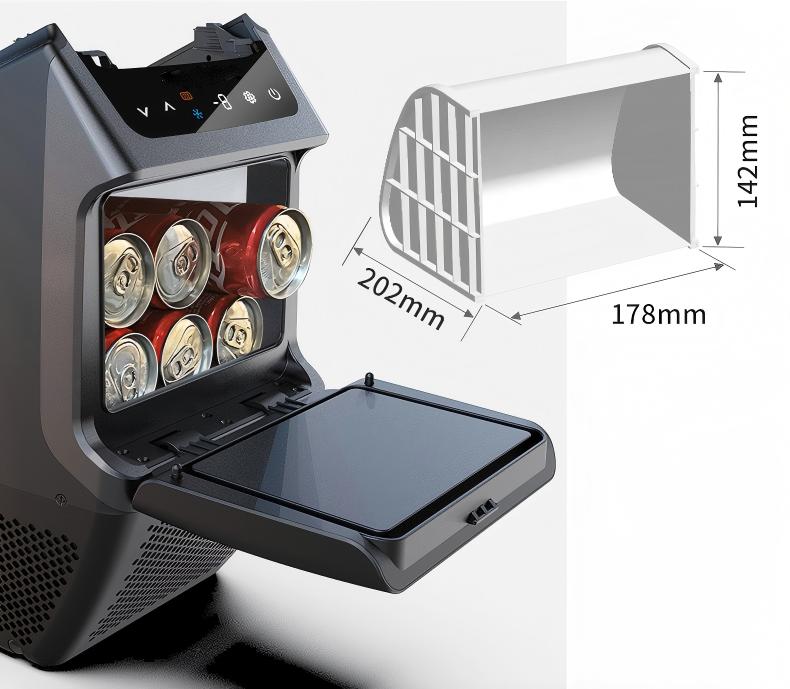

Beverage Positions
The compartment includes an organizer for beverages. Select containers that fit the available space and close the door before travel.
Trim and Harness Work
Installation involves removing rear console trim and connecting a Y-split harness behind the air outlet.
Compatibility
| Model | Years / Version | Notes |
|---|---|---|
| Model Y | 2020–2025 | Before Juniper; rear center-console outline with supplied harness connectors. |
For the pre-Juniper rear console layout. Not a universal Model Y refrigerator.

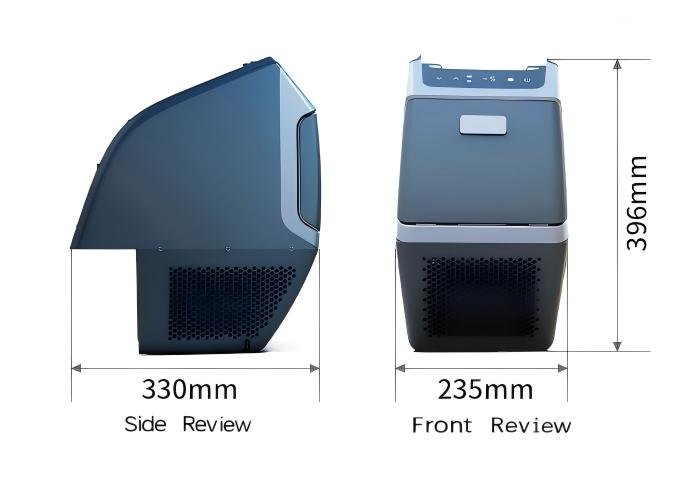

Specifications
| Product Type | Rear center-console refrigerator |
|---|---|
| Compatible Models | Model Y 2020–2025 before Juniper |
| Position / Location | Rear of front center console, below rear air outlet |
| Material | ABS housing |
| Installation Type | Rear console trim removal; clips and Y-split harness |
| Package Contents | 1 refrigerator; installation hardware/connectors, guide and user manual |
| Shipping Weight | 5.8 kg; not the net refrigerator weight |
| Cooling System | Compressor |
| SKU | TSL2306 |
What's in the Box
- 1×Rear center-console refrigerator
- Installation hardware and connectors
- Installation guide and user manual

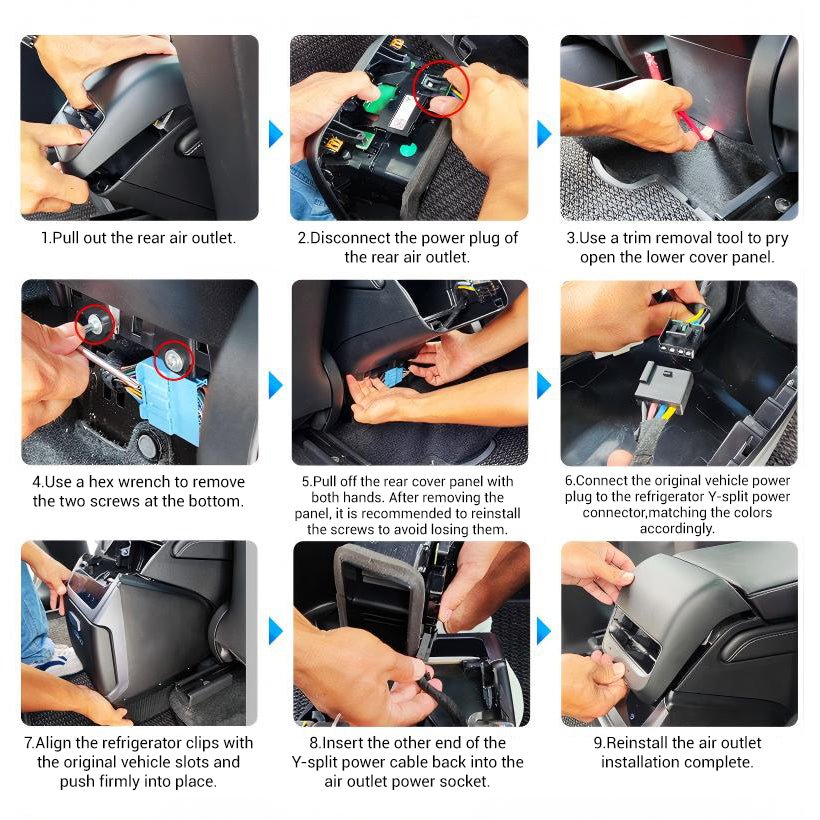

Installation
- Prepare the vehicle electrically as instructed; release the rear console trim without pulling connected wiring.
- Fit the Y-split harness, mount the refrigerator securely and reconnect the retained rear air outlet.
Good to Know
Caution
- Disconnect the rear vent electrical connector before pulling the assembly away.
- Parked operation depends on vehicle power behavior. The refrigerator draws power while running; it does not provide continuous parked cooling with zero battery use.
Care
- Clean the refrigerator interior with a damp cloth.
- Cool-down time for a loaded compartment varies.
FAQ
Is this fitted inside the rear seat armrest?
No. The refrigerator mounts at the rear of the front center console, below the rear air outlet.
Is the cooling time always 40 minutes?
Cool-down depends on ambient temperature, contents and power availability. Cool-down time for drinks or food varies.
Does installation involve vehicle wiring?
Yes. Rear console trim is removed and a Y-split harness is connected behind the air outlet.
Will it keep cooling while parked?
Operation depends on the vehicle power supply and settings. Running the refrigerator consumes energy; continuous parked cooling and zero battery drain are not claimed.
