Turn/Brake Lamp & Inner Tail Light Replacement with US Red & EU Amber Options for Tesla Model X (2016–2020)

Replacement Tail Lights for the 2016–2020 Model X

These LED outer turn/brake lamps and inner liftgate tail lights are offered for Model X 2016–2020, in US red-turn or EU/Global amber-turn specification, Left or Right, and by lamp type. Selecting both lamp types supplies one side, not a complete four-lamp kit.

LED
Model X 2016–2020
US Red / EU Amber
Left or Right

Key Features

Market-Specific Signals

Available in US red-turn or EU/Global amber-turn versions.
Body Or Liftgate

The turn/brake outer lamp fits the rear body; the inner tail light fits the liftgate.
One-Side Selection

Choose Left or Right, then one outer lamp, one inner lamp, or both lamps for that side.
Replacement LED Lamps

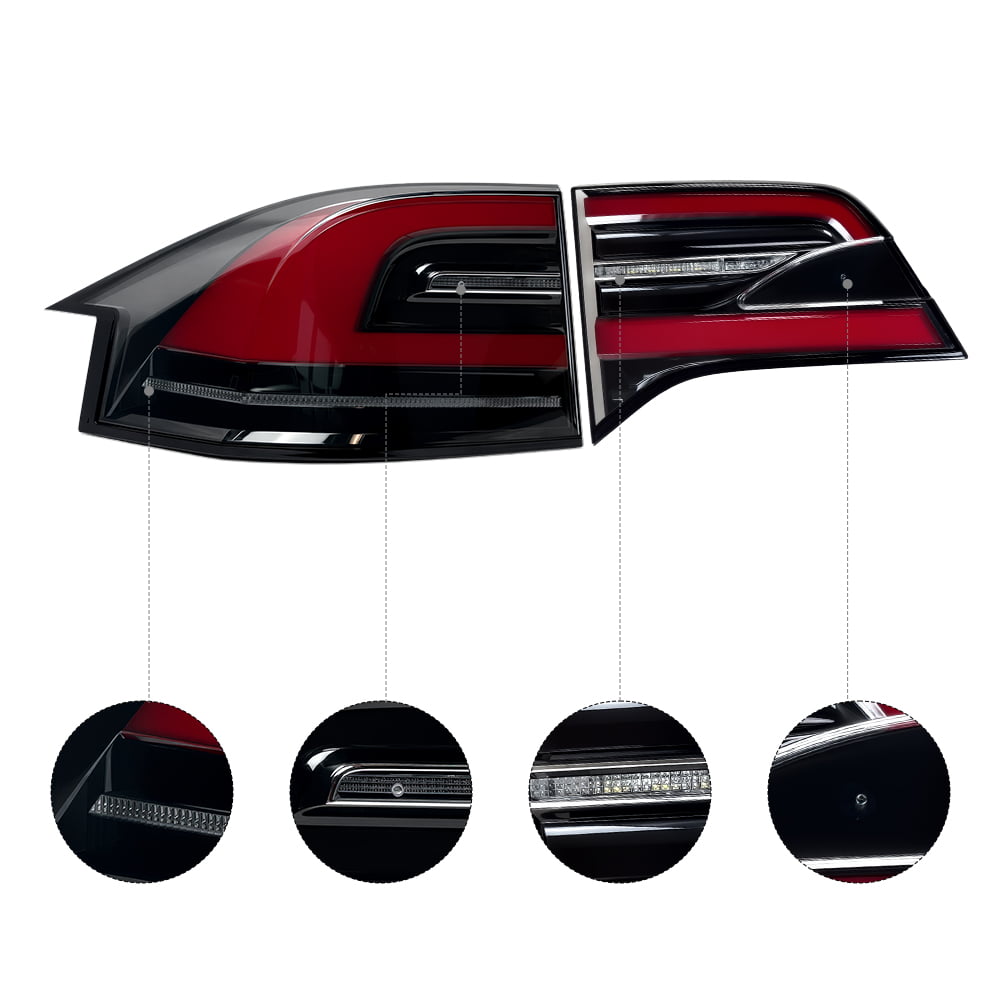

The housings follow the earlier Model X rear-light layout, with separate inner and outer sections.
Part Reference

Same mount and connector as the original lamp.
Vehicle-Harness Connection

The supplied connector plugs into the original harness.

Highlights

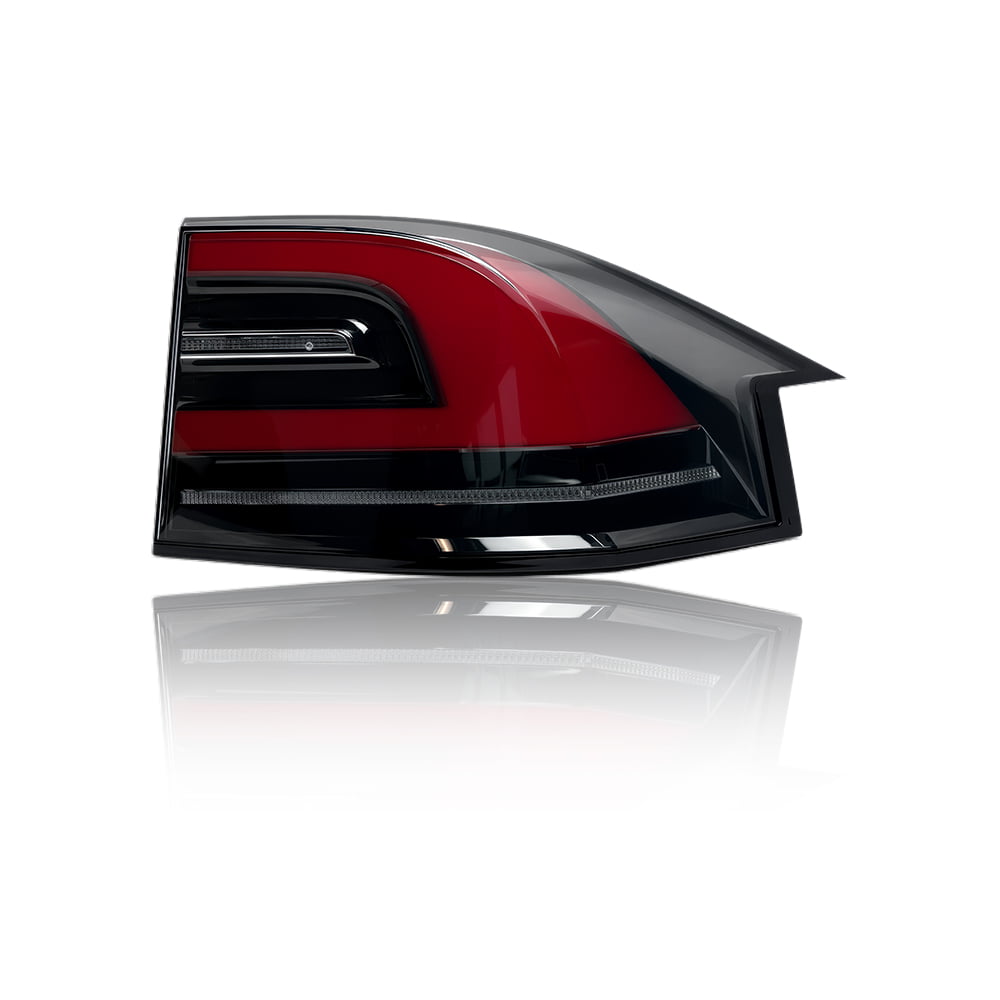

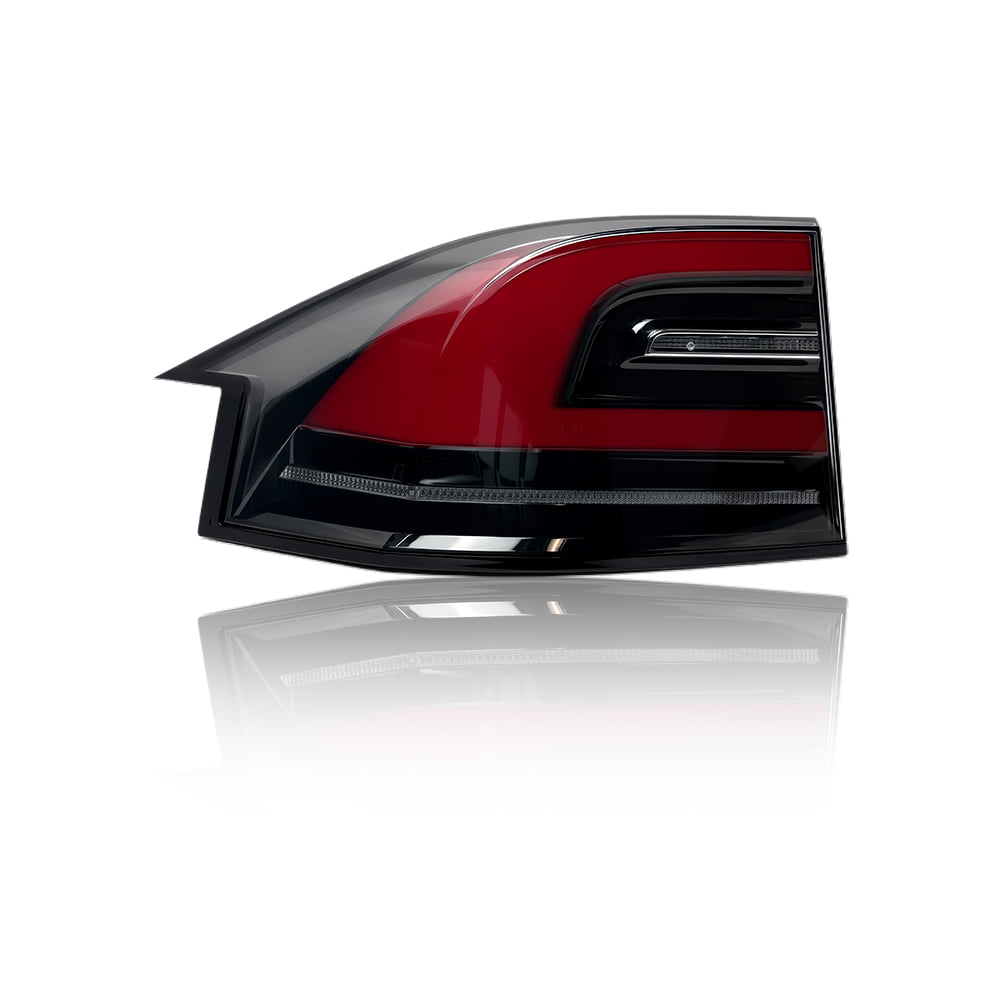

Outer Body-Mounted Lamp - TESVX Tail Light — Outer Body-Mounted Lamp

The outer turn/brake lamp follows the rear body-mounted section. The illustration shows the housing; color and brightness can differ from an aged original lamp.

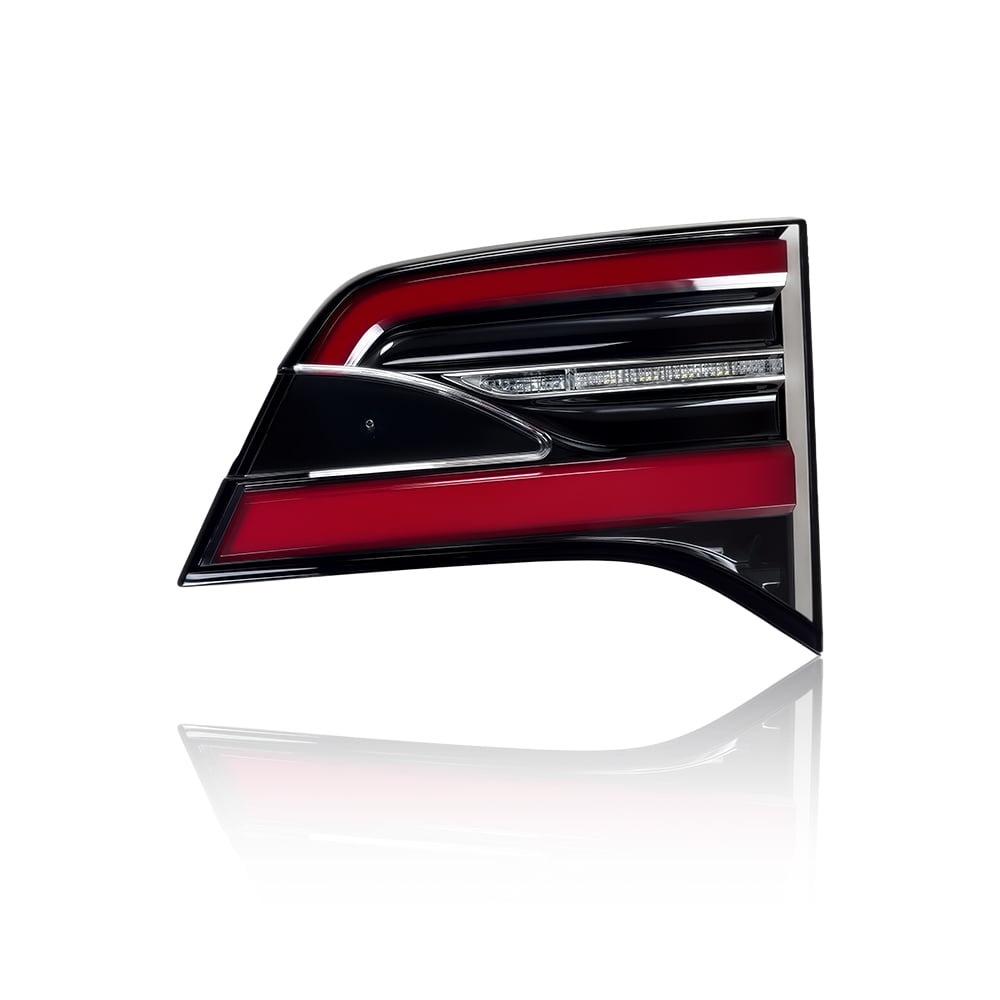

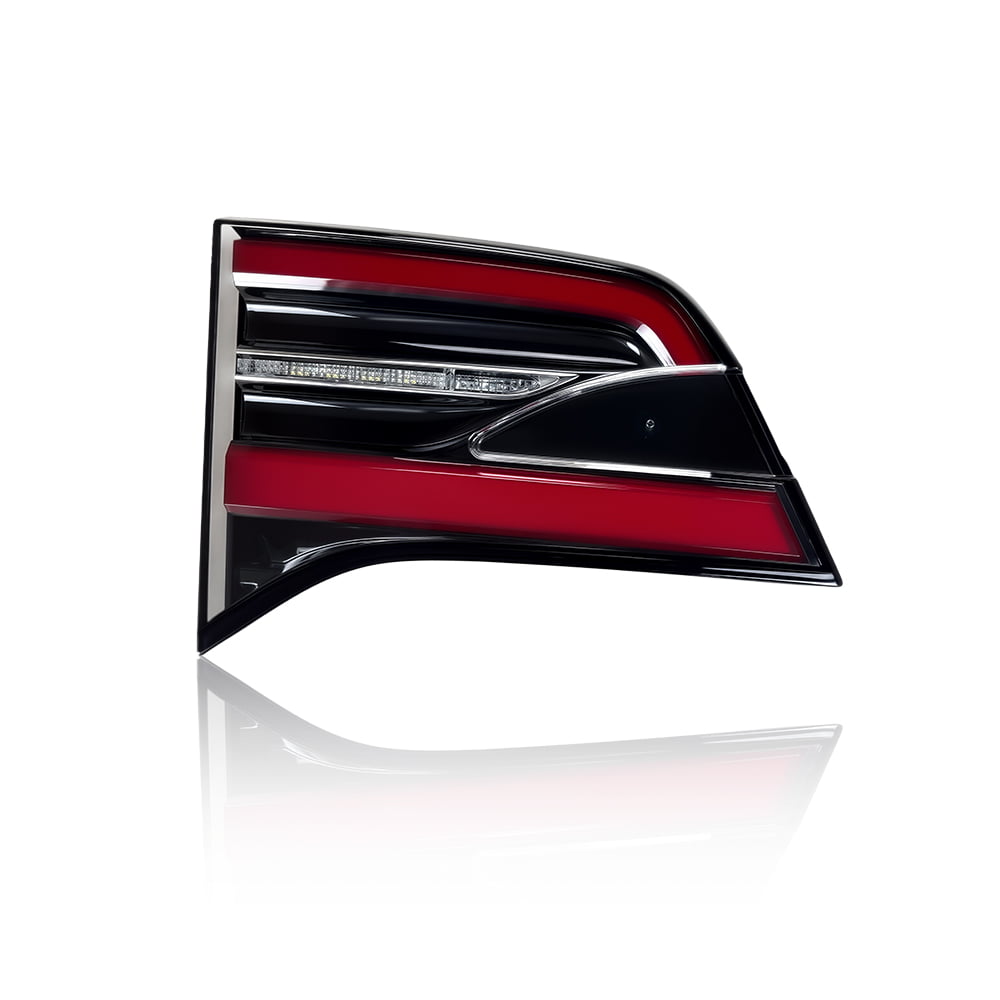

Inner Liftgate-Mounted Lamp - TESVX Tail Light — Inner Liftgate-Mounted Lamp

The inner tail light forms the liftgate section of the rear-light layout. Match its original label, connector and required market functions; choosing the same-looking housing alone does not establish compatibility.

Choose One Side and Lamp Type

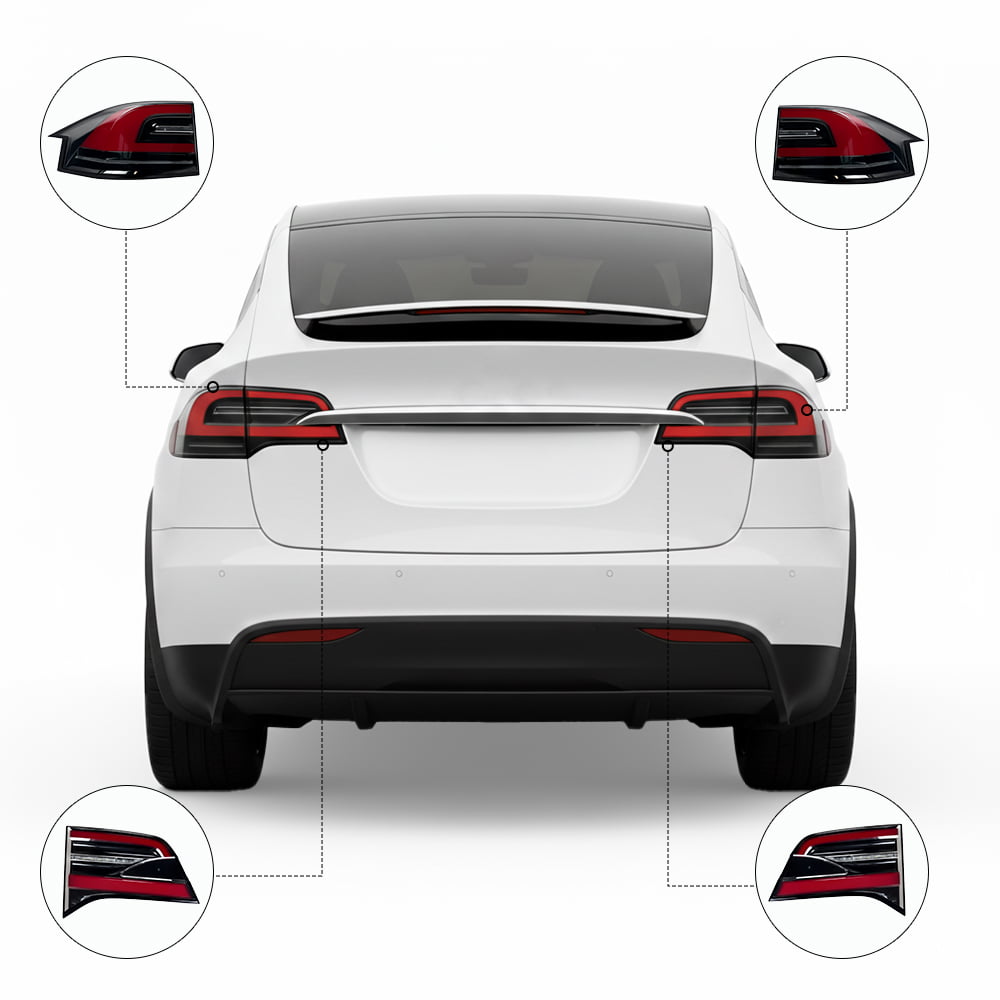

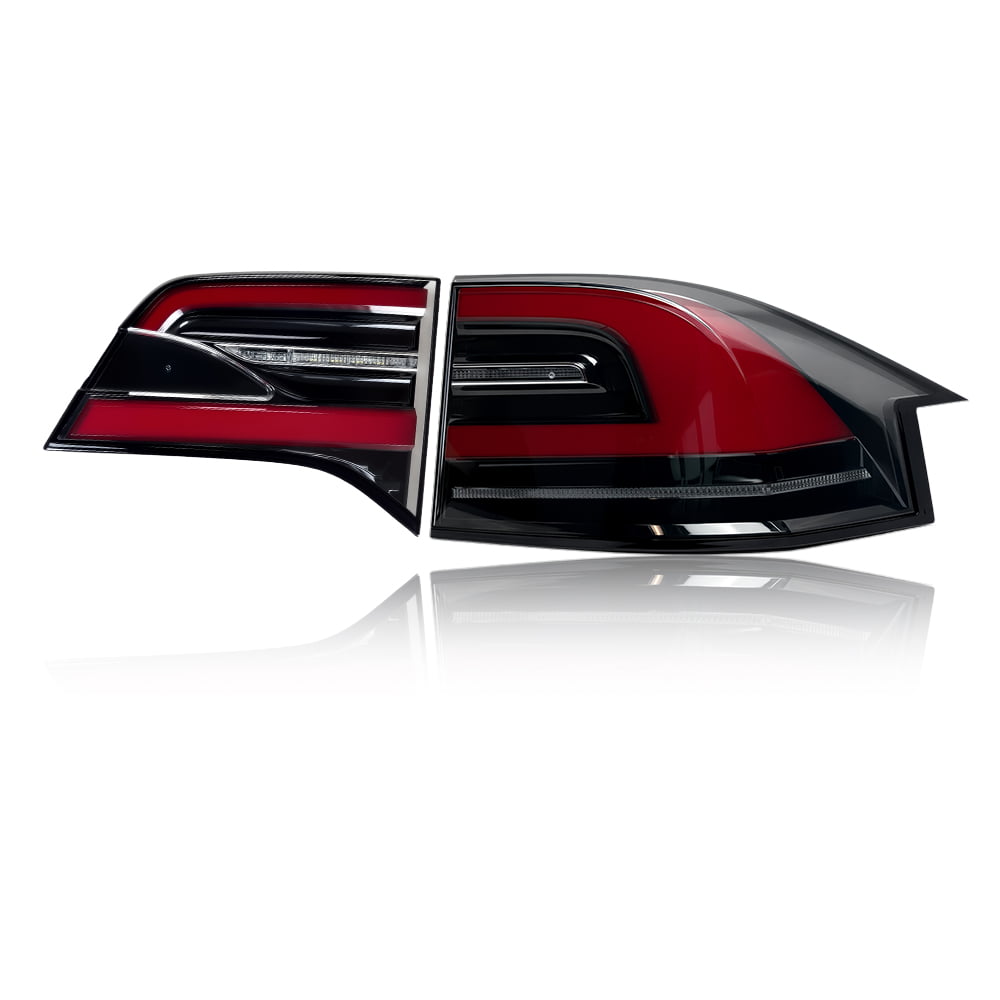

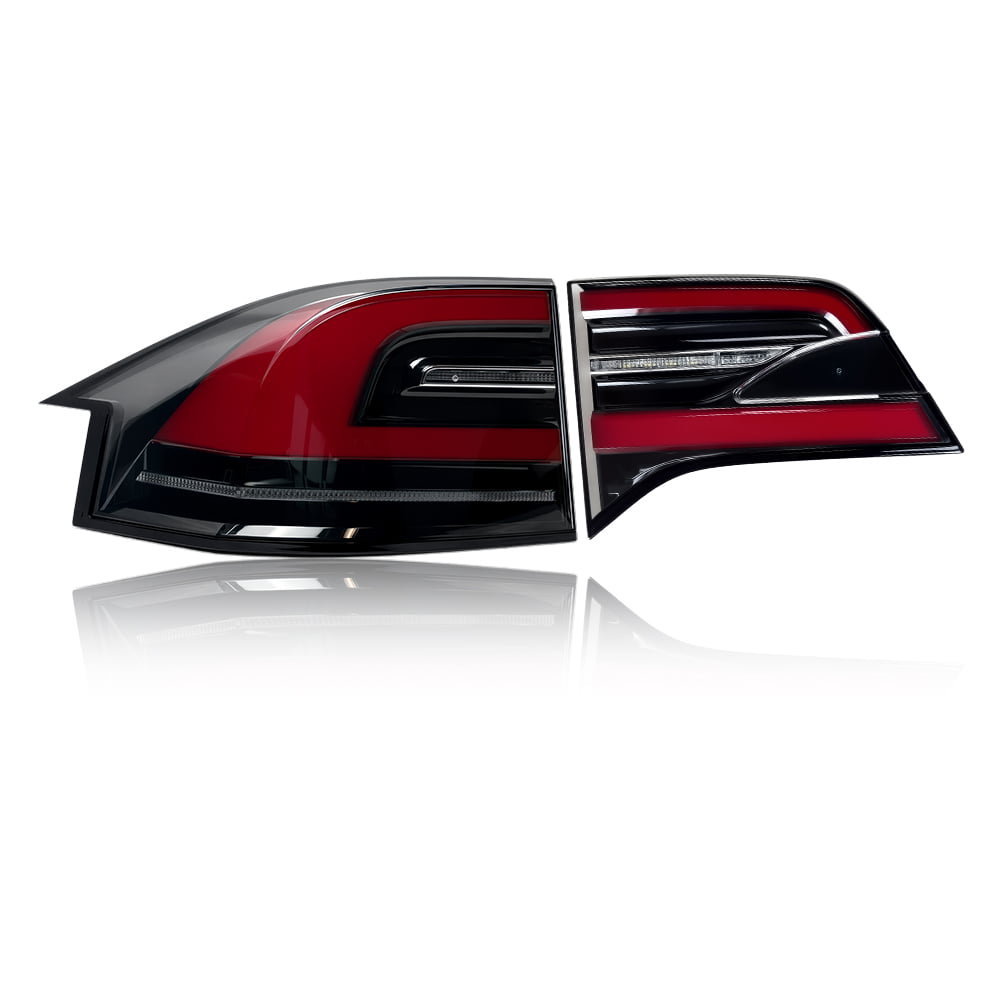

Order an outer lamp, an inner lamp, or an outer-plus-inner combination for Left or Right. Whole-car and combined-light photos illustrate locations; they do not mean every selection includes all four lamps.

Match Market Functions

US choices specify a red turn signal; EU/Global choices specify amber. Use the original vehicle lighting specification and actual lamp reference, not the country name alone, when selecting the replacement.

Compatibility

Model	Years / Version	Notes
Model X	2016–2020	US red or EU & Global amber turn signal

Fits the Model X 2016–2020 rear-light layout. Inner-lamp references are separate from the outer turn-signal selection.

Specifications

Product Type	LED turn brake lamp and inner tail light replacement
Compatible Models	Model X 2016–2020
Position / Location	Rear, left or right; inner light mounts on the liftgate
Color	Red turn signal (US spec) or amber turn signal (EU & Global spec)
Connector Type	Vehicle-harness connection; original plug
Light Source	LED
Part Number	Replacement references — US: outer L 1034341-00-E, R 1034342-00-E; inner L 1034343-00-E, R 1034344-00-E. EU/APAC: outer L 1034346-00-E, R 1034347-00-E; inner L 1034348-00-E, R 1034349-00-E.

What's in the Box

Turn Brake Lamp option: 1 x turn brake lamp for the selected side
Inner Tail Light option: 1 x inner tail light for the selected side
Turn Brake Lamp & Inner Tail Light option: both lights for the selected side

Installation

Difficulty: Advanced

Good to Know

Caution

Support the lamp, release the connector properly and restore seals and fasteners; do not cut or splice the harness.
For a left outer-lamp replacement, refit the original charge-port door and motor assembly where attached.
This replacement does not diagnose the cause of water ingress or guarantee that condensation will never recur. Investigate persistent moisture and damaged vehicle seals or wiring rather than assuming a new housing resolves every fault.
Select the market-specific version that matches the vehicle and applicable lighting requirements; a listed reference number is not proof of genuine Tesla manufacture or regulatory approval.
