Forged 20-Inch Wheels for Model 3 and Highland
These fully forged 20-inch wheels are designed specifically for Tesla Model 3 (2017–2023) and Model 3 Highland (2024+). The 20 x 9.5J ET35 5 x 114.3 spec delivers a wide, performance-focused stance, with clearance for factory Performance brake calipers and the 70.1 mm Performance hub step. The wheels use fully forged 6061-T6 aluminum, with an 850 kg load rating per wheel.
- Fully Forged 6061-T6
- 20 x 9.5J ET35
- 850 kg Load Rating
- Performance Brake Clearance
- 4 Finishes
Key Features
-
Fully Forged 6061-T6
The wheels use fully forged 6061-T6 aluminum construction
-
850 kg Load Rating
Each wheel is rated to carry up to 850 kg
-
Performance Brake Clearance
Compatible with factory Model 3 Performance and Highland Performance brake calipers
-
Hub-Step Clearance
Machined to clear the 70.1 mm Performance hub step
-
OEM-Style Seat
A 64.1 mm center bore and 60-degree conical lug seat suit the factory hub
-
Wide Balanced Stance
The 20 x 9.5J ET35 spec gives a planted look without different front and rear sizes
-
Tire Size Guide
265/30R20 is preferred, with 255/30R20 and 245/35R20 as alternatives
-
Four Finish Options

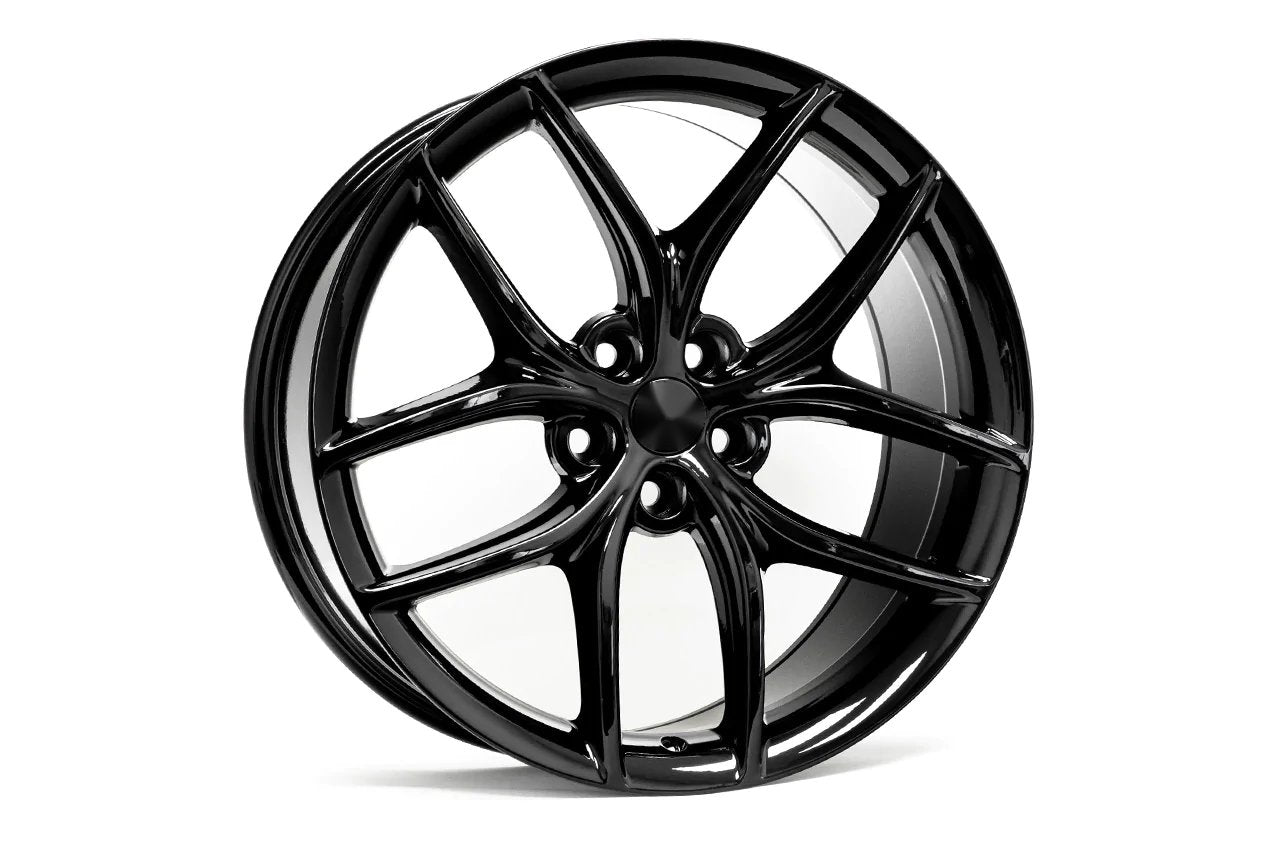

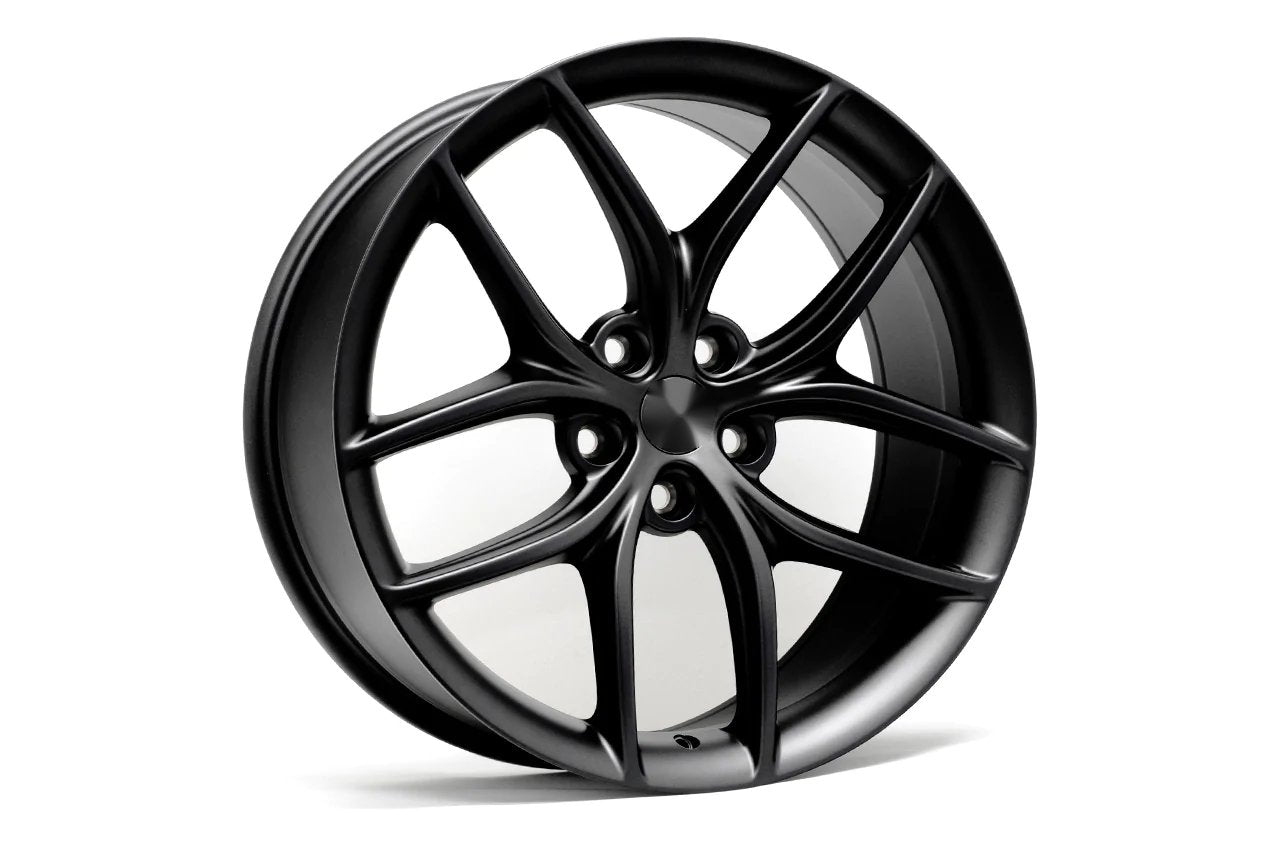

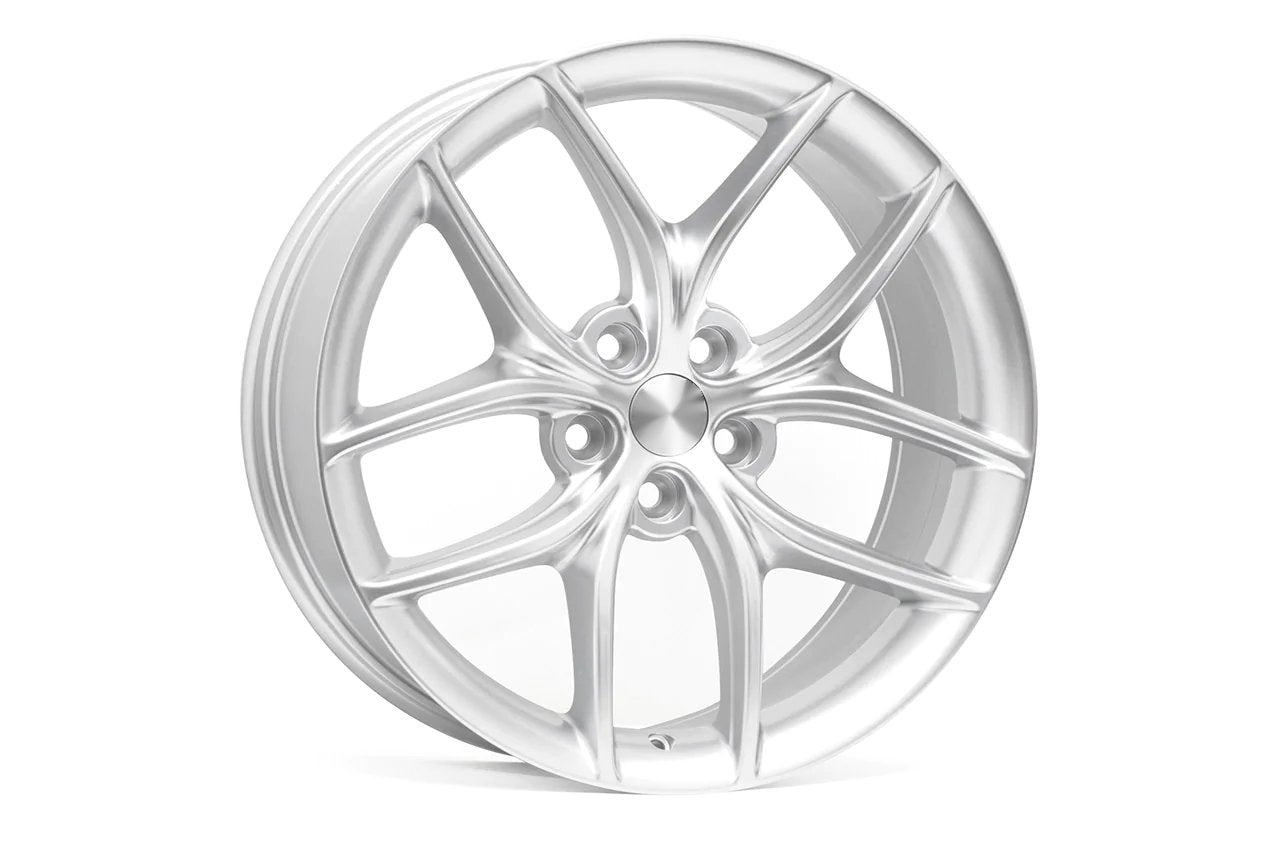

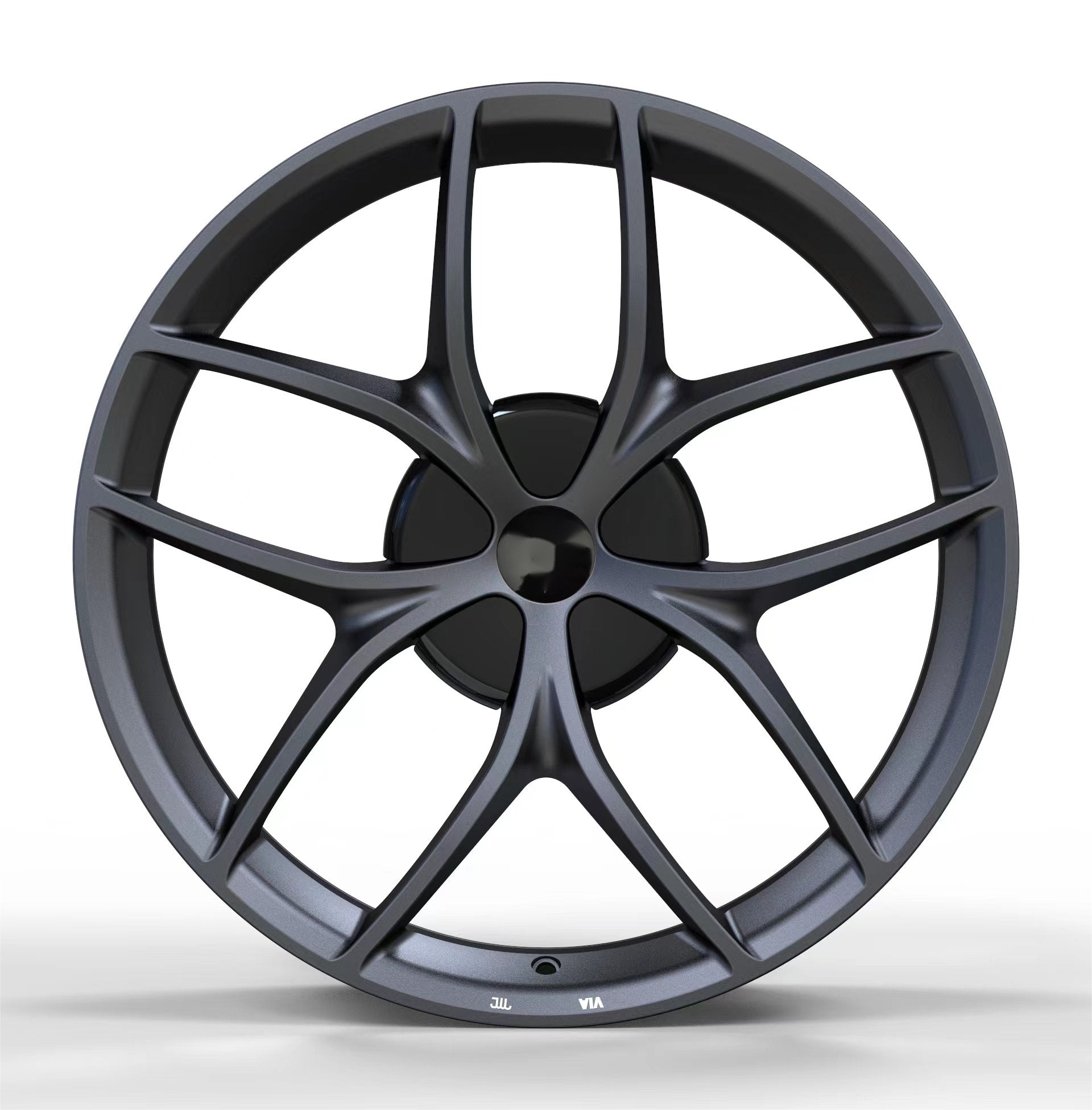

Choose Satin Gray, Gloss Black, Satin Black or customized Cyber Silver
Highlights

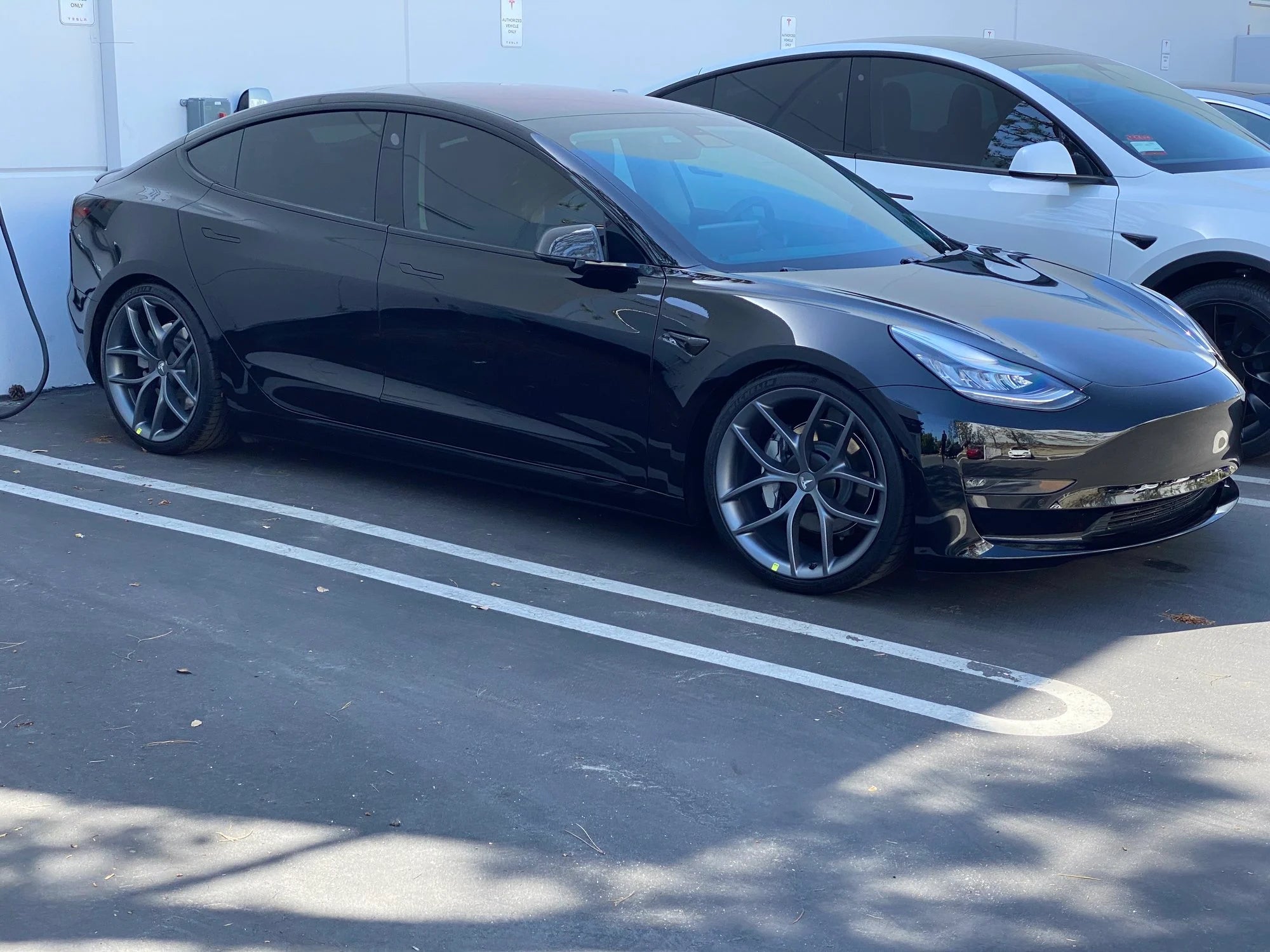

One Size for Listed Model 3 Versions
A single 20 x 9.5J ET35 specification fits Model 3 (2017–2023) and Model 3 Highland (2024+), from RWD and Standard Range to Long Range AWD and Performance. The same size goes on the front and the rear, so no staggered set is needed.

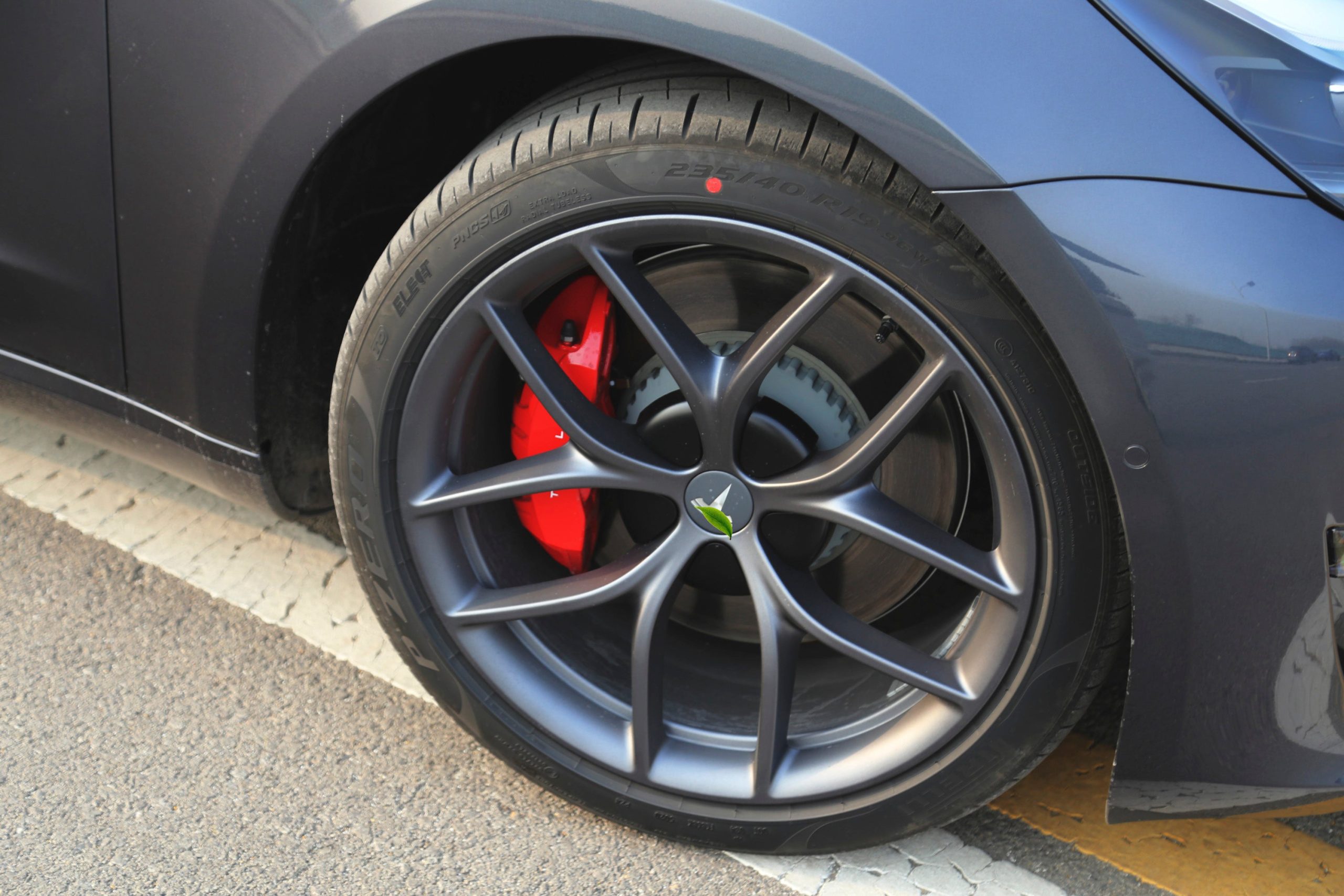

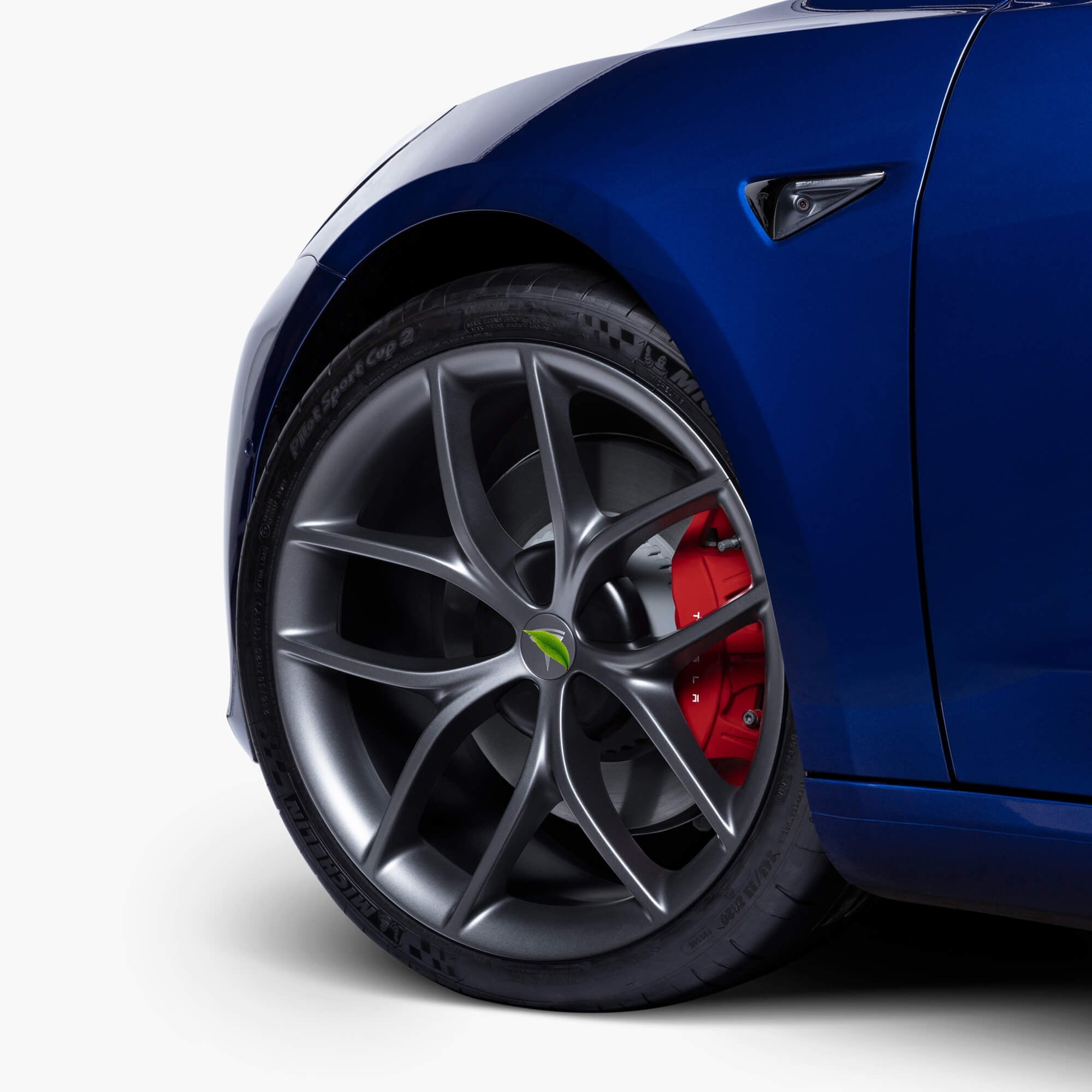

Performance Brake and Hub-Step Clearance
The wheel is machined to clear the 70.1 mm Performance hub step and is compatible with factory Model 3 Performance and Highland Performance brake calipers.

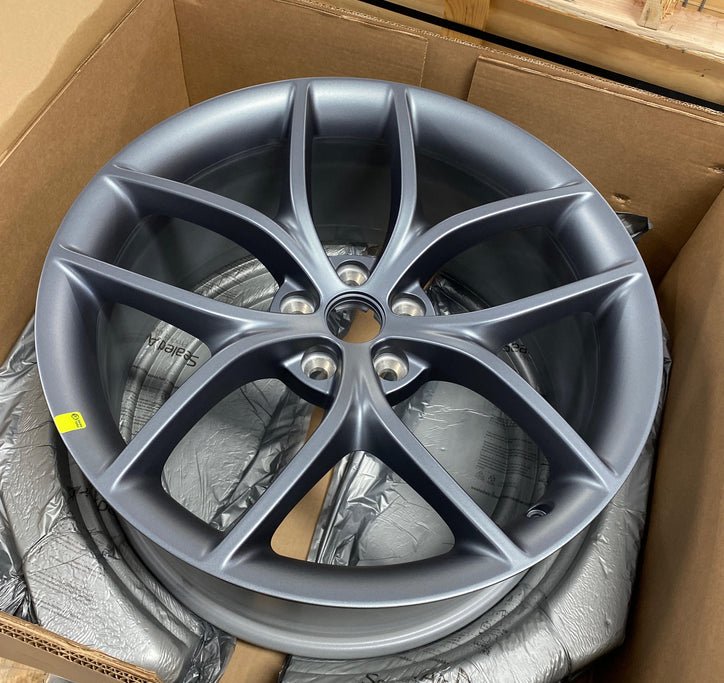

Fully Forged Aluminum Construction
The wheels are made from fully forged 6061-T6 aluminum, with an approximate weight of 13 kg per wheel and an 850 kg per-wheel load rating. Weight can vary with finish.

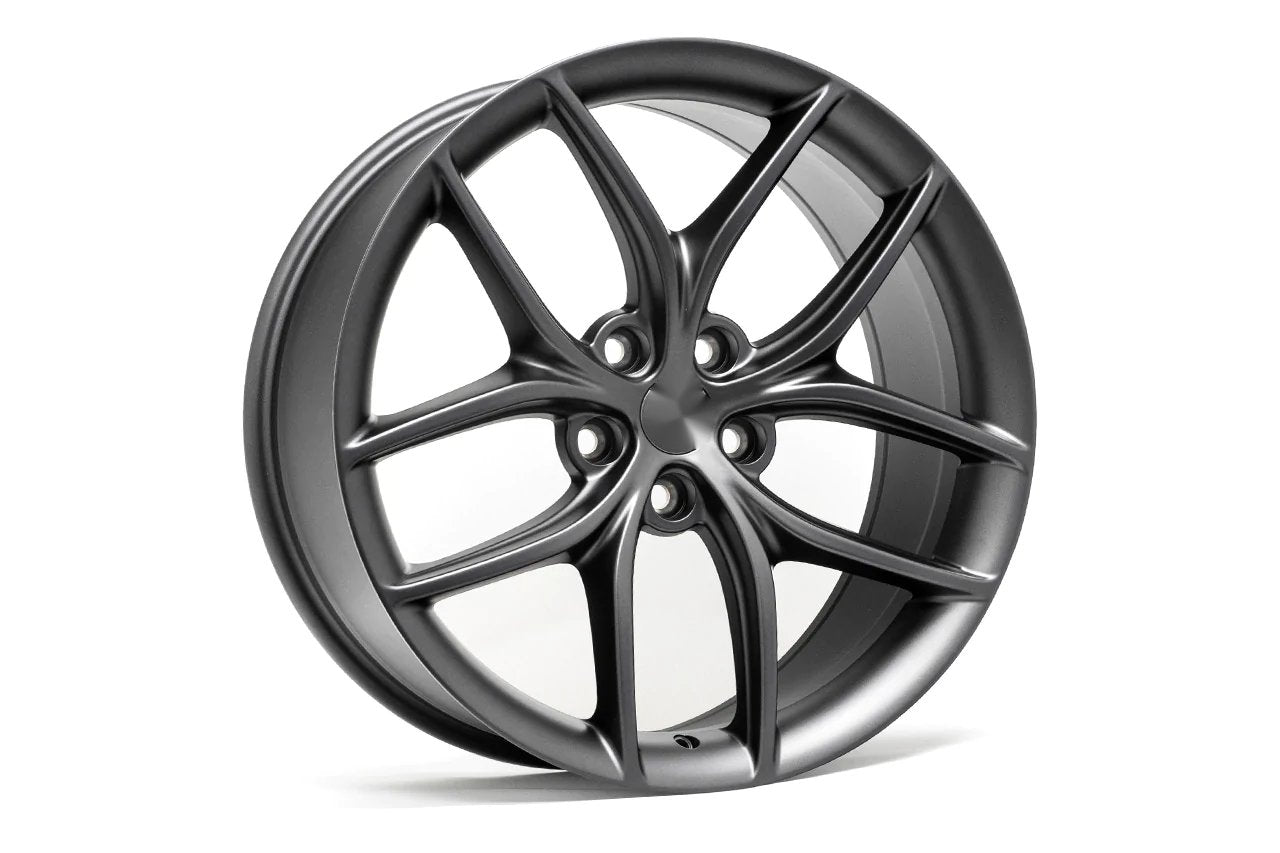

OEM-Style Fit with Tire Guidance
A 64.1 mm center bore and 60-degree conical lug seat give an OEM-style installation. Tire sizes are 265/30R20 for a wider contact patch, with 255/30R20 and 245/35R20 as alternatives.
Compatibility
| Model | Years / Version | Notes |
|---|---|---|
| Model 3 | 2017–2023 | RWD, Standard Range, Standard Range Plus, Mid Range, Long Range RWD/AWD, Performance |
| Model 3 Highland | 2024+ | RWD, Long Range RWD, Long Range AWD, Performance |
For factory suspension height or OEM+ ride height with factory brakes. Not for Model Y, Model Y Juniper, Model Y L, Model S, Model X, Cybertruck, Roadster, non-factory big-brake kits or non-factory caliper covers.
Specifications
| Product Type | 20-inch fully forged wheel |
|---|---|
| Compatible Models | Model 3 (2017–2023) and Model 3 Highland (2024+), including Performance |
| Material | Fully forged 6061-T6 aluminum |
| Surface Finish | Satin Gray, Gloss Black, Satin Black, Cyber Silver (customized) |
| Weight | Approx. 13 kg per wheel (28.7 lb) |
| Wheel Size | 20 in (20 x 9.5J) |
| Wheel Width | 9.5J |
| PCD (Bolt Pattern) | 5 x 114.3 |
| Offset (ET) | ET35 |
| Center Bore | 64.1 mm (2.52 in) |
| Load Rating | 850 kg per wheel (1,874 lb) |
| Lug-Seat Type | 60° conical seat; lug-hole dimensions 15 x 34 mm |
| Tire Size | 265/30R20 preferred; 255/30R20 or 245/35R20 alternatives |
Installation
- Select tires that meet the vehicle's required load and speed ratings.
- Use the same tire size on all four wheels.
Good to Know
Caution
- Not for Model Y, Model Y Juniper, Model Y L, Model S, Model X, Cybertruck or Roadster.
- Not compatible with non-factory big-brake kits or non-factory brake-caliper covers.
- Select tires with a load index and speed rating that meet or exceed the vehicle's Tire and Loading Information label.
- Use the same tire size on all four wheels.
Care
- Wheel weight may vary slightly according to finish and manufacturing tolerance.
FAQ
Do these wheels fit the Model 3 Performance?
Yes. They are compatible with factory Model 3 Performance and Highland Performance brake calipers and are machined to clear the 70.1 mm Performance hub step.
Do they fit Model Y?
No. These wheels are not designed for Model Y, Model Y Juniper, Model Y L, Model S, Model X, Cybertruck or Roadster.
What tire size should I use?
265/30R20 is preferred for a wider contact patch at factory or OEM+ ride height. 255/30R20 and 245/35R20 are alternatives, and tires must meet the vehicle's load index and speed rating.
Can I use them on a lowered car?
The wheels are specified for factory suspension height or OEM+ ride height, without wheel spacers or wide-body components.
What is the load rating?
Each wheel is rated to carry up to 850 kg.
