One Mini Power Cable With Three Alternative Inputs
This cable has car-socket, USB-C PD and DC input branches with a barrel output for the listed Starlink Mini interface. Choose one compatible power source at a time. Car input is listed for 12–24V DC; USB-C requires a port supplying 100W or more at 20V/5A. The current purchase options are 3 m and 5 m, and the cable uses 18AWG copper conductors.
- Starlink Mini
- One Input At A Time
- 20V/5A USB-C PD
- 3 m Or 5 m
Características principales
-

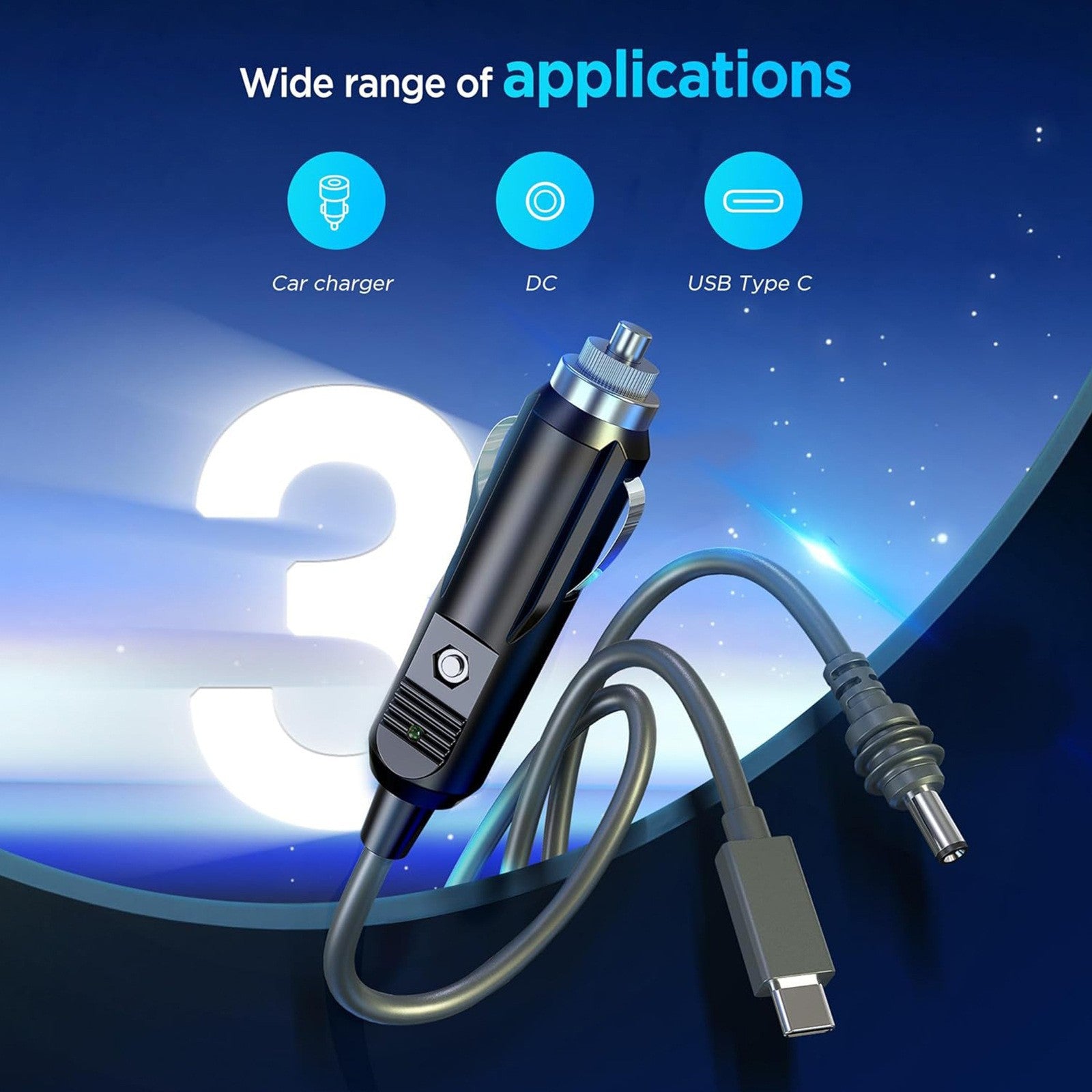

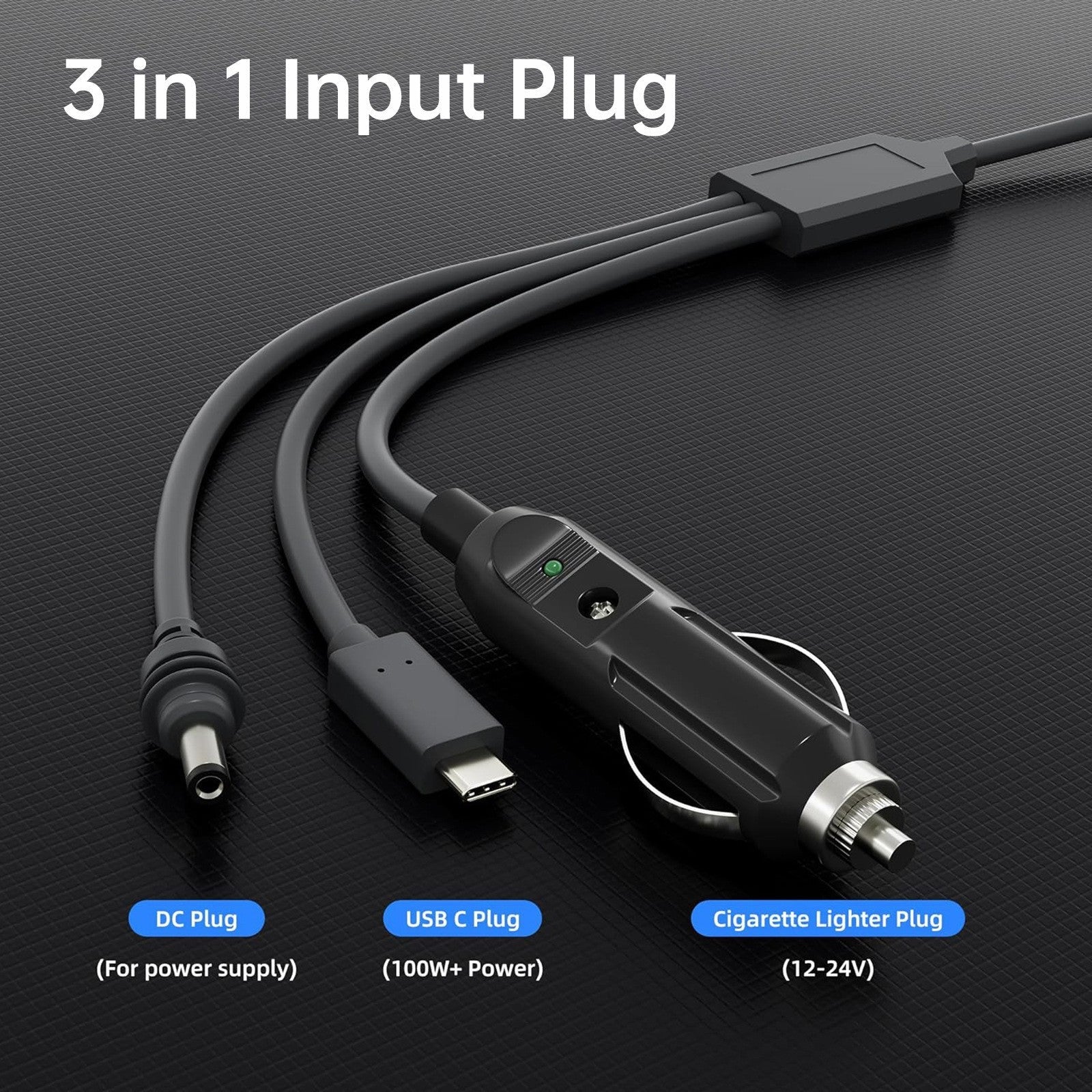

Alternative Inputs
Choose one car, USB-C PD or compatible DC source at a time
-
Car Socket Input
The listed vehicle input is 12–24V DC
-
USB-C PD Input
The source must supply 100W or more at 20V/5A for this cable
-

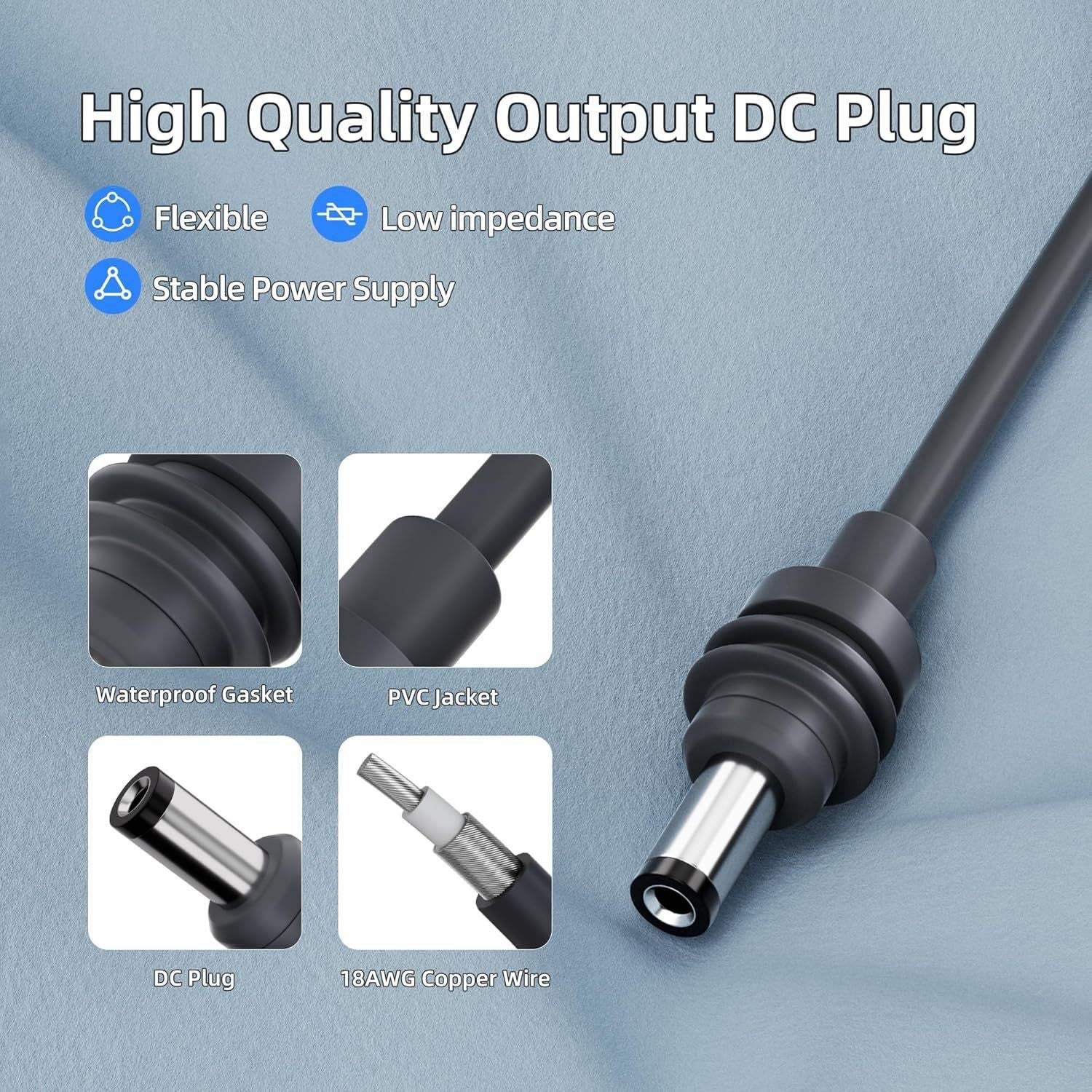

Mini Barrel Output
The DC output plug is intended for the Starlink Mini interface
-
Conductores de cobre
The cable uses 18AWG copper wire
-
Two Length Options
Current purchase options are 3 m (10 ft) and 5 m (16.4 ft)
Aspectos destacados

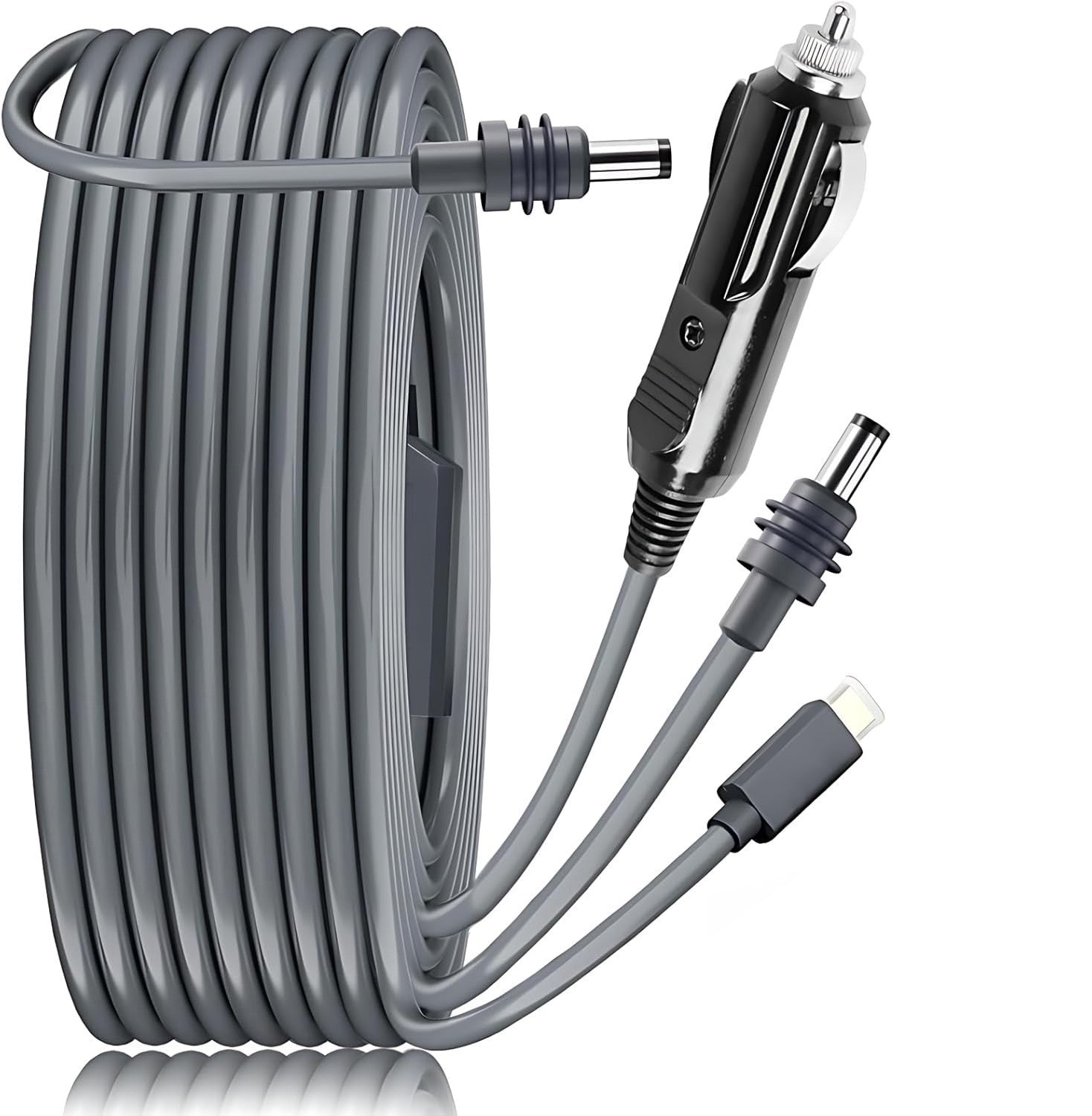

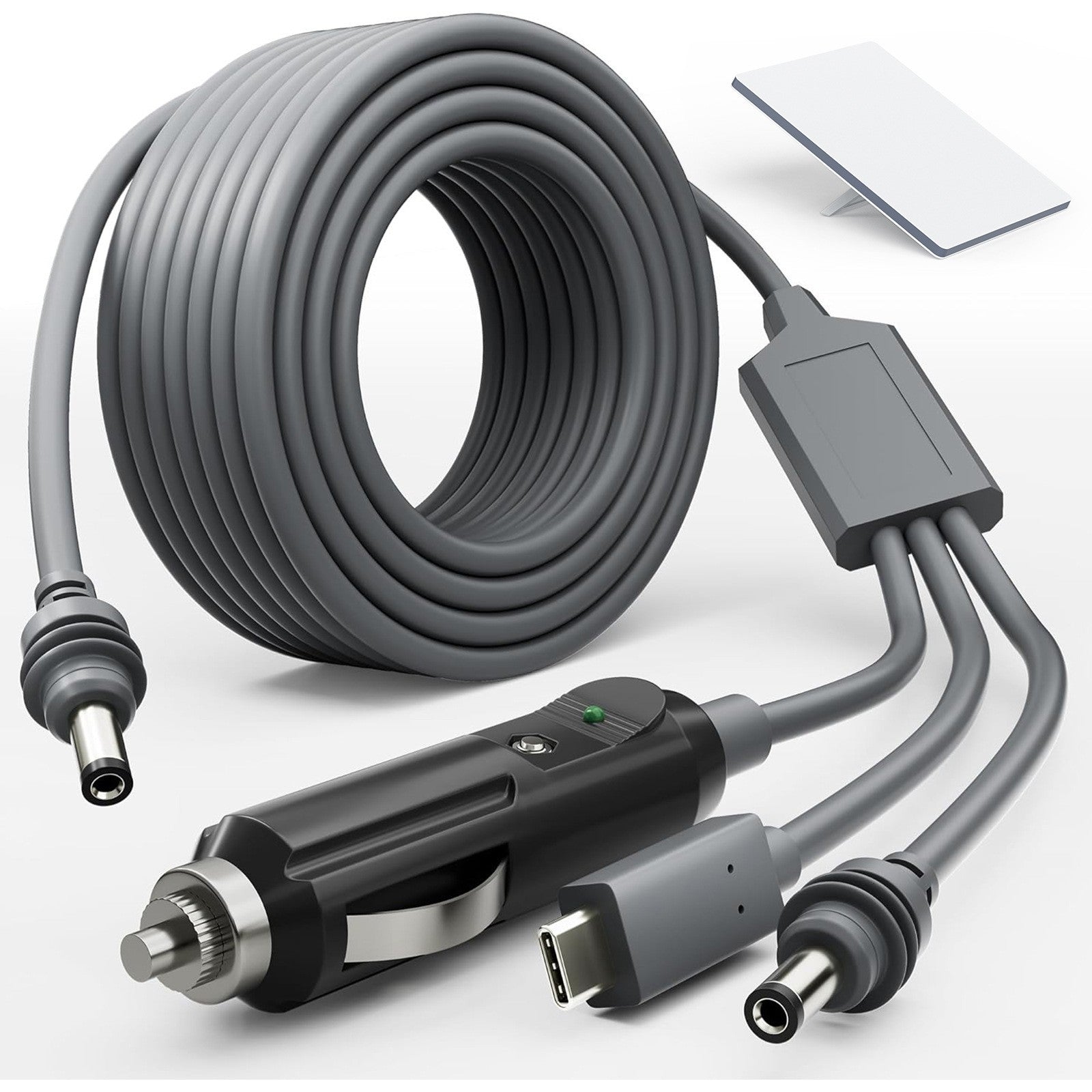

Cable And Mini Output
The cable combines three alternative input branches with one Mini-specific barrel output.
Choose A Compatible Input
Use the car branch with a suitable 12–24V socket, the USB-C branch with 100W+ 20V/5A PD output, or a compatible DC source. Do not connect multiple sources at once.
USB-C Power Requirements
The USB-C port must supply 100W or more at 20V/5A PD. A power bank capacity or shared total wattage does not guarantee the required 20V/5A supply.
Length And Cable Routing
Choose the 3 m or 5 m option and route the cable clear of doors, seat rails, sharp edges and moving parts. Support connectors without pulling on the cable.

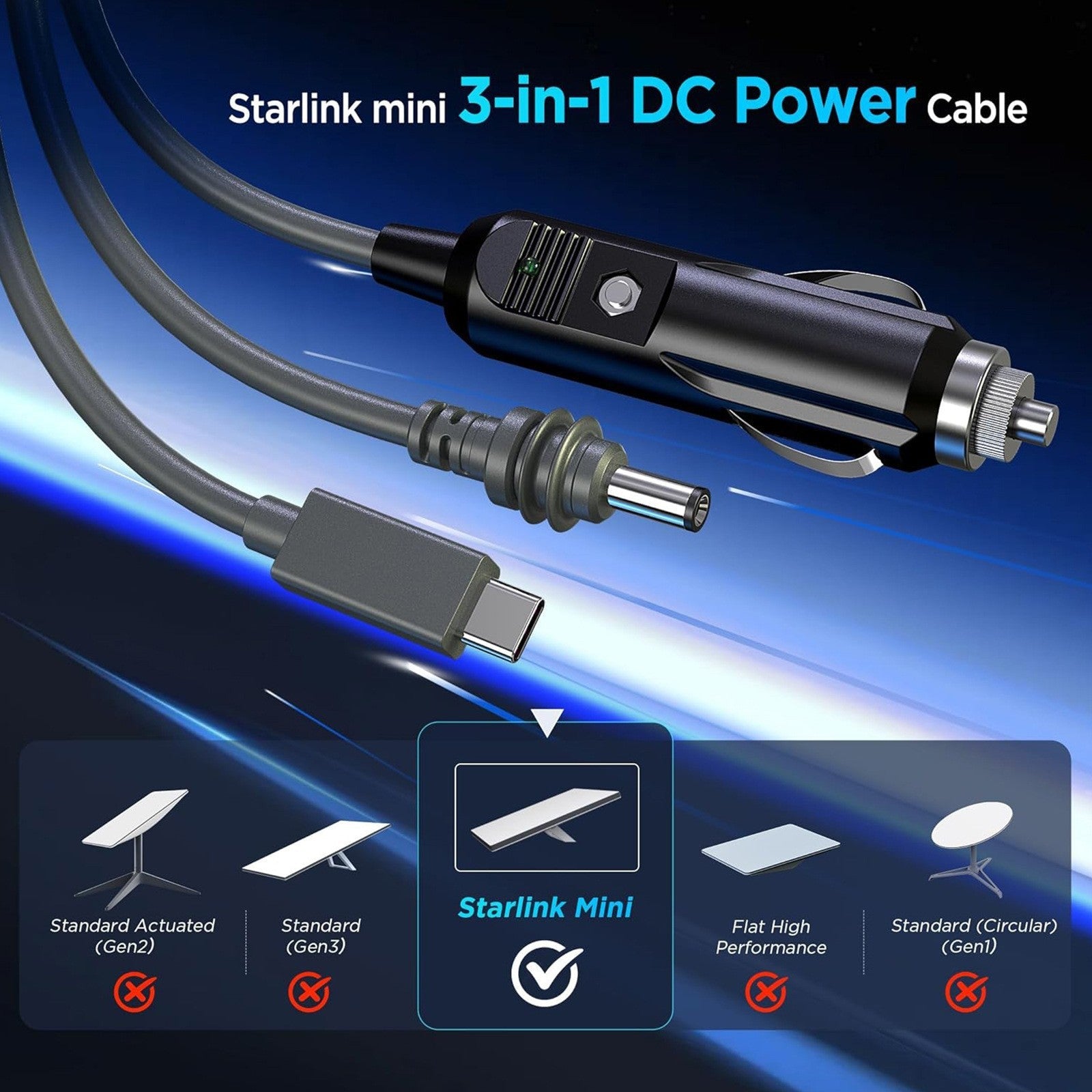

Compatibilidad
| Modelo | Years / Version | Notas |
|---|---|---|
| Starlink Mini | Not for Gen 1, Gen 2, Gen 3 or Flat High Performance |
For the listed Starlink Mini interface only; not Standard Circular Gen 1, Standard Actuated Gen 2, Standard Gen 3 or Flat High Performance. The current options are 3 m and 5 m. Other lengths mentioned elsewhere are not purchase options here.
Especificaciones
| Tipo de producto | 3-in-1 power cable: car, USB-C PD and DC input |
|---|---|
| Compatible Models | Starlink Mini only; not compatible with Gen 1, Gen 2, Gen 3 or Flat High Performance |
| Material | 18AWG copper wire |
| Entrada | Car 12–24V DC; USB-C PD 100W+, 20V/5A; compatible DC source; one input at a time |
| Salida | DC barrel plug for the listed Starlink Mini interface |

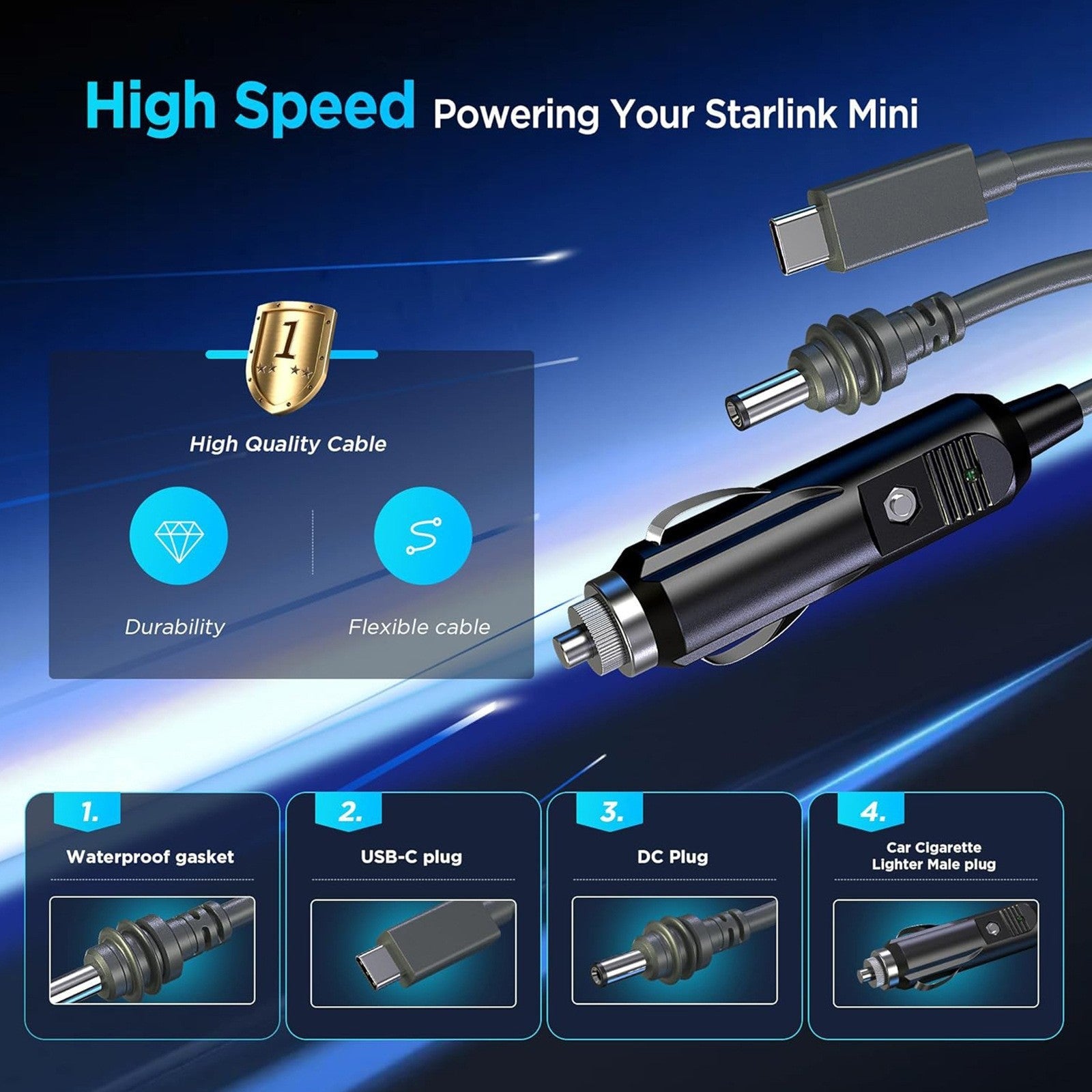

| Connector Type | Gasketed DC output plug; car, USB-C and DC input branches |
| Longitud del cable | 3 m (10 ft) / 5 m (16.4 ft) |
| Temperatura de funcionamiento | -20°C to 50°C (-4°F to 122°F) |
| Contenido del paquete | 3-in-1 power cable (length as selected), user manual |
| Peso del envío | 500 g (1.1 lb) |
What's in the Box
- 1×3-in-1 power cable for Starlink Mini (length as selected)
- 1×Manual de usuario
Instalación
- Choose one source with the required voltage, polarity and power. Keep the other two inputs disconnected.
- With the source disconnected from power, route the cable without pinching and seat the Mini barrel output.
- Connect only the chosen car, USB-C PD or compatible DC input, then switch on the source.
- Inspect connectors for looseness or excessive heat. Disconnect the power source before changing input or handling a damaged connection.
Conviene saber
Precaución
- Use one power input at a time. Do not connect multiple input branches to power sources simultaneously; leave unused inputs disconnected and protected.
- For USB-C, the specific port must provide 100W or more at 20V/5A; total power-bank capacity or combined port power is not enough.
- Car input is listed for 12–24V DC. A general vehicle or battery label does not establish compatibility.
- The cable does not correct an incompatible supply voltage or guarantee uninterrupted service. Stop use if connectors become excessively hot, damaged or loose.

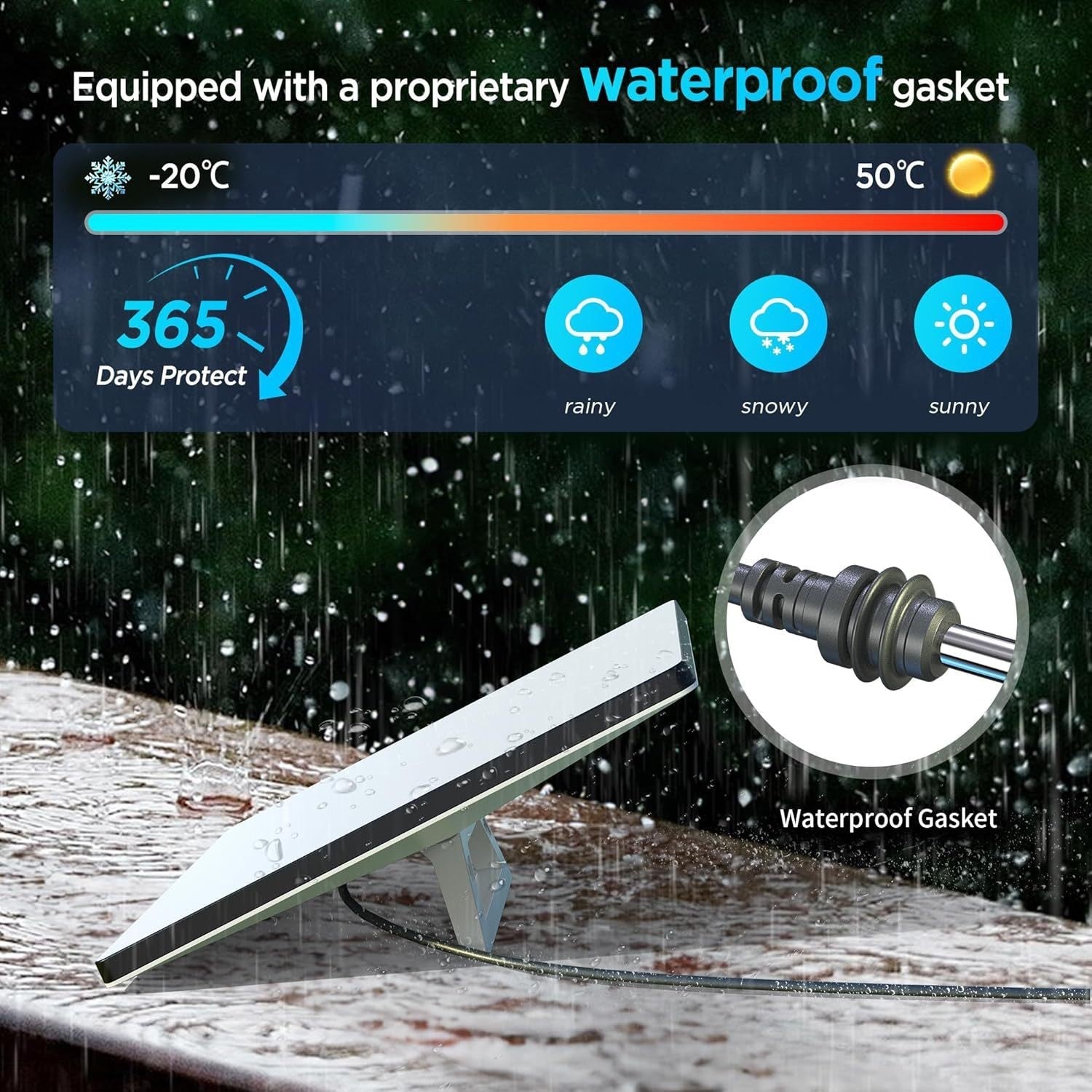

- The gasket does not establish a waterproof rating for the full assembly. Keep power sources and unused connectors dry, avoid immersion and protect the cable from sharp edges and moving parts.
Cuidado
- Keep contacts clean and dry, and store without tight kinks.
Preguntas frecuentes
Can I connect more than one input at once?
No. Select one compatible source at a time and keep unused branches disconnected.
What does the USB-C source need to provide?
The exact port must provide 100W or more at 20V/5A USB-C PD.
Can any DC battery or car socket be used?
No. The car input is listed for 12–24V; the DC source must meet the actual cable and Mini requirements.
Is the whole assembly waterproof?
No full-assembly waterproof rating is established here. The output has a gasket, but sources and unused connectors must be kept dry and the cable must not be immersed.
Which lengths and items are included?
Choose 3 m or 5 m. The package contains one selected-length power cable and one user manual; a power source and Starlink Mini are separate.
